Overview

The 5185 is a versatile fixed wrist bar saw head. It effectively fells and controls oversized timber and can perform other duties in-stand such as topping, removing large limbs and shovel logging. The 5185 is a great asset when felling and handling oversize trees and high value hardwood.

Key Benefits

  • Heavy duty reinforced chassis and arms
  • Superior control for high value trees
  • Durable and simple Tigercat saw unit
  • Easily serviced with quick bar and chain changes
  • Grapple-type arm design for maximum control
  • Excellent performance in selective felling and shovel logging applications
  • Spring-mounted saw unit to resist bent bars

Videos

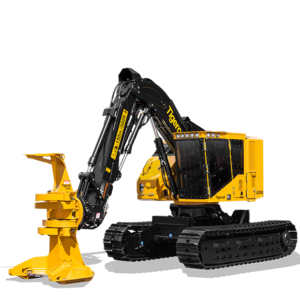

5185 fixed felling saw on LX830C feller buncher
L855C feller buncher video with 5185 fixed felling saw

Downloads

See below related files that you can download.

News & Articles

Related Articles

  • BTB 30: IN THE THICK OF IT

    Jimmy Glotfelty wrestles with giants as he tiptoes through West Virginia’s natural mixed hardwood forests.

Photos

SPECIFICATIONS

Show measurements as:
Metric
Imperial

Dimensions

WIDTH arms open (metric)1 860 mm
HEIGHT track carriers (metric)1 830 mm
HEIGHT wheel carriers (metric)2 110 mm
DEPTH arms open (metric)2 010 mm
BASE WEIGHT (metric)1 950 kg
BASE WEIGHT with 340˚ wrist for track carriers (metric)2 790 kg

Wrist Options

340˚ WRIST3-motor drive, high torque

Grapple Arms

MAXIMUM OPENING (metric)1 300 mm
MINIMUM CLOSED DIAMETER (metric)100 mm
GRAPPLE CAPACITY (metric)0,49 m²

Hydraulic Cylinders

GRAPPLE ARMS(2) 95 mm (3.75 in) bore, cushioned

Cutting

CHAIN OIL CAPACITY23 L (6 US gal), filtered
MAIN SAW UNIT standardTigercat 19FS
MAIN SAW UNIT standard, BAR standard (metric)1 020 mm
BAR standard, MAXIMUM CUT (metric)850 mm
MAIN SAW UNIT standard, BAR Optional (metric)1 090 mm
BAR Optional, MAXIMUM CUT (metric)900 mm
