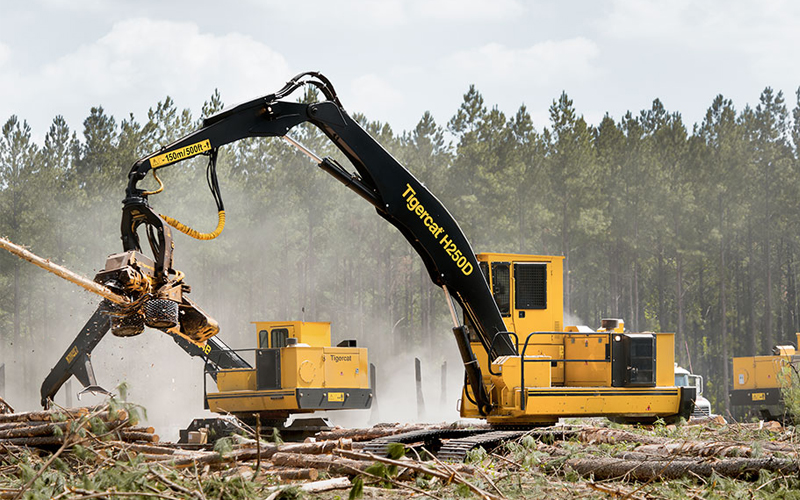

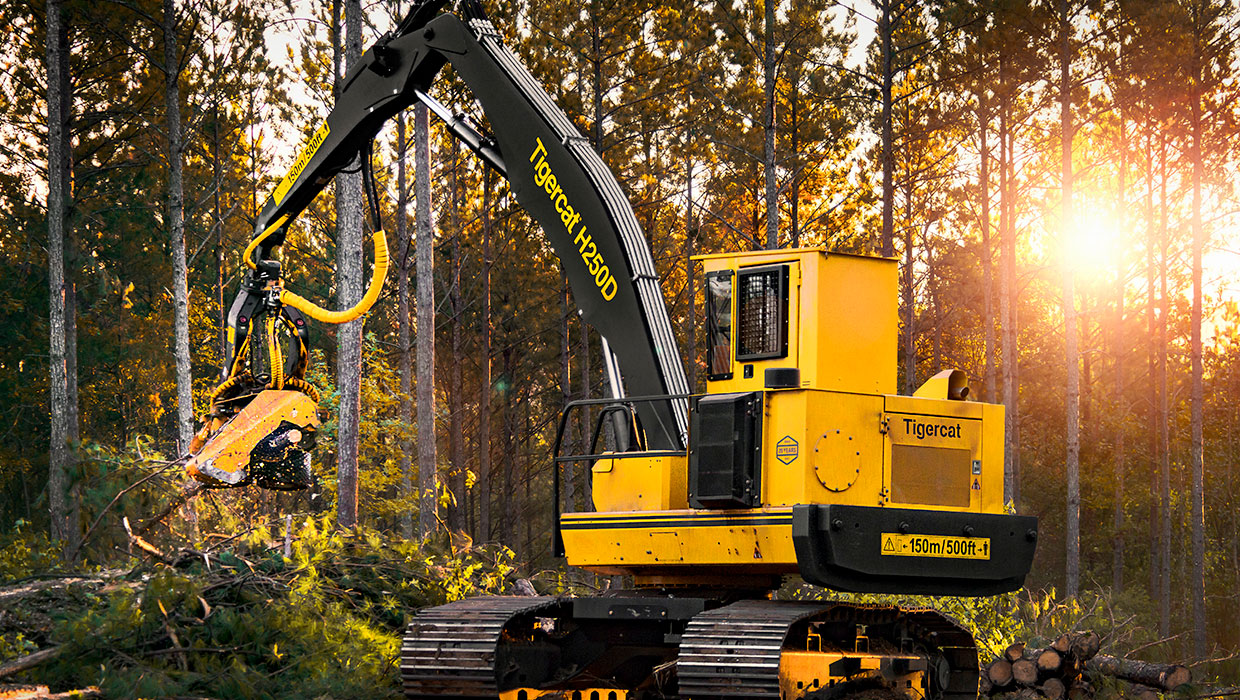

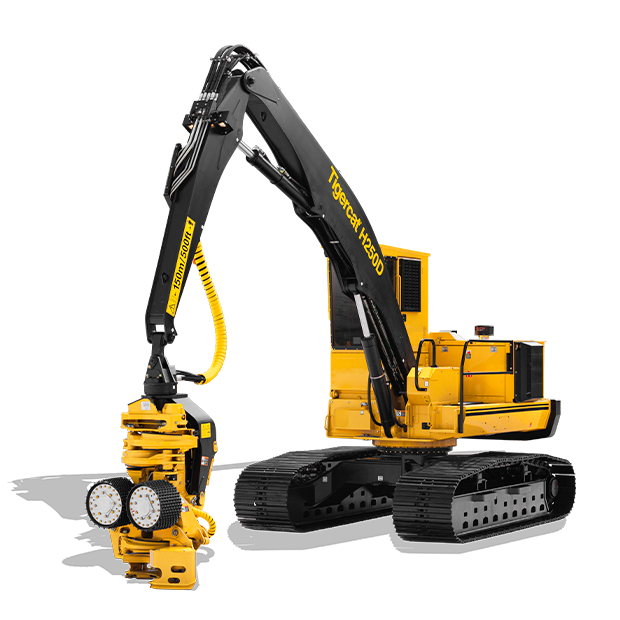

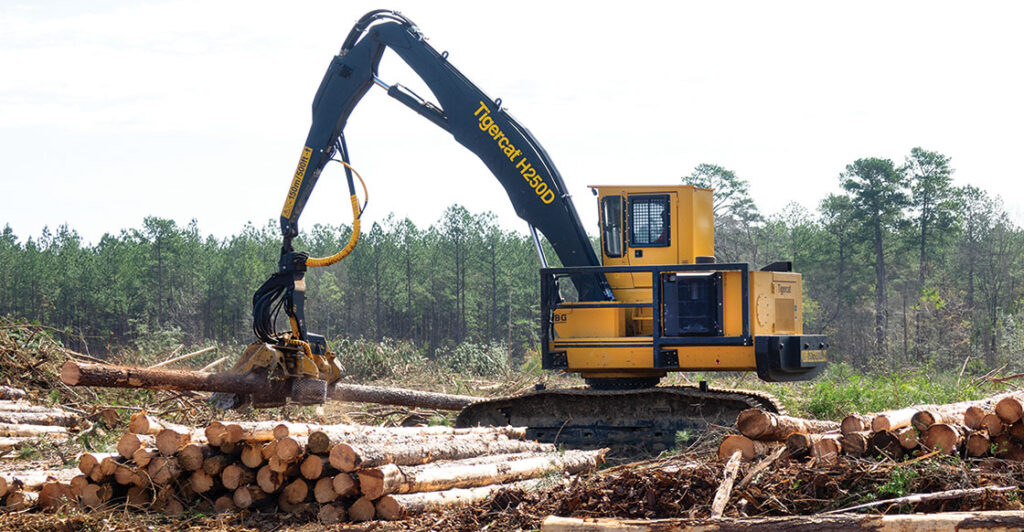

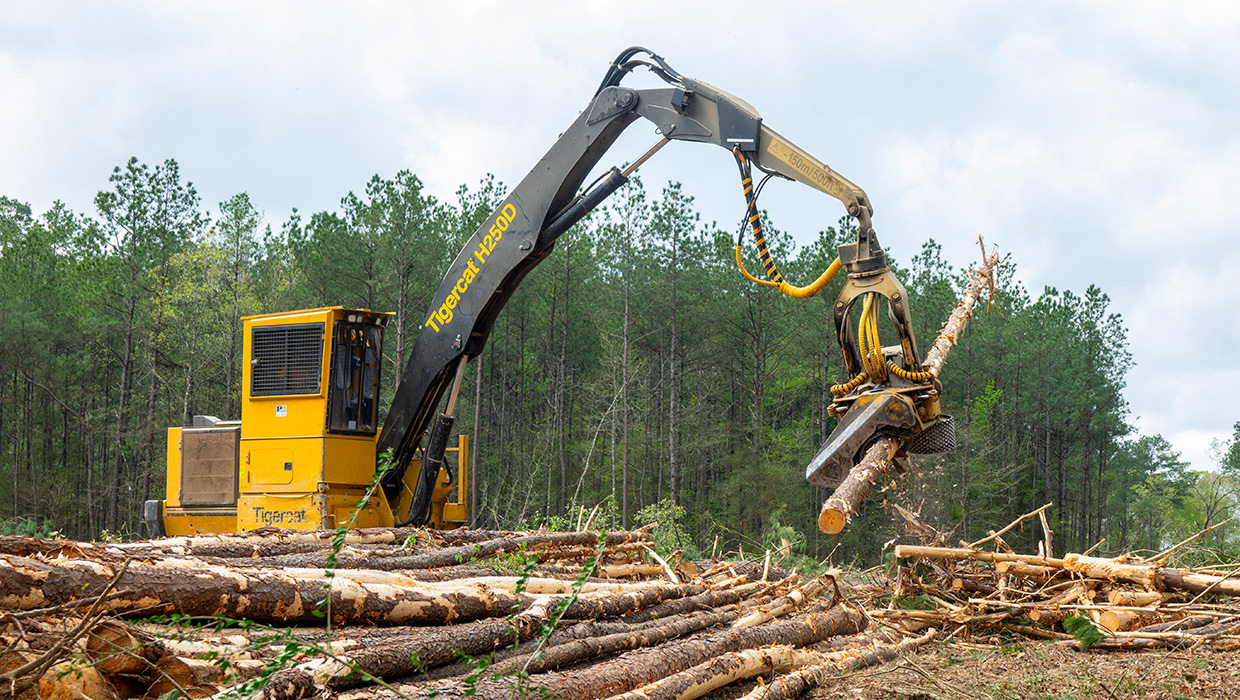

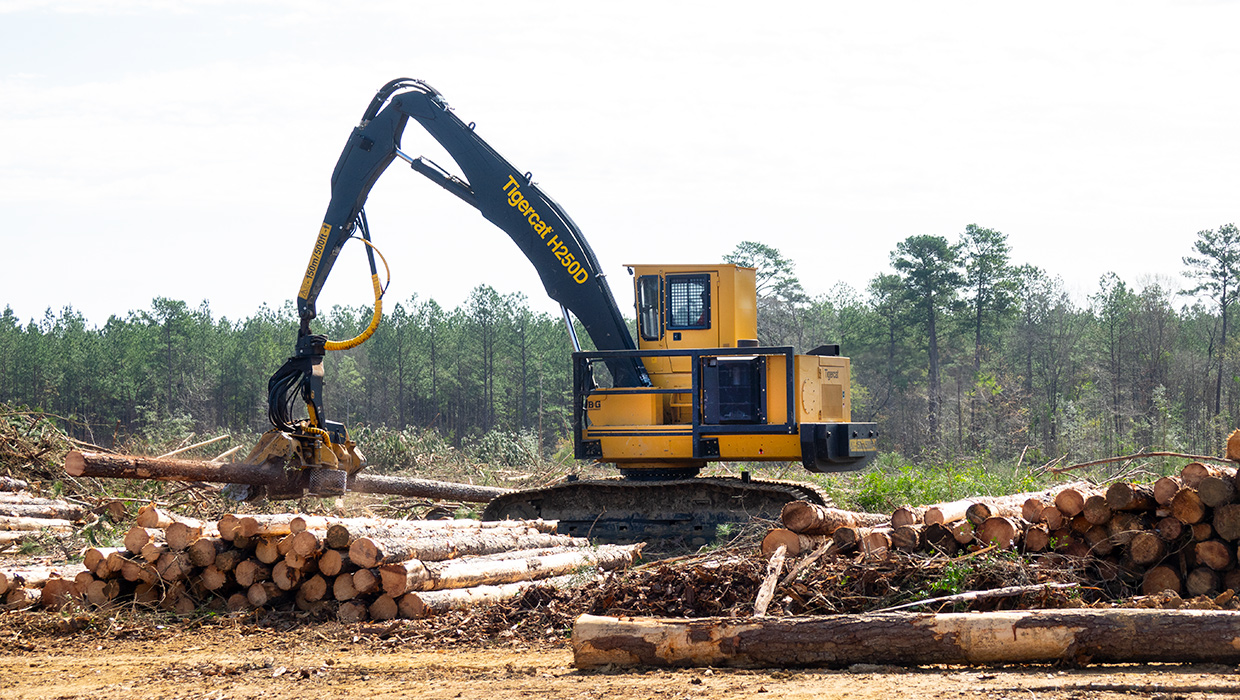

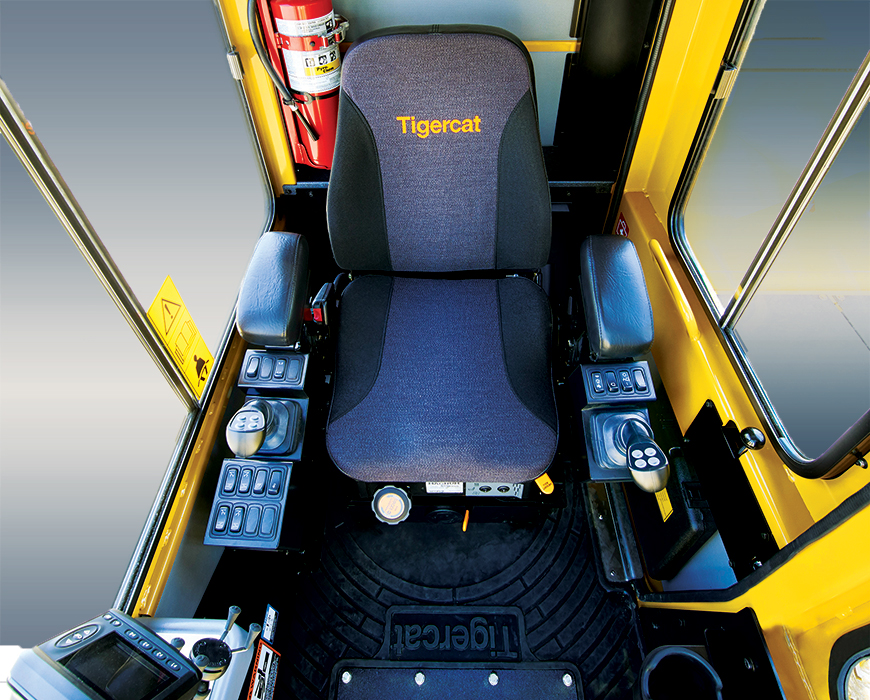

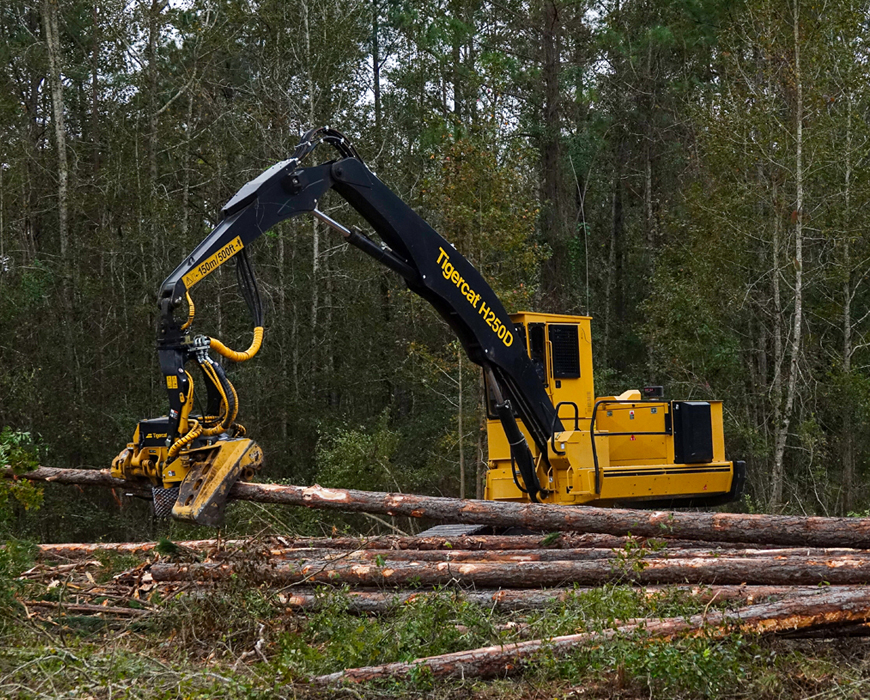

| LENGTH less boom and steps | 5 260 mm |
| WIDTH | 3 430 mm |
| HEIGHT | 4 320 mm |
| HEIGHT, With cab tilted for transport | 3 530 mm |
| GROUND CLEARANCE | 760 mm |
| WEIGHT less attachment | 26 535 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 151 kW (203 hp) @ 2,200 rpm (rated) 165 kW (221 hp) @ 1,900 rpm (peak) |
| ENGINE Tier 2 | Tigercat FPT N67 Tier 2 159 kW (213 hp) @ 2,100 rpm (rated) 165 kW (221 hp) @ 1,900 rpm (peak) |
| ENGINE Non-certified | Tigercat FPT N67 Non-certified 151 kW (203 hp) @ 2,200 rpm (rated) |
| COOLING | Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Fixed pitch, viscous clutch |
| Optional | Flexxaire® variable pitch, reversing |
| FUEL CAPACITY | 450 L |
| DEF CAPACITY | 43 L |
| PUMP, MAIN | Piston |
| PUMP, SWING | Piston, pressure compensated |
| FILTRATION | (4) Spin-on, 7 micron full-flow |
| CYLINDER, HOIST | 178 mm (7 in) diameter |
| CYLINDER, STICK | 152 mm (6 in) diameter |
| RESERVOIR | 200 L |

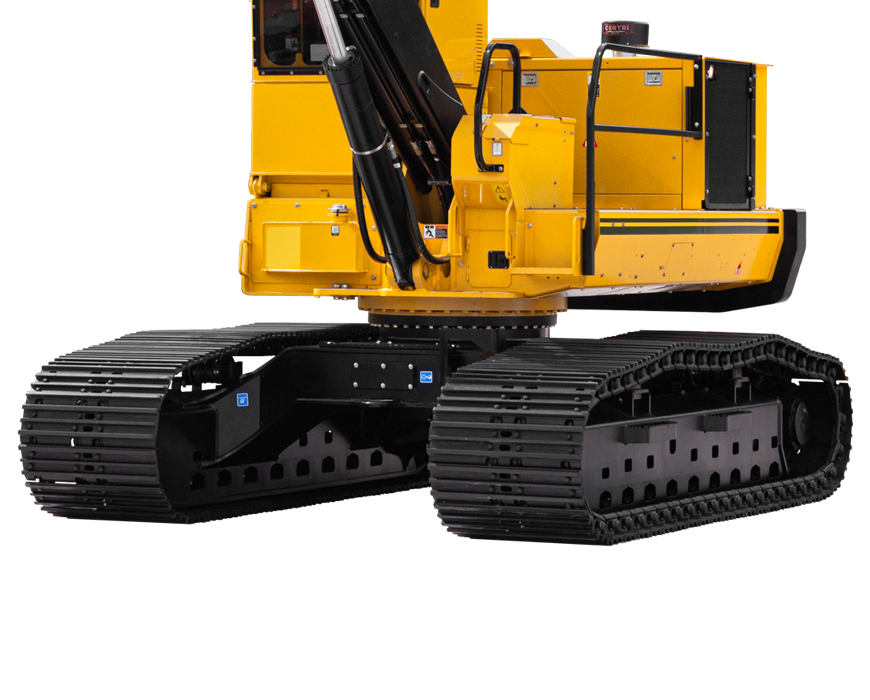

| TRACK FRAMES | F6-152 heavy duty forestry Integral track guides |
| TRACK CHAIN | F8/D6D 203 mm (8 in) pitch sealed and greased |
| FINAL DRIVE | (2) Axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 222 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, UPPER | (2) D6D excavator type |
| Optional | Bolt-on slides |
| ROLLERS, LOWER | (8) D6 single and double flange tractor type |
| TRACK SHOE | 760 mm (30 in) triple grouser |
| Optional | 915 mm (36 in) triple grouser 915 mm (36 in) triple grouser tri-track 710 mm (28 in) double grouser |
| TRACK | Friction disc Automatic spring applied, hydraulic release |
| SWING | Friction disc Manual spring applied, hydraulic release |
