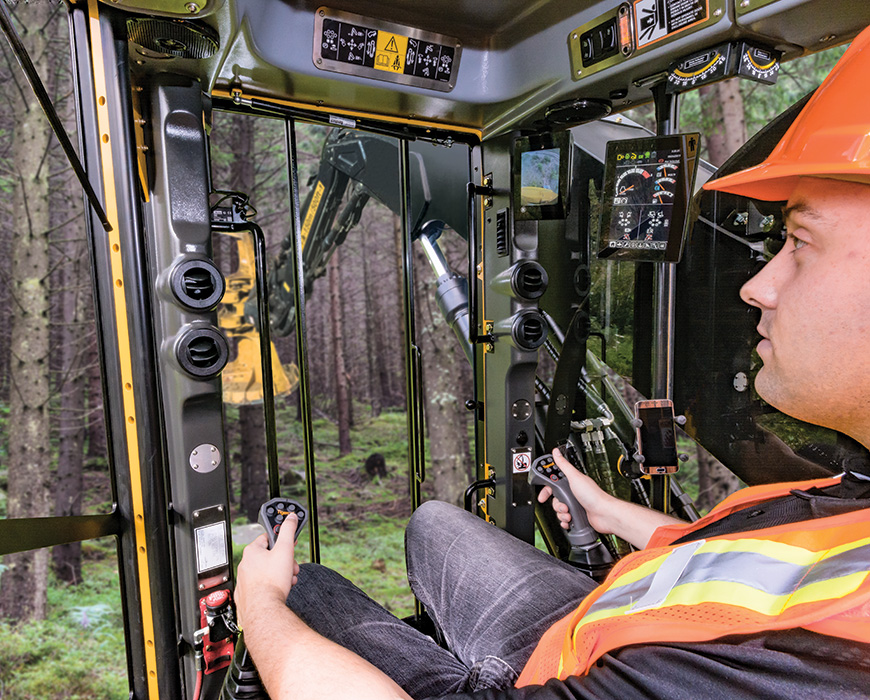

Optimally positioned controls and large, colour touchscreen display for machine control system interface.
Quiet interior environment with Bluetooth® audio and hands-free calling.
Clear sightlines along with the skyVIEW and rearVIEW camera systems reduce fatigue and promote safety and productivity.

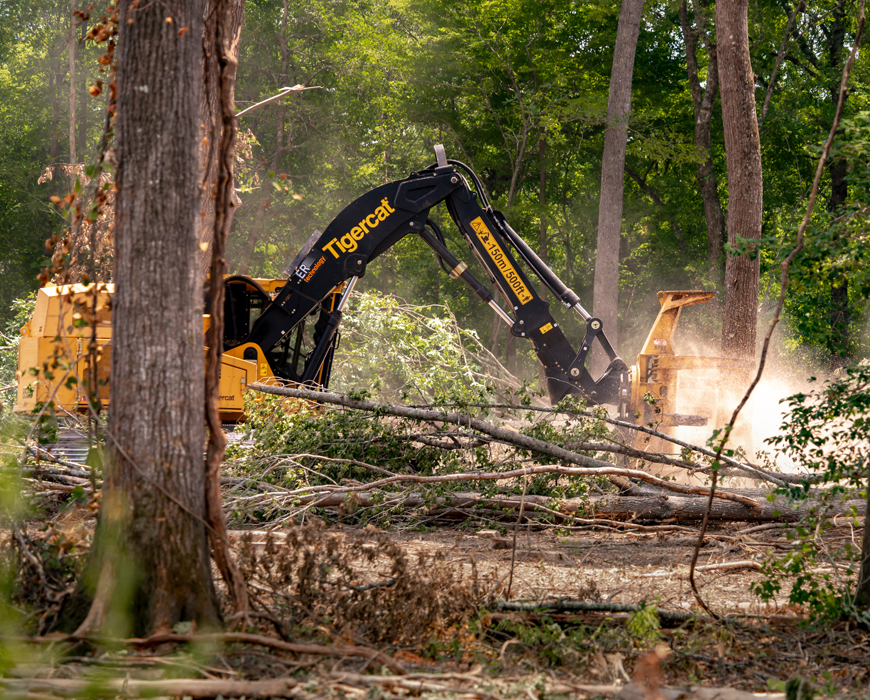

ER technology and optimized hydraulics.
Quick boom cycles and efficient operation.
Highly productive in small stem felling applications but powerful and stable to handle large timber.

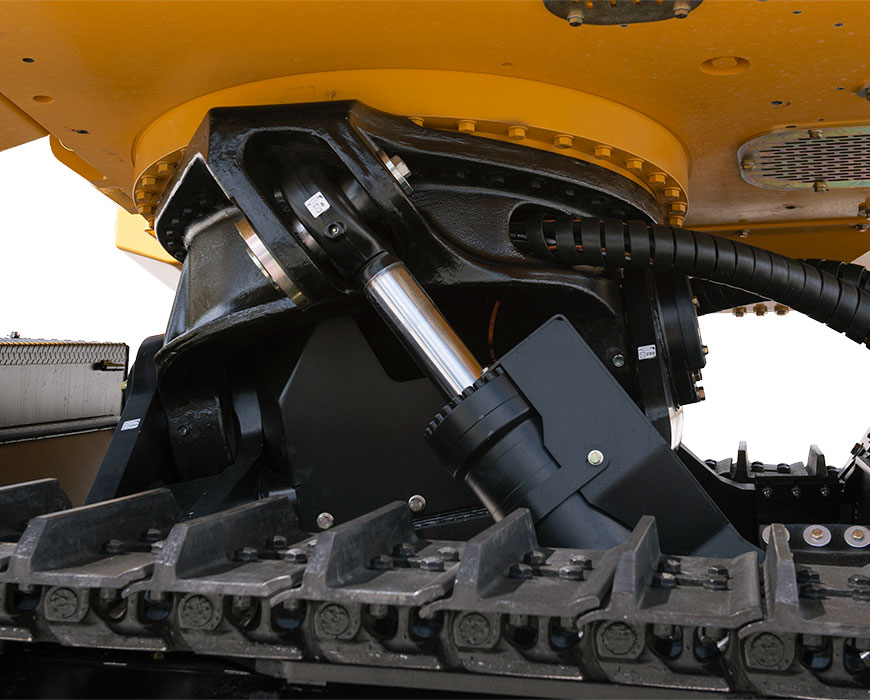

Long track frames, a wide stance carbody, super duty leveling components and unique geometry. It all leads to rock-solid stability, poise and comfort on steep slopes.
| LENGTH less boom | 4 900 mm |
| WIDTH | 3 430 mm |
| With optional narrow undercarriage | 3 000 mm |
| HEIGHT | 3 730 mm |
| GROUND CLEARANCE | 685 mm |
| WEIGHT less attachment | 34 925 kg |
| 30 060 kg | |
| TAIL SWING RADIUS | 2 665 mm |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 212 kW (284 hp) @ 2,200 rpm (rated) 212 kW (284 hp) @ 2,200 rpm (peak) |
| ENGINE Tier 2 | Tigercat FPT N67 Tier 2 205 kW (275 hp) @ 2,100 rpm (rated) 212 kW (284 hp) @ 2,000 rpm (peak) |
| ENGINE Non-certified | Tigercat FPT N67 Tier 2 205 kW (275 hp) @ 2,100 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side-by-side radiator, oil cooler and charge air cooler Removable intake debris screen |
| FAN | Hydraulically driven Automatic variable speed and reversing cycle |
| FUEL CAPACITY | 800 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 1,8 km/h |
| HIGH RANGE | 4,2 km/h |
| PUMP, MAIN | Piston |
| PUMP, SAW | Piston (For disc saw felling attachments only) |
| PUMP, COOLING FAN | Piston |
| PUMP, CLAMP/ACCUM. ARMS | Piston |
| FILTRATION | (5) Spin-on, 7 micron full flow (1) Water absorbing |
| CYLINDER, HOIST | 140 mm (5.5 in) bore |
| CYLINDERS, STICK/ER | (2) 110 mm (4.3 in) bore |
| CYLINDER, TILT | 130 mm (5.2 in) bore |
| CYLINDERS, LEVELING | (2) 180 mm (7 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed antistall |
| RESERVOIR | 190 L |
| TRACK FRAMES | R7-163L super-duty forestry Integral track guides, ramp angles |
| TRACK CHAIN | FH400 215 mm (8.5 in) pitch |
| FINAL DRIVE | (2) Axial piston motors with brakes valves Infinitely variable speed; Infinitely variable speed |
| TRACTIVE EFFORT | 367 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (10) FH400 single/double flange excavator type |
| SLIDES, UPPER | Replaceable, bolt-on |
| TRACK SHOE | 610 mm (24 in) single grouser |
| Optional | 710 mm (28 in) single grouser |
| LEVELING | 20° forward; 6° rear; +/-17° side |
Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.
LEARN MORE
ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.
