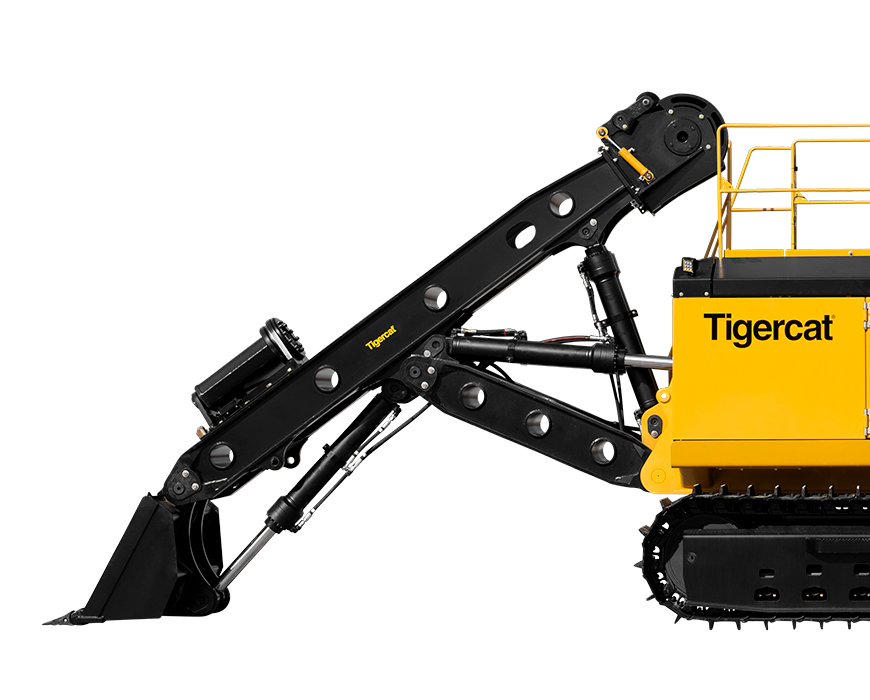

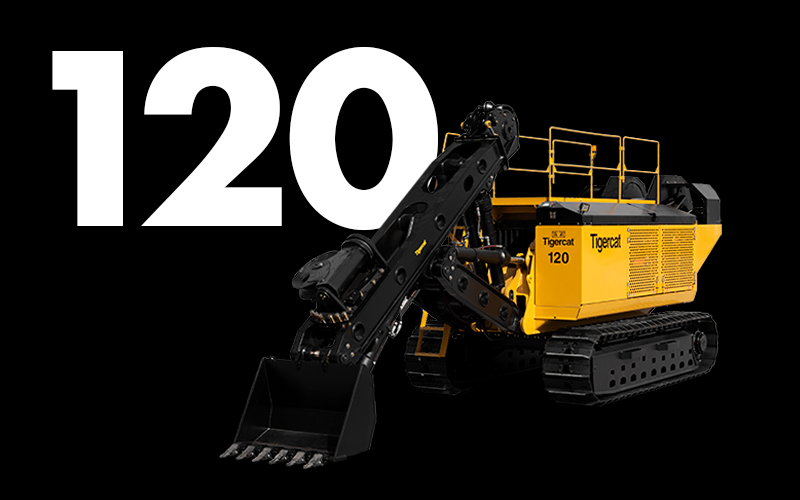

The powerful, heavy duty anchoring system is available with a bucket or other attachments. The boom firmly anchors the machine, and with below-grade capability, it can extend over the road bank. The boom can also be used for basic roadbuilding functions.

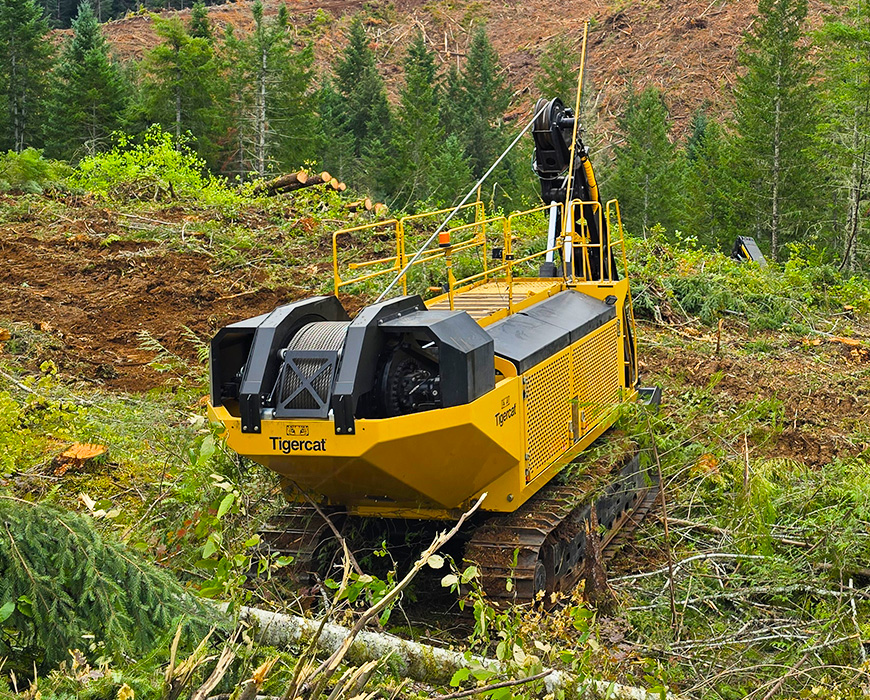

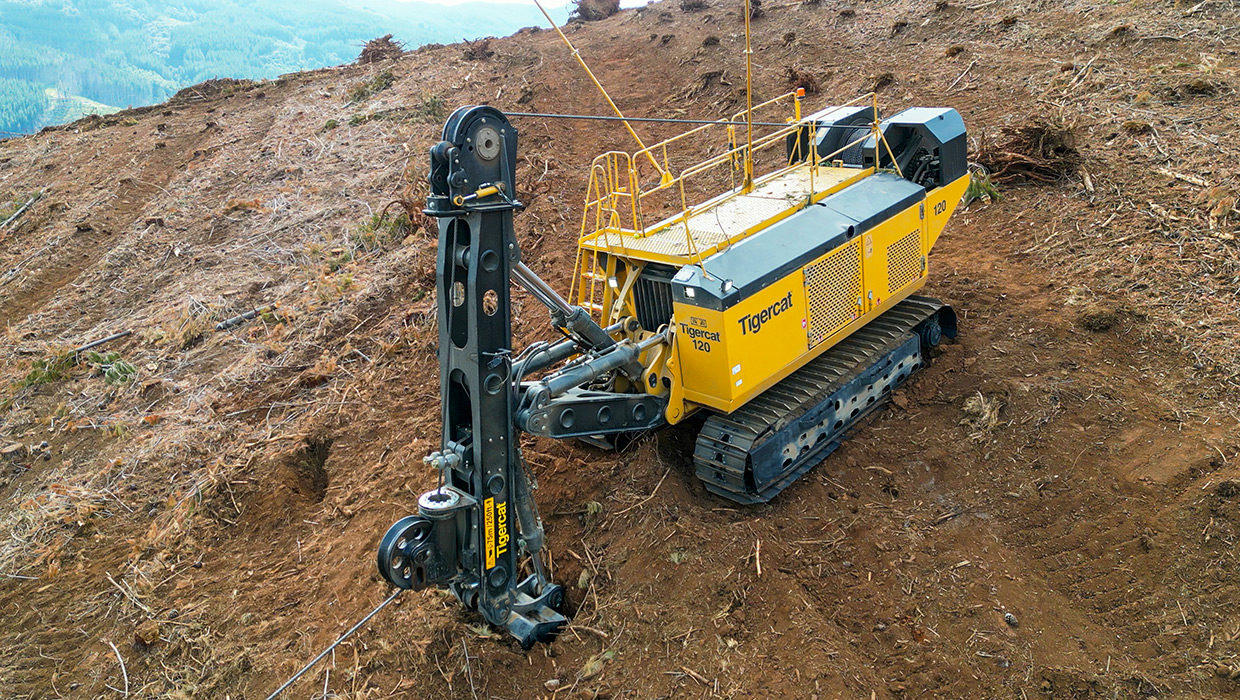

The long fleet distance between the boom-mounted sheave and the winch, along with the powered cable tension system, combine to provide neat and reliable cable spooling. The sheave pivots, allowing the cable to be operated off to the side of the machine.

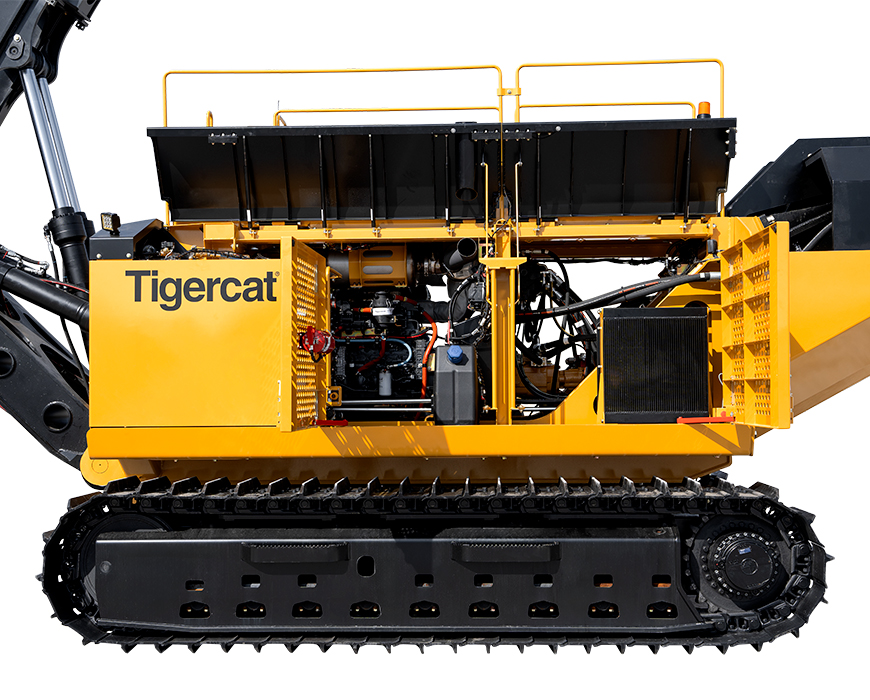

Large engine and pump enclosure doors allow easy access to components and daily service points. Roof sections can be opened on prop rods for top-down access to the winch components.
| LENGTH less boom | 6 350 mm |
| WIDTH | 2 985 mm |
| HEIGHT | 3 880 mm |
| GROUND CLEARANCE | 660 mm |
| WEIGHT | 36 360 kg |
| ENGINE Tier 4f | TIGERCAT FPT N6.7 Tier 4f 230 KW (308 hp) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum radiator, oil cooler, charge air cooler |
| FAN | Engine driven, suction |
| FUEL CAPACITY | 950 L |
| DEF CAPACITY | 81 L |
| PUMP, MAIN | Piston |
| PUMP, CHARGE/PILOT | Gear |
| PUMP, WINCH | Piston |
| FILTRATION | Return/case: (3) In-tank, 10 micron full flow Charge/pilot: (3) Spin-on, 6 micron, full flow |
| CYLINDER, HOIST | (2) 150 mm (5.9 in) bore |
| CYLINDERS, BUCKET | 150 mm (5.9 in) bore |
| CYLINDERS, CABLE TENSIONER | (2) 57 mm (2.25 in) bore |
| HORSEPOWER CONTROL | Torque limiting |
| RESERVOIR | 284 L |
| TRACK FRAMES | F6-152-3 heavy duty forestry Integral track guide |
| TRACK CHAIN | F8 203 mm (8 in) pitch sealed and greased |
| FINAL DRIVE | (2) Axial piston motors, infinitely variable speed |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster, spring shock absorber |
| ROLLERS, LOWER | (9) F8 |
| SLIDES, UPPER | (2) Bolt-on |
| TRACK SHOE | 610 mm (24 in) single/double grouser |
| Optional | 710 mm (28 in) single/double grouser |
| NOMINAL CONSTANT PULLING FORCE | 205 kN |
| CAPACITY with 28.5 mm cable | 640 m |
| MAXIMUM SPEED | 8.9 km/hr |
Former Illinois-based logger Tony Zimmerman reinvents his business in Idaho with a unique equipment mix and a crew that is all in the family.
LEARN MORE
Tigercat is on both ends of the rope at Mecharv’s steep slope operation in Araucanía, Chile.
LEARN MORE
5 December 2024
Tigercat launches remote control 120 winch assist, offering end-to-end Tigercat steep slope harvesting solution.
10 March 2025

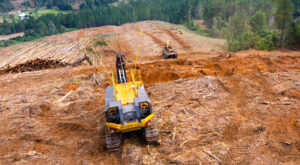

Watch the Tigercat 120 assisting a Tigercat skidder on the steep slopes of Chile. The Tigercat 120 is a fully remote controlled winch assist machine for steep slope harvesting systems and industrial applications requiring the use of mobile machinery travelling over extreme grades.
28 April 2025

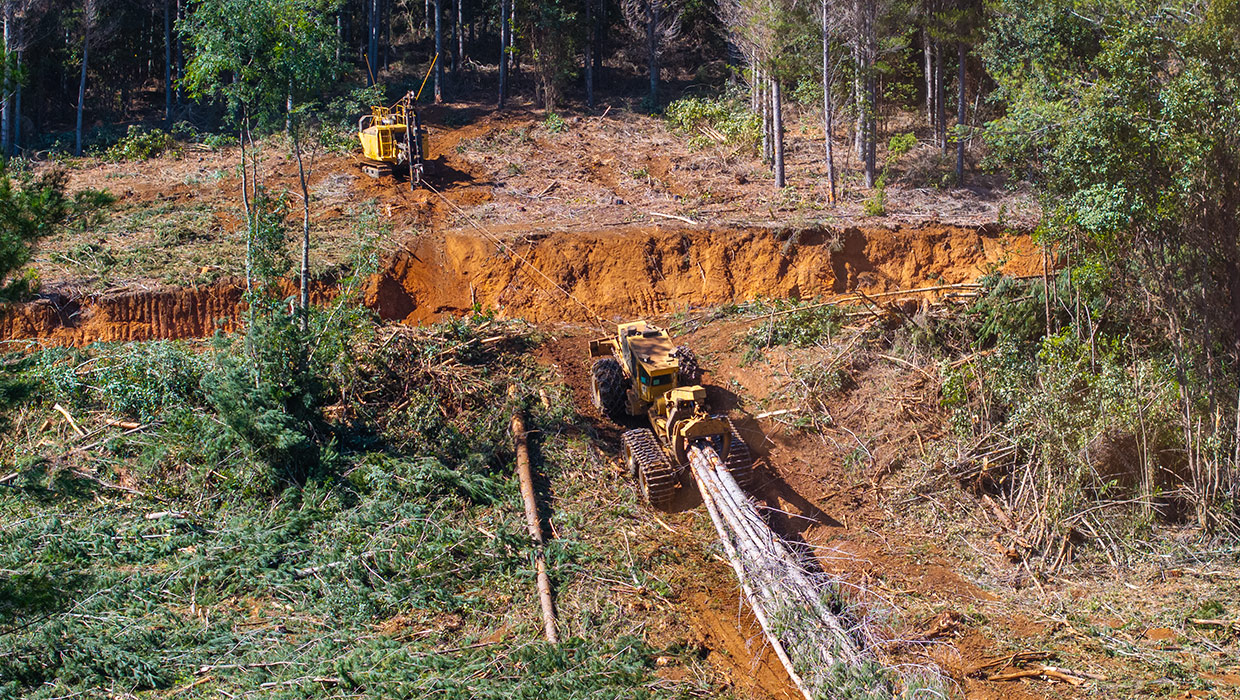

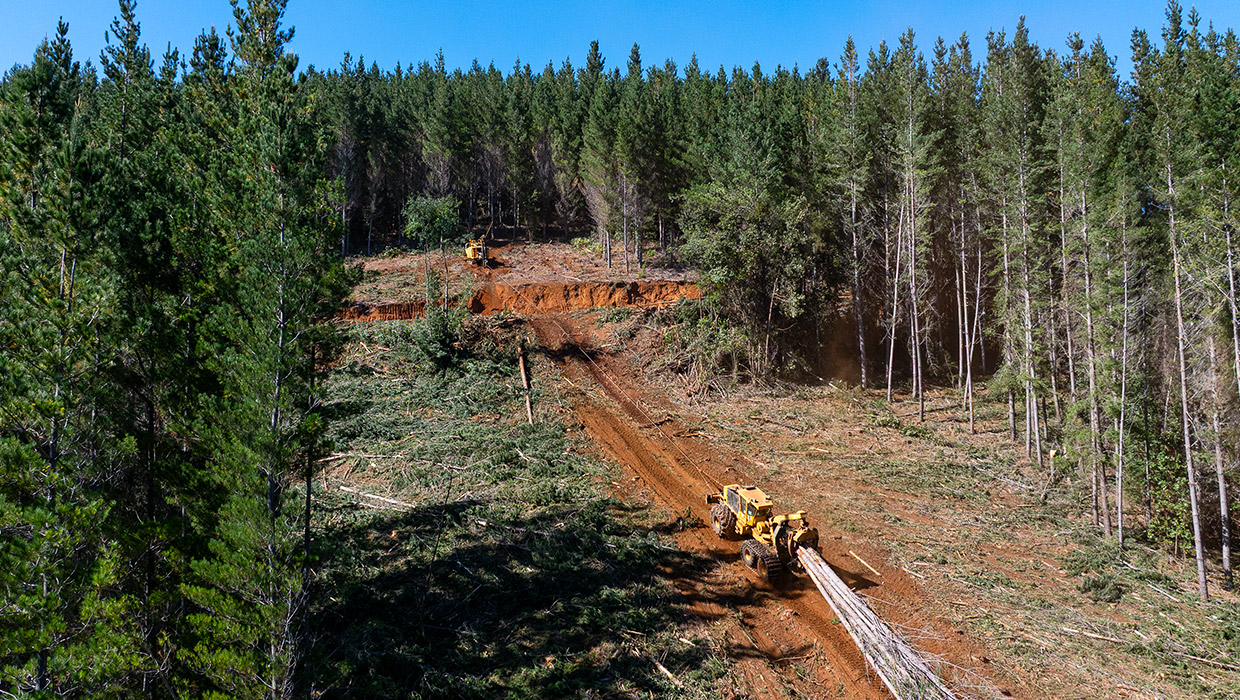

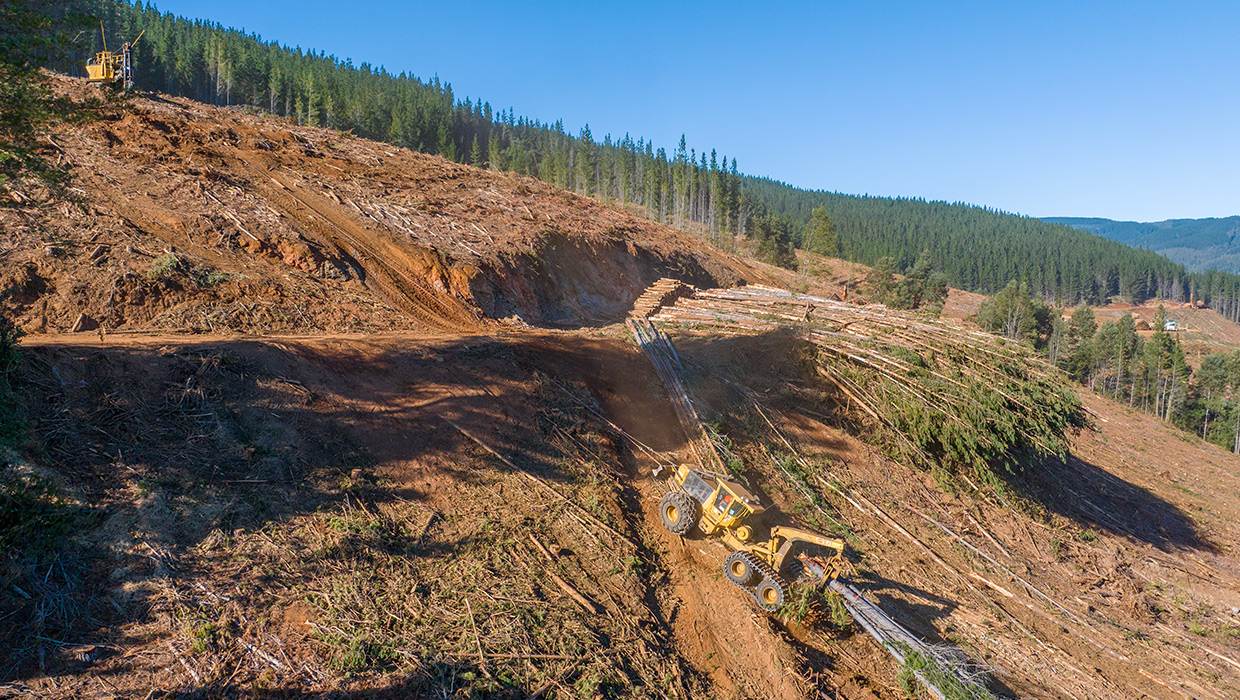

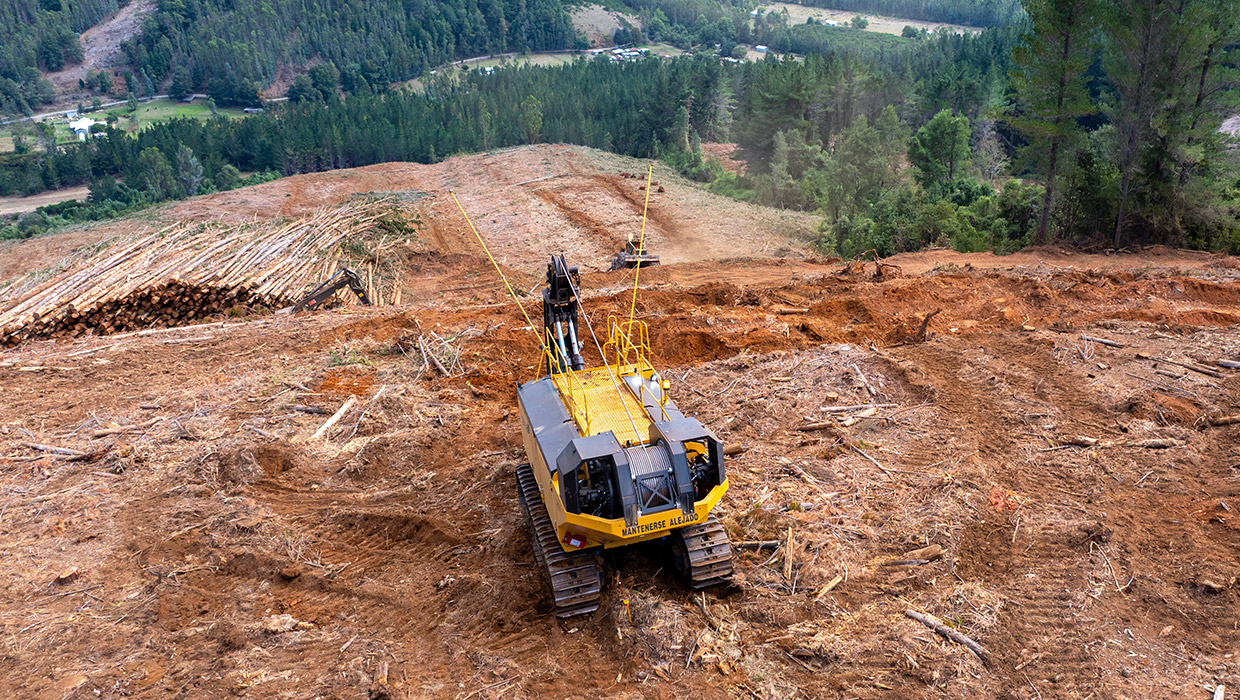

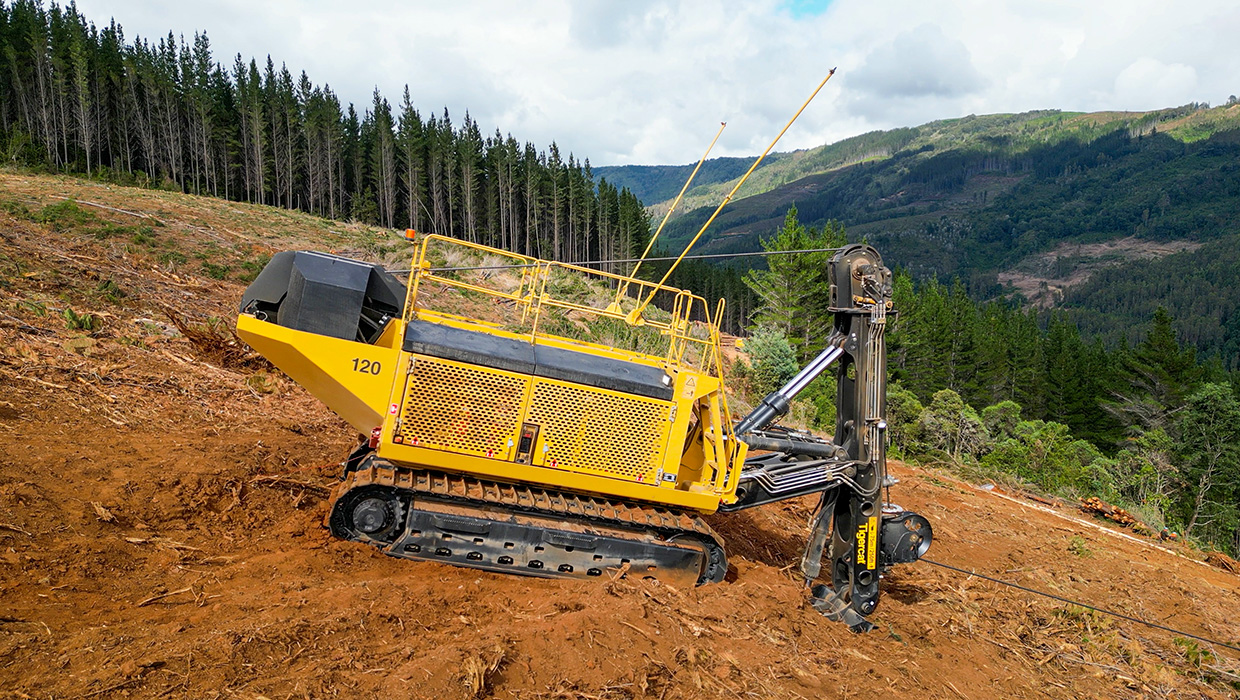

The first Tigercat 120 winch assist in Chile. The machine was slotted into a steep slope yarding jobsite in the Araucanía region. Watch the video to see the 120 assisting a Tigercat 635G skidder working in slopes of up to 60% grade. Compact and highly mobile, the 120 can pick up and move to a different location very quickly.
