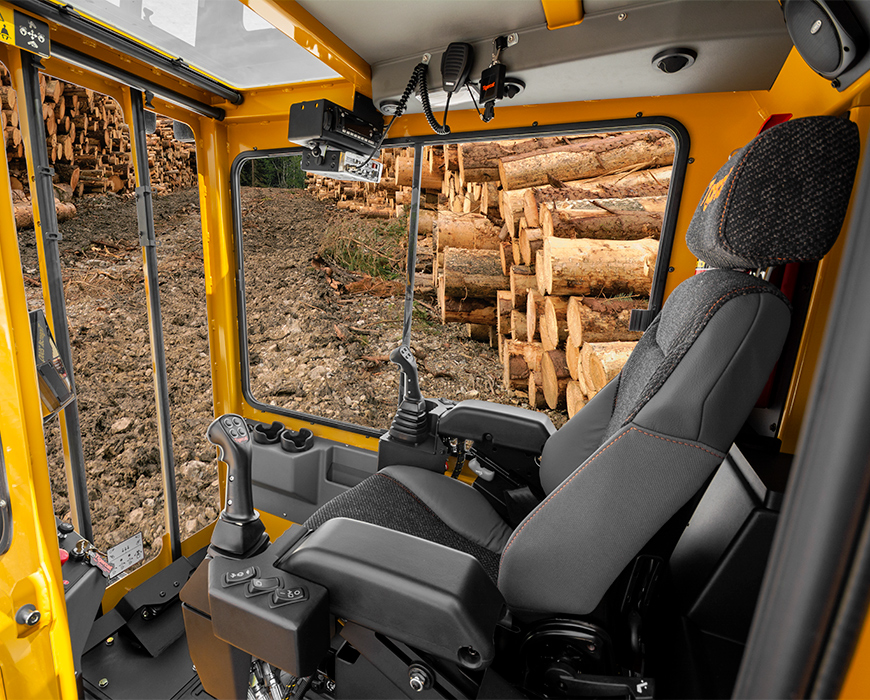

The new operator’s cab has 16% larger volume with increased width and more leg room.
Improved A/C and heater controls allows the operator to set the desired temperature for a more comfortable working environment. A climate controlled cupholder keeps drinks hot or cold for longer.
Dedicated storage areas include space for a full size Tigercat insulated lunchbox behind the seat.
The 234C hydraulic system uses a larger hydraulic pump, and a new boom valve for improved flow sharing.
The new boom design has thicker steel and improved geometry to handle the increased lift capacity.
Cushioned boom cylinders provide smooth control to take advantage of the faster speeds that the hydraulic system delivers.
Through-tip grapple hose routing protects from damage.
The large panel on the cab platform provides unmatched access to engine service points. The removable deck plates on the platform allows for easy access to hydraulic valves and hoses.
| LENGTH less boom and steps | 4 900 mm |
| WIDTH | 2 590 mm |
| HEIGHT | 3 530 mm |
| WEIGHT | 15 130 kg |
| ENGINE Tier 4f | Tigercat FPT N45 Tier 4f 125 kW (168 hp) @ 2,200 rpm (rated) 129 kW (173 hp) @ 1,900 rpm (peak) Automatic idle down |
| COOLING | Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Fixed pitch, high flow |
| Optional | Flexxaire® variable pitch, reversing |
| FUEL CAPACITY | 378 L |
| DEF CAPACITY | 26 L |
| PUMP, MAIN | Piston |
| PUMP, SWING | Piston, pressure compensated |
| FILTRATION | (4) spin-on, 7 micron full-flow |
| CYLINDER, HOIST | 165 mm (6.5 in) bore |
| CYLINDER, STICK | 140 mm (5.3 in) bore |
| CYLINDERS, STABILIZERS | (4) 165 mm (6.5 in) bore, bolt-on bi-directional lock valves |
| RESERVOIR | 140 L |
| LENGTH less step | 4 290 mm |
| SUPPORT BASE | 3 810 mm x 4 650 m |
| STABILIZER PADS | 585 mm x 710 mm |
| SWING DRIVE | 10 rpm variable, 360˚ continuous rotation Swing priority and energy recovery |
| SWING BEARING | 1 190 mm (47 in) ball circle diameter Internal gear teeth Double reduction planetary gearbox |
| ENCLOSURE | Walk-up platform |
| COUNTERWEIGHT | 910 kg |
