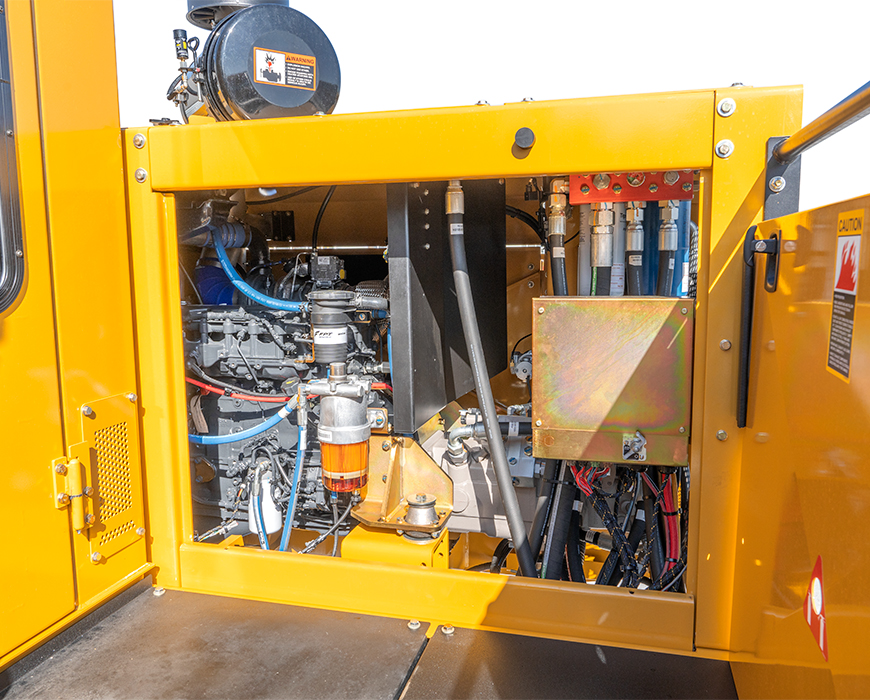

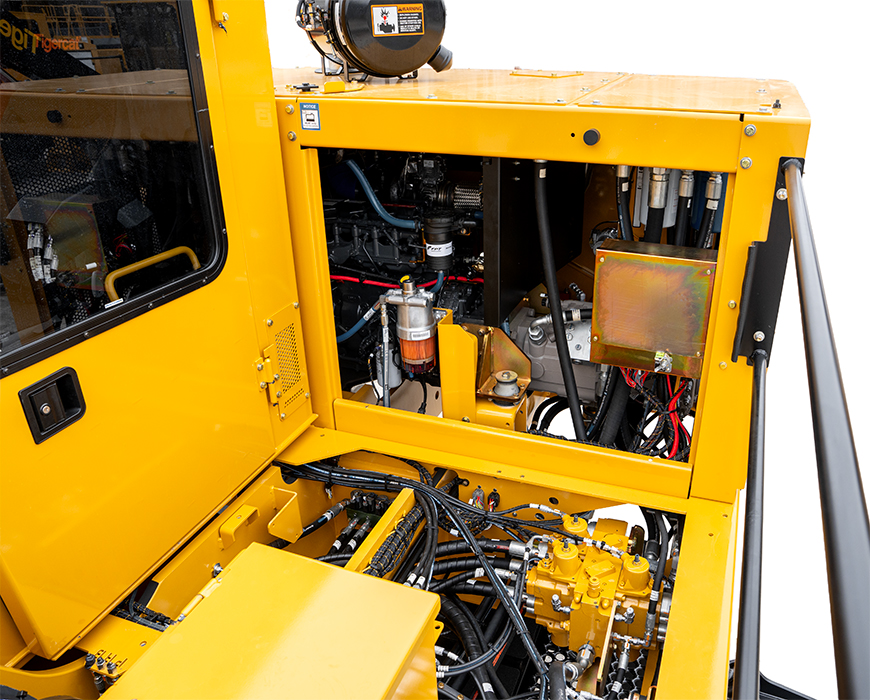

The large panel on the cab platform provides unmatched access to engine service points. The removable deck plates on the platform allows for easy access to hydraulic valves and hoses.
Strong boom and powerful swing torque.
The new 250 series boom design is stronger and better able to handle the stresses of the most demanding pull through delimbing duty cycles. Cushioned boom cylinders provide smooth control. Through-tip grapple hose routing protects from damage.
The new operator’s cab has 16% larger volume with increased width and more leg room.
Improved A/C and heater controls allows the operator to set the desired temperature for a more comfortable working environment. A climate controlled cupholder keeps drinks hot or cold for longer.
Dedicated storage areas include space for a full size Tigercat insulated lunchbox behind the seat.
| LENGTH less boom and steps | 5 080 mm |
| WIDTH | 2 590 mm |
| HEIGHT | 3 530 mm |
| WEIGHT less attachment | 17 010 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 151 kW (203 hp) @ 2,200 rpm (rated) 165 kW (221 hp) @ 1,900 rpm (peak) Automatic idle down |
| ENGINE Tier 2 | Tigercat FPT N67 Tier 2 159 kW (213 hp) @ 2,100 rpm (rated) 165 kW (221 hp) @ 1,900 rpm (peak) Automatic idle down |
| ENGINE Non-certified | Tigercat FPT N67 Non-certified 151 kW (203 hp) @ 2,200 rpm (rated) Automatic idle down |
| COOLING | Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Fixed pitch, viscous clutch |
| Optional | Flexxaire® variable pitch, reversing |
| FUEL CAPACITY | 378 L |
| DEF CAPACITY | 26 L |
| PUMP, MAIN | Piston |
| PUMP, SWING | Piston, pressure compensated |
| FILTRATION | (4) Spin-on, 7 micron full-flow |
| CYLINDER, HOIST | 180 mm (7 in) diameter |
| CYLINDER, STICK | 150 mm (6 in) diameter |
| CYLINDERS, STABILIZERS | (4) 165 mm (6.5 in) diameter Bolt-on bi-directional lock valves |
| RESERVOIR | 140 L |
| LENGTH less step | 4 290 mm |
| SUPPORT BASE | 3 810 mm x 4 650 mm |
| STABILIZER PADS | 585 mm x 685 mm |
| SWING DRIVE | 9 rpm variable, 360˚ continuous rotation Swing priority and energy recovery |
| SWING BEARING | 1 190 mm (47 in) ball circle diameter; Internal gear teeth Double reduction planetary gearbox |
| ENCLOSURE | Walk-up platform |
