470 Mulcher

Overview

Tigercat mulcher carriers offer superior build quality, greater hydraulic efficiency, better operator ergonomics and easier access to components and daily service points than competing mulcher carriers. The result in greater uptime, higher productivity — essential in time sensitive ROW clearing projects.

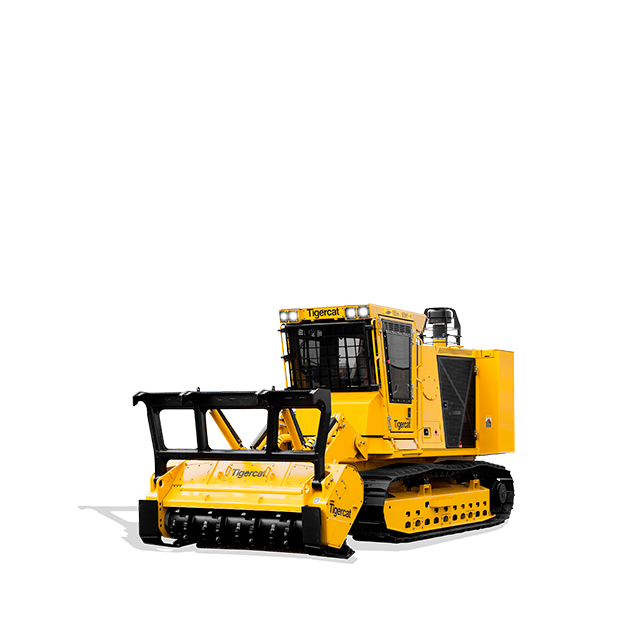

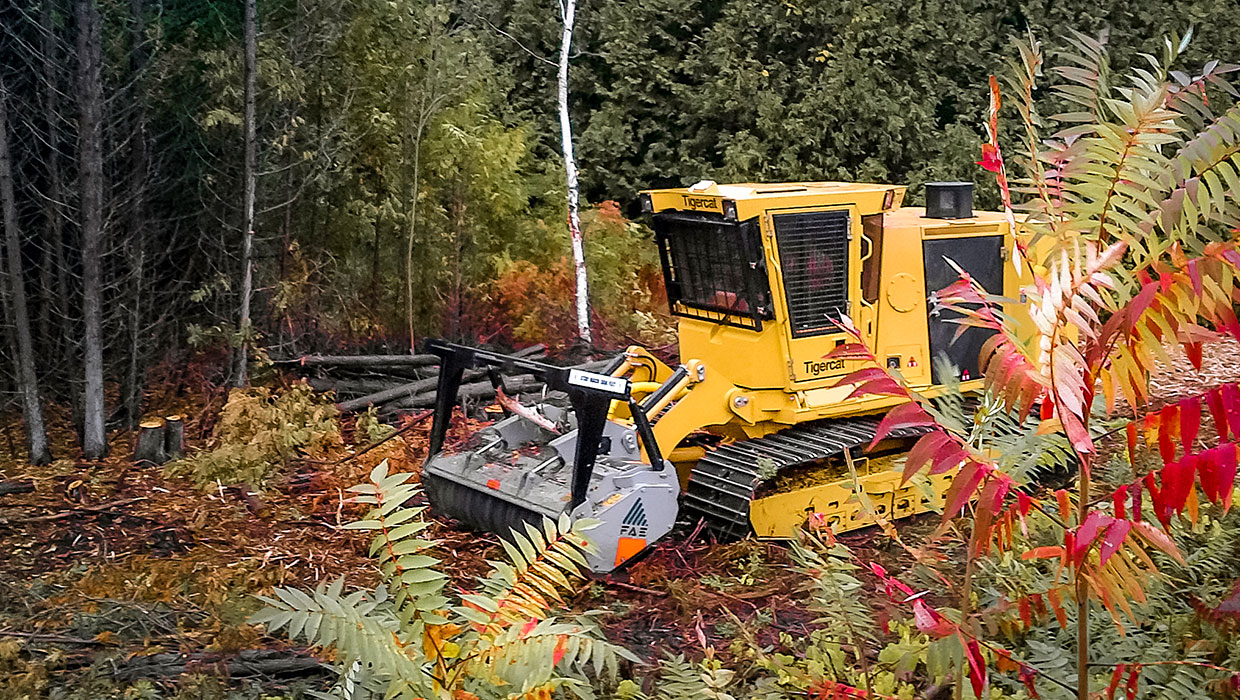

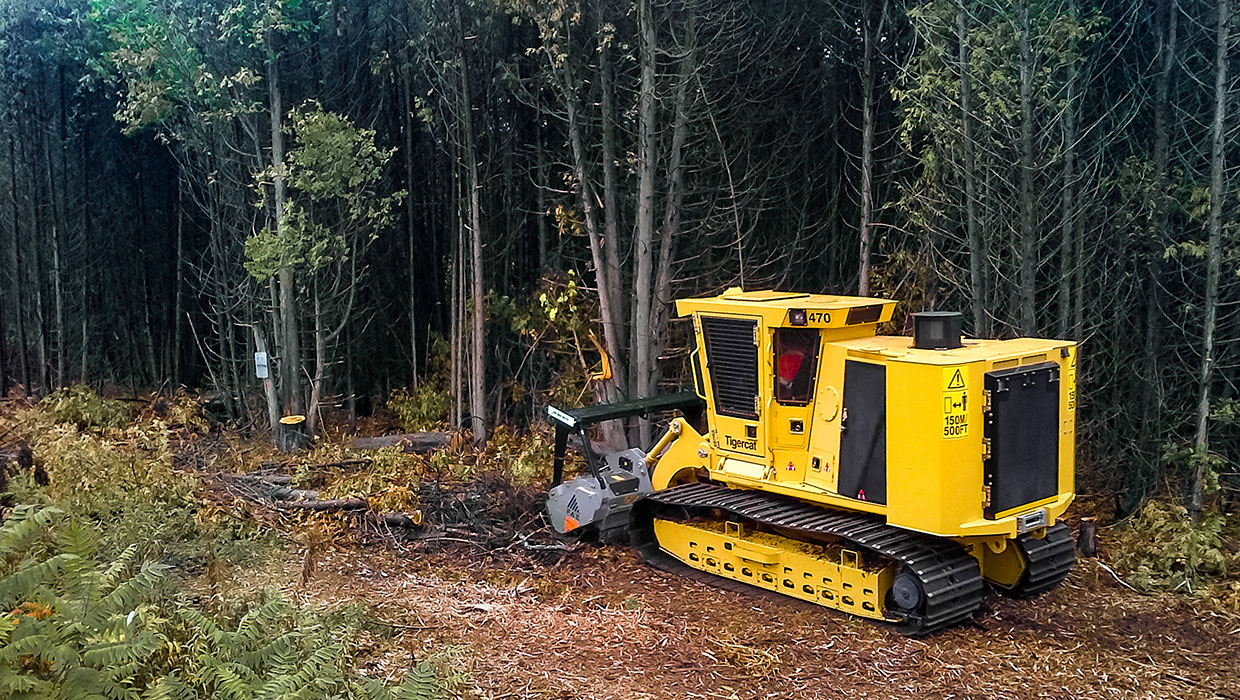

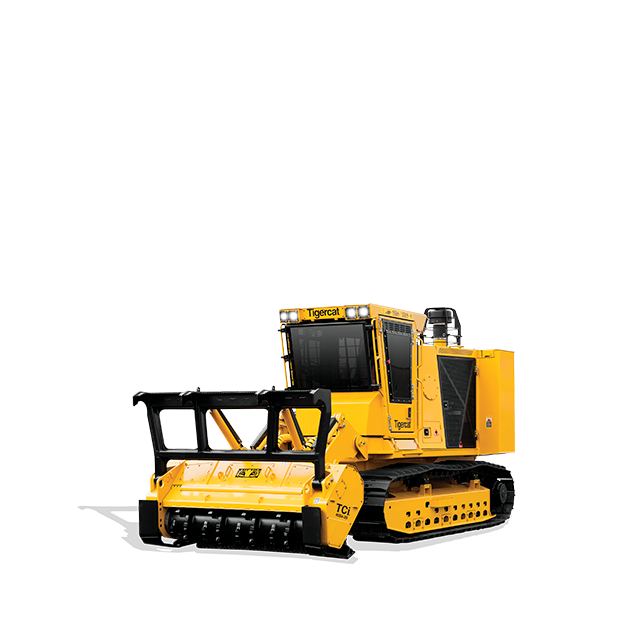

The 470 mulcher is an agile, low ground pressure machine best suited to tough terrain and sensitive site ROW, pipeline maintenance and exploration projects.

The 470 is Tigercat FPT Tier 4 powered, conforming to the latest emissions standards in North America and Europe.

Key Benefits

Tigercat FPT C87 engine with Tier 4f emissions compliance – clean, powerful and efficient; fully supported by Tigercat
Extremely low ground pressure 20,9 kPa (3 psi)
Large, dedicated attachment pump

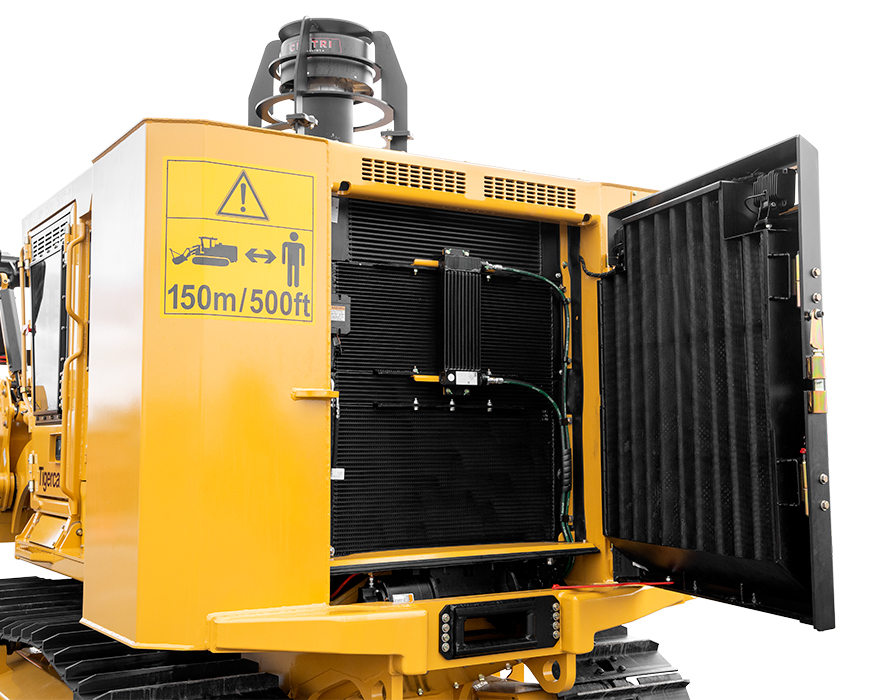

Efficient, high capacity cooling system with variable pitch fan and automatic reversing cycle
Counter-rotate function (CRF) for ‘on a dime’ at the touch of a button
Highly refined closed loop track drive system
High-lift boom geometry for improved performance on sloped terrain
Ergonomic electronic joystick steering
Heavy duty steel engine enclosure, exhaust and precleaner guard; no need for a visibility impairing canopy

Videos

The Truth about Tier 4f

Tigercat FPT engines meet stringent Tier 4 emission levels without the need for variable geometry turbochargers, an EGR system, a higher capacity cooling system, an intake throttle body or a diesel particulate filter. The engine series offers improved reliability and lower long-term maintenance costs. Most of the new emission equipment is found in the exhaust or after-treatment system. The key is the selective catalyst reduction (SCR) which converts the harmful components of the exhaust gas stream into water, nitrogen, and carbon dioxide. Learn about the advantages of the Tigercat Tier 4f solution in this short but very informative video. Download in HD Download for mobile

Downloads

See below related files that you can download.

- 470 mulcher brochure
- 470 mulcher brochure – Limited Accessibility (1.57 Mb)

News & Articles

Photos

SPECIFICATIONS

Show measurements as:

Metric

Imperial

Dimensions

LENGTH (metric)	5 000 mm
LENGTH (imperial)	197 in
WIDTH (metric)	2 415 mm
WIDTH (imperial)	95 in
HEIGHT (metric)	3 000 mm
HEIGHT (imperial)	118 in
GROUND CLEARANCE (metric)	465 mm
GROUND CLEARANCE (imperial)	18 in
GROUND PRESSURE less attachment (metric)	23,4 kPa @ 75 mm penetration
GROUND PRESSURE less attachment (imperial)	3.4 psi @ 3 in penetration
WEIGHT (metric)	13 925 kg
WEIGHT (imperial)	30,700 lb

Power

ENGINE Tier 4f	Tigercat FPT C87 Tier 4f 245 kW (330 hp) @ 1850 rpm (rated)
AIR FILTRATION	Precleaner and 2-stage air cleaner
PEAK TORQUE	1 510 Nm (1,115 lbf-ft) @ 1,100-1,600 rpm
COOLING	Aluminum side by side radiator, oil cooler, charge air cooler and A/C condenser
FAN	Hydraulically driven Automatic variable speed with automatic reversing cycle
FAN, Optional	Flexxaire® variable pitch, reversing
FUEL CAPACITY (metric)	455 L
FUEL CAPACITY (imperial)	120 US gal
DEF CAPACITY Tier 4f (metric)	80 L
DEF CAPACITY Tier 4f (imperial)	21 US gal

Top Speed

FORWARD/REVERSE (metric)	7 km/h
FORWARD/REVERSE (imperial)	4.25 mph

Hydraulic System

PUMP, BOOM	Piston
PUMP, FAN	Piston
PUMP, TRACK	Piston
PUMP, ATTACHMENT	Piston
FILTRATION	(6) spin-on, 7 micron full flow
CYLINDERS, BOOM LIFT	140 mm (5.5 in) bore
CYLINDERS, BOOM TILT	(2) 140 mm (5.5 in) bore
RESERVOIR (metric)	227 L
RESERVOIR (imperial)	60 US gal

Undercarriage

TRACK FRAMES	D4 heavy-duty forestry Integral track guides, ramp angles
TRACK CHAIN	D4 170 mm (6.75 in) pitch sealed and greased
FINAL DRIVE	(2) Axial piston motors Infinitely variable speed
TRACTIVE EFFORT (metric)	240 kN
TRACTIVE EFFORT (imperial)	54,000 lbf
GEARBOX	Triple reduction planetary with brake
FRONT IDLER	Hydraulic track adjuster Spring shock absorber
ROLLERS, UPPER	(2) D4 single flange excavator type
ROLLERS, LOWER	(10) D4 single flange excavator type
TRACK SHOE	800 mm (31.5 in) triple grouser
TRACK SHOE, Optional	800 mm (31.5 in) single/double grouser 915 mm (36 in) double/triple grouser tri-track

Brakes

TRACK

Friction disc type Automatic spring applied, hydraulic release

Electrical

BATTERY	(2) 12 v
ALTERNATOR	110 amp, 24 v
SYSTEM VOLTAGE	24 v

Operator's Station

CAB	Fully enclosed, insulated and isolation mounted (2) doors and roof exit Air conditioner heater and pressurizer Polycarbonate front and rear glazing Forward sloping windshield Sliding tempered glass side windows Side door screens, hinged AM/FM CD stereo
SEAT	Extreme duty air ride, fully adjustable Armrest mounted joysticks
OPERATOR CONTROLS	Electronic for travel/steering/boom, joystick control Electronic travel speed control limiter Cruise control Counter rotate function (CRF) Electronic control system with colour LCD display screen interface for machine monitoring and function adjustment

Other Equipment

STANDARD	Back-up alarm Rear camera Air compressor Hydraulic reservoir hand fill pump Fire extinguisher LED service lights LED cab mounted working lights, fire detection
OPTIONAL	Recovery winch Ground level fueling system CB radio Fire suppresion system Cold weather aids (110 VAC or diesel powered) Heated seat RemoteLog™ telematics system
