Product Specifications

Metric
Imperial
LENGTH less attachment 5 990 mm
WIDTH less attachment 2 590 mm
HEIGHT transport 3 330 mm
GROUND CLEARANCE 570 mm
GROUND PRESSURE less attachment 36.5 kPA
WEIGHT less attachment 22 345 kg

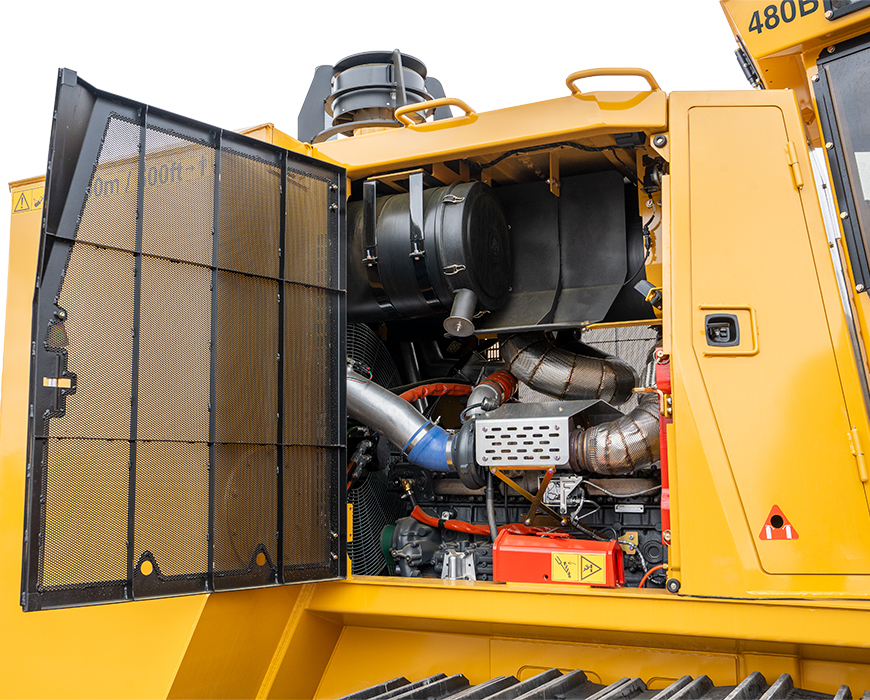

ENGINE Tier 4f Tigercat FPT C13 Tier 4f
411 kW (552 hp) @ 1,800 rpm (rated)
411 kW (552 hp) @ 1,800 rpm (peak)
2 401 Nm (1,771 lbf-ft) @ 1,400 rpm
ENGINE Tier 2 Tigercat FPT C13 Tier 2
420 kW (563 hp) @ 1,800 rpm (rated)
420 kW (563 hp) @ 1,800 rpm (peak)
PEAK TORQUE 2 350 Nm (1,733 lbf-ft) @ 1,500 rpm
AIR FILTRATION Precleaner and 2-stage air cleaner
COOLING Aluminum side-by-side radiator, oil cooler,
charge air cooler and A/C condenser
Swing-out intake debris screen
FAN Hydraulic automatic variable speed, reversible
FUEL CAPACITY 832 L
DEF CAPACITY 135 L
FORWARD/REVERSE 6.5 km/h
PUMP, BOOM Piston
PUMP, FAN Piston, closed loop
PUMP, TRACK (2) Piston, closed loop
PUMP, ATTACHMENT Piston
PUMP, COOLING Gear
FILTRATION (9) Spin-on, 7 micron full flow
CYLINDERS, BOOM (4) 115 mm (4.5 in) bore
RESERVOIR 284 L
TRACK FRAMES 6 Series heavy-duty forestry
Integral track guides, ramp angles, oscillation
TRACK CHAIN 6 Series 203 mm (8 in) pitch sealed and greased
FINAL DRIVE (2) Axial piston motors
Infinitely variable speed
TRACTIVE EFFORT 305 kN
GEARBOX Triple reduction planetary with brake
FRONT IDLER Hydraulic track adjuster
Spring shock absorber
ROLLERS, UPPER (2) 6 Series single flange carrier (cantilever) type
ROLLERS, LOWER (3) 6 Series single flange tractor type
(5) 6 Series double flanged tractor type
Replaceable, bolt-on
TRACK SHOE 710 mm (28 in) single grouser
Optional 710 mm (28 in) double grouser
800 mm (32 in) single grouser tri-track
800 mm (32 in) double grouser tri-track

+ ALL

Resources

loader-icon

480B Mulcher with Prototype 4061 Mulching Head


The Tigercat 480B mulcher equipped with the prototype 4061 mulching head operating in Pennsylvania.


480B Mulcher Silviculture and Site Prep


In October 2019, Tigercat and Australian dealer, Onetrak, were involved in a series of mulching trials in the Bago State Forest, NSW. This silviculture trial turned out to be significant in the wake of the devastating bushfires that followed a few months later. Watch to learn more.


4061 mulching head brochure


Download the brochure. Discover more about Tigercat's end-to-end mulching solutions.
