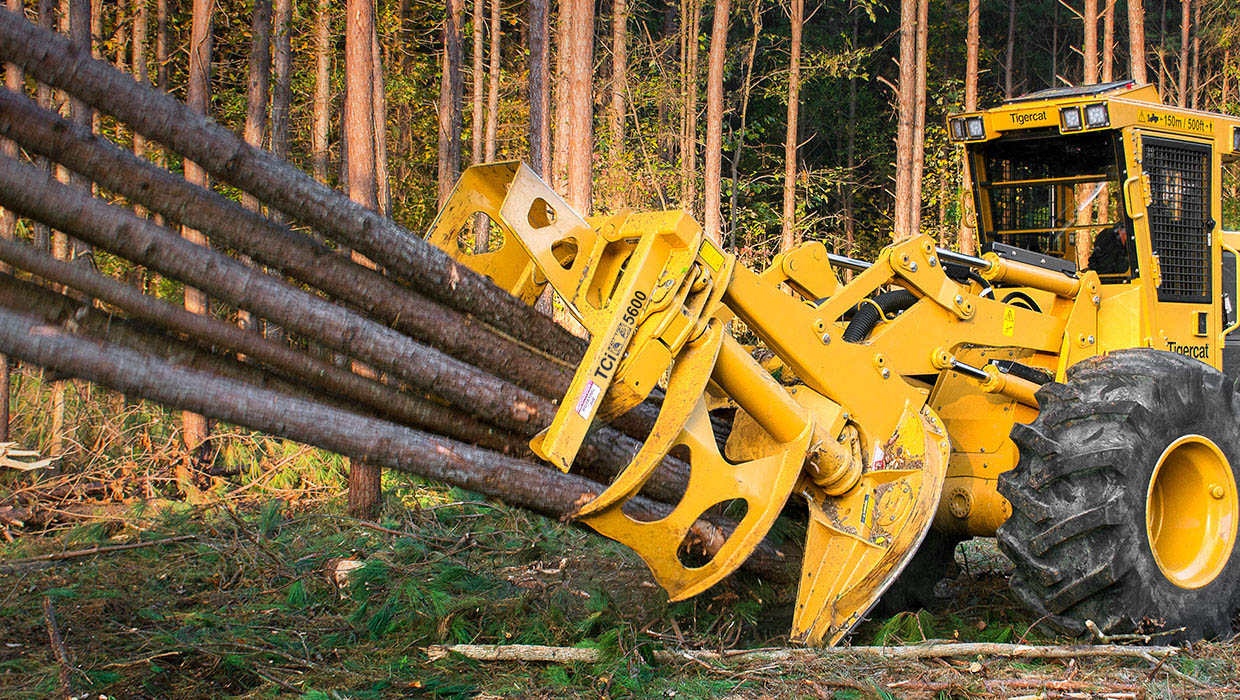

5600 Bunching Saw

Overview

The 5600 series saw for drive-to-tree feller bunchers is best suited to pine and eucalyptus row thinning and clear fell applications with a stem diameter range of 205-500 mm (8-20 in).

Tigercat bunching saws increase the productivity of the entire harvesting system while reducing cost per tonne. Feller buncher productivity and efficiency improves because more trees are cut per cycle, reducing unnecessary machine travel. Skidder productivity and efficiency improves because the bunches are large, well aligned and easy to pick up.

Key Benefits

Improves both feller buncher and skidder productivity by increasing number of cut stems per cycle and by laying down tight, parallel aligned skidder bunchers
More cutting and less machine travel; the unique two-arm design allows more trees to be stored before stopping to dump the accumulated bunch
Twin post design with offset pocket for excellent visibility
Deep accumulating pocket places the load closer to the machine for improved stability
Cushioned cylinders for long life
Recessed saw blade and clever guarding reduce the throw angle and deflect chips downward, decreasing saw recovery time

Videos

WideRange: fifth row thinning

Realtime HD video from the operator's perspective of a 724E feller buncher equipped with WideRange™ drive in a fifth row thinning application. You will notice how much travel time makes up the cut cycle. WideRange equipped feller bunchers improve productivity because the machine has the capability to travel more quickly from tree to tree and to and from the bunch pile, reducing cut cycle times. The head is a 5600 bunching saw. Download in HD Download for mobile

Downloads

See below related files that you can download.

- Felling head brochure
- Felling heads brochure – Limited Accessibility (13.94 Mb)
- Felling heads brochure (quick download) – Limited Accessibility (2.87 Mb)

Photos

SPECIFICATIONS

Show measurements as:

Metric

Imperial

Dimensions

WIDTH	1 800 mm
WIDTH	71 in
HEIGHT less skis	2 690 mm
HEIGHT less skis	106 in
DEPTH	1 750 mm
DEPTH	69 in
BASE WEIGHT	2 630 kg
BASE WEIGHT	5,800 lb
FRONT OPENING	965 mm
FRONT OPENING	38 in
SINGLE CUT CAPACITY	585 mm
SINGLE CUT CAPACITY	23 in
ACCUMULATING AREA	0,68 m²
ACCUMULATING AREA	7.3 ft²
Including blade	0,8 m²
Including blade	8.6 ft²
ACCUMULATING CAPACITY	(15) trees 15 cm (6 in) diameter

Hydraulic Cylinders

ACCUMULATING ARM	90 mm (3.5 in) bore
CLAMP ARM	90 mm (3.5 in) bore
30° WRIST	1-cylinder, 127 mm (5 in) bore
340° WRIST	3-motor drive, high torque

Cutting Blade

DISC series 74	1 450 mm (57 in) diameter 1-piece
KERF	57 mm
KERF	2.25 in
TEETH	(18) rotatable Carbide or hardened steel
MOTOR	160 cc
BLADE SPEED	1,150 rpm
SAW DRIVE	Direct drive Piston motor
