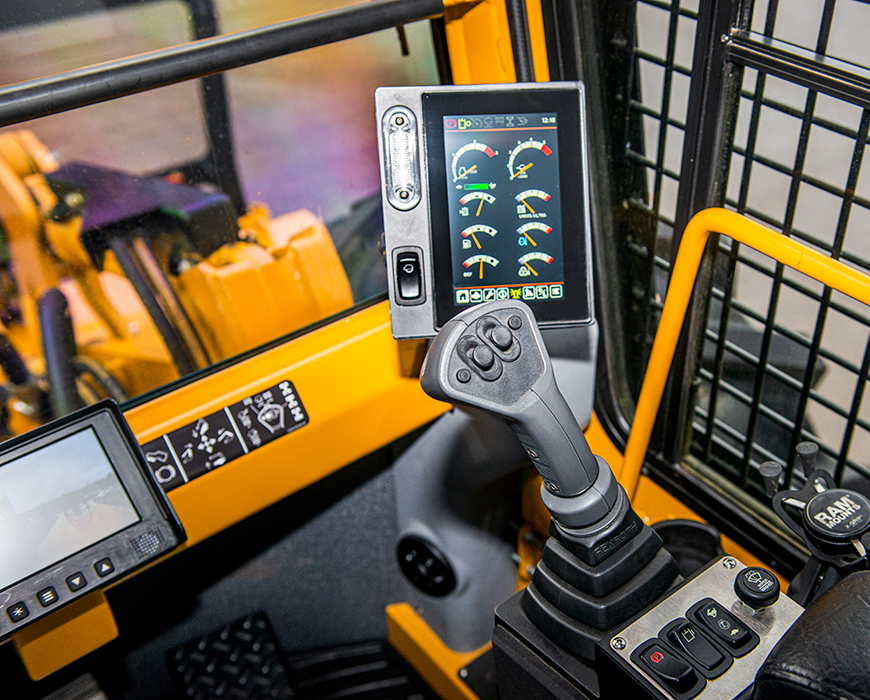

Quiet and comfortable operator's station features a large LCD touchscreen and ergonomic, armrest mounted joystick steer and drive.
The boom float, and cruise control features make the 760B an operator's dream.

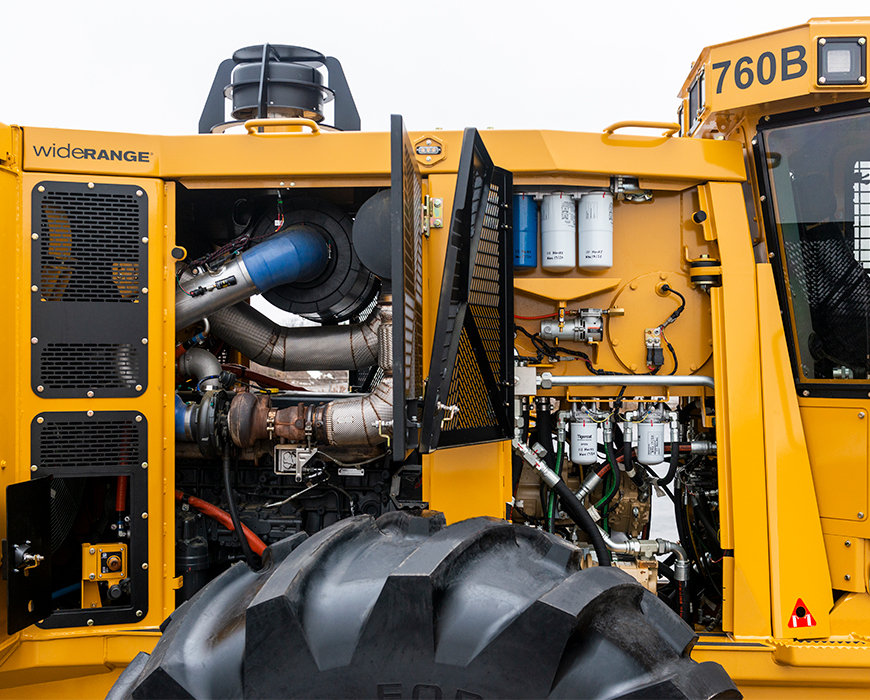

The neat and clean engine compartment with large doors allow for easy access to daily service points.
Ground level fuel control makes filling up quick and easy.

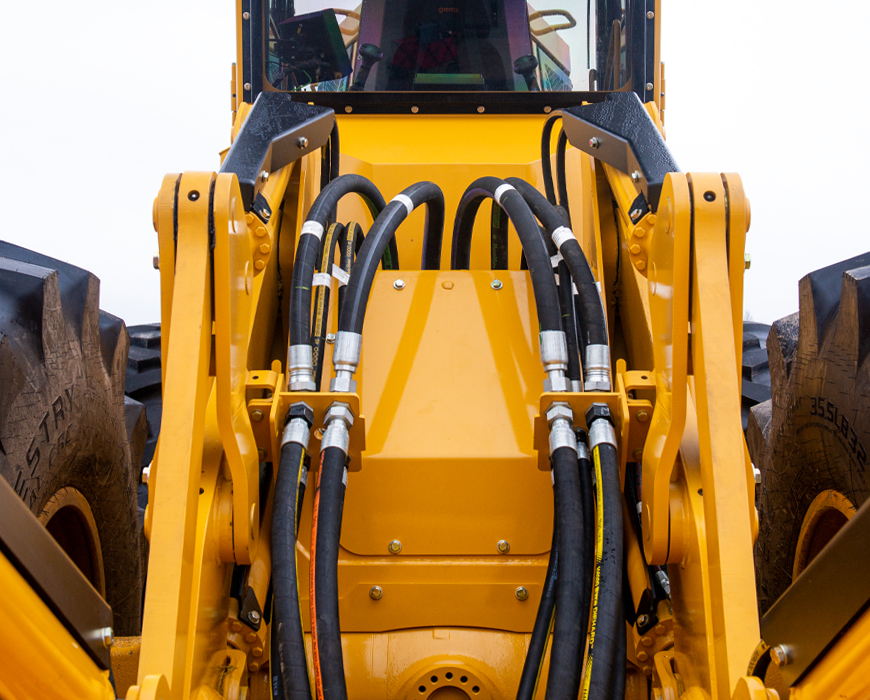

A heavy duty chassis and boom system are built for the toughest jobs.
Tigercat designed and manufactured axles, transmission and pump drive gearbox provide maximum power and performance.
| LENGTH less attachment | 6 810 mm |
| WHEELBASE | 3 200 mm |
| WIDTH | 3 430 mm |
| HEIGHT | 3 785 mm |
| GROUND CLEARANCE | 685 mm |
| WEIGHT less attachment | 17 305 kg |
| ENGINE Tier 4f | Tigercat FPT C13 Tier 4f 411 kW (552 hp) @ 1,800 rpm |
| ENGINE Tier 2 | Tigercat FPT C13 Tier 2 424 kW (569 hp) @ 1,800 rpm |
| PEAK TORQUE | 2 350 Nm (1,733 lbf-ft) @ 1,500 rpm |
| ENGINE Non-certified | Tigercat FPT C13 Non-certified 420 kW (563 hp) @ 1,800 rpm |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser Aluminum pump drive gearbox cooler Swing-out intake debris screen |
| FAN | Hydraulically driven Automatic variable speed with automatic reversing cycle |
| FUEL CAPACITY | 850 L |
| DEF CAPACITY | 135 L |
| TRANSMISSION | Tigercat wideRANGE drive Variable speed hydrostatic (2) Piston motor, infinitely variable |
| AXLES | Tigercat IB15, inboard planetary, barrel differential Front fixed Rear oscillating +/-10˚ |
| DIFFERENTIAL LOCKS | Independent front and rear |
| TOP SPEED | 16 km/h |
| PUMP, DRIVE | Piston |
| PUMP, BOOM | Piston |
| PUMP, STEERING | Piston |
| PUMP, FAN | Piston |
| PUMP, ATTACHMENT | Piston |
| FILTRATION | (7) Spin-on, 7 micron full flow (1) Water absorbing |
| CYLINDERS, STEER | (2) 95 mm (3.75 in) bore |
| CYLINDERS, BOOM | (4) 115 mm (4.5 in) bore lift and tilt |
| RESERVOIR | 295 L |
| DYNAMIC BRAKING | Hydrostatic |
| SECONDARY BRAKES | Enclosed, oil cooled |
| PARK BRAKE | Driveline mounted wet disc Spring applied, hydraulic release |
Onsite access to telematics. Using a secure WiFi hot spot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.
LEARN MORE
Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.
LEARN MORE
Speed and tractive effort. Have it all with WideRANGE, Tigercat’s infinitely variable transmission.
LEARN MORE
Jason and Misty West talk about their land clearing business and how the new Tigercat 760B mulcher fits into the equipment mix.
LEARN MORE
07 January 2015
Compared to other mobile industrial machines, equipment used in forestry has an above average risk of being damaged or destroyed by fire. Take the right steps to minimize the risk of fire. Learn more about best practices.
17 September 2019

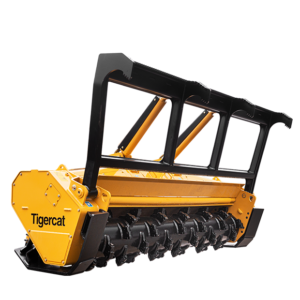

Download the brochure. Discover more about Tigercat's end-to-end mulching solutions.
