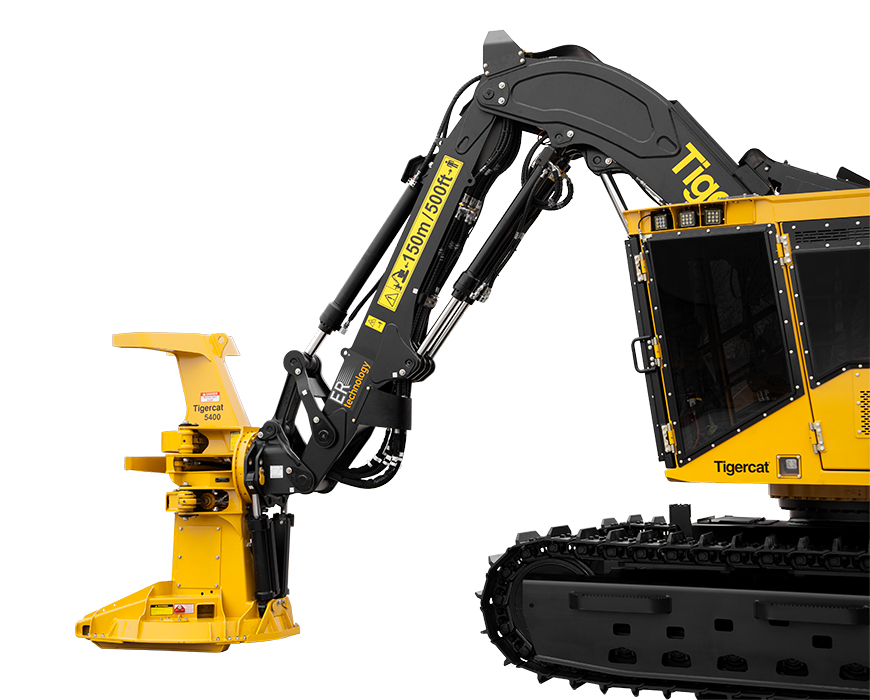

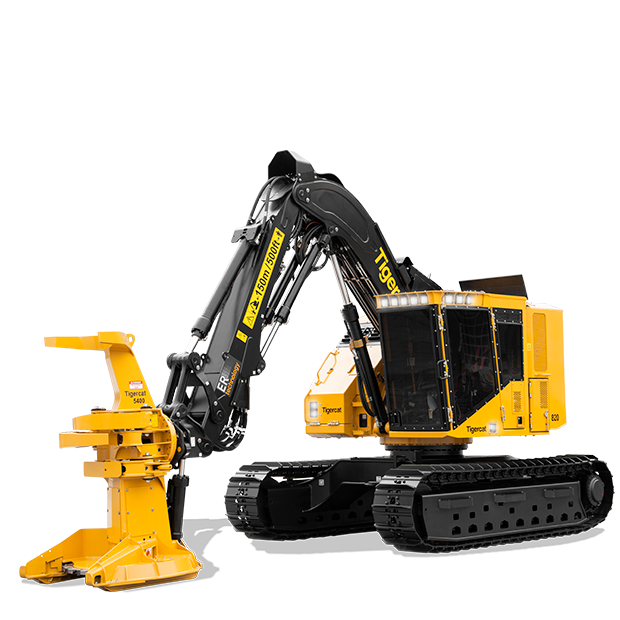

The 820 is equipped with a lighter quicker, tight-tuck boom ER system. It is ideal for selective felling, and high cycle, small stem felling applications such as row thinning. The 820 is well matched to the TCi 5400 felling saw.
Optimally positioned controls and large, colour touchscreen display for machine control system interface.
Quiet interior environment with Bluetooth® audio and hands-free calling.
Clear sightlines along with the skyVIEW camera system reduce fatigue and promote safety and productivity.

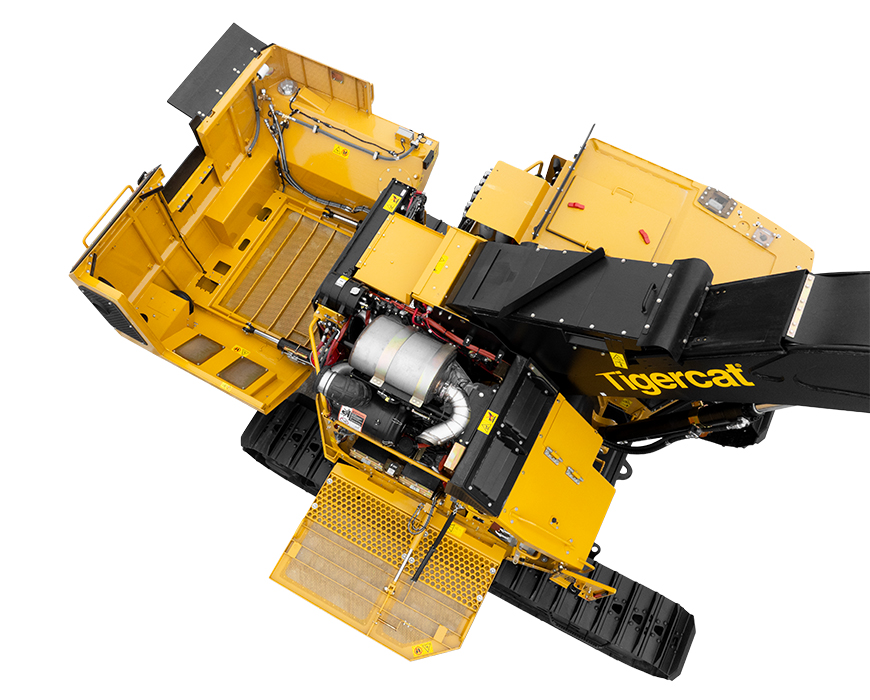

Class leading service and component access. The clamshell style retracting roof enclosure provides excellent access to the engine house. A swing-down door on the right side of the machine allows the operator to easily access daily engine service points.
| LENGTH less boom | 4 930 mm |
| WIDTH | 3 390 mm |
| HEIGHT | 3 280 mm |
| GROUND CLEARANCE | 760 mm |
| WEIGHT less attachment | 26 000 kg |
| TAIL SWING RADIUS | 2 000 mm |
| ENGINE Stage V | Tigercat FPT N67 Stage V 217 kW (291 hp) @ 2,200 rpm (rated) |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 212 kW (284 hp) @ 2,200 rpm (rated) |
| ENGINE Non-certified | Tigercat FPT N67 Non-Certified 212 kW (284 hp) @ 2,200 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side by side radiator, oil cooler, charge air cooler Removable intake debris screen |
| FAN | Hydraulically driven Automatic variable speed and reversing cycle |
| FUEL CAPACITY | 585 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 1,9 km/h |
| HIGH RANGE | 4,2 km/h |
| PUMP, MAIN | Piston |
| PUMP, SAW | Piston |
| PUMP, COOLING FAN | Piston |
| PUMP, CLAMP/ACCUM. ARMS | Piston |
| FILTRATION | (5) Spin-on, 7 micron full flow (1) water absorbing |
| CYLINDER, HOIST | 130 mm (5.1 in) bore |
| CYLINDERS, STICK/ER | (2) 110 mm (4.3 in) bore |
| CYLINDER, TILT | 130 mm (5.1 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed antistall |
| RESERVOIR | 204 L |
| TRACK FRAMES | F6-152-3 heavy duty forestry Integral track guides |
| TRACK CHAIN | F8/D6D 203 mm (8 in) pitch |
| FINAL DRIVE | (2) axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 280 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (9) D6 single and double flange tractor type |
| SLIDES, UPPER | Replaceable, bolt-on Optional rollers |
| TRACK SHOE | 610 mm (24 in) single/double grouser |
| Optional | 710 mm (28 in) double grouser |
ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.
