Fully adjustable air ride seat with ergonomic armrest mounted controls.
Excellent visibility with full-length front window as well as skyVIEW and rearVIEW camera systems to reduce fatigue, and promote safe and productive operation.
Optimally positioned controls and large, colour touchscreen display for machine control system interface.
Quiet interior environment with Bluetooth® audio and hands-free calling.

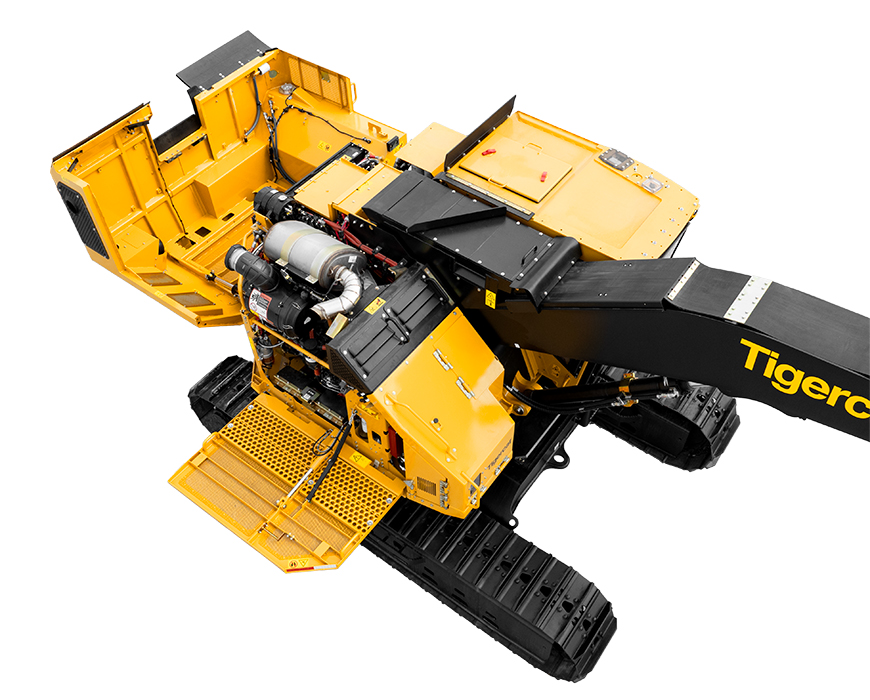

The clamshell style retracting roof enclosure provides excellent access to the engine house.
A swing-down door on the right side of the machine allows the operator to easily access daily engine service points.

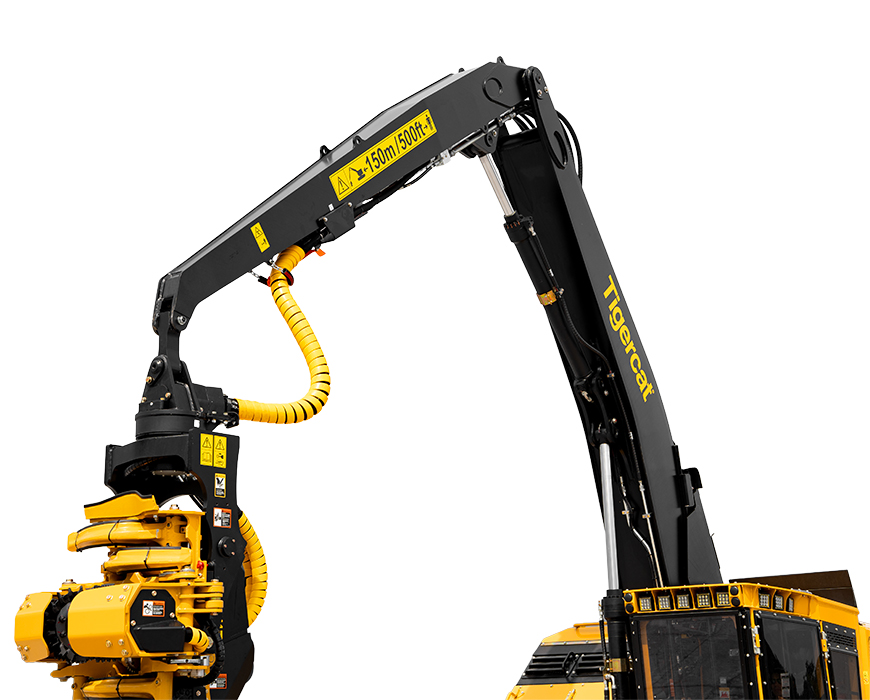

Tight-tuck boom system to minimize residual stand damage.
Expansive working envelope leads to reduced travel for improved fuel efficiency and reduced soil compaction.
| LENGTH less boom | 4 930 mm |
| WIDTH | 3 390 mm |
| HEIGHT | 3 280 mm |
| GROUND CLEARANCE | 710 mm |
| WEIGHT less attachment | 26 000 kg |
| TAIL SWING RADIUS | 2 000 mm |
| ENGINE Stage V | Tigercat FPT N67 Stage V 217 kW (291 hp) @ 2,200 rpm (rated) |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 212 kW (284 hp) @ 2,200 rpm (rated) |
| ENGINE Non-certified | Tigercat FPT N67 Non-Certified 212 kW (284 hp) @ 2,200 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side-by-side radiator, oil cooler, charge air cooler Removable intake debris screen |
| FAN | Hydraulically driven, automatic variable speed, reversible |
| FUEL CAPACITY | 585 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 1,9 km/h |
| HIGH RANGE | 4,2 km/h |
| PUMP, MAIN | Piston |
| PUMP, HARVESTING HEAD | Piston |
| PUMP, COOLING FAN | Piston |
| PUMP, CASE | Gear |
| FILTRATION | (5) Spin-on, 7 micron full flow (1) water absorbing |
| CYLINDER, HOIST | 125 mm (4.9 in) bore |
| CYLINDER, STICK | 120 mm (4.7 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed antistall |
| RESERVOIR | 204 L |
| TRACK FRAMES | F6-152-3 heavy duty forestry Integral track guide |
| TRACK CHAIN | F8/D6D 203 mm (8 in) pitch |
| FINAL DRIVE | (2) Axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 285 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (9) D6 single/double flange tractor type |
| SLIDES, UPPER | Replaceable, bolt-on Optional rollers |
| TRACK SHOE | 610 mm (24 in) single/double grouser |
| Optional | 710 mm (28 in) double grouser |
