LG4053 Grapple

A simple and reliable tree-length grapple for knuckleboom-style loaders.

SPECS

BENEFITS

DEALER

Grapples

Grapples

Highlights

Capacity

Weight

Maximum Opening

0,31 m²
3.37 ft²

875 kg
1,925 lb

1 460 mm
57.5 in

Capacity

0,31 m²
3.37 ft²

Weight

875 kg
1,925 lb

Maximum Opening

1 460 mm
57.5 in

Overview

The LG4053 loader grapple is well proven and durable with well protected cylinders and large diameter pins. Well suited to heavy lifting and high duty cycle pull-through delimbing applications.

Product Specifications

Metric

Imperial

Dimensions

WIDTH	520 mm
WIDTH	20.5 in
HEIGHT	1 640 mm
HEIGHT	64.5
DEPTH jaws open	1 665 mm
DEPTH jaws open	65.5 in
WEIGHT	875 kg
WEIGHT	1,925 lb
LOAD CAPACITY	0,31 m²
LOAD CAPACITY	3.37 ft²
MAXIMUM OPENING	1 460 mm
MAXIMUM OPENING	57.5 in

Hydraulic System

CYLINDERS, JAW

100 mm (4 in) bore with locks

Swing Drive

DRIVE MOTOR	Gerotor
CONTINUOUS ROTATION	Yes
CROSSOVER RELIEF	1750 psi (120 bar)
MAXIMUM SWING TORQUE	2 010 Nm (17,790 lbf in)

Recommended Carriers

RECOMMENDED CARRIERS

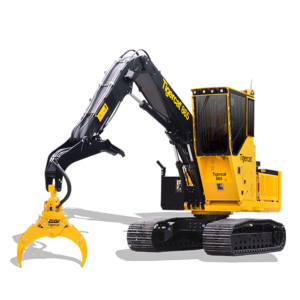

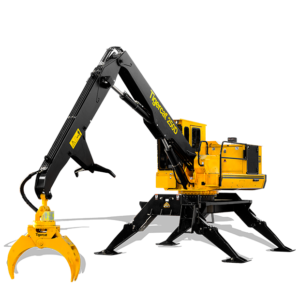

234, 250, 865, 2160

BROCHURE

Key Benefits

Rounded tong profile. Optimized to allow the logs to easily roll into the grapple

Durable, field-proven rotator assembly

Straight tongs with larger surface contact area to suit application or operator preference

Excellent performance in a variety of tree-length and short wood applications

Rounded tong profile. Optimized to allow the logs to easily roll into the grapple

Straight tongs with larger surface contact area to suit application or operator preference

Durable, field-proven rotator assembly

Excellent performance in a variety of tree-length and short wood applications

LG4053 grapple in the field

LG4053 grapple in the field

LG4053 grapple in the field

In the Field

Related Products

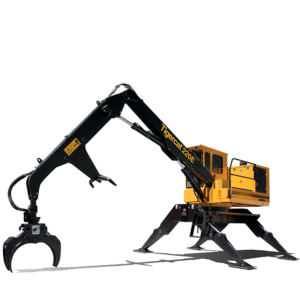

3/4 view of Tigercat 220E loader

2160 Loader Forwarder
