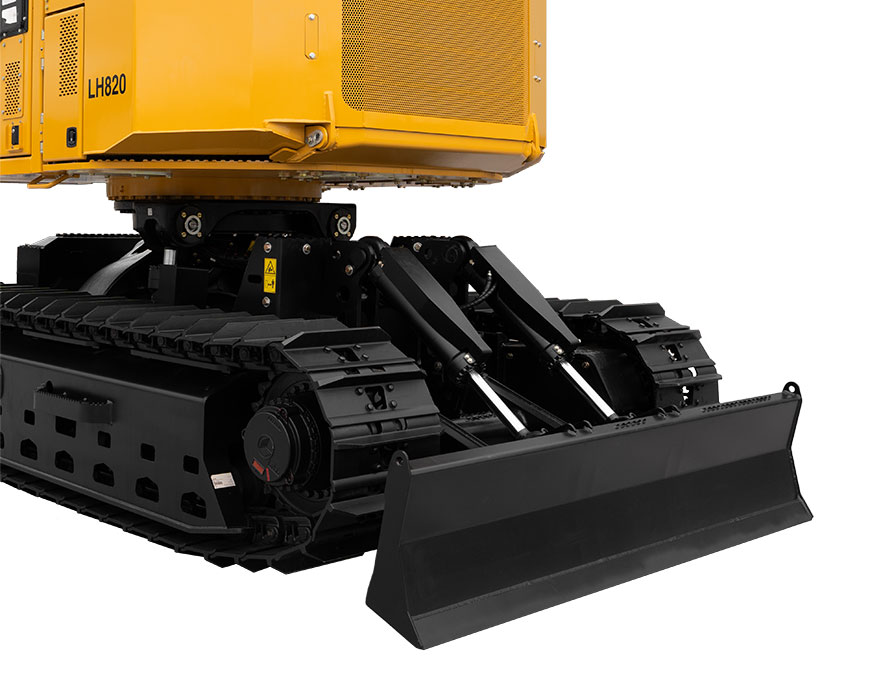

Optional dozer blade for added stability and the ability to perform light earth moving duties such as grading forwarder tails to improve overall harvesting system productivity.

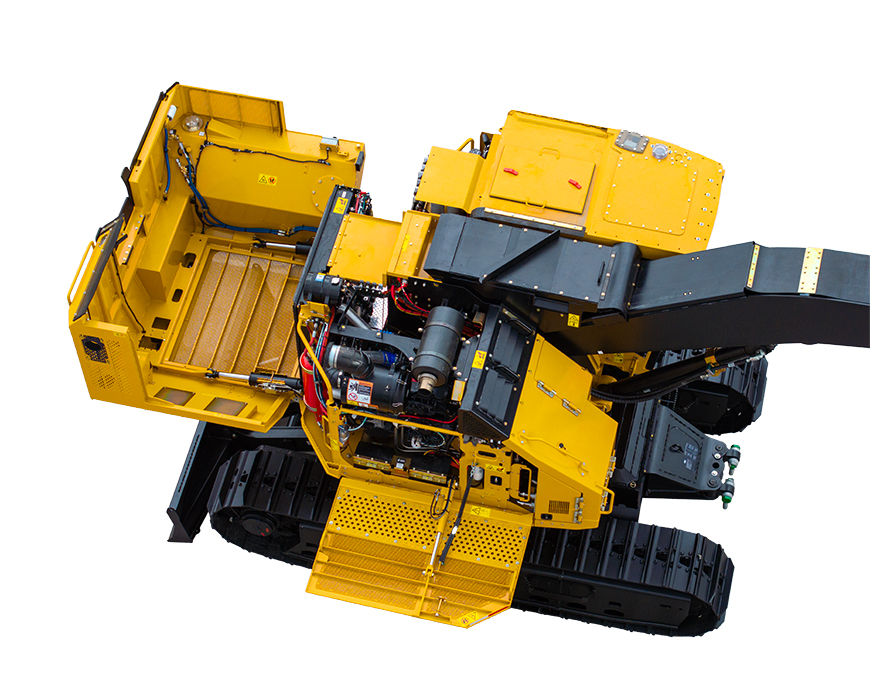

Clamshell style roof enclosure along with additional righthand side dropdown access door, and pump access door. Full access to engine, cooling system, hydraulic pumps and valves, and all daily service points. Safe, roomy, anti-slip platform access.
Simple, lighter weight boom system for smaller diameter timber profiles. Well suited to TCi 544 harvesting head. Tight-tuck minimizes residual stand damage and allows the operator to work in close to the machine. Expansive working envelope leads to reduced travel for improved fuel efficiency and reduced soil compaction.
Standard two-piece boom or optional long-reach telescopic boom for further reductions in soil disturbance.
| LENGTH less boom | 4 930 mm |
| WIDTH | 2 970 mm |
| HEIGHT | 3 710 mm |
| GROUND CLEARANCE | 685 mm |
| WEIGHT less attachment | 28 000 kg |
| TAIL SWING RADIUS | 2 025 mm |
| ENGINE Stage V | Tigercat FPT N67 Stage V 217 kW (291 hp) @ 2,200 rpm (rated) |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 212 kW (284 hp) @ 2,200 rpm (rated) |
| ENGINE Non-certified | Tigercat FPT N67 Non-Certified 212 kW (284 hp) @ 2,200 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side by side radiator, oil cooler and charge air cooler Removable intake debris screen |
| FAN | Hydraulically driven, automatic variable speed, reversible |
| FUEL CAPACITY | 585 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 1,8 km/h |
| HIGH RANGE | 4 km/h |
| PUMP, MAIN | Piston |
| PUMP, HARVESTING HEAD | Piston |
| PUMP, COOLING FAN | Piston |
| PUMP, CASE | Gear |
| FILTRATION | (5) Spin-on, 7 micron full flow (1) Water absorbing |
| CYLINDER, HOIST | 125 mm (4.9 in) bore |
| CYLINDER, STICK | 120 mm (4.7 in) bore |
| CYLINDER, STICK optional telescopic boom | 130 mm (5.1 in) bore |
| CYLINDERS, LEVELING | (2) 150mm (5.9) in bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed antistall |
| RESERVOIR | 204 L |
| TRACK FRAMES | R6-152L2-N heavy-duty forestry leveling Integral track guides/ramp angles |
| TRACK CHAIN | F8 203 mm (8 in) pitch |
| FINAL DRIVE | (2) Axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 320 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (9) D6 single and double flange excavator type |
| SLIDES, UPPER | Replaceable, bolt-on Optional rollers |
| TRACK SHOE | 610 mm (24 in) single grouser |
| Optional | 610 mm (24 in) double grouser 710 mm (28 in) double grouser |
| LEVELING | 25° forward; 5.5° rear; +/-20° side |
