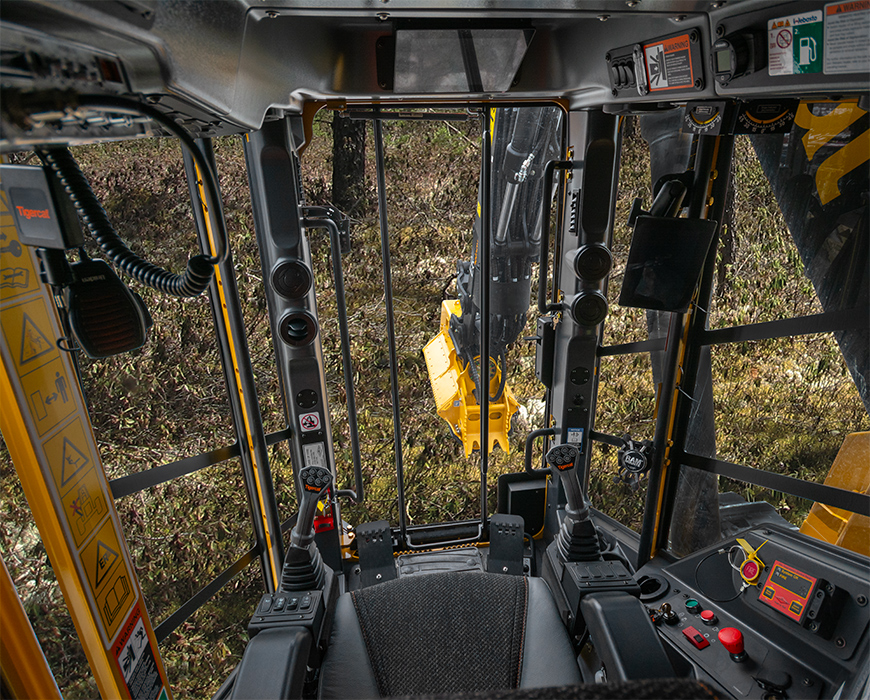

Optimally positioned controls and large, colour touchscreen display for machine control system interface.
Quiet interior environment with Bluetooth® audio and hands-free calling.
Clear sightlines along with the skyVIEW camera system reduce fatigue and promote safety and productivity.
The near zero tail-swing LX825 doesn't compromise on service access.

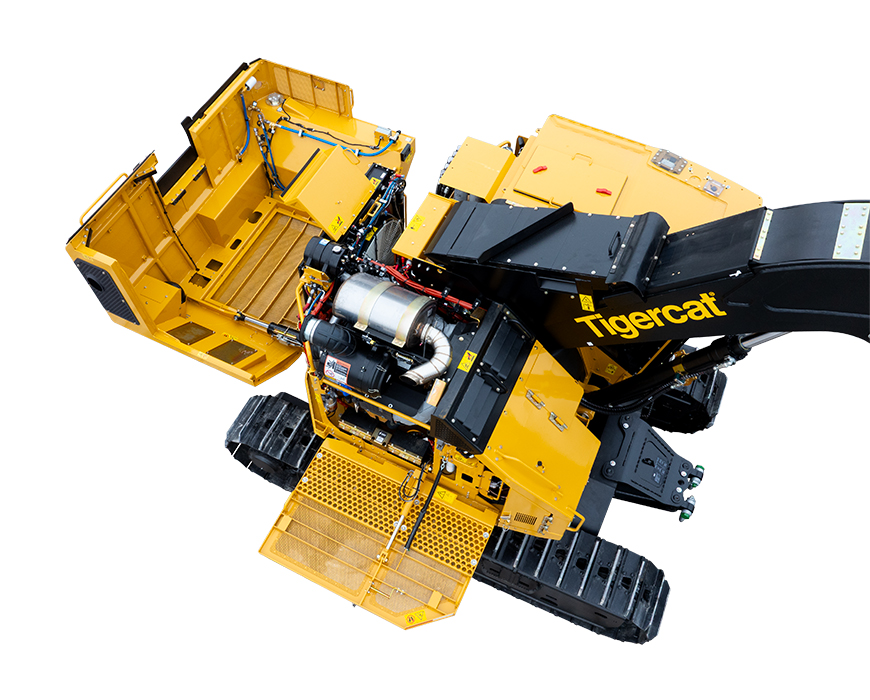

The clamshell style retracting roof enclosure exposes the entire engine compartment.
A swing-down door on the right side of the machine allows the operator to easily access daily engine service points.

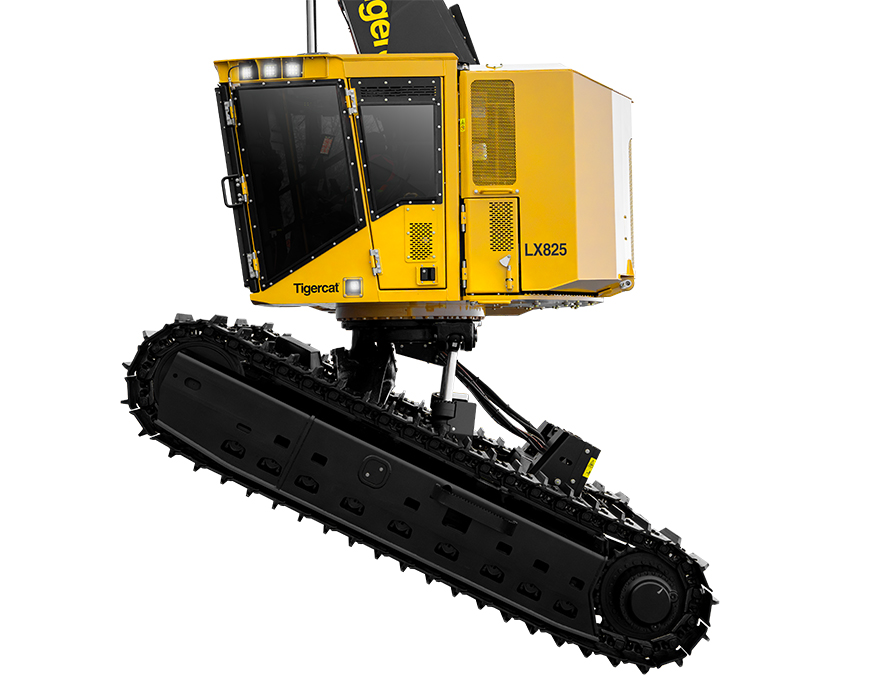

The undercarriage and leveling system is designed for agility, stability and response in tight stands and steep terrain.
Auto leveling will automatically level the cab at the touch of a button.
| LENGTH less boom | 4 950 mm |
| WIDTH with steps | 3 250 mm |
| HEIGHT | 3 710 mm |
| GROUND CLEARANCE | 710 mm |
| WEIGHT less attachment | 30 700 kg |
| TAIL SWING RADIUS | 2 095 mm |
| ENGINE Tier 4f | Tigercat FPT C87 Tier 4f, 257 kW (350 hp) @ 1,950 rpm (rated) |
| With convertible hydraulic system | Tigercat FPT C87 Tier 4f, 272 kW (370 hp) @ 1,950 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side-by-side radiator, oil cooler, charge air cooler Removable intake debris screen |
| FAN | Hydraulically driven, automatic variable speed, reversible |
| FUEL CAPACITY | 585 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 2,1 km/h |
| HIGH RANGE | 4,8 km/h |
| PUMP, BOOM/SWING | Piston |
| PUMP, SAW | Piston |
| PUMP, TRACK | (2) Piston, closed circuit |
| PUMP, COOLING FAN | Piston |
| PUMP, WRIST/CLAMP/ACCUM. ARMS | Piston |
| FILTRATION | (5) Spin-on, 7 micron full flow (1) Water absorbing |
| CYLINDER, HOIST | 130 mm (5.1 in) bore |
| CYLINDERS, STICK/ER | (2) 110 mm (4.5 in) bore |
| CYLINDER, TILT | 130 mm (5.2 in) bore |
| CYLINDERS, LEVELING | (2) 150 mm (5.9 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed antistall |
| RESERVOIR | 204 L |
| TRACK FRAMES | R7-150L-3 super-duty leveling Integral track guides, ramp angles |
| TRACK CHAIN | FH400 215 mm (8.5 in) pitch |
| FINAL DRIVE | (2) Axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 307 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (9) FH400 single and double flange excavator type |
| SLIDES, UPPER | Replaceable, bolt-on |
| TRACK SHOE | 610 mm (24 in) single grouser |
| Optional | 610 mm (24 in) single extended grouser 710 mm (28 in) single grouser 710 mm (28 in) double grouser 710 mm (28 in) single extended grouser |
| LEVELING | 26° forward; 5° rear; +/-18° side |
ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.
