Product Specifications

Metric
Imperial
LENGTH less boom 5 180 mm
WIDTH with steps 3 430 mm
GROUND CLEARANCE 685 mm
WEIGHT less attachment 34 475 kg
TAIL SWING RADIUS 2 095 mm
ENGINE Tier 4f Tigercat FPT C87 Tier 4f,
245 kW (330 hp) @ 1,950 rpm (rated)
245 kW (330 hp) @ 1,600 rpm (peak)
AIR FILTRATION Precleaner and 2-stage engine air cleaner
COOLING Aluminum side-by-side radiator, oil cooler,
charge air cooler
Removable intake debris screen
FAN Hydraulically driven, automatic variable speed,
reversible
FUEL CAPACITY 585 L
DEF CAPACITY 80 L
LOW RANGE 1,8 km/h
HIGH RANGE 4,2 km/h
PUMP, BOOM/SWING Piston
PUMP, SAW Piston
PUMP, TRACK (2) Piston, closed circuit
PUMP, COOLING FAN Piston
PUMP, WRIST/CLAMP/ACCUM. ARMS Piston
FILTRATION (5) Spin-on, 7 micron full flow
(1) Water absorbing
CYLINDER, HOIST 140 mm (5.5 in) bore
CYLINDERS, STICK/ER (2) 110 mm (4.5 in) bore
CYLINDER, TILT 130 mm (5.2 in) bore
CYLINDERS, LEVELING (2) 180 mm (7 in) bore
HORSEPOWER CONTROL Electronic speed sensing
All-speed antistall
RESERVOIR 204 L
TRACK FRAMES R7-163L super-duty leveling
Integral track guides, ramp angles
TRACK CHAIN FH400 215 mm (8.5 in) pitch
FINAL DRIVE (2) Axial piston motors
Infinitely variable speed
TRACTIVE EFFORT 343 kN
GEARBOX Triple reduction planetary type with brake

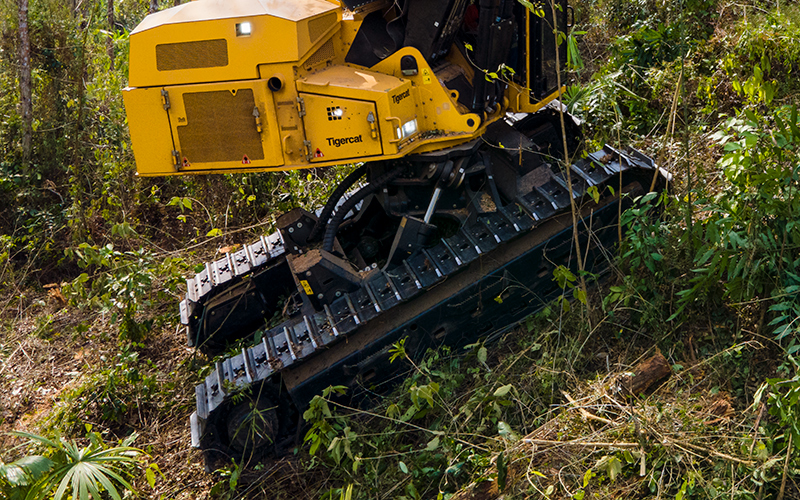

FRONT IDLER Hydraulic track adjuster
Spring shock absorber
ROLLERS, LOWER (10) FH400 single and double flange excavator type
SLIDES, UPPER Replaceable, bolt-on
TRACK SHOE 610 mm (24 in) single grouser
Optional 610 mm (24 in) single extended grouser
710 mm (28 in) single grouser
710 mm (28 in) double grouser
710 mm (28 in) single extended grouser

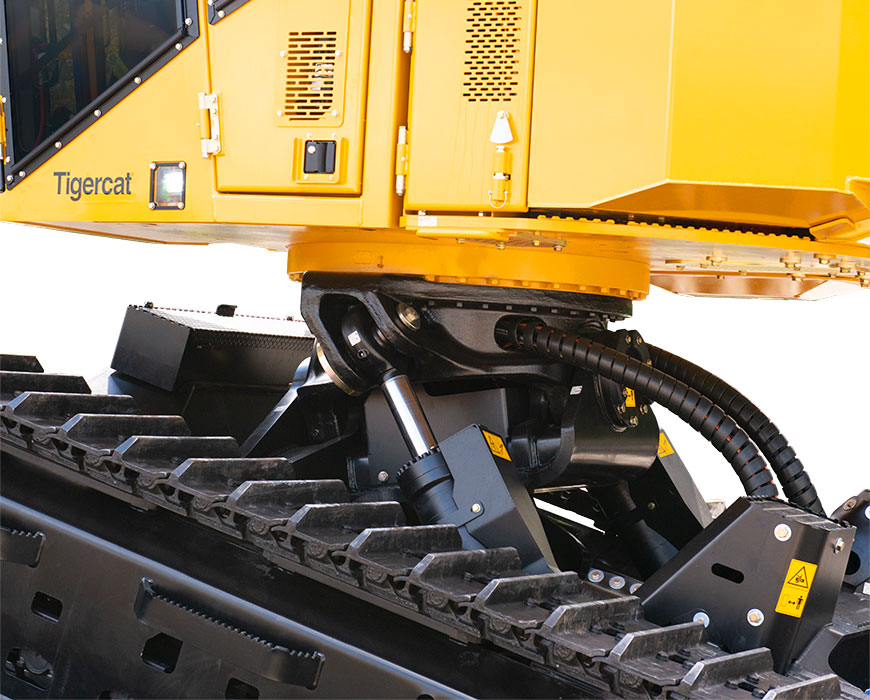

LEVELING 26° forward; 7° rear; +/-22° side

+ ALL

Resources

loader-icon

Logger Fulfills Dream


BTB visited Fuller Creek Enterprises LLC in Elma, Washington to speak with motivated young owner-operator, Adam Zepp.


Trevor Haywood Timber Co. LX830D with 5185


BTB visited Trevor Haywood of Trevor Haywood Timber Co. in Huntingdon, Tennessee to hear how his most recent purchase, a Tigercat LX830D feller buncher equipped with 5185 fixed felling saw, is fitting into the operation.

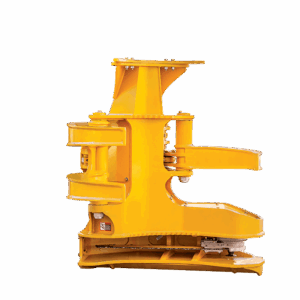

LX830D with 5185


Watch Trevor Haywood's LX830D feller buncher equipped with 5185 fixed felling saw. Trevor uses the machine to fell, limb, shovel, and pre-bunch for the skidders.

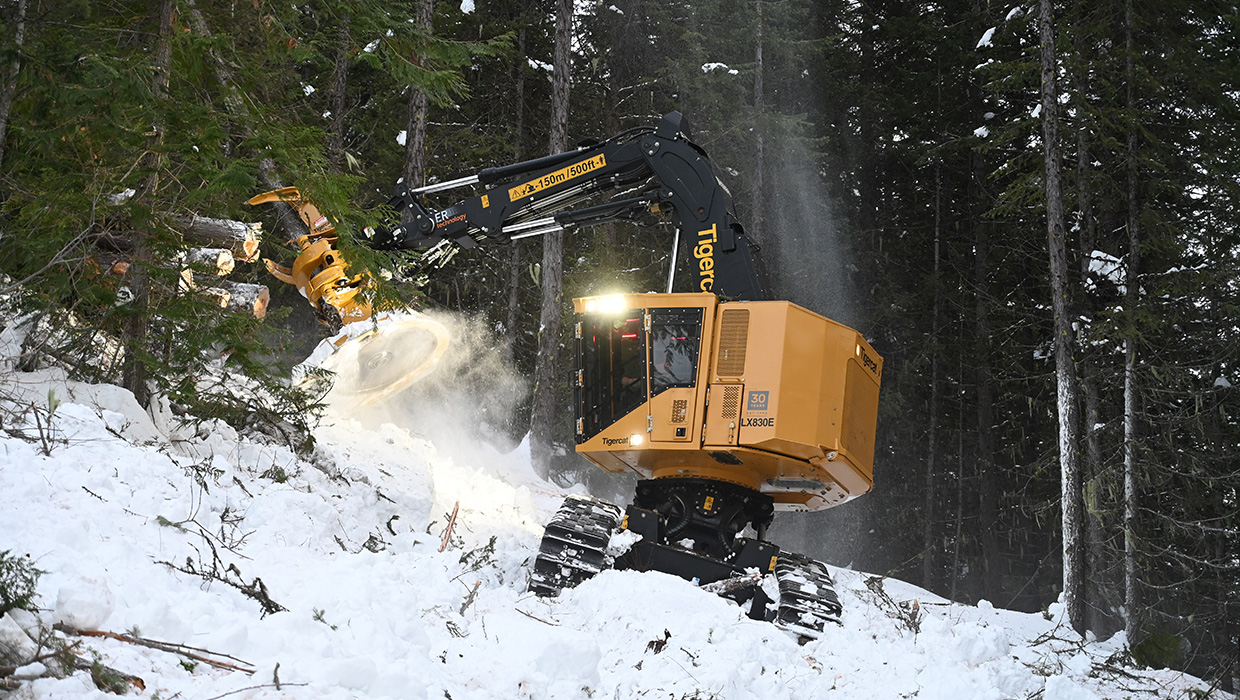

822E/LX830E Walk-around


Jessica Mann, product designer for the Tigercat tracked harvesting products takes us on a walk-around of the 822E and LX830E carriers. Watch this video to learn about the key features and benefits of owning a Tigercat 822E or LX830E compact tail-swing machine.

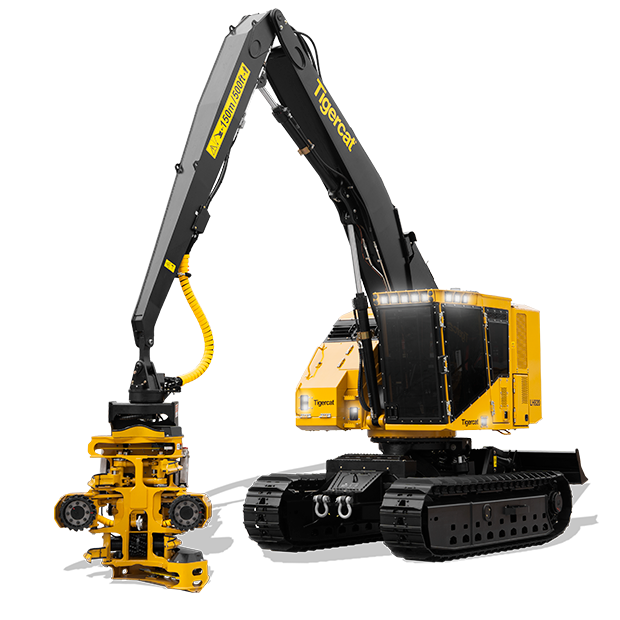

Related Products
