Durable construction for long-term delimbing and topping performance.

PD26 Delimber

PD26 Delimber

Durable construction for long-term delimbing and topping performance. SPECS DEALER BENEFITS Harvesting and Processing SPECS BENEFITS DEALER

Product Specifications

Metric
Imperial

Delimbing

MAXIMUM DIAMETER encircled 660 mm
MINIMUM DIAMETER encircled 100 mm
KNIVES 4

Dimensions

LENGTH 2 445 mm
WIDTH 2 280 mm
HEIGHT 2 515 mm
WEIGHT 3 750 kg
THROAT OPENING 815 mm
NOSE ROLLER 460 mm

Cutting

CHAIN OIL CAPACITY 21 L (5.5 US gal)
MAIN SAW UNIT standard Tigercat, automatic lubrication
CHAIN 1 145 mm
CHAIN 19 mm (0.75 in)
CHAIN TENSION Manual
Optional Automatic
DRIVE Direct, (9) tooth sprocket

Overview

The PD26 is a simple effective delimbing and topping solution for processing tree-length logs in conjunction with a Tigercat knuckleboom loader. With a large slew bearing, well-engineered and durable steel structures, and easy service access, the PD26 pull-through delimber is designed for high uptime and extended life.

Key Benefits

Large diameter main slew bearing with M20 (¾ in) bolt-through connections on inner and outer races
Field-proven Tigercat saw unit with hydraulic auto tensioning, a saw position flag, chain catcher, and chain-shot guarding
Durable Tigercat design and structure eliminates the need for support rollers, providing smooth operation and high performance
Bolt-on fixed front knife with replaceable backing nuts for easier servicing
Heavy-duty round tubing promotes smooth stem flow while sloped surfaces and an open-frame structure shed debris
Centralized hydraulic manifold and optimized hydraulic circuit allow function adjustments and servicing to be completed from inside the cab
Large diameter main slew bearing with M20 (¾ in) bolt-through connections on inner and outer races
Durable Tigercat design and structure eliminates the need for support rollers, providing smooth operation and high performance
Heavy-duty round tubing promotes smooth stem flow while sloped surfaces and an open-frame structure shed debris
Field-proven Tigercat saw unit with hydraulic auto tensioning, a saw position flag, chain catcher, and chain-shot guarding
Bolt-on fixed front knife with replaceable backing nuts for easier servicing
Centralized hydraulic manifold and optimized hydraulic circuit allow function adjustments and servicing to be completed from inside the cab

Tigercat Launches Pull-Through Delimber

Tigercat Industries launches PD26 pull-through delimber, as it continues to build an end-to-end factory solution on the landing for processing, merchandising and loading.


LEARN MORE PD26 pull-through delimber

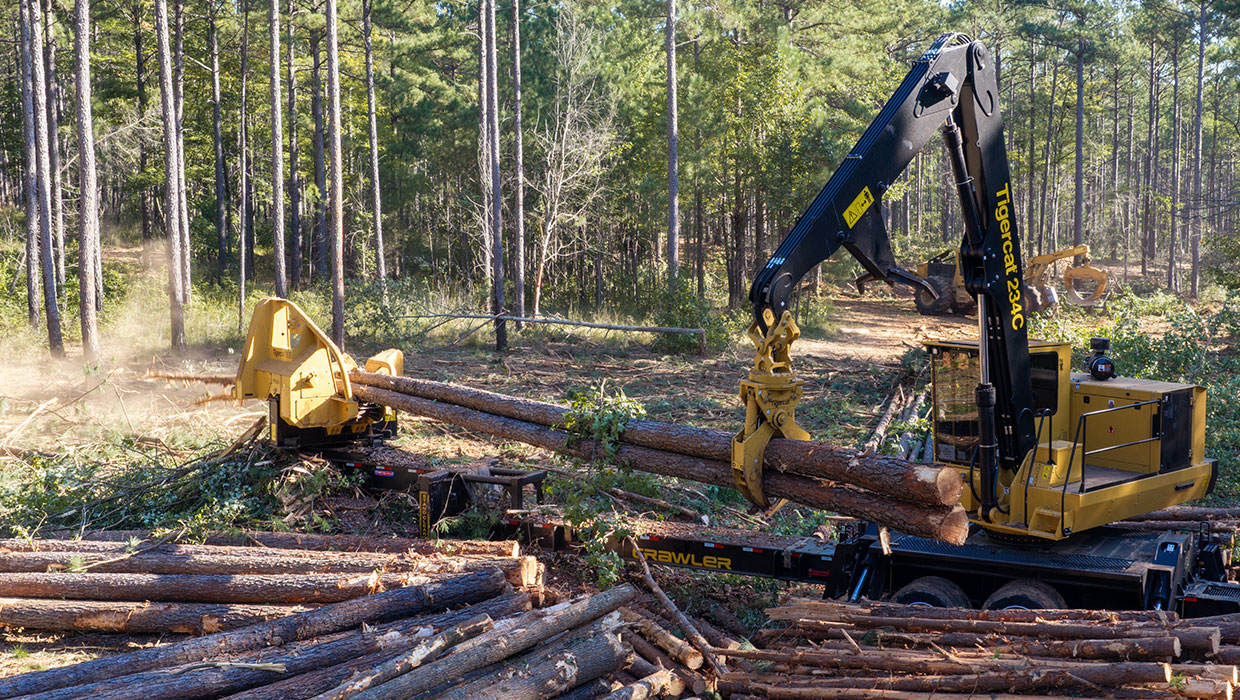

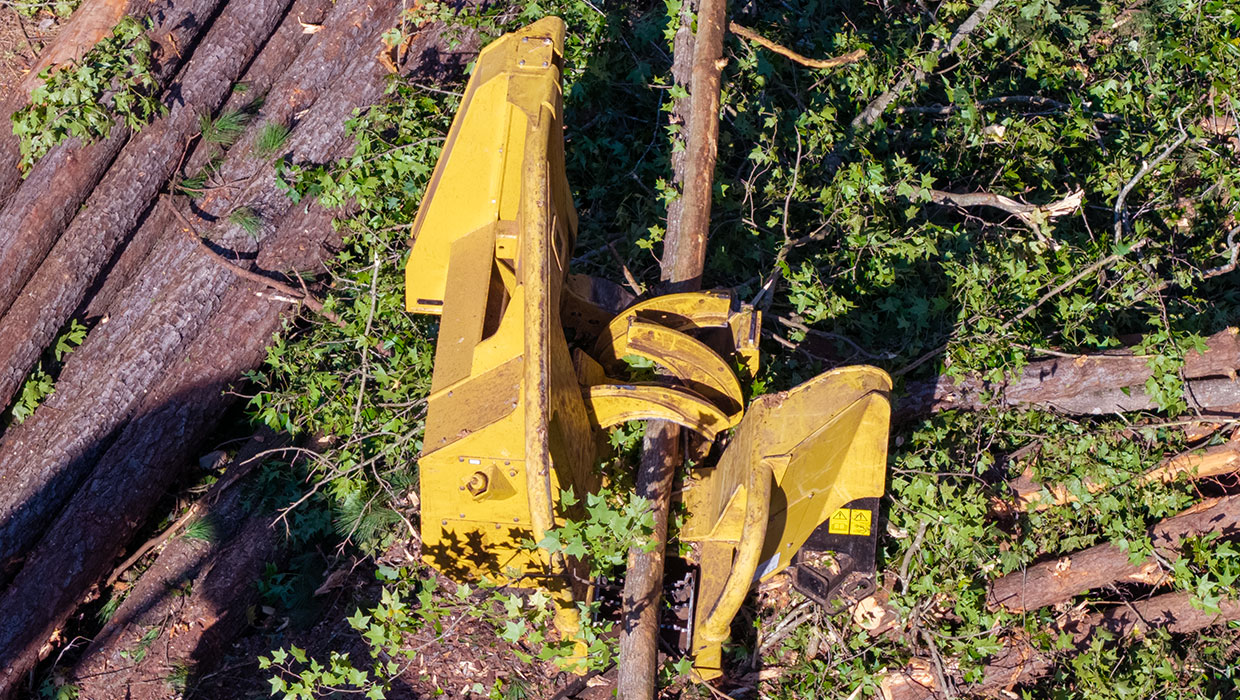

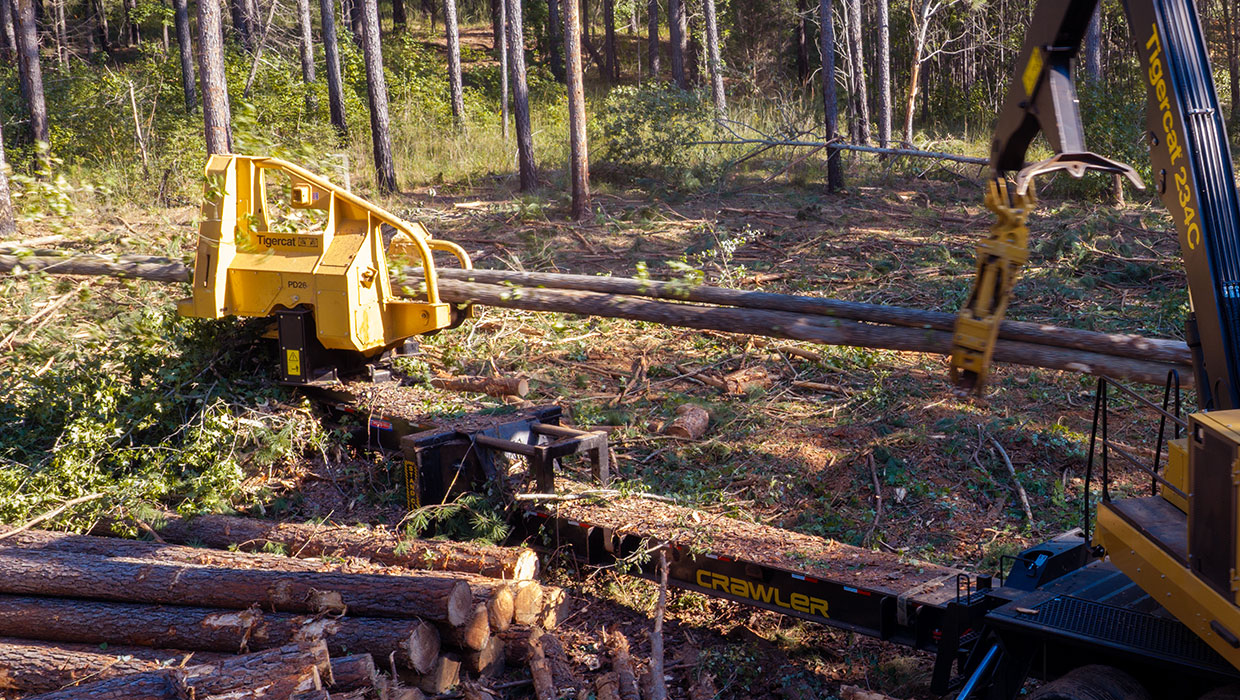

PD26 pull-through delimber PD26 delimber knives Tigercat PD26 performing pull-through delimbing
