SC08 Shovel Clam Grapple

A durable and versatile grapple for shovel logging applications.

Find a Dealer

Overview

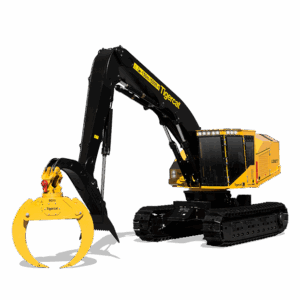

The Tigercat SC08 shovel clam grapple is matched to the LS855E and LSX870D shovel loggers for an end-to-end Tigercat package. The jaw profile easily rolls the logs into a tight bunch for increased control and productivity in demanding, high volume shovel logging applications.


Key Benefits

  • Box-style jaws fabricated from high strength steel. Fatigue resistant welded construction
  • Weld-on tine tips are made from abrasion-resistant steel and can be replaced
  • Well protected boom hoses. Routed over the boom and under the connecting pin
  • Powerful slew. Piston motor coupled with a two-stage planetary gearbox provides ample speed and torque
Show measurements as:
Metric
Imperial
WIDTH 1 120 mm
HEIGHT 2 415 mm
DEPTH jaws open 2 770 mm
WEIGHT 2 540 kg
LOAD CAPACITY 0,7 m²
MAXIMUM OPENING 2 360 mm
CYLINDERS, JAW (2) 100 mm (4 in) bore
GEARBOX 2-stage planetary
DRIVE MOTOR Piston
CONTINUOUS ROTATION High pressure rotary manifold seals
CROSSOVER RELIEF Soft stop, low pressure side charged
MAXIMUM SWING TORQUE 33 895 Nm (300,000 lbf in)
VALVE IN HEAD Proportional controlled
Matched to Tigercat electrical outputs
RECOMMENDED CARRIERS 855, 870
