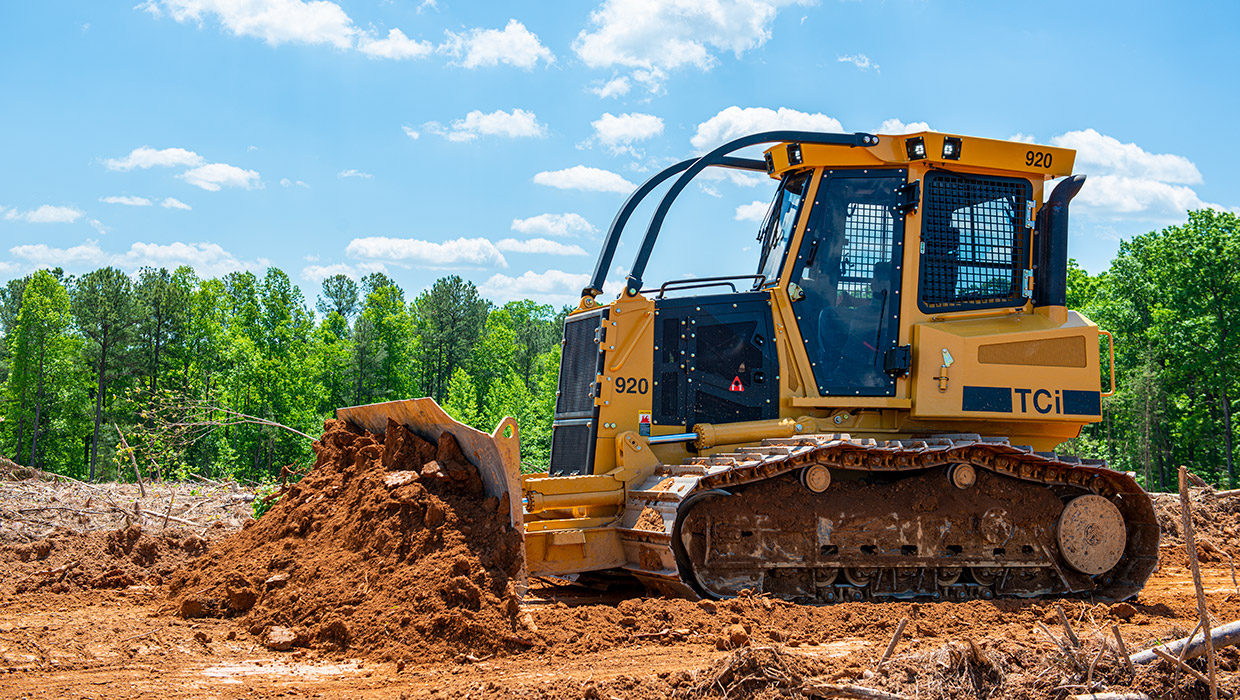

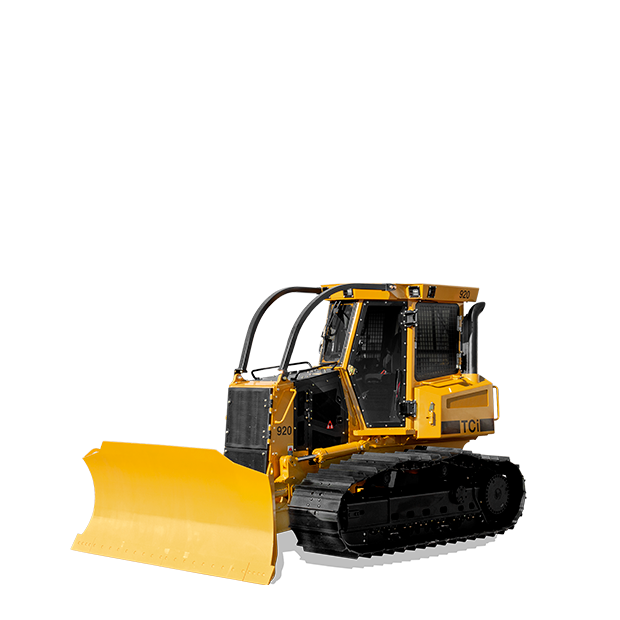

TCi 920 Dozer

Product Specifications

Metric

Imperial

Dimensions

LENGTH	4 930 mm
LENGTH	16 ft 2 in
WIDTH	3 175mm
WIDTH	10 ft 5 in
WIDTH less attachment	2 565mm
WIDTH less attachment	8 ft 5 in
HEIGHT	3 125 mm
HEIGHT	10 ft 3 in
GROUND CLEARANCE	380 mm
GROUND CLEARANCE	15 in
GROUND PRESSURE less attachment	48.3 kPA
GROUND PRESSURE less attachment	7 psi
WEIGHT	15 930 kg
WEIGHT	35 400 lb

Power

ENGINE Tier 4f	Tigercat FPT N45 101 kW (135 hp) @ 2,200 rpm (net) 125 kW (168 hp) @ 2,200 rpm (maximum)
AIR FILTRATION	Precleaner and 2-stage engine air cleaner
COOLING	Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser
FAN	Fixed pitch blower
Optional	Flexxaire® variable pitch, reversing
FUEL CAPACITY	260 L
FUEL CAPACITY	69 US gal
DEF CAPACITY	26 L
DEF CAPACITY	6.9 US gal

Top Speed

FORWARD/REVERSE	10 km/h
FORWARD/REVERSE	6.2 mph

Hydraulic System

PUMP, DRIVE	(2) Piston, closed loop
PUMP, MAIN 1	Piston for all machine functions
PUMP, MAIN 2	Gear for cooling

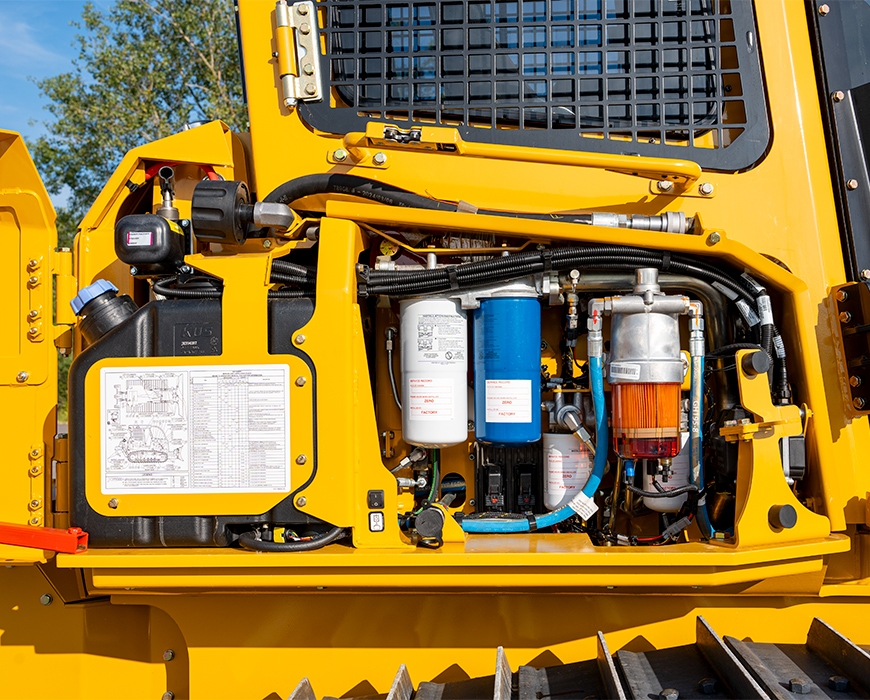

FILTRATION	(1) Spin-on, 7 micron full flow (1) Water absorbing
CYLINDER, TILT	(1) 110 mm (4.3 in) bore
CYLINDERS, LIFT	(2) 110 mm (4.3 in) bore
CYLINDERS, ANGLE	(2) 90 mm (3.5 in) bore
RESERVOIR	100 L
RESERVOIR	26 US gal

Undercarriage

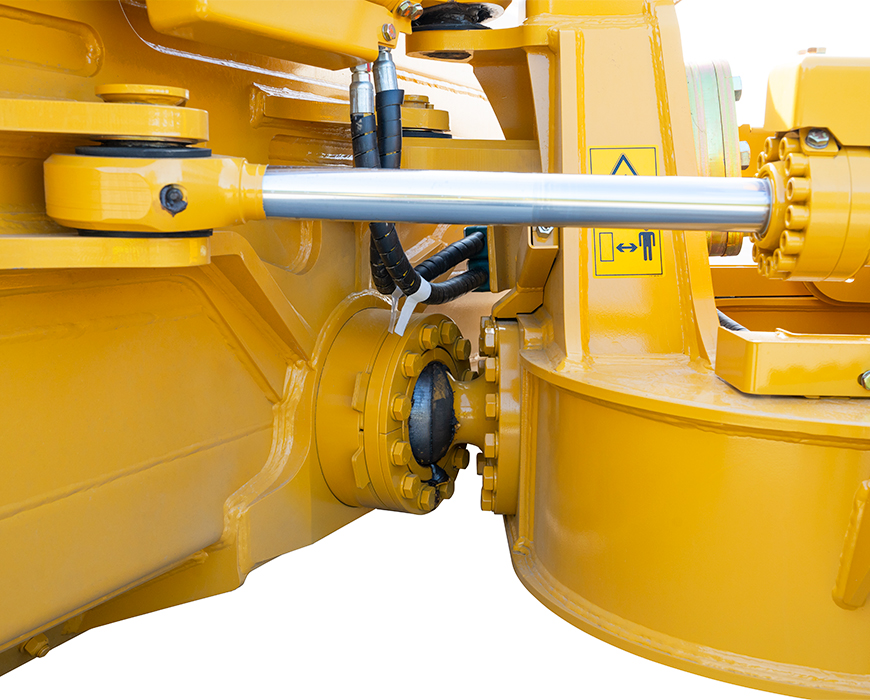

TRACK FRAMES	Heavy-duty forestry, oscillating
TRACK GAUGE	2 010 mm
TRACK GAUGE	79 in
TRACK CHAIN	Heavy duty 190 mm (7.5 in) pitch, SALT
FINAL DRIVE	(2) Axial piston motors Infinitely variable speed
TRACTIVE EFFORT	214 kN
TRACTIVE EFFORT	48,300 lbf
GEARBOX	Double reduction planetary type with brake
FRONT IDLER	Hydraulic track adjuster Spring shock absorber
ROLLERS, UPPER	(2) D5, cantilever
ROLLERS, LOWER	(4) D5 single flange tractor type (3) D5 double flange tractor type
TRACK SHOE	(40) 560 mm (22 in) single grouser
Optional	(40) 600 mm (24 in) single grouser (40) 760 mm (30 in) single grouser
WIDTH over tracks	2 565 mm
WIDTH over tracks	8 ft 5 in
LENGTH track on ground	2 605 mm
LENGTH track on ground	8 ft 7 in
GROUND CONTACT AREA	3,26 m³
GROUND CONTACT AREA	5,050 in³

+ ALL

Brakes

TRACK

Friction disc
Automatic spring applied, hydraulic release

Winch

TYPE	(Optional) Carco H40R with reel in and out, manual free spool, drawbar and (4) roller fairlead
LINE PULL any engine rpm BARE DRUM	18 000 kg
LINE PULL any engine rpm BARE DRUM	40,000 lb
LINE PULL any engine rpm FULL DRUM	12 465 kg
LINE PULL any engine rpm FULL DRUM	27,700 lb
LINE SPEED BARE DRUM	17 m/min
LINE SPEED BARE DRUM	57 ft/min
LINE SPEED FULL DRUM	26 ft/min
LINE SPEED FULL DRUM	84 m/min
CAPACITY with 13 mm cable	109 m
CAPACITY with 1/2 in cable	356 ft
CAPACITY with 16 mm cable	73 m
CAPACITY with 0.63 in cable	240 ft
CAPACITY with 19 mm cable	48 m
CAPACITY with 3/4 in cable	158 ft
CAPACITY with 22 mm cable	30 m
CAPACITY with 7/8 in cable	98 ft

Ripper

TYPE	Parallelogram (2) barrel parallel linkage ripper (3) pockets, (3) shanks
MAXIMUM PENETRATION	535 mm
MAXIMUM PENETRATION	21 in
MAXIMUM LIFT HEIGHT	535 mm
MAXIMUM LIFT HEIGHT	21 in
DEPARTURE ANGLE	28°
OVERALL BEAM WIDTH	1 980 mm
OVERALL BEAM WIDTH	6 ft 6 in
SHANK GAUGE	1 725 mm
SHANK GAUGE	5 ft 8 in
POCKET SPACING	865 mm
POCKET SPACING	34 in

Blade

STANDARD	6-Way, lift angle tilt
WIDTH	3 175 mm
WIDTH	10 ft 5 in
Optional	3 355 mm 3 685 mm
Optional	11 ft 12 ft 1 in
WIDTH across endbits	3 175 mm
WIDTH across endbits	10 ft 5 in
With blade angled 25°	2 870 mm
With blade angled 25°	9 ft 5 in
HEIGHT	1 065 mm
HEIGHT	42 in
INTEGRATED SPILL GUARD HEIGHT	240 mm
INTEGRATED SPILL GUARD HEIGHT	9.5 in
BLADE CAPACITY	3,3 m³
BLADE CAPACITY	4.3 yd³
BLADE ANGLE	25°
LIFT HEIGHT	1 065 mm
LIFT HEIGHT	42 in
DIG DEPTH	535 mm
DIG DEPTH	21 in
CUTTING EDGE ANGLE	55-60°, manually adjustable
CUT REACH	0
CUT REACH	14 in
CAST REACH	355 mm
CUT REACH	14 in

Electrical

BATTERY	(2) 12 v
ALTERNATOR	110 amp, 24 v
SYSTEM VOLTAGE	24 v

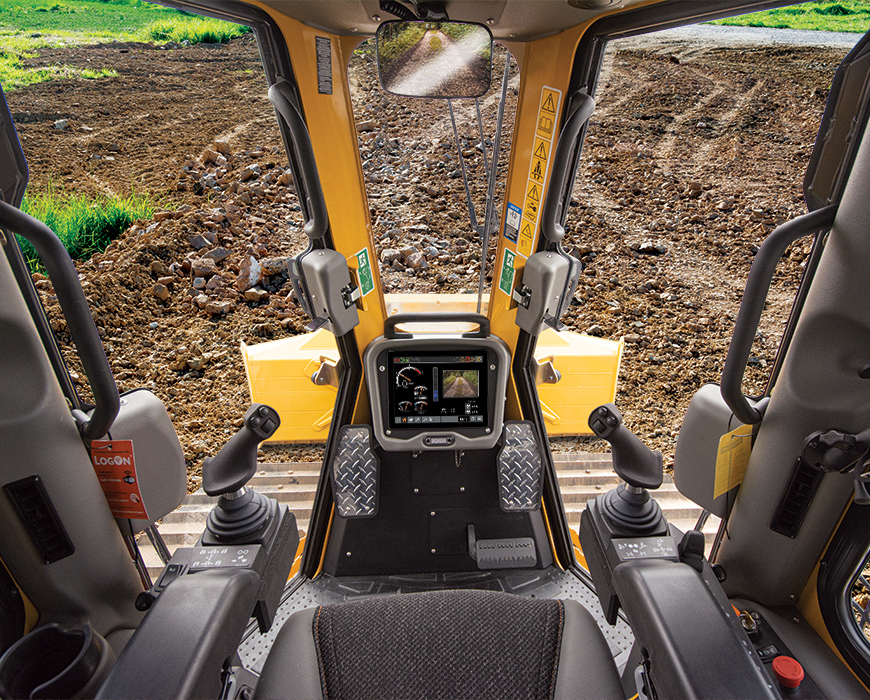

Operator's Station

CAB	Insulated, pressurized, and isolation mounted A/C, heater, defroster (2) doors (2) sliding windows with hinged screens Window wipers, front, (2) door and rear AM/FM digital stereo and auxiliary input port Bluetooth® audio and hands-free calling (3) Power points, (2) USB, (1) 12 v ROPS (ISO 3471 - 2008) FOPS (ISO 3449 - 2005) OPS (ISO 8084 - 2003)
SEAT	Heavy duty air ride suspension Heated and cooled Fully adjustable seat height and fore/aft, seatback recline and lumbar support, seat pan fore/aft and tilt, head rest height Optimal height adjustment indicator Adjustable armrests Armrest mounted Tigercat joysticks and control pods
OPERATOR CONTROLS	Electronic joystick for blade, steering, and direction selection Electronic, foot pedal for deceleration Electronic control system with 255 mm (10 in) LCD colour touchscreen for machine monitoring and rearVIEW camera display

Other Equipment

STANDARD	LogOn™ local wifi machine monitoring system Back-up alarm rearVIEW camera system Electric hydraulic reservoir fill pump Fire extinguisher
OPTIONAL	RemoteLog® telematics system Retrieval hitch Counterweight hitch Ripper Winch Rock guards, full length Rock guards, sectional High output LED lighting package Cold weather kit CB radio
OPERATING WEIGHTS optional equipment	Retrieval hitch: 95 kg (210 lb) Counterweight hitch: 990 kg (2,200 lb) Ripper: 1 350 kg (3,000 lb) Winch: 755 kg (1,680 lb)
