Advanced, cost-effective and environmentally appealing wood debris conversion.

6040 Carbonizer

6040 Carbonizer

Advanced, cost-effective and environmentally appealing wood debris conversion. SPECS DEALER BENEFITS Carbonizers SPECS BENEFITS DEALER

Highlights

weight icon
weight icon


engine icon
engine icon
WEIGHT
WIDTH
POWER
37 650 kg
83,000 lb
3,66 m
12 ft
151 kW
202 hp
WEIGHT
WIDTH
POWER
37 650 kg
83,000 lb
3,66 m
12 ft
151 kW
202 hp

Control and Information Systems

Inside the Carbonizing Chamber

Pivoting Conveyor

Control and Information Systems

Inside the Carbonizing Chamber

Pivoting Conveyor

Overview

The 6040 carbonizer is an advanced, cost-effective and environmentally appealing wood debris conversion system. The carbonizer transforms woody biomass into a stable, high quality organic carbon product, commonly called biochar, that can be marketed for many beneficial uses. The process reduces feedstock volume by 90% and sequesters 25-30% of total available carbon, removing it from the atmospheric cycle.

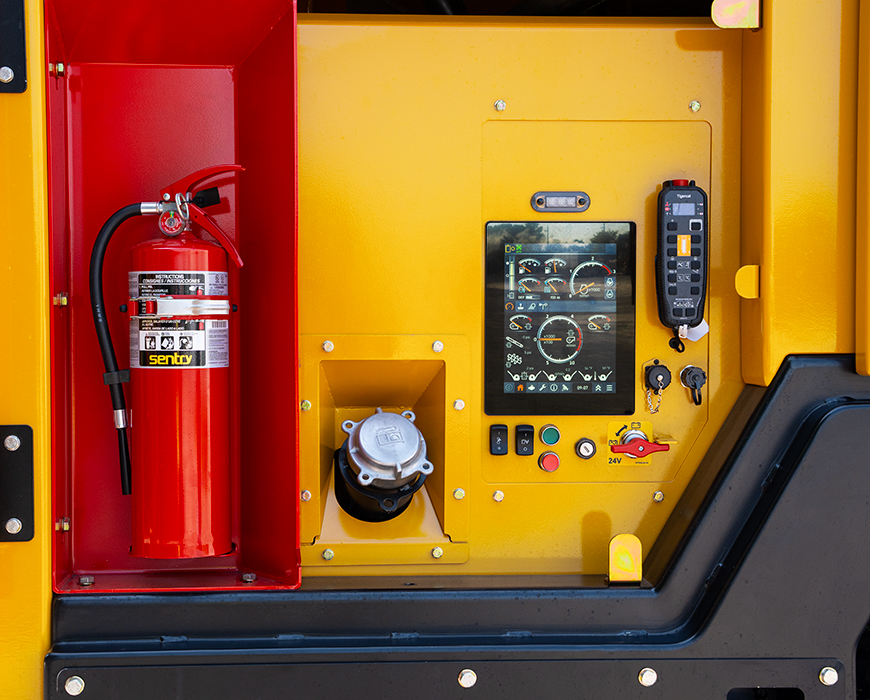

Control and Information Systems

Tigercat designed operating system and telematics information system provides a simple, intuitive interface and an excellent operator experience.

Temperature control sensors located throughout the machine monitor for optional carbonizing performance.

Powerful engine diagnostic and service support tools for maximum uptime.

Inside the Carbonizing Chamber

Specially formulated thermal-ceramic panels store and utilize the heat energy produced from the carbonizing process to provide equalized and sustained internal temperatures, along with low back-face temperatures. The replaceable panel seal plate design further enhances internal temperature stability and reduces panel wear.

The result is reduced emissions, greater infeed rates, a higher quality organic carbon and increased yield.

Pivoting Conveyor

Integrated bolt-on discharge conveyor with 105 degree swing and 3,65 m (12 ft) clearance for easy handling of organic carbon product output.

The conveyer stows away within the width and height envelope of the machine for convenient road transport.

Product Specifications

Metric
Imperial

Dimensions

LENGTH 11,35 m
WIDTH 3,66 m
HEIGHT 3,66 m
GROUND CLEARANCE 330 mm
WEIGHT 37 650 kg

Power

ENGINE Tier 4f Tigercat FPT N67 Tier 4f
151 kW (202 hp) @ 2,200 RPM
COOLING Side-by-side aluminum radiator, oil cooler
FAN Hydraulic driven, fixed pitch blower, reversible
FUEL CAPACITY 455 L
DEF CAPACITY 45 L

Hydraulic System

PUMP, MAIN Piston for all machine functions
FILTRATION (6) Spin-on, 7 micron full-flow
RESERVOIR 200 L

Undercarriage

TRACK FRAMES 5 Series, heavy-duty
FINAL DRIVE (2) Axial piston motors with brake valves
Infinitely variable speed
FRONT IDLER Hydraulic track adjuster
Spring shock absorber
ROLLERS, LOWER (10) D5 single/double flange tractor type
SLIDES, UPPER Replaceable
TRACK SHOE 700 mm (28 in) triple grouser

Carbonizing Chamber

ENCLOSURE (19) Individually hung, replaceable thermo-ceramic panels
GRATES (7) Primary chamber grates
Rotatable for extended use life
WEAR PLATES Replaceable, upper perimeter of primary chamber
AIRFLOW SYSTEM Single over-air fan, hydraulically driven
Dual under-air fans, hydraulically driven

+ ALL

Tigercat Brochure

Carbonizing Process

The 6040 transforms biomass into a durable and valuable carbon-based product called biochar through the processes of controlled pyrolysis, volatile burnout, and carbon stabilization. Feedstock volume is reduced by 90%, while the end product retains 25–30% of the total carbon in the feedstock. The carbon is effectively sequestered for centuries and the product is stable and suited to many soil and environmental applications.


LEARN MORE Illustration of the 6040 carbonizing process

Onsite Access with LogOn

Onsite access to production and service information. Using a mobile device and a secure WiFi hotspot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.


LEARN MORE

RemoteLog Telematics

Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.


LEARN MORE Image of a laptop with the RemoteLog home screen displayed

Key Benefits

Efficient feedstock processing, reducing volume by up to 90% for cost effective transport of final product
Sealed quenching trough with integrated automatic water level control fully quenches the organic carbon while minimizing water consumption
Adjustable conveyor simplifies handling and management of the organic carbon product
Environmentally friendly wood conversion process
Sealed quenching trough with integrated automatic water level control fully quenches the organic carbon while minimizing water consumption
High throughput, minimal to no feedstock preprocessing required
Produces a high quality organic carbon product, sequestering up to 30% of the available carbon
Excellent mobility for off road worksites
Gasses are combusted in the controlled secondary combustion zone resulting in very low emissions
Adjustable conveyor simplifies handling and management of the organic carbon product
Environmentally friendly wood conversion process
Produces a high quality organic carbon product, sequestering up to 30% of the available carbon
Gasses are combusted in the controlled secondary combustion zone resulting in very low emissions
Efficient feedstock processing, reducing volume by up to 90% for cost effective transport of final product
High throughput, minimal to no feedstock preprocessing required
Excellent mobility for off road worksites

6040 Carbonizer: Win-Win Solution

Two innovators in North Carolina share perspectives on the great potential of the circular biochar economy, and how the mobile, high throughput 6040 carbonizer fits in.


LEARN MORE Blair Sheppard standing in front of 6040 carbonizer

Permitting Progress for 6040 Carbonizer

Carbonizer Product Specialist, Matt O’Connor provides an update on permitting progress in the United States for the innovative 6040 carbonizer.


LEARN MORE 6040 carbonizer

Image of a Tigercat 6040 carbonizer working in the field Image of a Tigercat 6040 carbonizer working in the field Image of a Tigercat 6040 carbonizer working in the field Tigercat 6040 carbonizer working in the field Image of a Tigercat 6040 carbonizer working in the field Bags of biochar that the 6040 carbonizer made

In the Field

Resources

loader-icon

Carbonizing in California


An innovative California-based rancher and forestry professional employs Tigercat’s mobile carbonization technology to improve forest and soil health, mitigate wildfire risk and sequester carbon.


Dan Falk standing in front of 6040 carbonizer

Carbonizer FAQ


Frequently asked questions about the 6040 carbonizer, the carbonization process and the business model.


decorative

Tigercat Releases 6040 Carbonizer


Long awaited 6040 carbonizer is ready for market and set to revolutionize the processing and handling of waste wood biomass.


Image of a Tigercat 6040 carbonizer

Organic Carbon for Agriculture


Watch the Tigercat 6040 carbonizer convert wood debris from a logging operation in Virginia into valuable organic carbon to be reused in agricultural farming operations as a soil additive.


Image of a Tigercat 6040 carbonizer working in the field

6040 Carbonizer in Action


Watch the 6040 Carbonizer processing wood debris to produce consistent and high-grade organic carbon. The conversion process reduces the volume of infeed material by 90% and sequesters 25-30% of the total available carbon. It replaces open burning or other carbon intensive conversion processes, while creating a useful product.


Image of a Tigercat 6040 carbonizer operating in the field
