Lock and release the 220 degree rotating seat in any position with the touch of a button. Full machine controls are always at your fingertips.
Small details like a climate-controlled cup holder and a place to hang your hat make long days feel shorter.
The 4-point harness makes extreme terrain feel a little tamer.
The durable interior finish is easy to clean.
The silviculture carrier can be equipped with a winch and bolt-on fairlead system.

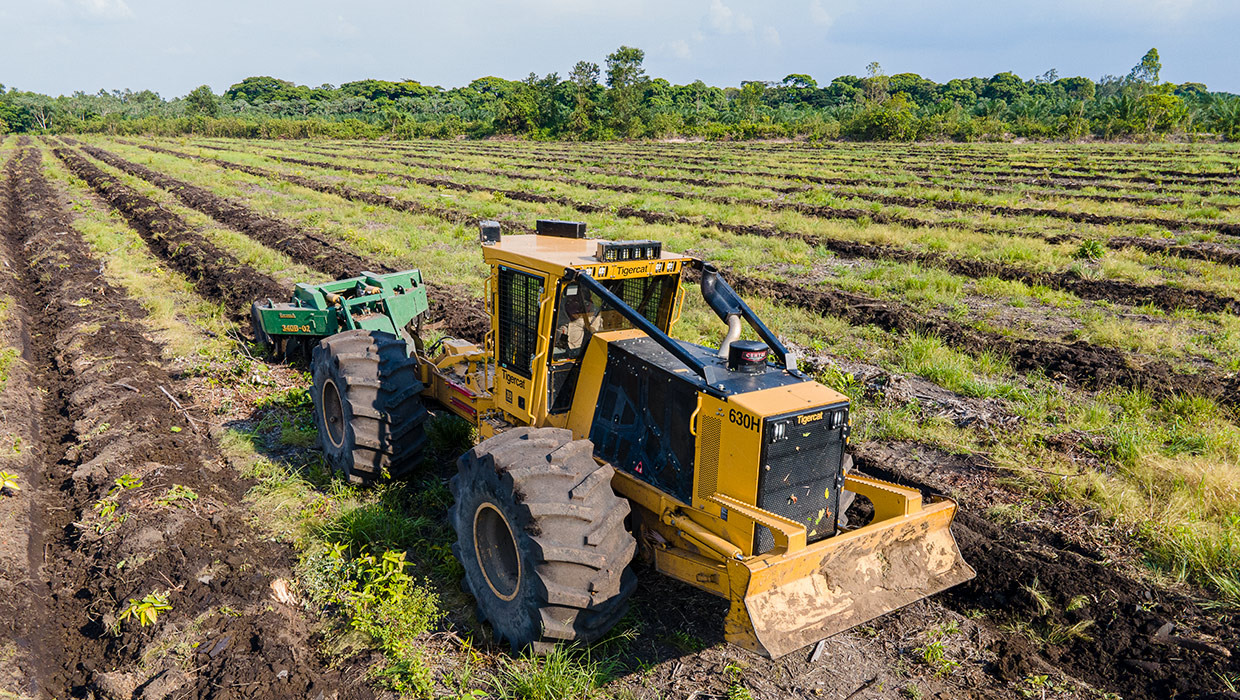

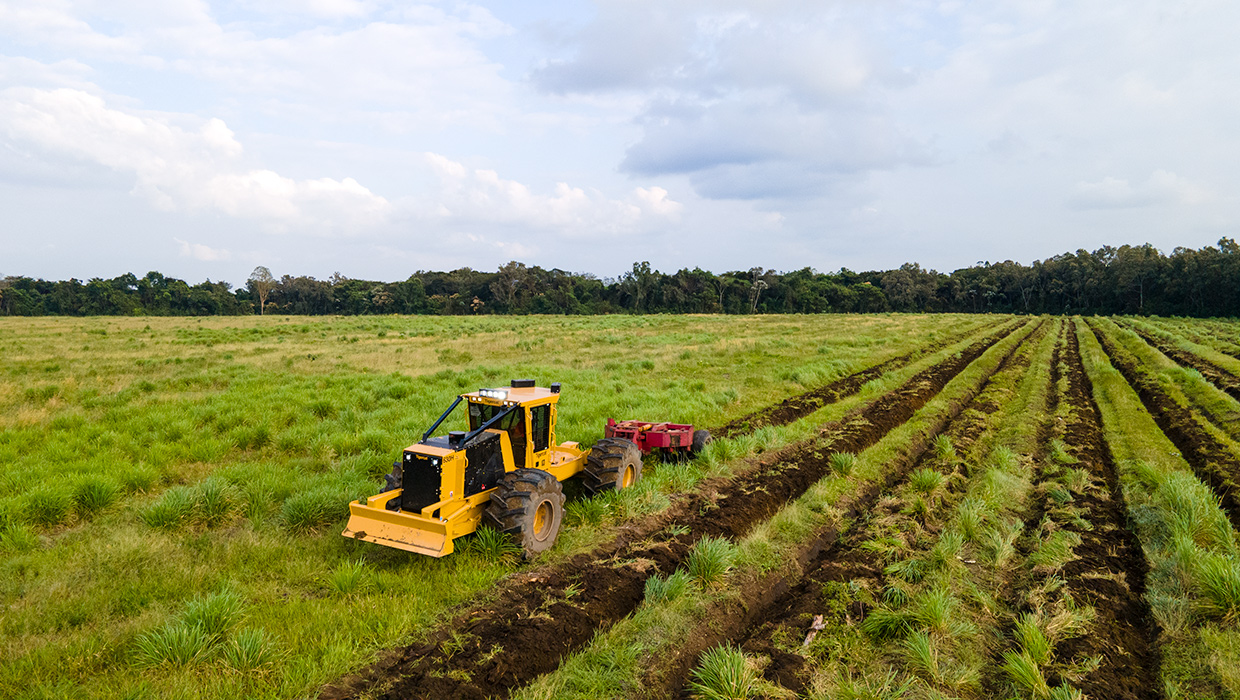

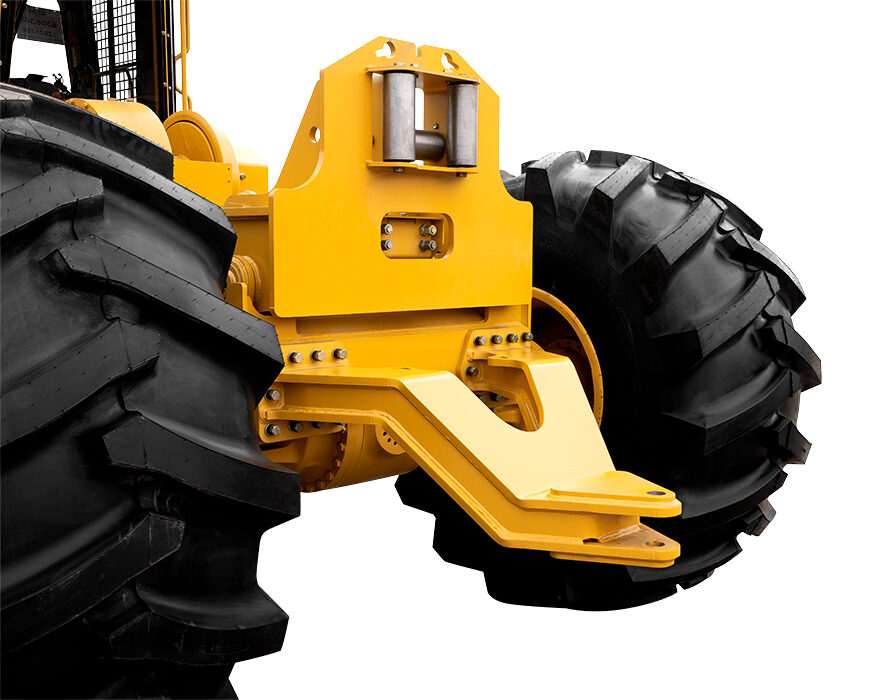

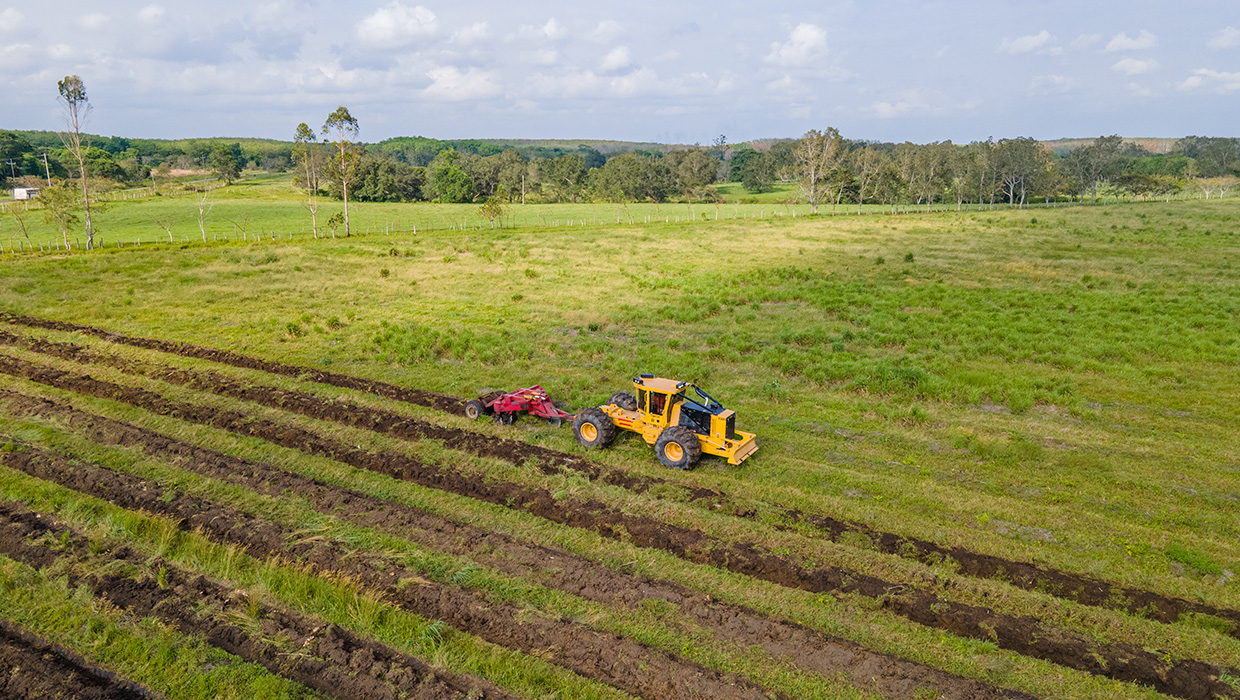

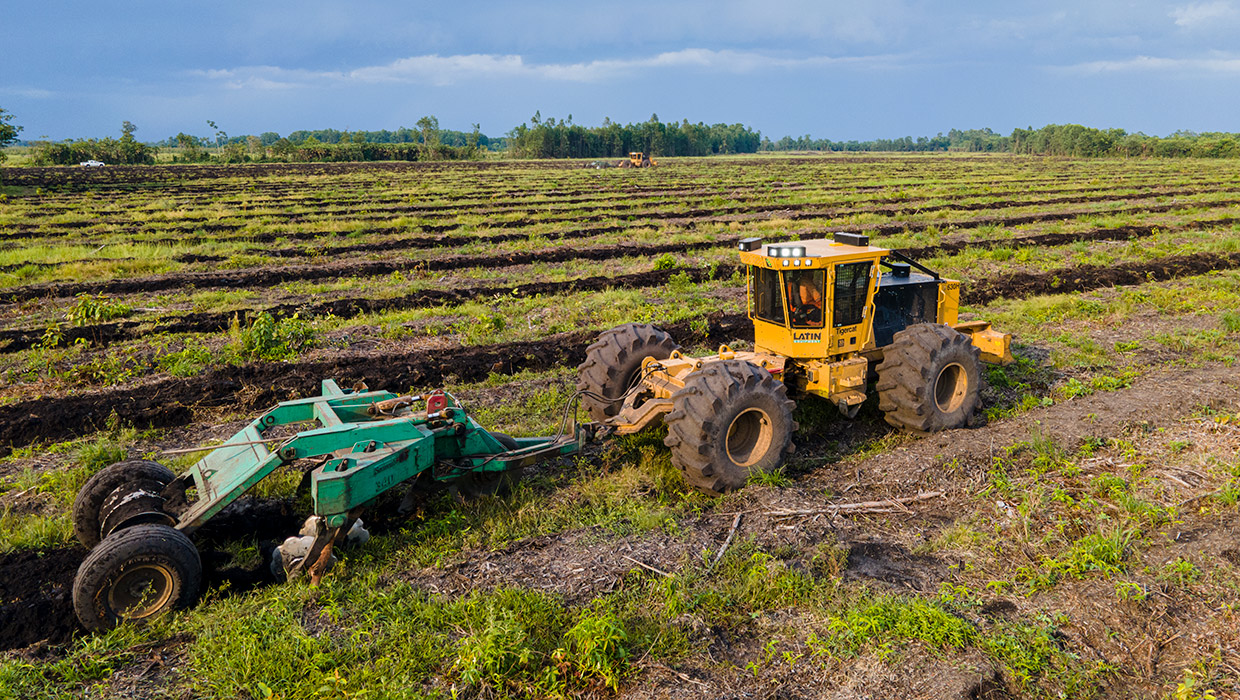

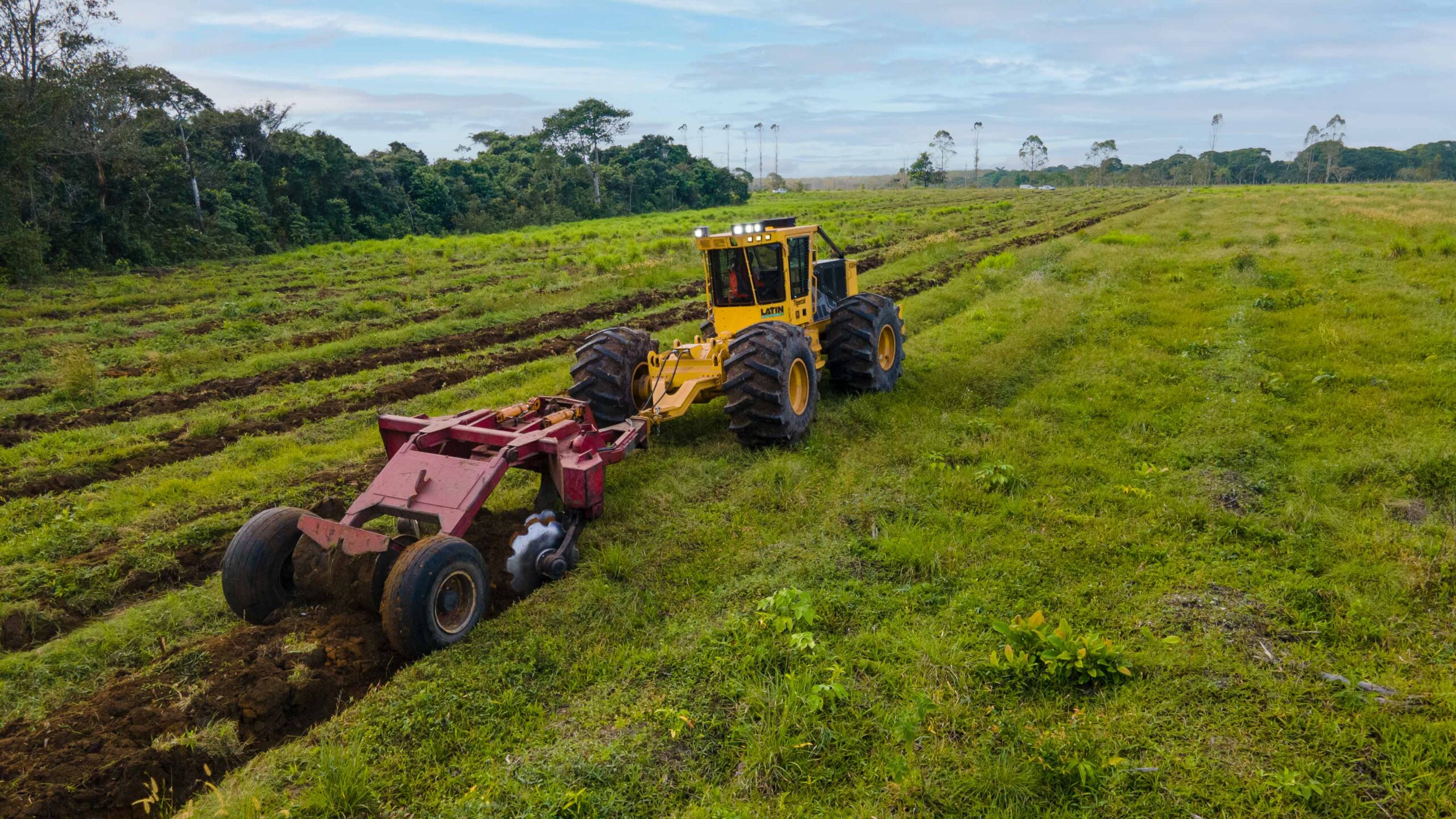

Tigercat offers hydraulic connectors and several receiver variations to adapt to a variety of plow or mounding implement connection points.
The whole package is factory equipped and ready to work.
Convenient access to daily service points and all major components.
The belly doors are equipped with pivot bolts for easy and safe swing-open access.
Neat and clean routing for hoses and wiring.
| LENGTH | 8 380 mm |
| WHEELBASE | 4 320 mm |
| WIDTH | 3 330 mm |
| HEIGHT | 3 150 mm |
| GROUND CLEARANCE | 480 mm |
| WEIGHT | 18 000 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 203 kW (272 hp) @ 2,200 rpm (rated) |
| ENGINE Tier 2 | Tigercat FPT N67 Tier 2 206 kW (277 hp) @ 2,100 rpm (rated) |
| ENGINE Non-certified | Tigercat FPT N67 Non-certified 203 kW (272 hp) @ 2,200 rpm (rated) |
| TOP SPEED | 23 km/h |
| COOLING | Side-by-side aluminum radiator, oil cooler, transmission cooler, charge air cooler and A/C condenser |
| FAN | Flexxaire® variable pitch, reversing |
| FUEL CAPACITY | 370 L |
| Optional | 430 L |
| DEF CAPACITY | 46 L |
| TRANSMISSION | Single-speed mechanical Variable speed hydrostatic (2) Variable displacement motors |
| Optional | EHS® (efficient high speed) drive Single-speed mechanical Variable speed hydrostatic (2) Variable displacement motors |
| AXLE front | Tigercat OB17, outboard planetary, barrel differential +/-15° oscillation |
| AXLE rear | Tigercat OB17, outboard planetary, barrel differential Fixed |
| DIFFERENTIAL LOCKS | Independent front and rear |
| PUMP, DRIVE | Piston |
| PUMP, MAIN 1 | Piston for all machine functions |
| PUMP, MAIN 2 | Gear for cooling |
| FILTRATION | (4) Spin-on, 7 micron full flow |
| CYLINDERS, ARCH | (4) 115 mm (4.5 in) bore (dual function) |
| CYLINDERS, STEER | (2) 83 mm (3.25 in) bore |
| CYLINDERS, BLADE | (2) 83 mm (3.25 in) bore |
| RESERVOIR | 126 L |
| DYNAMIC BRAKING | Hydrostatic |
| SECONDARY BRAKES | Enclosed, oil cooled |
| PARK BRAKE | Caliper Spring applied, hydraulic release |
With Turnaround, the operator drives blade-forward or grapple-forward with full control of all functions. The full speed range and maximum tractive effort are available in both directions. Used to its full potential, Turnaround expands the capabilities of the skidder. Imagine what Turnaround can do for you.
