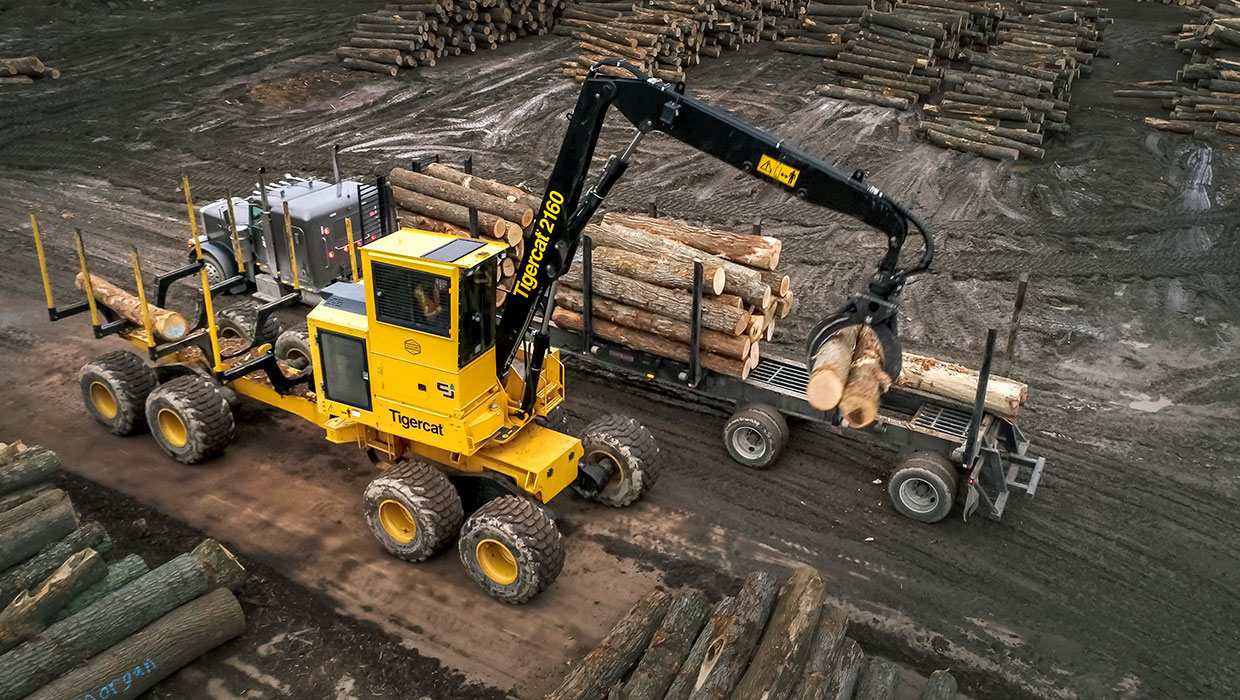

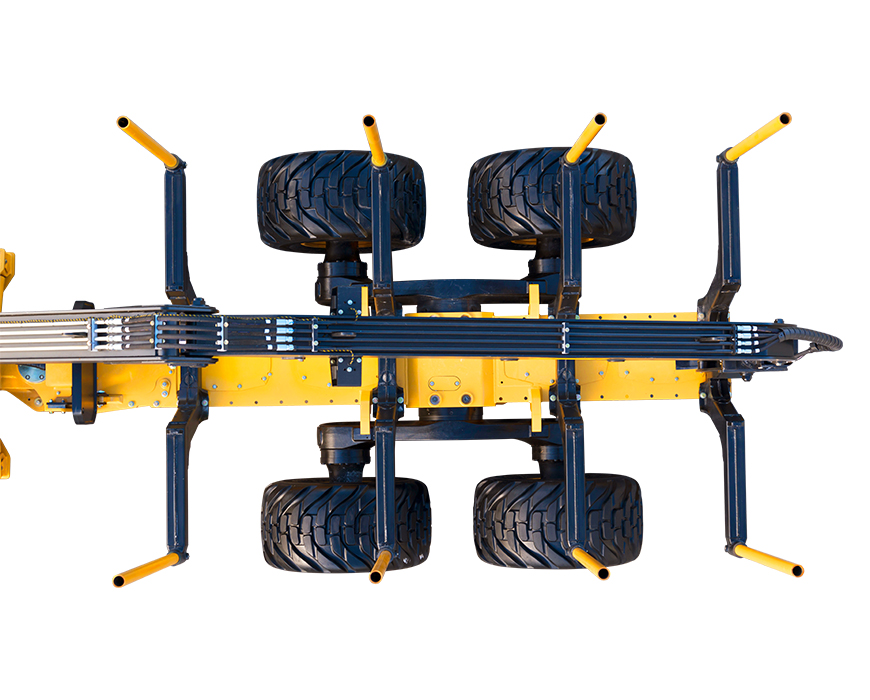

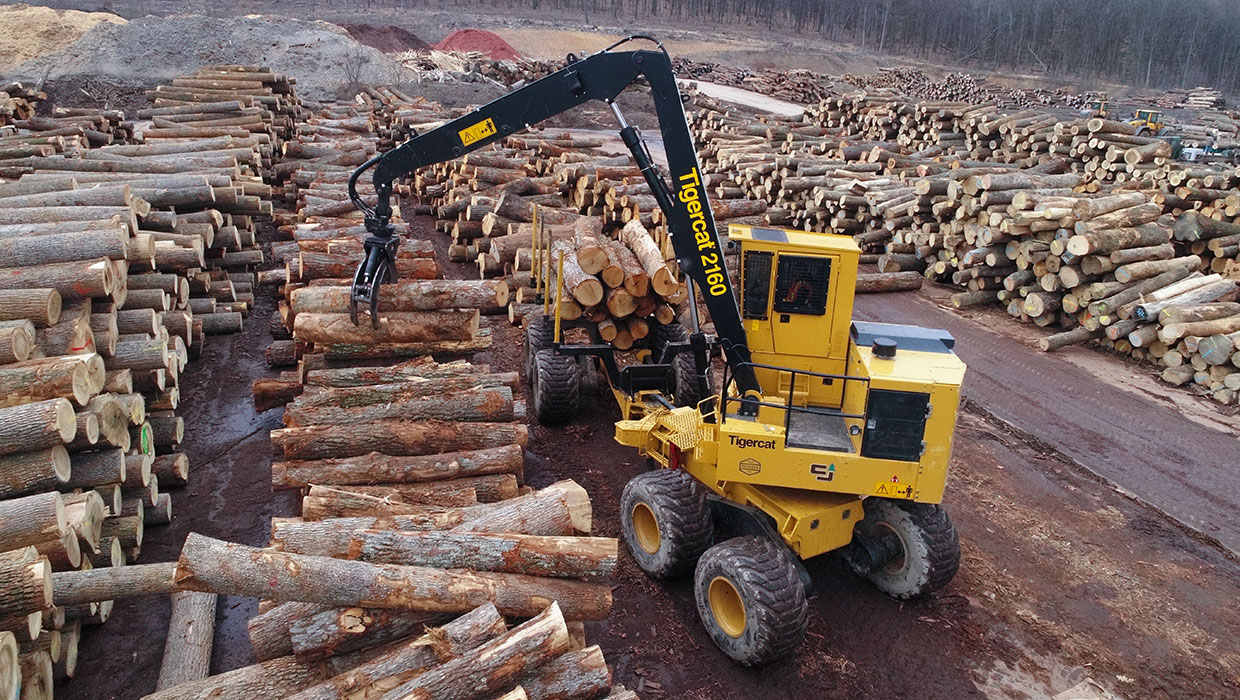

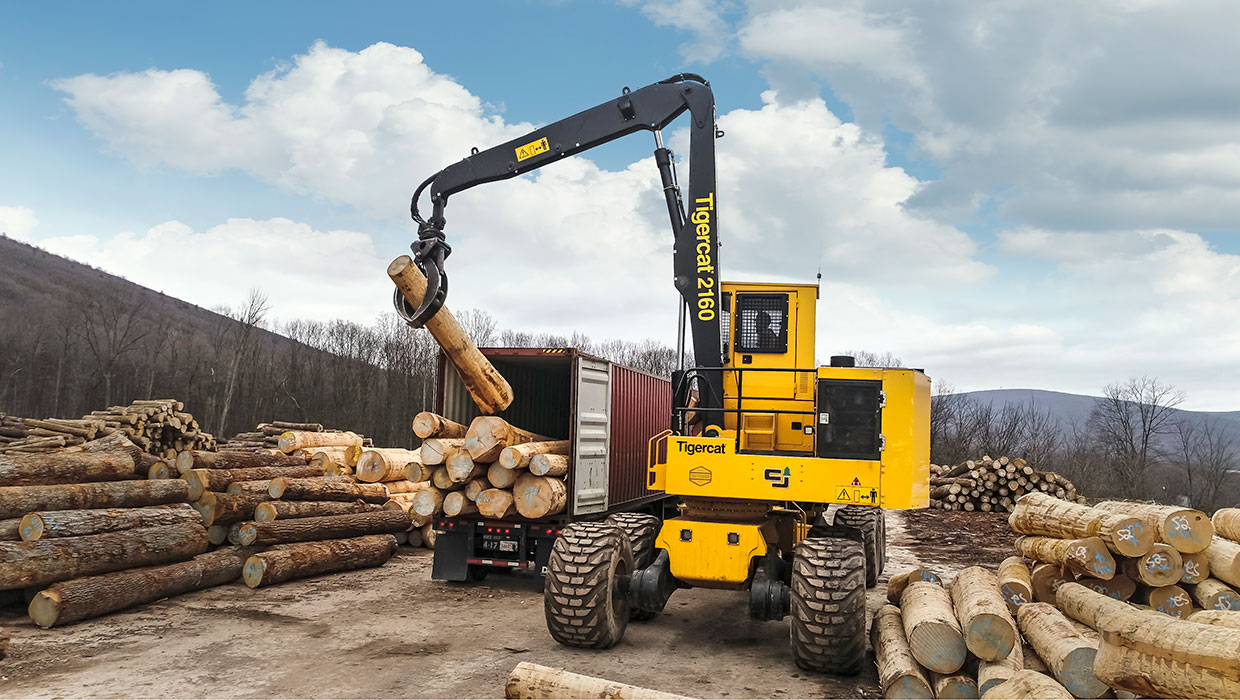

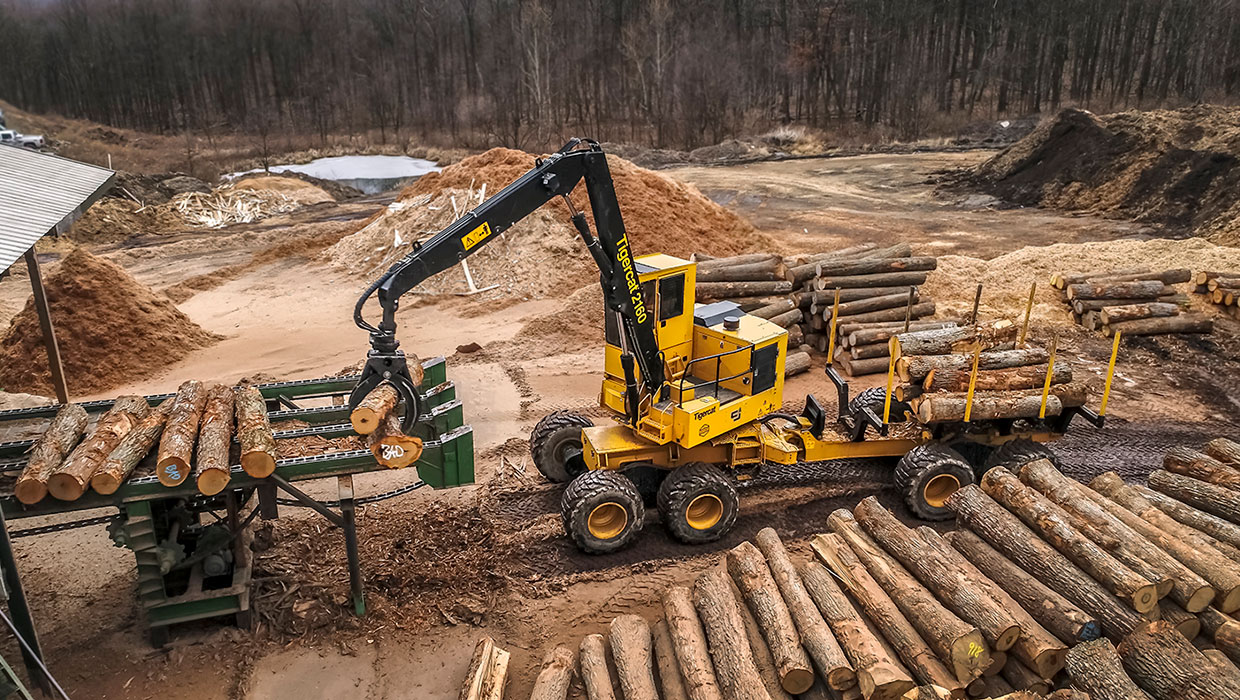

The 2160 loader forwarder is a powerful and versatile machine well suited to mill yard duties like loading, sorting and stacking as well as a wide variety of off road industrial applications. The 2160 has high tractive effort, quick travel speed and carries a 27 tonne payload.
Boom control is swift and precise. The base is very stable and well matched to the powerful knuckleboom lifting capacity.
Tigercat power. Tigercat support.
The 2160 loader forwarder is Tigercat FPT Tier 4f powered. Tier 4f conforms to the latest emissions standards in North America and Europe. Tigercat engines offer quick load response, low operating costs and excellent fuel economy.
Compared with a conventional two-speed transmission, the infinitely variable WideRange® drive provides extremely high tractive effort while permitting quicker working travel speeds. Add the Tigercat ROB17 bogie axles for a complete Tigercat driveline.
- Tigercat FPT N67 engine with Tier 4f emissions compliance – clean, powerful and efficient; fully supported by Tigercat
- WideRange® drive for quicker travel speeds and higher productivity
- Heavy duty strength-to-weight optimized boom system

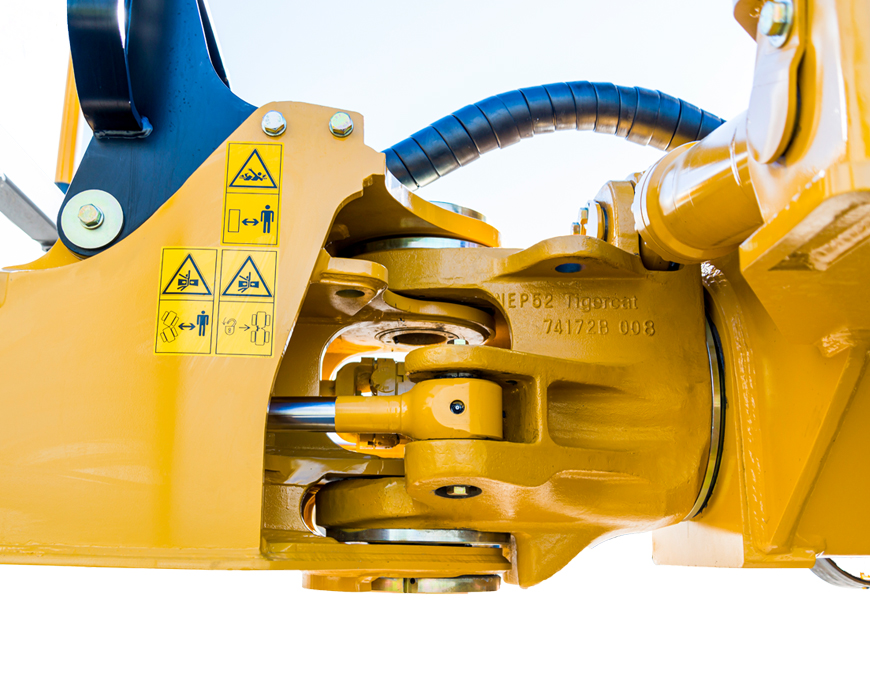

- Super-durable, long-life centre section is constructed with thick steel plate, large diameter pins and tapered roller bearings
- Convenient access to service and maintenance points
See below related files that you can download.
- 2160 loader forwarder brochure
- 2160 Loader Forwarder brochure – Limited Accessibility (852.21 Kb)
News & Articles
Tigercat’s new 2160 loader forwarder is well suited to mill yard and a variety of tough duty off-road industrial applications.

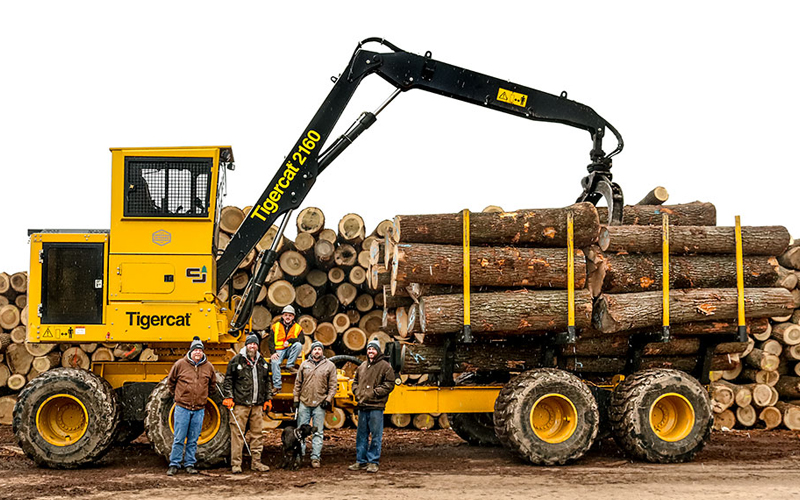

BTB visited Leo Eby, co-owner of Eby’s Sawmill, to get the full story on the origin of the prototype 2160 loader forwarder now working in Clearville, Pennsylvania.
|LENGTH (metric)||11 575 mm|
|WIDTH (metric)||3 630 mm|
|HEIGHT (metric)||4 875 mm|
|HEIGHT transport (metric)||4 040 mm|
|GROUND CLEARANCE (metric)||685 mm|
|WEIGHT (metric)||33 110 kg|
|TURN RADIUS inside (metric)||7 m|
|ENGINE Tier 4f||Tigercat FPT N67 Tier 4f 212 kW (285 hp) (rated) 216 kW (290 hp) (peak)|
|COOLING||Side-by-side aluminum radiator, oil cooler and charge air cooler, A/C condenser|
|FAN||Engine driven, automatic variable speed with automatic reversing cycle|
|FUEL CAPACITY (metric)||455 L|
|DEF CAPACITY Tier 4f (metric)||43 L|
|TRANSMISSION||WideRange® drive Variable speed hydrostatic (2) piston|
|AXLES front/rear||Tigercat ROB17 bogie Outboard planetary Barrel differential|
|DIFFERENTIAL LOCKS||Independent front and rear Friction clutch Engage while travelling|
|SPEED RANGE||0 - 12 km/h (0 - 7.5 mph)|
|PUMP, DRIVE||Piston, closed loop|
|PUMP, SWING||Piston, closed l|
|RESERVOIR (metric)||190 L|
|PARK BRAKE||Spring applied, hydraulic release Enclosed|
|SERVICE BRAKE||Enclosed, oil cooled|
|COUNTERWEIGHT (metric)||545 kg|
|MAXIMUM REACH (metric)||9 145 mm|
|LIFT CAPACITY (metric)||3 635 kg|
|FRONT/REAR||780/50 x 28.5|
|FRONT/REAR, Optional||750/55 x 26.5|
|BATTERY||(2) 950 CCA,12 v|
|ALTERNATOR||80 amp, 24 v|
|SYSTEM VOLTAGE||24 v|
|LIGHTING||(11) LED flood|

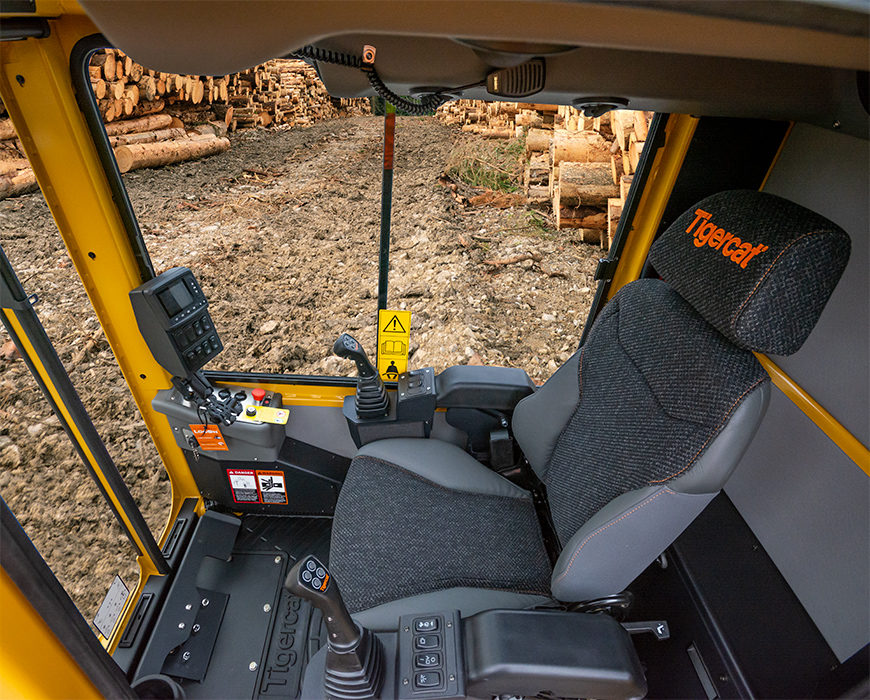

|CAB||Pressurized, insulated and isolation mounted with constant temperature A/C and heater Forward sloping, tinted polycabonate windshield with intermittent wiper Window blinds for windshield and skylight Stereo radio/cd/aux with Bluetooth® and hands-free calling 3-speed fan Dome light Cell phone holder (2) 12 v power points|
|SEAT||Heavy duty, fully adjustable Heated and cooled|
|OPERATOR CONTROLS||Hydraulic joystick (optional electric over hydraulic) for boom/grapple Electronic control system with colour LCD display screen for machine monitoring and function adjustment (1) camera on front of wagon frame (1) camera on rear of upper frame|
|STANDARD||Hydraulic tank vacuum system Hydraulic oil electric fill pump|
|OPTIONAL||Webasto engine/cab/hydraulic heater Load gate Fire suppression system Pin-on heel Electric coolant/hydraulic fluid heating package Several bunk options (6) high output LED lights|
