Heavy-duty drum chipper designed for high production and ease of operation.

6440 Chipper

6440 Chipper

Heavy-duty drum chipper designed for high production and ease of operation. SPECS DEALER BENEFITS Chippers SPECS BENEFITS DEALER

Highlights

weight icon
weight icon
engine icon
engine icon


WEIGHT
POWER
INFEED WIDTH
26 535 kg
58,500 lb
597 kW
800 hp
1 040 mm
41 in
WEIGHT
POWER
INFEED WIDTH
26 535 kg
58,500 lb
597 kW
800 hp
1 040 mm
41 in

Through-Drive Rotor System

Excellent Service Access

High Output Discharge

Through-Drive Rotor System

Excellent Service Access

High Output Discharge

Overview

The 6440 is a high horsepower drum chipper. Designed for high production and high uptime, the 6440 employs a through-drive and belt system to turn the rotor, eliminating the need for clutches.

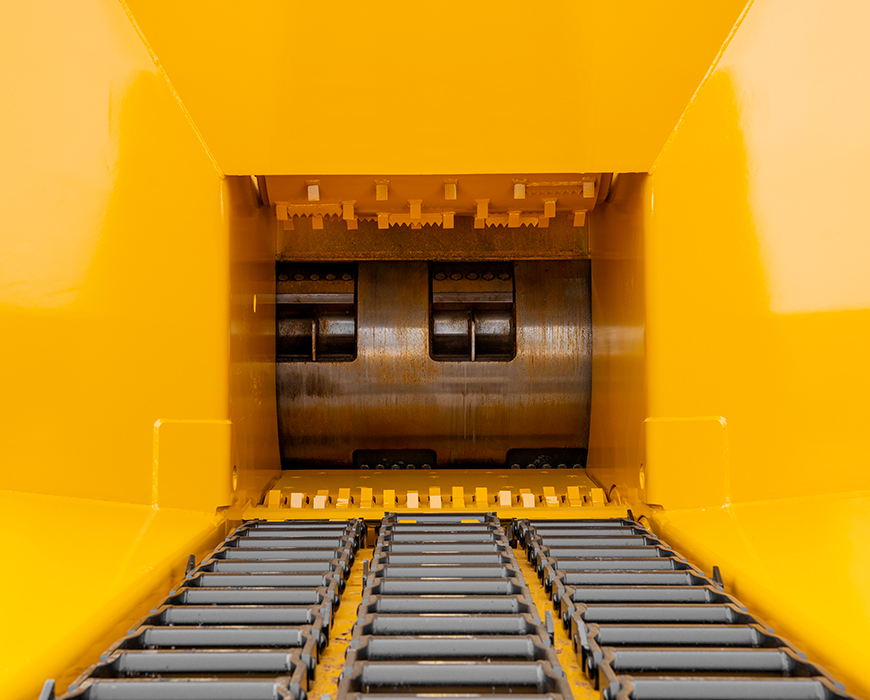

Through-Drive Rotor System

The rotor drive belt is driven off of the engine using a flex drive coupling and drive adapter. The engine base extends and retracts to
engage or disengage the drive belts eliminating the need for a clutch.

Chip pockets are lined with replaceable wear plates.

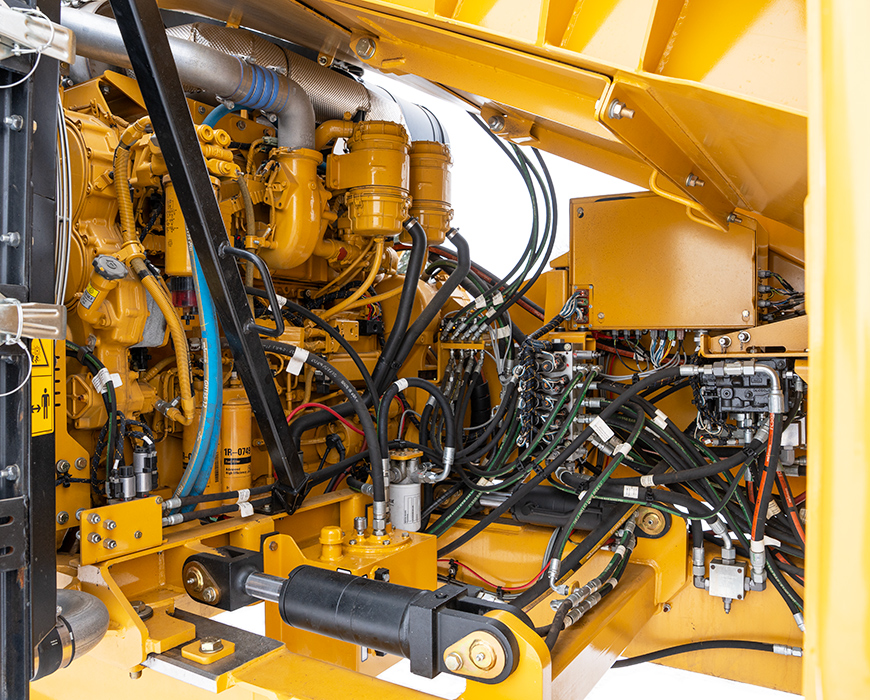

Excellent Service Access

Platforms and steps are located around the machine at maintenance and service areas such as the engine air filters, hydraulic oil filters, and fuel fill. A centralized service area in the centre of the machine allows access to hydraulic components, electrical components, and engine filters.

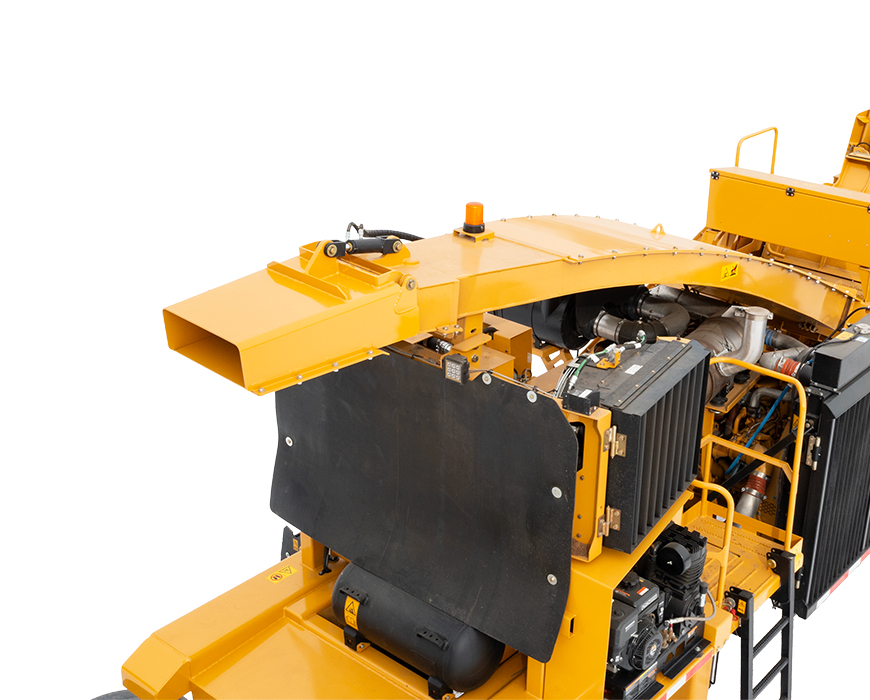

High Output Discharge

The discharge chute is angled at 25° to allow for high volume output without the need for a chip accelerator. An optional chip accelerator is available for micro chip applications.

Product Specifications

Metric
Imperial

Dimensions

LENGTH 11 430 mm
WIDTH 2 590 mm
HEIGHT 3 630 mm
HEIGHT transport 3 630 mm
WEIGHT 26 535 kg

Power

ENGINE Tier 4f Caterpillar® C18, Tier 4F
597 kW (800 hp) @ 1,800 rpm
FAN Flexxaire® variable pitch, reversing
FUEL CAPACITY 1 135 L

Power Train

TRANSMISSION Through-drive system with sliding engine base for drive belt engagement

Hydraulic System

RESERVOIR 473 L

Infeed System

WIDTH 1 040 mm
HEIGHT 610 mm
LENGTH 3 050 mm
FEED CHAIN (3) 47-link bands WHD-102, 152 mm (6 in) pitch

+ ALL

Tigercat Brochure

Onsite Access with LogOn

Onsite access to production and service information. Using a mobile device and a secure WiFi hotspot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.


LEARN MORE

RemoteLog Telematics

Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.


LEARN MORE Image of a laptop with the RemoteLog home screen displayed

Key Benefits

Belt-driven rotor system with flex coupling and drive adapter eliminates the need for a clutch
Adjacent to the toolbox, the access platform and large rotor hood provide a comfortable work area when changing knives
Optimally angled discharge chute produces high volume output without the need for a chip accelerator
Access doors located at the bottom feed roll, infeed head pulley, side doors, and top slide plate allow for effective debris clearing
Optional chip accelerator for micro chip applications
Three-piece removable belt cover with access door for convenient inspection and tensioning
Belt-driven rotor system with flex coupling and drive adapter eliminates the need for a clutch
Optimally angled discharge chute produces high volume output without the need for a chip accelerator
Optional chip accelerator for micro chip applications
Adjacent to the toolbox, the access platform and large rotor hood provide a comfortable work area when changing knives
Access doors located at the bottom feed roll, infeed head pulley, side doors, and top slide plate allow for effective debris clearing
Three-piece removable belt cover with access door for convenient inspection and tensioning

6440 Chipper to Debut at CONEXPO

Tigercat drum chipper to debut at CONEXPO 2026.


LEARN MORE Tigercat 6440 chipper

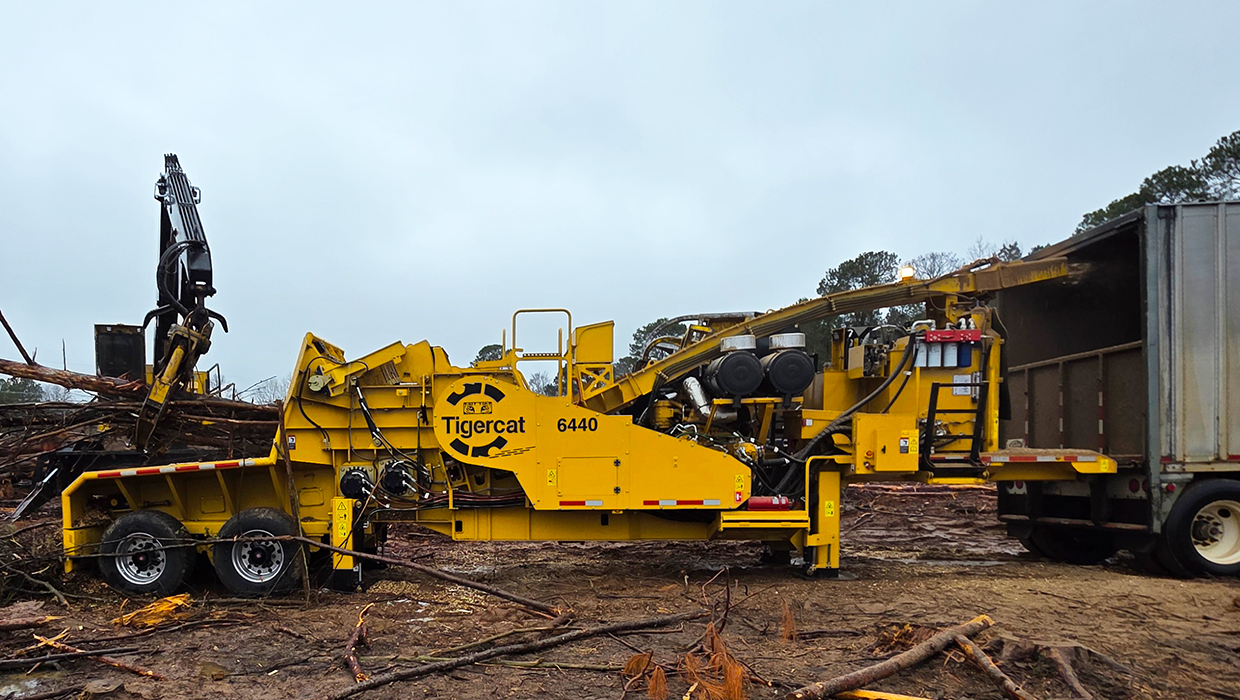

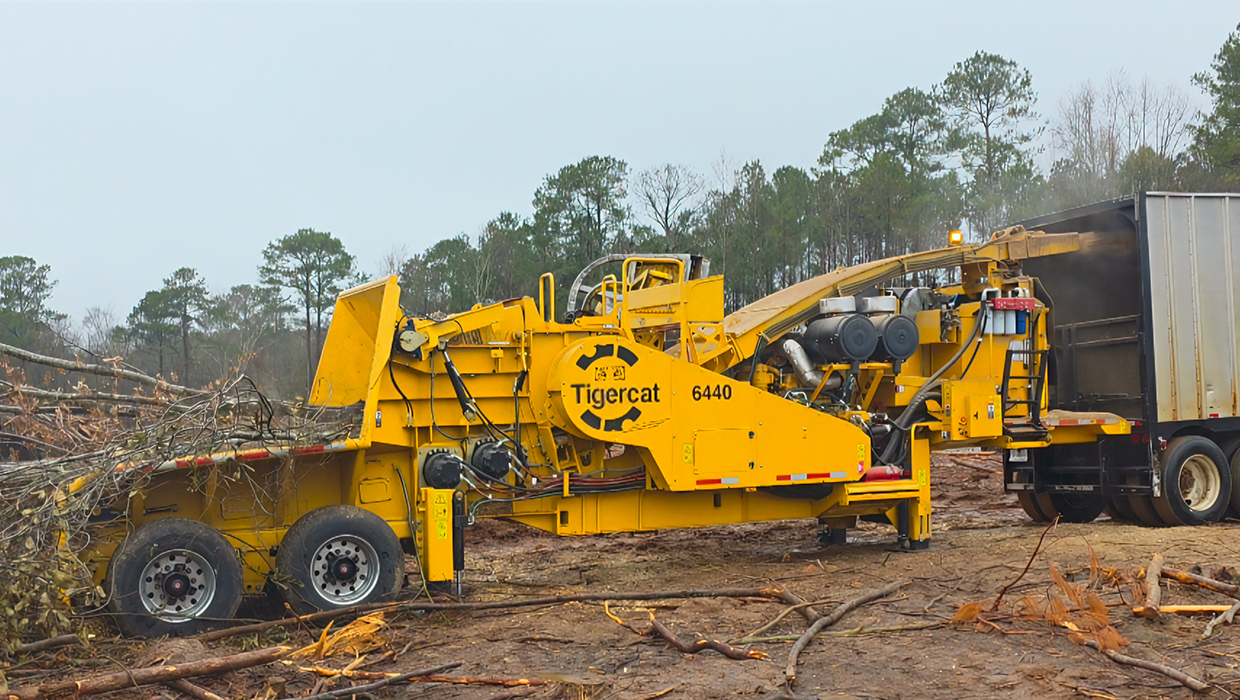

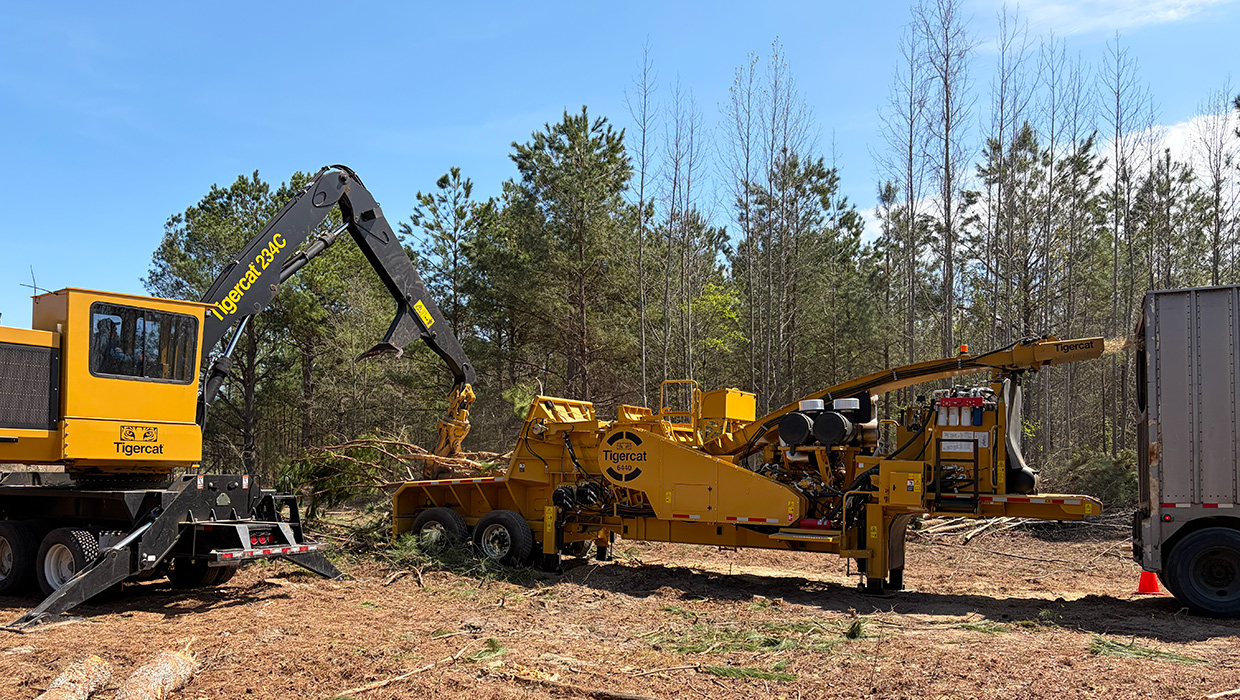

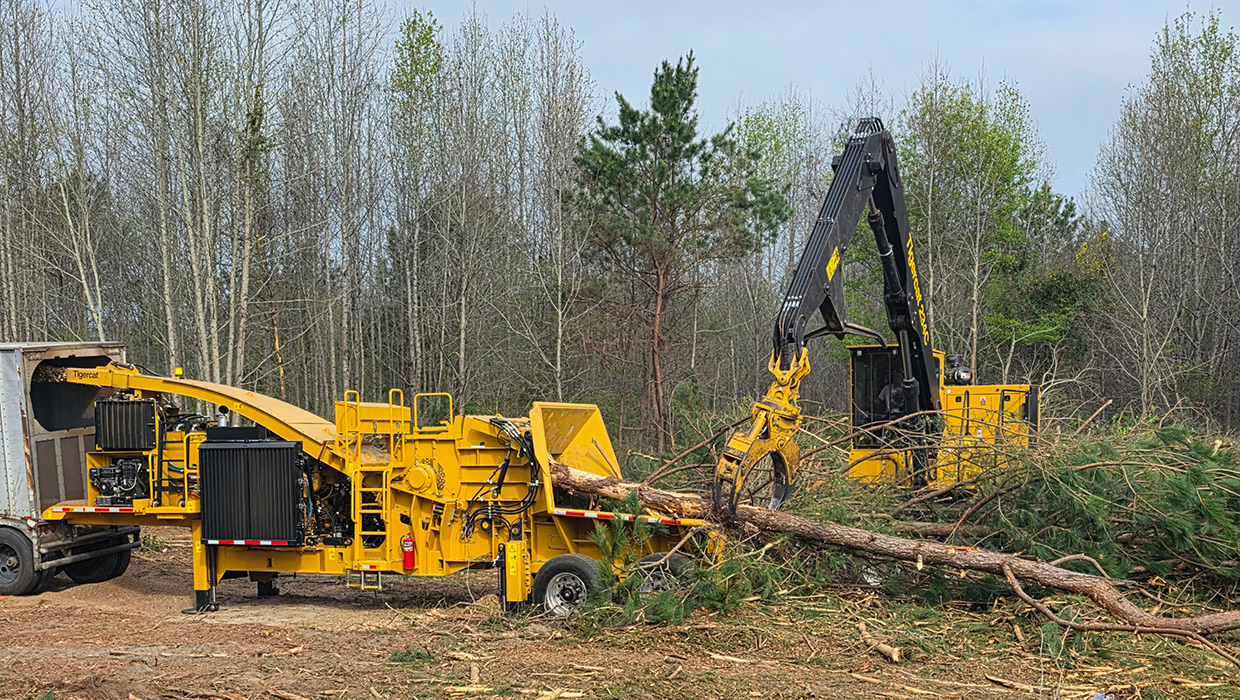

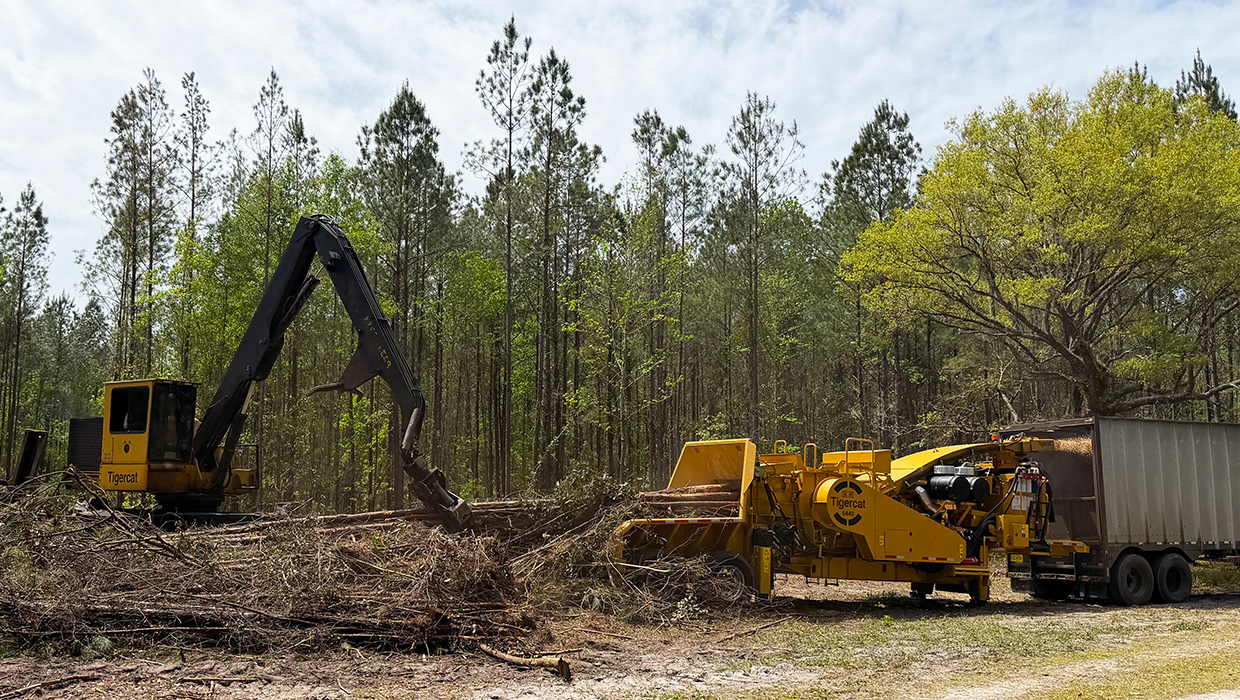

Image of a Tigercat 6440 chipper working in the field. Image of a Tigercat 6440 chipper working in the field. Image of a Tigercat 6440 chipper working in the field. Image of a Tigercat 6440 chipper working in the field. Image of a Tigercat 6440 chipper working in the field.

In the Field

Resources

loader-icon

6440 Chipper in Action


Watch the Tigercat 6440 chipper in action. Designed for high production and high uptime, the 6440 employs a through-drive and belt system to turn the rotor, eliminating the need for clutches. The discharge chute is on a low 25° angle to allow for high volume output without the need for a chip accelerator.


A Tigercat loader and a 6440 chipper working in the field
