The split hog box design allows for easy servicing of the rotor and grate components. The top can be raised at the control panel when the machine is in service mode and the engine is off.
The toolbox opens from the front and can be filled with tools from ground level. The technician is then able to climb up to the platform without the need to carry any tools.
Once on the platform, the technician can raise the toolbox and open the top cover.
The chipper’s upper frame pivots on the undercarriage, allowing the operator to adjust the infeed angle or discharge height for different material lengths. The adjustable angle eliminates the need for outriggers. The pivoting upper frame allows transport on a 46 cm (18 in) lowboy trailer without the need to fold the discharge conveyor.
| LENGTH | 16 205 mm |
| WIDTH | 3 000 mm |
| HEIGHT | 5000 mm |
| HEIGHT transport | 3 660 mm |
| WEIGHT | 44 450 kg |
| ENGINE Tier 4f | Caterpillar® C27 Tier 4f 783 kW (1,050 hp) @ 2,050 rpm |
| FAN | Flexxaire® variable pitch with automatic reversing cycle |
| FUEL CAPACITY | 2 082 L |
| TRANSMISSION | Through-drive system with pivoting tensioner for drive belt engagement |
| PUMP, MAIN | (2) Piston, for all machine functions |
| RESERVOIR | 435 L |
| TRACK FRAMES | 5 Series, heavy-duty |
| FINAL DRIVE | (2) Axial piston motors with brake valves Infinitely variable speed |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (9) D5 single/double flange tractor type |
| SLIDES, UPPER | Replaceable |
| TRACK SHOE | 700 mm (28 in) triple grouser |
| PIVOT SYSTEM | Pivoting upper assembly for operation and transport Adjustable infeed angle, 4° down; 7° up |
Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.
LEARN MORE
Onsite access to production and service information. Using a mobile device and a secure WiFi hotspot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.
LEARN MORE

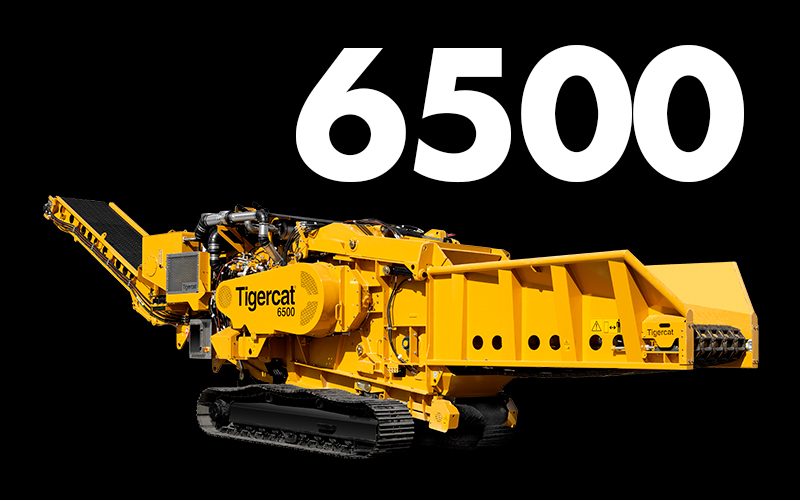

Tigercat officially launches 6500 chipper after more than a year of successful field operations involving multiple retailed units.
