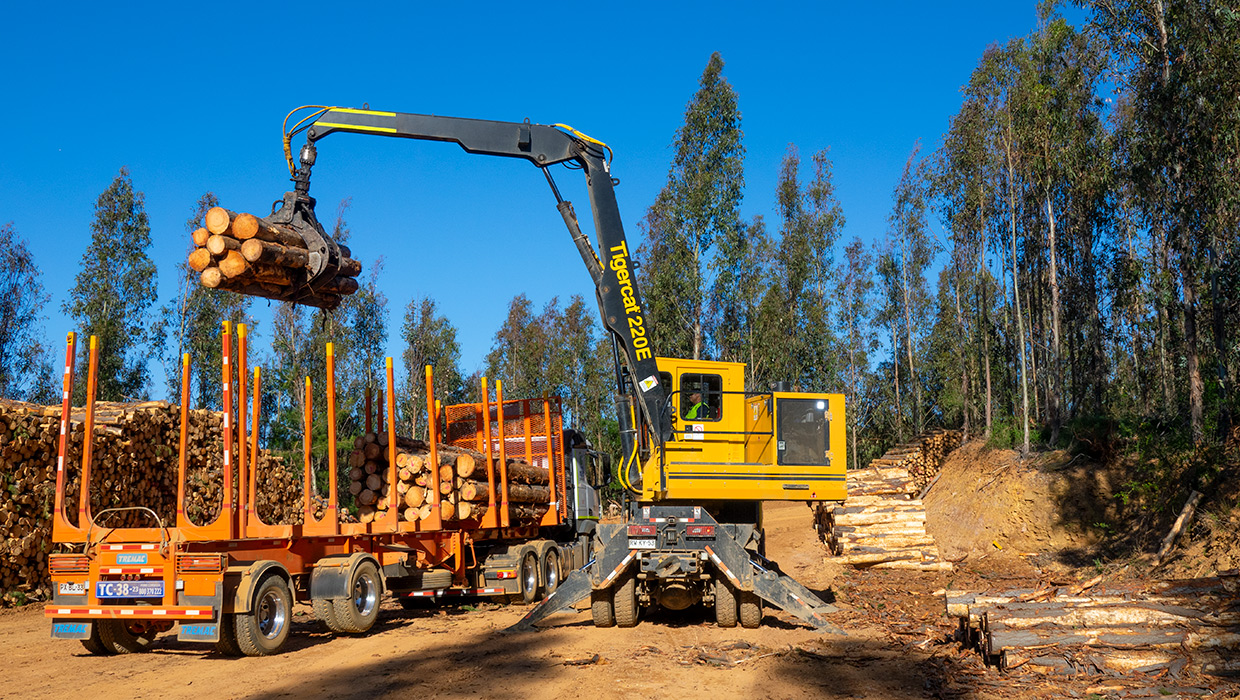

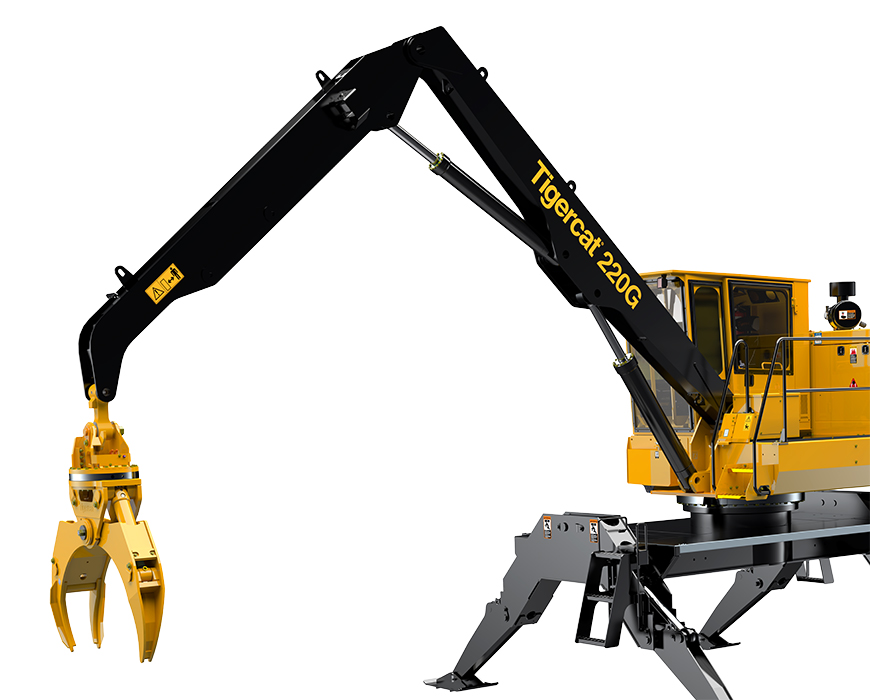

Quick and responsive boom control for fast cycles and efficient shortwood loading.

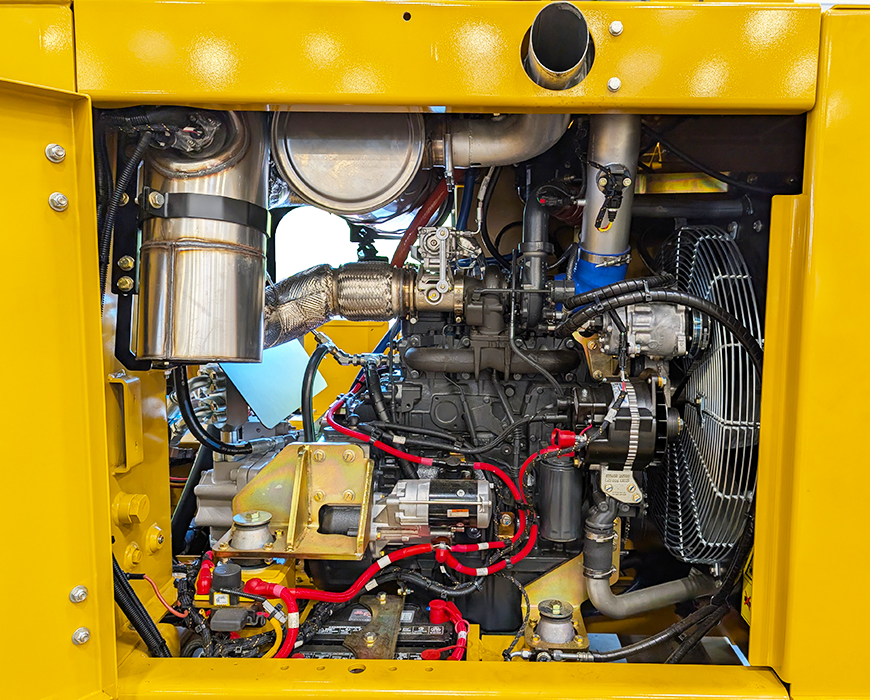

Clear access to the fuel-efficient Tigercat FPT N45 four-cylinder engine.
Daily maintenance points are easily accessible from the main walk-up platform through the removable engine house panel.

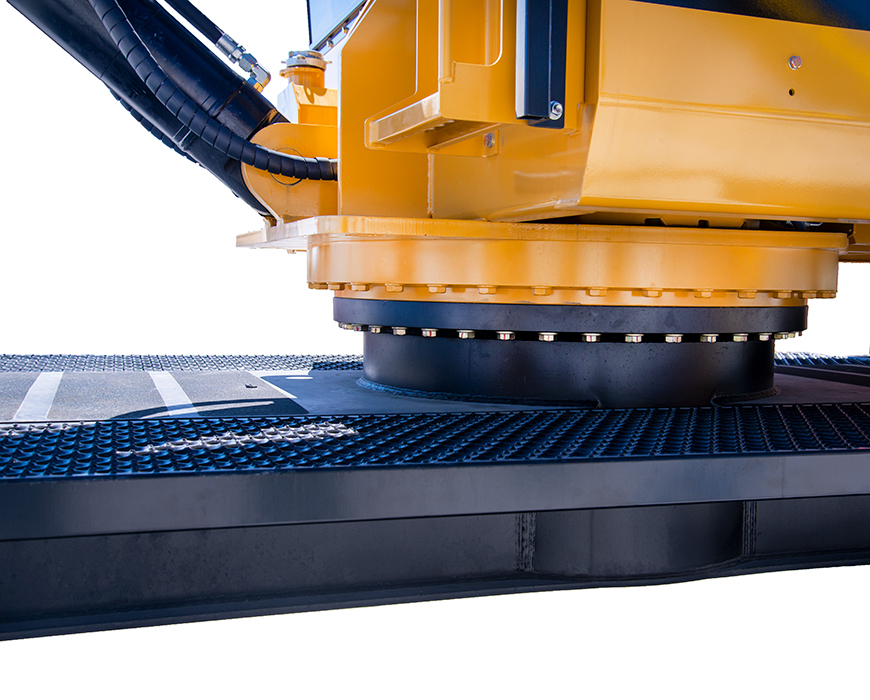

Large swing bearing common to all Tigercat loaders for long life in high cycle loading applications.
The rigid fabricated subframe minimizes flex, improving stability and operator comfort.
| LENGTH less boom and steps | 4115 mm |
| WIDTH transport | 2 565 mm |
| HEIGHT transport | 3 555 mm |
| WEIGHT less attachment | 11 795 kg |
| ENGINE | Tigercat FPT N45 Tier 4f 125 kW (168 hp) @ 2,200 rpm (rated) 129 kW (173 hp) @ 1,900 rpm (peak) Automatic idle down |
| COOLING | Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Fixed pitch, high flow |
| Optional | Flexxaire® variable pitch, reversing |
| 378 L |
| PUMP, MAIN | Piston |
| FILTRATION | (3) Spin-on, 7 micron full-flow |
| CYLINDER, HOIST | 178 mm (7 in) diameter |
| CYLINDER, STICK | 140 mm (5.5 in) diameter |
| CYLINDERS, STABILIZERS | (4) 165 mm (6.5 in) diameter, bolt-on bi-directional lock valves |
| RESERVOIR | 140 L |
| LENGTH less step | 3 660 mm |
| SUPPORT BASE | 3 350 mm x 4 545 mm |
| STABILIZER PADS | 510 mm x 710 mm |
| END FRAMES | Fabricated from steel plate |
| LENGTH less step | 3 890 mm |
| SUPPORT BASE | 3 580 mm x 4 550 mm |
| STABILIZER PADS | 510 mm x 710 mm |
| END FRAMES | Fabricated from steel plate |
| TRUCK MOUNT OFFSET | 330 mm |
