Smaller diameter drum, compact design for lower horsepower carriers.

4054-20 Mulching Head

4054-20 Mulching Head

Smaller diameter drum, compact design for lower horsepower carriers. SPECS DEALER BENEFITS Mulching Heads SPECS BENEFITS DEALER

Highlights

weight icon
weight icon




WEIGHT
SWATH
TOOLS
3 270 kg
7,435 lb
2 m
79 in
40
WEIGHT
SWATH
TOOLS
3 270 kg
7,435 lb
2 m
79 in
40

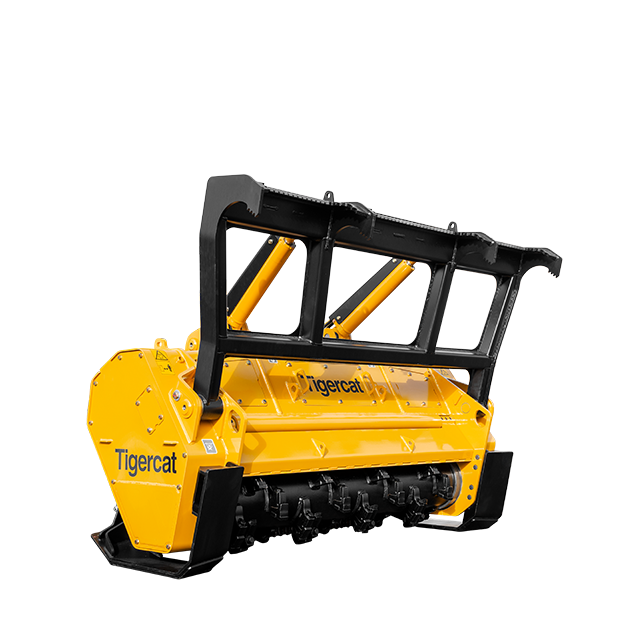

Image of a Tigercat 4054-20 mulching head

Debris Control

Close up view of a Tigercat 4054-20 mulching head

Tools

Image of the drive system of a Tigercat 4054-20 mulching head

It's in the Drive

Debris Control

Tools

It's in the Drive

Image of a Tigercat 4054-20 mulching head Close up view of a Tigercat 4054-20 mulching head Image of the drive system of a Tigercat 4054-20 mulching head

Overview

The 4054-20 is a compact, narrow swath mulching head suited to smaller carriers and niche applications like fire mitigation and remediation. Similar recovery, performance, durability and uptime as Tigercat's larger capacity mulching heads.

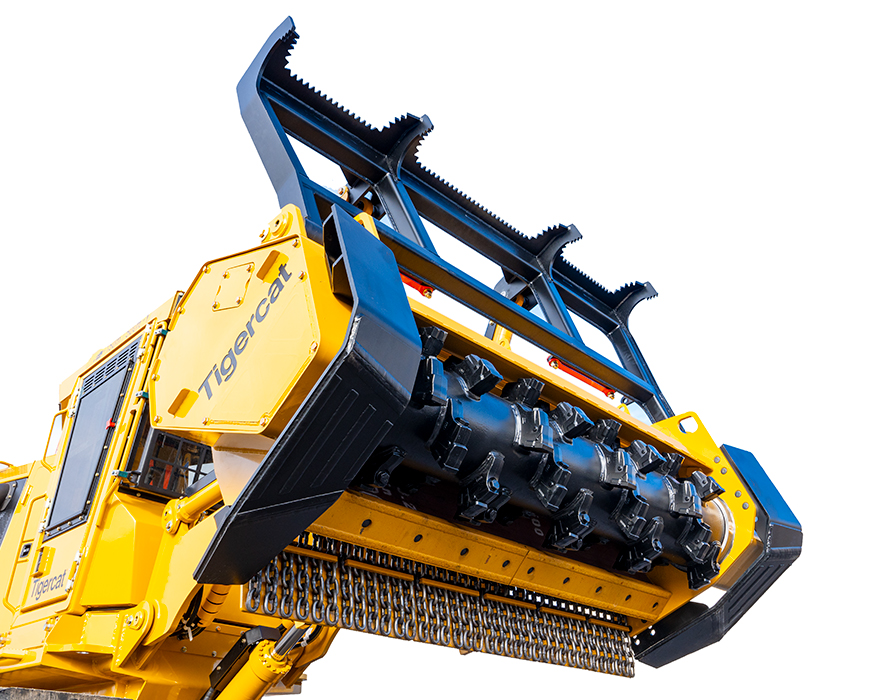

Debris Control

The push bar is taller with increased tilt for improved debris control.

The skis have been redesigned to reduce debris build-up and improve lifespan.

 Image of a Tigercat 4054-20 mulching head

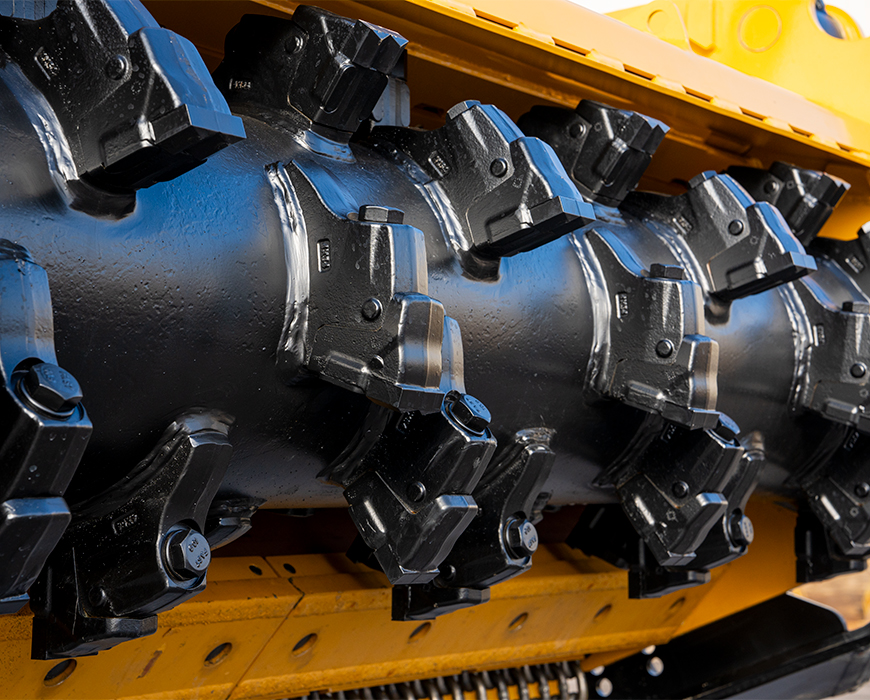

Tools

Tool interface choices include the taper-lock system, or the bolt-on system. Both are designed by Tigercat for superior life and performance.

Various carbide tools and hardened steel knife tools are available to suit a range of applications.

Tigercat also offers an optional Feed Control Rotor (FCR) in addition to the standard open face rotor.

Close up view of a Tigercat 4054-20 mulching head

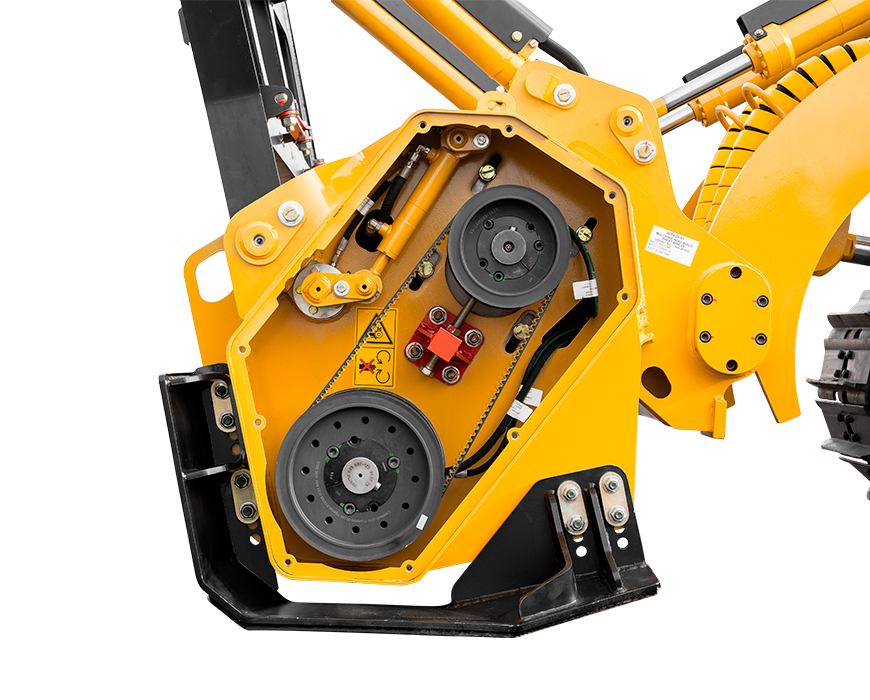

It's in the Drive

The drive system uses a poly chain for reduced belt slip and lower maintenance.

Large heavy duty bearings and shafts ensure long life and high productivity.

 Image of the drive system of a Tigercat 4054-20 mulching head

Product Specifications

Metric
Imperial

Dimensions

WIDTH 2 500 mm
MULCHING SWATH 2 000 mm
WEIGHT 3 370 kg

Drivetrain

TIMING BELTS (2) 90 mm (3.5 in) width

Hydraulic System

CYLINDERS, PUSH BAR (2) 75 mm (3 in) bore
CYLINDERS, DEBRIS DOOR (1) 38 mm (1.5 in) bore
MOTORS (2) Piston, variable displacement

Rotor

DIAMETER tip-to-tip 530-555 mm
STANDARD Rotor, open face, bolt-on (40) tool interface
TOOLS standard Standard duty, carbide
TOOLS optional Impact resistant, carbide
Knife, hardened steel
OPTIONAL Feed Control Rotor (FCR)
Bolt-on (40) tool interface
TOOLS standard Standard duty, carbide
TOOLS optional Impact resistant, carbide
Knife, hardened steel

Other Equipment

STANDARD Wear liner, bolt-in replaceable
Skis, adjustable with carbide hard facing
Anvils, straight with carbide hard facing
Push bar, hydraulic
Debris guard, chain (1) row
OPTIONAL Debris guard, steel plate and/or reinforced rubber
Wear liner, partial insert
Anvils, serrated with carbide hard facing

+ ALL

Key Benefits

Smaller diameter drum permits similar recovery performance to larger heads installed on larger machines
Field serviceable wear liner. Does not require welding or rotor removal
Compact design places centre of gravity closer to the carrier
Efficient power transfer with reduced belt slip
Large bearings in rotor and motor drives
Robust housing with reinforced side covers
Smaller diameter drum permits similar recovery performance to larger heads installed on larger machines
Compact design places centre of gravity closer to the carrier
Large bearings in rotor and motor drives
Field serviceable wear liner. Does not require welding or rotor removal
Efficient power transfer with reduced belt slip
Robust housing with reinforced side covers

New 4054-20 Mulching Head

Tigercat releases a smaller class mulching head well suited to niche applications like fire mitigation and remediation.
