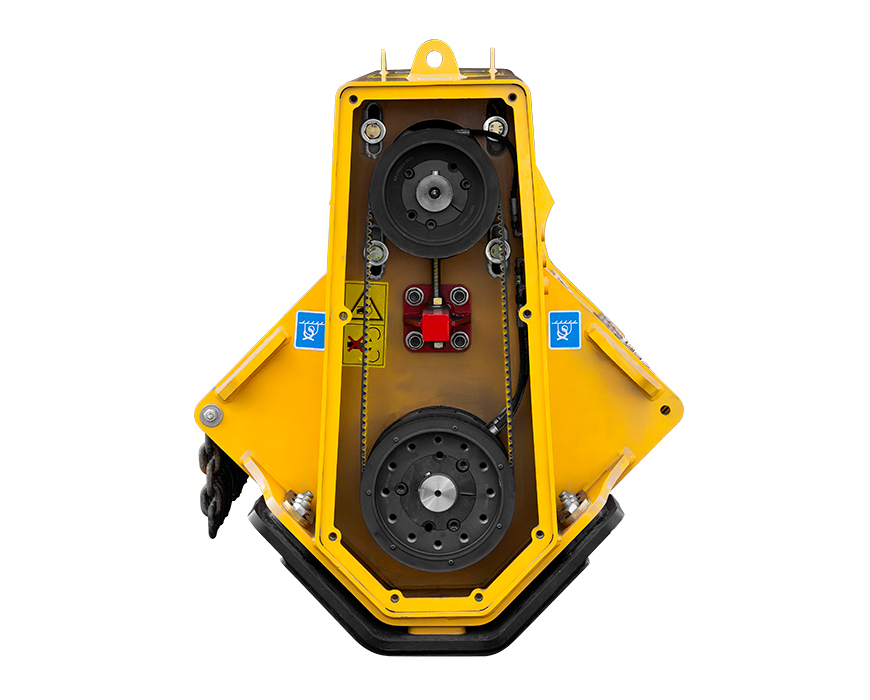

The drive system uses a poly chain for reduced belt slip and lower maintenance.
Large heavy duty bearings and shafts ensure long life and high productivity.

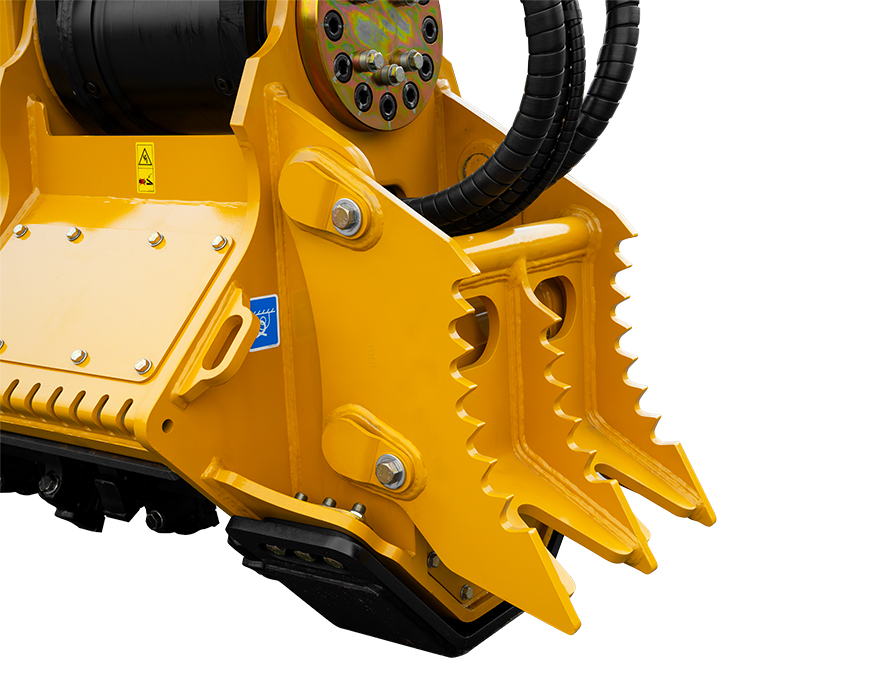

A pin-on rake is standard equipment. The rake aids in clearing brush and trees and increases the versatility of the mulching attachment.
Two rotor styles are available: standard and FCR. The optional Feed Control Rotor limits the cutting depth, reducing the load on the machine.

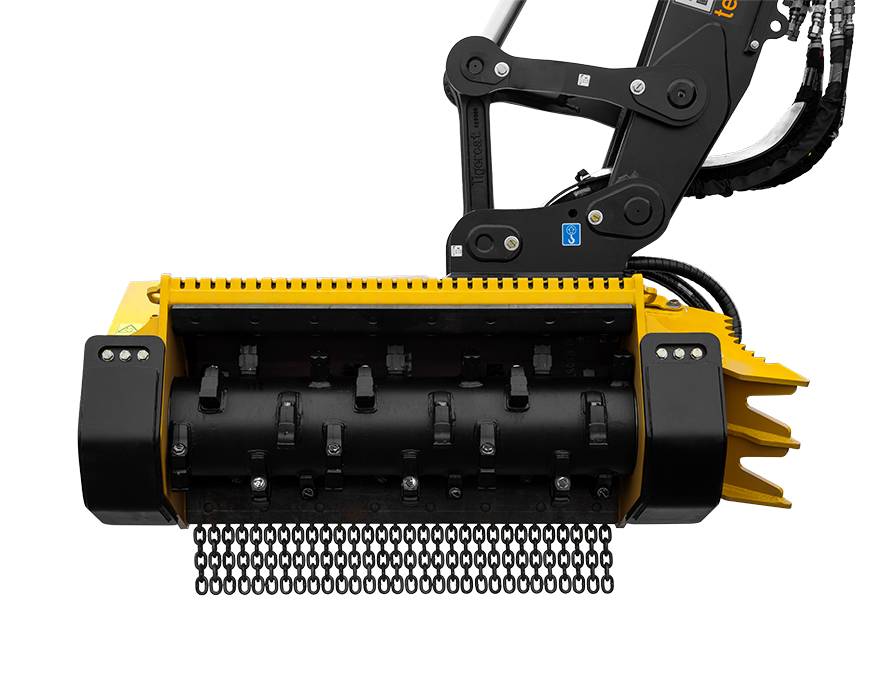

Tool choices include standard carbide and hardened steel knife style.
The rotation can be switched between up-cut and down-cut by rotating the rotor and switching the pump pressure and return hoses.
| WIDTH | 2 000 mm |
| MULCHING SWATH | 1 500 mm |
| WEIGHT | 2 720 kg |
| TIMING BELTS | (1) 90 mm (3.5 in) width |
| MOTORS | (1) Piston, variable displacement |
| DIAMETER tip-to-tip | 540-565 mm |
| STANDARD | Rotor, open face Bolt-on (30) tool interface |
| TOOLS standard | Standard duty, carbide |
| TOOLS optional | Hardened steel Knife |
| OPTIONAL | Feed Control Rotor (FCR), bolt-on (30) tool interface |
| TOOLS standard | Standard duty, carbide |
| TOOLS optional | Hardened steel Knife |
| STANDARD | Bolt-in replaceable wear liner Replaceable skis 65° Bi-directional wrist (hydraulic) Pin on rake Motor MAX displacement override circuit. |
| OPTIONAL | Fixed wrist |
Tigercat Product Support Representative, Warren Nolan reports on the Tigercat 4161-15 mulching head, deployed to New Zealand’s North Island to mitigate the potential impact of slash and erosion on steep and sensitive terrain.
