Unmatched durability and reliability with a wider swath.

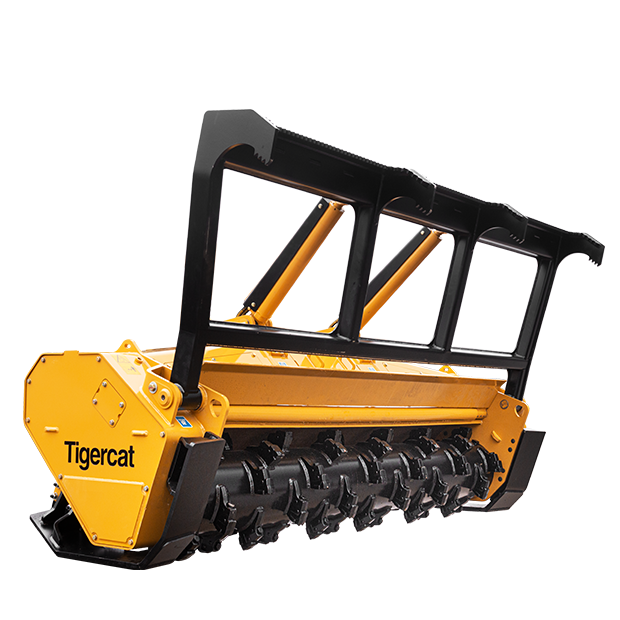

4061-30 Mulching Head

4061-30 Mulching Head

Unmatched durability and reliability with a wider swath. SPECS DEALER BENEFITS Mulching Heads SPECS BENEFITS DEALER

Highlights

weight icon
weight icon




Weight
Swath
Teeth
5 100 kg
11,240 lb
3 m
9 ft 10 in
60
Weight
Swath
Teeth
5 100 kg
11,240 lb
3 m
9 ft 10 in
60

Product Specifications

Metric
Imperial

Dimensions

WIDTH 3 500 mm
MULCHING SWATH 3 000 mm
WEIGHT 5 100 kg

Drivetrain

TIMING BELTS (2) 90 mm (3.5 in) width

Hydraulic System

CYLINDERS, PUSH BAR (2) 75 mm (3 in) bore
CYLINDERS, DEBRIS DOOR (2) 38 mm (1.5 in) bore
MOTORS (2) Piston, variable displacement

Rotor

DIAMETER tip-to-tip 610-635 mm
STANDARD Rotor, open face
Bolt-on (60) tool interface
TOOLS standard Standard duty, carbide
TOOLS optional Impact resistant, carbide
Knife, hardened steel
OPTIONAL Rotor, open face, taper-lock (50) tool interface
Feed Control Rotor (FCR), bolt-on (50) tool interface
TOOLS standard Standard duty, carbide
TOOLS optional Impact resistant, carbide
Knife, hardened steel

Other Equipment

STANDARD Wear liner, bolt-in replaceable
Skis, adjustable with carbide hard facing
Anvils, straight with carbide hard facing
Push bar, hydraulic
Debris guard, chain (2) row
OPTIONAL Debris guard, steel plate and/or reinforced rubber
Wear liner, partial insert
Anvils, serrated with hard facing

+ ALL

Tigercat Brochure

Debris Control

Tools

It's in the Drive

Debris Control

Tools

It's in the Drive

Overview

The 4061-30 mulching provides the performance, uptime and confidence required for large scale, time sensitive right-of-way and site preparation applications as well as silviculture site preparation work and stump grinding. The 4061-30 mulching head is 3,0 m (10 ft) wide.

Debris Control

The push bar is taller with increased tilt for improved debris control.

The skis have been redesigned to reduce debris build-up and improve lifespan.

Tools

Tool interface choices include the taper-lock system, or the bolt-on system. Both are designed by Tigercat for superior life and performance.

Various carbide tools and hardened steel knife tools are available to suit a range of applications.

Tigercat also offers an optional Feed Control Rotor (FCR) in addition to the standard open face rotor.

It's in the Drive

The drive system uses a poly chain for reduced belt slip and lower maintenance.

Large heavy duty bearings and shafts ensure long life and high productivity.

Key Benefits

Large bearings in rotor and motor drives
Field serviceable wear liner. Does not require welding or rotor removal
Efficient power transfer with reduced belt slip
Carbide tips and insets for improved tooth life
Robust housing with reinforced side covers
Debris door cylinders mounted internally for protection
Large bearings in rotor and motor drives
Efficient power transfer with reduced belt slip
Robust housing with reinforced side covers
Field serviceable wear liner. Does not require welding or rotor removal
Carbide tips and insets for improved tooth life
Debris door cylinders mounted internally for protection

High Production Mulching

Jason and Misty West talk about their land clearing business and how the new Tigercat 760B mulcher fits into the equipment mix.


LEARN MORE Westco Land Clearing

Cedar Eaters of Texas

After recognizing a need in their community for brush clearing and mulching services, Pam and Stan Hegener started Cedar Eaters™ in 2001. Now co-owned by their son, Spence Hegener, Cedar Eaters offers mulching and land restoration services across Texas while occasionally breaking into bordering states.


LEARN MORE

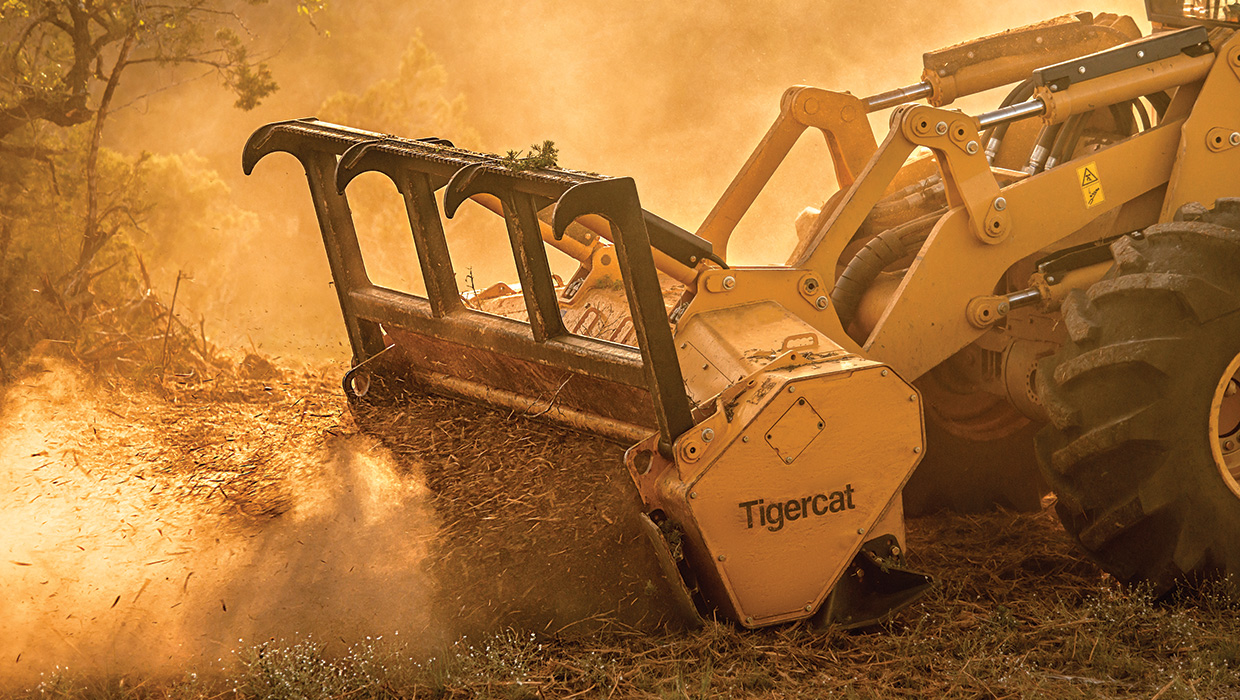

Image of a Tigercat 4061-30 mulching head working in the field
