The split hog box design allows for easy servicing of the rotor and grate components. The top can be raised at the control panel when the machine is in service mode and the engine is off.
The toolbox opens from the front and can be filled with tools from ground level. The technician is then able to climb up to the platform without the need to carry any tools.
Once on the platform, the technician can raise the toolbox and open the top cover.

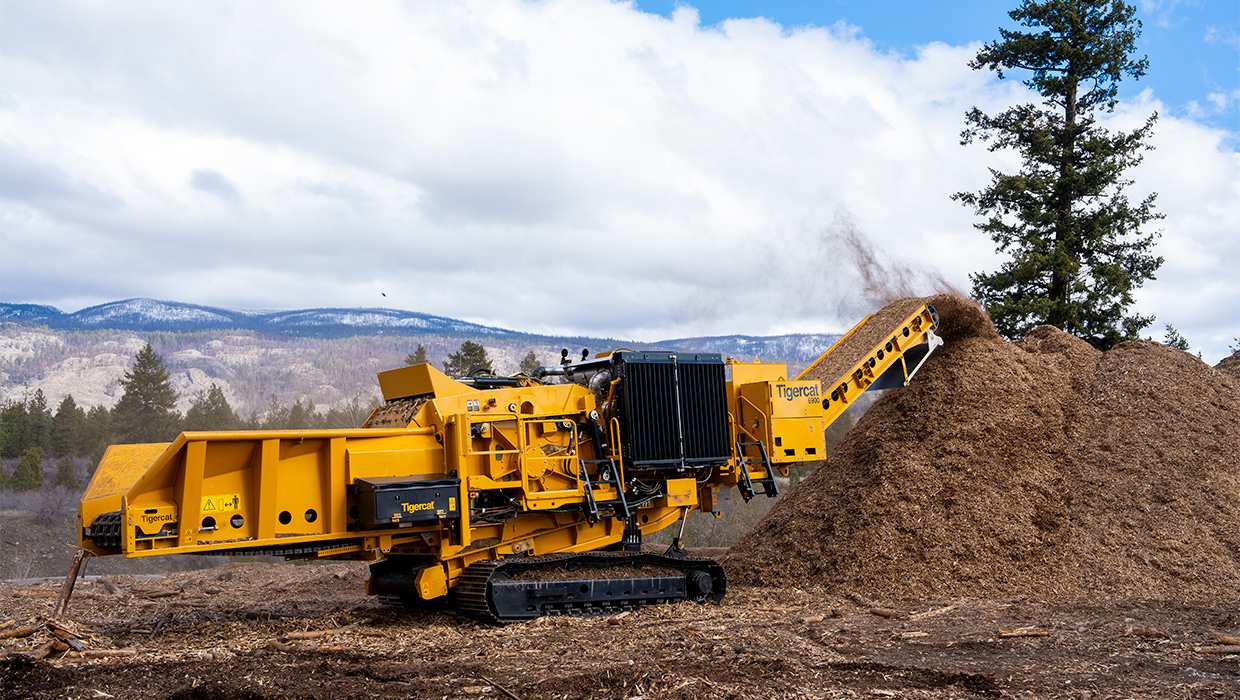

The grinder’s upper frame pivots on the undercarriage, allowing the operator to adjust the infeed angle or discharge height for different material lengths. The adjustable angle eliminates the need for outriggers. The pivoting upper frame allows transport on a 46 cm (18 in) lowboy trailer without the need to fold the discharge conveyor.
| LENGTH | 16 205 mm |
| LENGTH tilted | 16 410 mm |
| WIDTH | 3 330 mm |
| HEIGHT | 5 000 mm |
| HEIGHT transport | 3 660 mm |
| WEIGHT | 43 090 kg |
| ENGINE Tier 4f | Caterpillar® C27 783 kW (1,050 hp) @ 2,050 rpm |
| ENGINE Tier 2 | Caterpillar® C27 783 kW (1,050 hp) @ 2,100 rpm |
| ENGINE OPTIONAL | Caterpillar® C32 Tier 4f 895 kW (1,200 hp) @ 2,050 rpm Caterpillar® C32 Tier 2 895 kW (1,200 hp) @ 2,100 rpm |
| FAN | Flexxaire® variable pitch with automatic reversing cycle |
| FUEL CAPACITY | 2 082 L |
| PUMP, MAIN | (2) Piston, for all machine functions |
| RESERVOIR | 435 L |

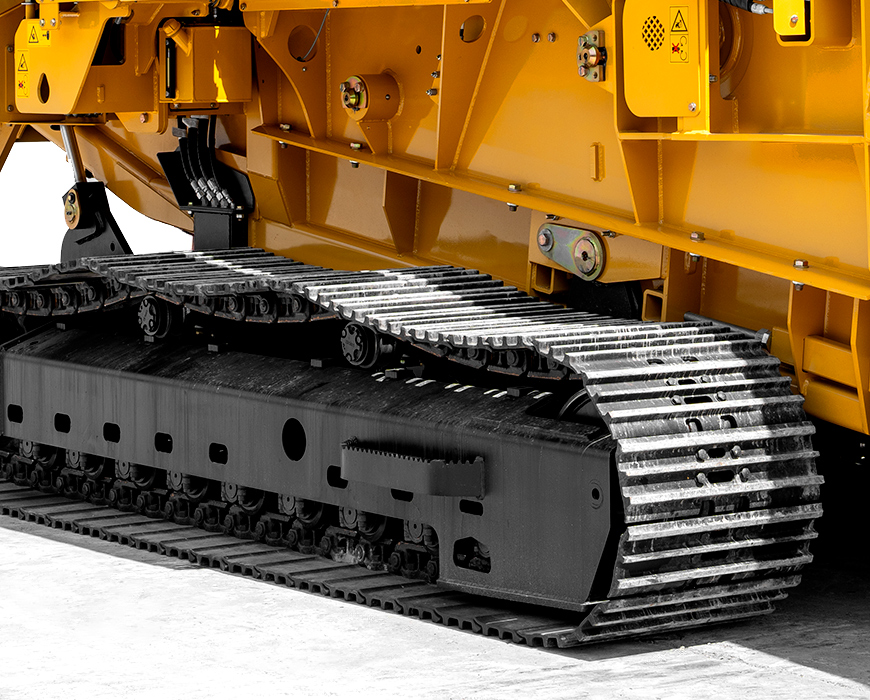

| TRACK FRAMES | 5 Series, heavy-duty |
| FINAL DRIVE | (2) Axial piston motors with brake valves Infinitely variable speed |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (9) D5 single/double flange tractor type |
| SLIDES, UPPER | Replaceable |
| TRACK SHOE | 700 mm (28 in) triple grouser |
| WIDTH | 1 450 mm |
| HEIGHT | 965 mm |
| LENGTH | 4 725 mm |
| FEED CHAIN | WDH, 130 mm (5.17 in) pitch |
Onsite access to production and service information. Using a mobile device and a secure WiFi hotspot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.
LEARN MORE
Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.
LEARN MORE
Hard-working contractor employs Tigercat grinders in intensive material reduction operations, helping residents to return to some sense of normalcy after devastating natural disasters.
LEARN MORE
Florida-based land clearing and recycling company with two decades of organic material processing experience purchases two Tigercat 6900 grinders.
LEARN MORE
27 July 2022
Tigercat officially introduces the 6900 grinder, the first regular production offering in Tigercat's material processing category.
15 August 2025

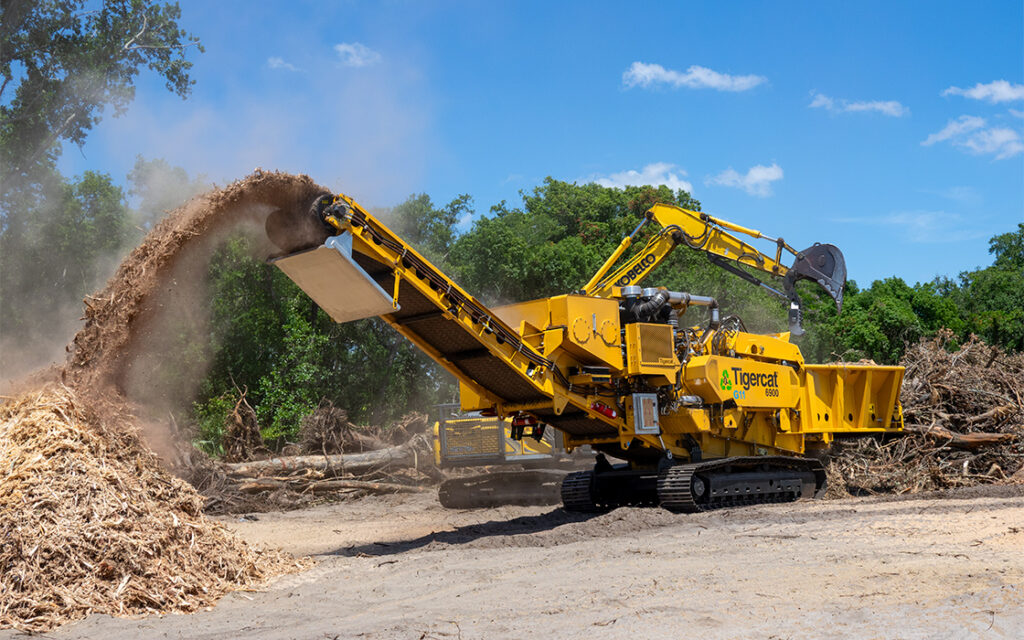

Watch this video to see three Tigercat 6900 grinders working in intensive material reduction operations in the aftermath of Hurricane Helene. The three grinders work side-by-side, twelve hours per day, seven days per week, processing 40,000 yards of material every day.
21 May 2024
Biomass pellet production - the first stage. Watch the Tigercat 6900 grinding feedstock derived from logging residue. The ground material passes through 65 mm (2.5 in) screens, producing a consistent size and quality of material well suited to the next stage of the pelleting process.
5 July 2023
Jim Oberg, product manager for Tigercat grinders and chippers takes us on a walk-around of the 6900 grinder. The 6900 uses the highest quality components and is designed for extreme duty and long life, as well as ease of operation and service. Watch this video to learn more about this heavy-duty upswing grinder made for high throughput material reduction and mulch production.
15 June 2021

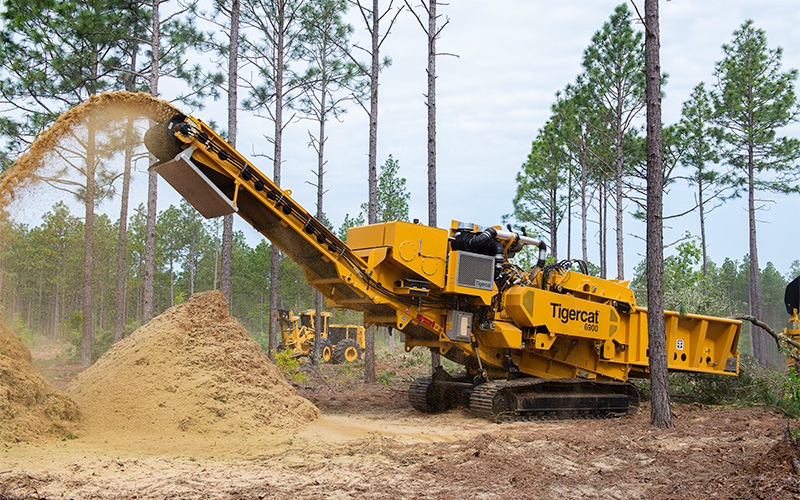

Watch the Tigercat 6900 grinder in action in Ontario and South Carolina. The horizontal grinder is a heavy-duty upswing material processor designed for maximum production.
