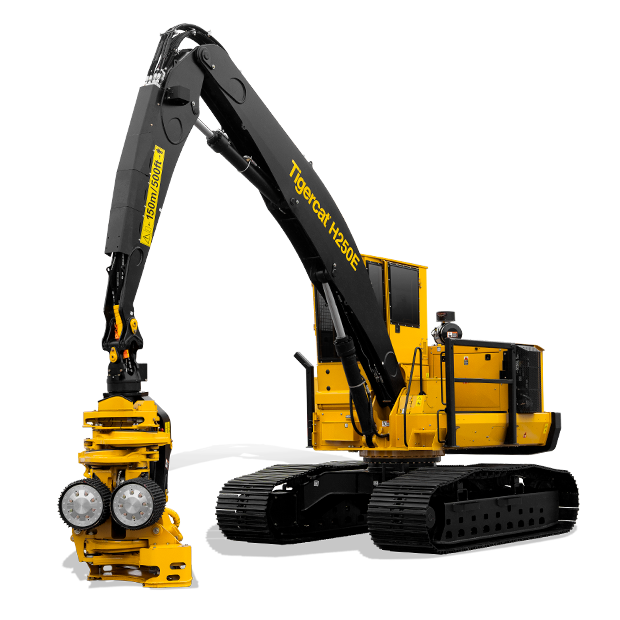

The new operator’s cab has 16% larger volume with increased width and more leg room.
Improved A/C and heater controls allows the operator to set the desired temperature for a more comfortable working environment. A climate controlled cupholder keeps drinks hot or cold for longer.
Dedicated storage areas include space for a full size Tigercat insulated lunchbox behind the seat.
The large panel on the cab platform provides unmatched access to engine service points. The removable deck plates on the platform allows for easy access to hydraulic valves and hoses.
The Tigercat-built full forest duty undercarriage provides excellent tractive effort for mobility on or between decks. The large footprint offers excellent stability for increased operator comfort and reduced fatigue.
| LENGTH less boom and steps | 5 260 mm |
| WIDTH | 3 430 mm |
| HEIGHT | 4 395 mm |
| HEIGHT transport | 3 555 mm |
| GROUND CLEARANCE | 700 mm |
| WEIGHT less attachment | 26 535 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 151 kW (203 hp) @ 2,200 rpm (rated) 165 kW (221 hp) @ 1,900 rpm (peak) Automatic idle down |
| COOLING | Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Fixed pitch, viscous clutch |
| Optional | Flexxaire® variable pitch, reversing |
| FUEL CAPACITY | 378 L |
| DEF CAPACITY | 26 L |
| PUMP, MAIN | Piston |
| PUMP, SWING | Piston, pressure compensated |
| FILTRATION | (4) Spin-on, 7 micron full-flow |
| CYLINDER, HOIST | 180 mm (7.1 in) bore |
| CYLINDER, STICK | 150 mm (5.9 in) bore |
| RESERVOIR | 140 L |
| TRACK FRAMES | F6-152-3 heavy duty forestry Integral track guides |
| TRACK CHAIN | F8/D6D 203 mm (8 in) pitch sealed and greased |
| FINAL DRIVE | (2) Axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 222 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, UPPER | (2) D6D excavator type |
| ROLLERS, LOWER | (8) D6 single and double flange tractor type |
| SLIDES, UPPER | Optional, bolt-on |
| TRACK SHOE | 760 mm (30 in) triple grouser |
| Optional | 915 mm (36 in) triple grouser 915 mm (36 in) triple grouser tri-track |
| TRACK | Friction disc Automatic spring applied, hydraulic release |
| SWING | Friction disc Manual spring applied, hydraulic release |
