865 logger side view

865 Logger

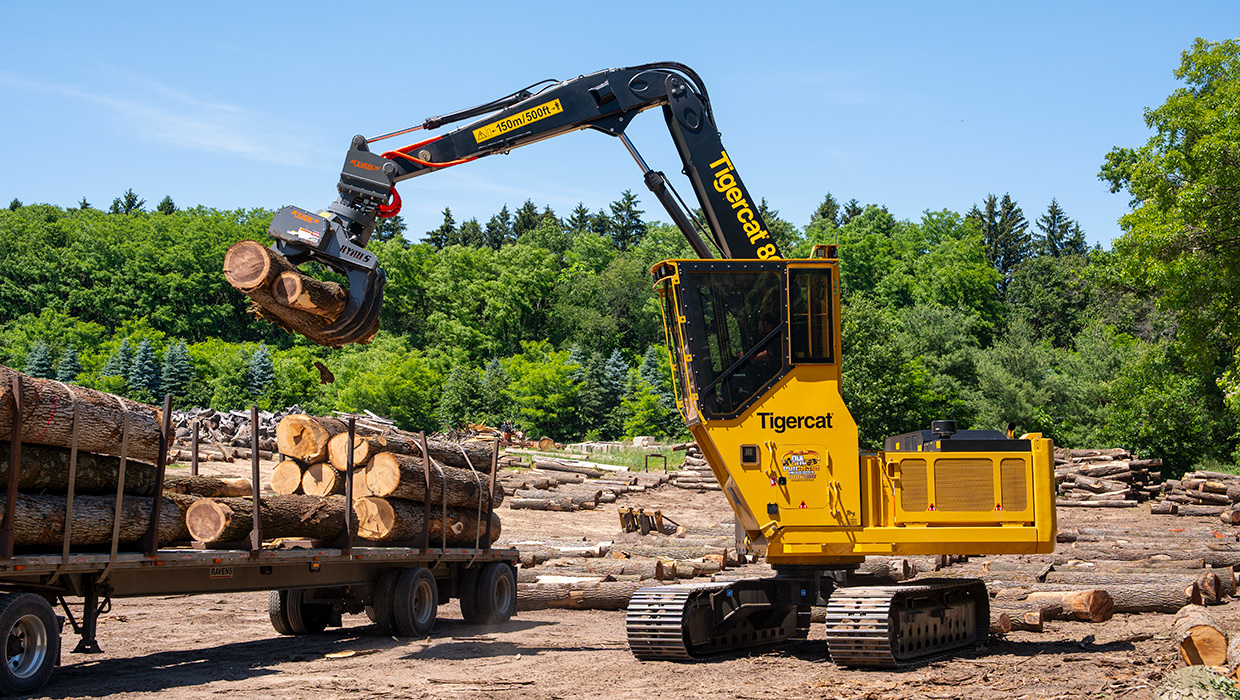

The Tigercat 865 logger is a multi-purpose, no compromise forestry carrier designed for various loading applications as well as roadside processing.

Find a Dealer

Overview

The 865 is purpose-built to eliminate the design compromises found in excavator conversions. The upper frame assembly and undercarriage are designed for forest duty and ease of service.

The F6-152 forest duty undercarriage has excellent tractive effort for mobility on or between decks. The larger footprint F7-162 provides additional stability for heavy timber applications and when working at extended reach.

The large, comfortable rear entry cab has excellent sightline and well designed ergonomics.

One machine. Many jobs.

The 865 has multiple loader configurations with boom options to accommodate various grapples styles with or without a live heel. In addition, the machine can be configured for roadside processing –  the high cab improves performance and operator visibility in high decking applications.

Some of the advantages of the 865 logger over excavator conversions include higher cooling capacity, a better operating environment, stronger undercarriage components and extremely efficient and task-optimized hydraulic circuits. The result is higher production, uptime and fuel efficiency for lower operating cost per tonne.

Grapple options

Customize the 865 to specific loading applications with a variety of grapple styles including bunching, power clam and butt-n-top grapples, as well as grapple saws.

Merchandising loader

Equipped with a live heel boom, along with the optional pull-through delimber and bar saw slasher hydraulic package, the 865 can be configured as a high performance merchandising loader. This package is well suited to typical southern US full tree harvesting systems.

Open access

Component layout and access sets a new standard with a tilt-up roof enclosure, drop-down service platform and a rear access door integrated into the cast counterweight.

Tigercat power. Tigercat support.

The 865 logger is Tigercat FPT Tier 2 or Tier 4f powered. Tier 4f conforms to the latest emissions standards in North America and Europe. With the Tier 2 engine configuration, Tigercat brings the benefits of Tigercat power and support to harvesting professionals around the world.


Key Benefits

  • High horsepower engine. Increases productivity and multi-function speed relative to excavator conversions without compromising fuel efficiency
  • Safe access rear entry cab. High operator vantage point, full length windows and thoughtful ergonomics
  • Twin swing drive motors. Powerful swing torque, reduced pinion loads, extended swing system life
  • Clear access to pumps, valves and engine. Far superior to excavator conversions
  • Heavy duty Tigercat-built F8 forestry undercarriage
  • Protective cast counterweight with engine compartment access door

Videos

865 Walk-around Video
Loader product manager, Peter Maljaars takes us on a walk-around of the 865 logger. Watch this video to learn about the key features and benefits of owning a Tigercat 865 logger. Download in HD

Downloads

See below related files that you can download.

News & Articles

Related News


Show measurements as:
Metric
Imperial
WIDTH with steps 3 430 mm
With optional F7-162 3 480 mm
HEIGHT transport 3695 mm
GROUND CLEARANCE 685 mm
WEIGHT less attachment 32 400 kg
With optional F7-162 35 390 kg
TAIL SWING RADIUS 3 150 mm
ENGINE Tier 4f Tigercat FPT N67 Tier 4f
159 kW (213 hp) @ 2,100 rpm
ENGINE Non-certified Tigercat FPT N67 Non-certified
159 kW (213 hp) @ 2,100 rpm
AIR FILTRATION Precleaner, 2-stage engine air cleaner
COOLING Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser
FAN Engine driven
Optional Hydraulically driven
Automatic variable speed and reversing cycle
FUEL CAPACITY 600 L
DEF CAPACITY 46 L
LOW RANGE 2,5 km/h
HIGH RANGE 4,5 km/h
PUMP, MAIN 1 Piston, load sensing
PUMP, MAIN 2 Piston, load sensing
PUMP, COOLING FAN Gear
FILTRATION (5) Spin-on, 7 micron full flow
(1) Water absorbing
CYLINDERS, HOIST (2) 135 mm (5.3 in) bore
CYLINDER, STICK (1) 150 mm (5.9 in) bore
CYLINDER, TILT (1) 110 mm (4.3 in) bore
CYLINDERS, LIVE HEEL (2) 120 mm (4.7 in) bore
HORSEPOWER CONTROL Electronic speed sensing
RESERVOIR 225 L
TRACK FRAMES F6-152 heavy duty forestry
Integral track guide
TRACK CHAIN F8/D6D 203 mm (8 in) pitch
FINAL DRIVE (2) Axial piston motors
Infinitely variable speed
TRACTIVE EFFORT 258 kN
With optional F7-162 291 kN
GEARBOX Triple reduction planetary with brake
FRONT IDLER Hydraulic track adjuster
Spring shock absorber
ROLLERS, UPPER (2) D6 excavator type
SLIDES, UPPER Optional, bolt-on
ROLLERS, LOWER (9) D6 excavator type
With optional F7-162 (9) FH400 single/double flange excavator type
TRACK SHOE 610 mm (24 in) single grouser/double grouser
Optional 710 mm (28 in) single, double, triple grouser tri-track
760 mm (30 in) triple grouser, triple grouser tri-track
915 mm (36 in) triple grouser tri-track
TRACK Friction disc
Automatic spring applied, hydraulic release
SWING Friction disc
Manual spring applied, hydraulic release
SWING DRIVE 8 rpm variable speed, 360° continuous rotation
Double reduction, twin swing drive planetary gearboxes
Twin piston swing motors
SWING BEARING 1 190 mm (47 in) ball circle diameter
ENCLOSURE Spring assist roof and side platform
Large swing-out door for cooling system
Rear swing-out door
MAXIMUM RADIUS 10 515 mm
HYDRAULIC BARE PIN LIFT 6 880 kg
MAXIMUM RADIUS 9 905 mm
HYDRAULIC BARE PIN LIFT 6 580 kg
MAXIMUM RADIUS 11 125 mm
HYDRAULIC BARE PIN LIFT 6 410 kg
MAXIMUM RADIUS 10 210 mm
HYDRAULIC BARE PIN LIFT 4 990 kg
BATTERY (2) 12 v
ALTERNATOR 80 amp, 24 v
SYSTEM VOLTAGE 24 v
CAB Insulated and pressurized
A/C, heater, defroster
rearVIEW camera system
Full length polycarbonate windshield/entry door
Polycarbonate right and left side windows
One-piece polycarbonate side door window with steel guarded upper sliding section for ventilation
AM/FM digital stereo and auxiliary input port
Bluetooth® audio and hands-free calling
(2) Power points
SEAT Full suspension air ride, heated and cooled, fully adjustable
Armrest mounted Tigercat joystick
OPERATOR CONTROLS Hydraulic proportional for boom/travel/swing
Electronic for horsepower/fan control
Electric switch for swing brake
Electronic control system with LCD colour touchscreen display for machine monitoring and function adjustment
STANDARD LogOn™ local wifi machine monitoring system
Fuel suction strainer
Alarm for track movement
Electric hydraulic oil fill pump
Hydraulic tank vacuum system
OPTIONAL RemoteLog® telematics system
High output LED lighting package
Cold weather kit
CB radio
SiriusXM® radio
Stick cylinder guard package
Delimber/bar saw slasher hydraulics
Grapple saw hydraulics
F7-162 undercarriage
