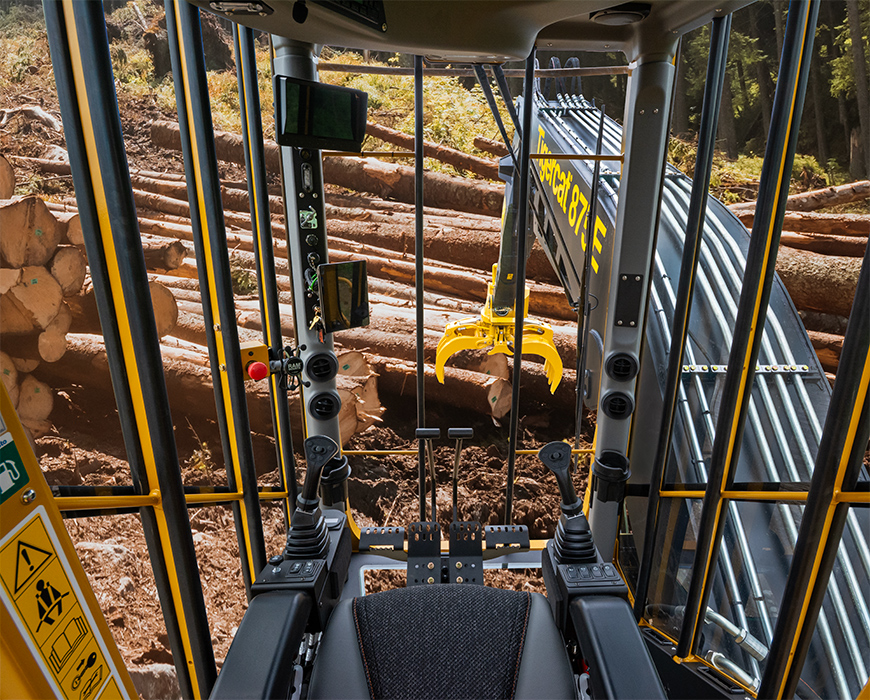

The rear entry cab is large, comfortable and easy to access. The operator is positioned up high with a commanding view of the work area and excellent sightlines in all directions.
The hooked main boom geometry and forward cab positioning provides unmatched right-hand side visibility.
Room to breathe and room to work. Thoughtful component arrangement allows for optimal cooling airflow and full access to service points.
Safe walk-up access to all service points and to the rear cabin entry door.
Stable base of operations. Tigercat logger undercarriages have long track frames and a wide stance for high stability and operator comfort when lifting heavy loads and working at extended reach.
In addition to adding stability, the cast counterweight protects the upper assembly from impacts.
| LENGTH less boom | 6 380 mm |
| WIDTH with steps | 3 630 mm |
| HEIGHT transport | 3 810 mm |
| GROUND CLEARANCE | 737 mm |
| WEIGHT less attachment | 48 550 kg |
| TAIL SWING RADIUS | 3 735 mm |
| ENGINE Tier 4f | Tigercat FPT C87 Tier 4f 275 kW (370 hp) @ 2,000 rpm |
| ENGINE Non-certified | Tigercat FPT C87 Non-certified 275 kW (370 hp) @ 2,000 rpm |
| AIR FILTRATION | Precleaner, 2-stage engine air cleaner |
| COOLING | Side-by-side aluminun radiator, oil cooler, charge air cooler and A/C condenser |
| Optional | Removable intake debris screen |
| FAN | Hydraulically driven Automatic variable speed and reversing cycle |
| FUEL CAPACITY | 1,150 L |
| FUEL CAPACITY Non-certified | 1,300 L |
| DEF CAPACITY | 135 L |
| LOW RANGE | 2,3 km/h |
| HIGH RANGE | 4.2 km/h |
| PUMP, MAIN | Piston, load sensing |
| PUMP, SWING | Piston, closed loop, energy recovery |
| PUMP, ATTACHMENT | Piston, load sensing |
| PUMP, COOLING FAN | Gear |
| FILTRATION | (5) Spin-on, 7 micron full flow (1) water absorbing |
| CYLINDER, HOIST | (2) 170 mm (6.7 in) bore |
| CYLINDER, STICK | (2) 140 mm (5.5 in) bore |
| CYLINDER, TILT | 120 mm (4.9 in) bore |
| CYLINDER, LIVE HEEL | 140 mm (5.5 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing |
| RESERVOIR | 225 L |
| TRACK FRAMES | F7-172 heavy duty forestry, Integral track guides, ramp angles |
| TRACK CHAIN | FH400 215 mm (8.5 in) pitch |
| FINAL DRIVE | (2) Axial piston motors, Infinitely variable speed |
| TRACTIVE EFFORT | 367 kN |
| GEARBOX | Triple reduction planetary with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (10) FH400 single/double flange, excavator |
| SLIDES, UPPER | Replaceable, bolt-on |
| TRACK SHOE | 710 mm (28 in) double grouser, tall lug |
Onsite access to production and service information. Using a mobile device and a secure WiFi hotspot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.
LEARN MORE
Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.
LEARN MORE

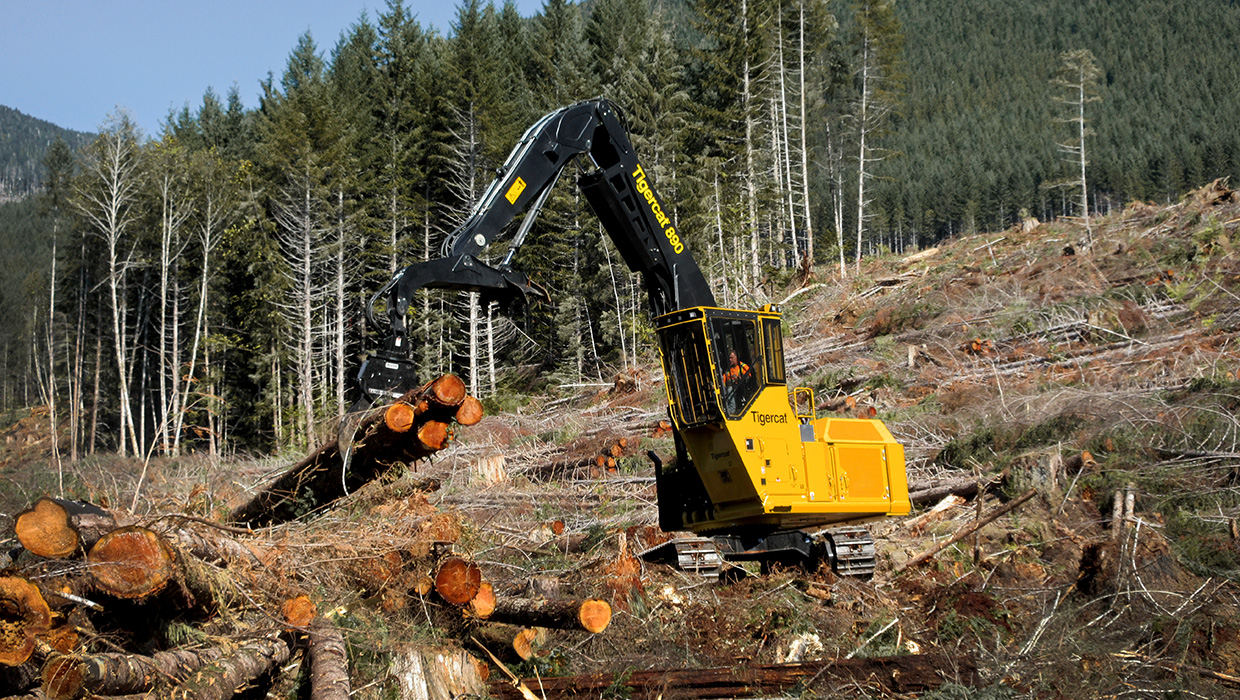

BTB visited Vancouver Island, British Columbia and spoke with operator Marty Fladager of Dynamite Logging to get his thoughts on the 890 logger. Equipped with a live heel boom system, Marty is using the machine primarily for shovel logging large timber on varied terrain.
LEARN MORE
29 March 2019

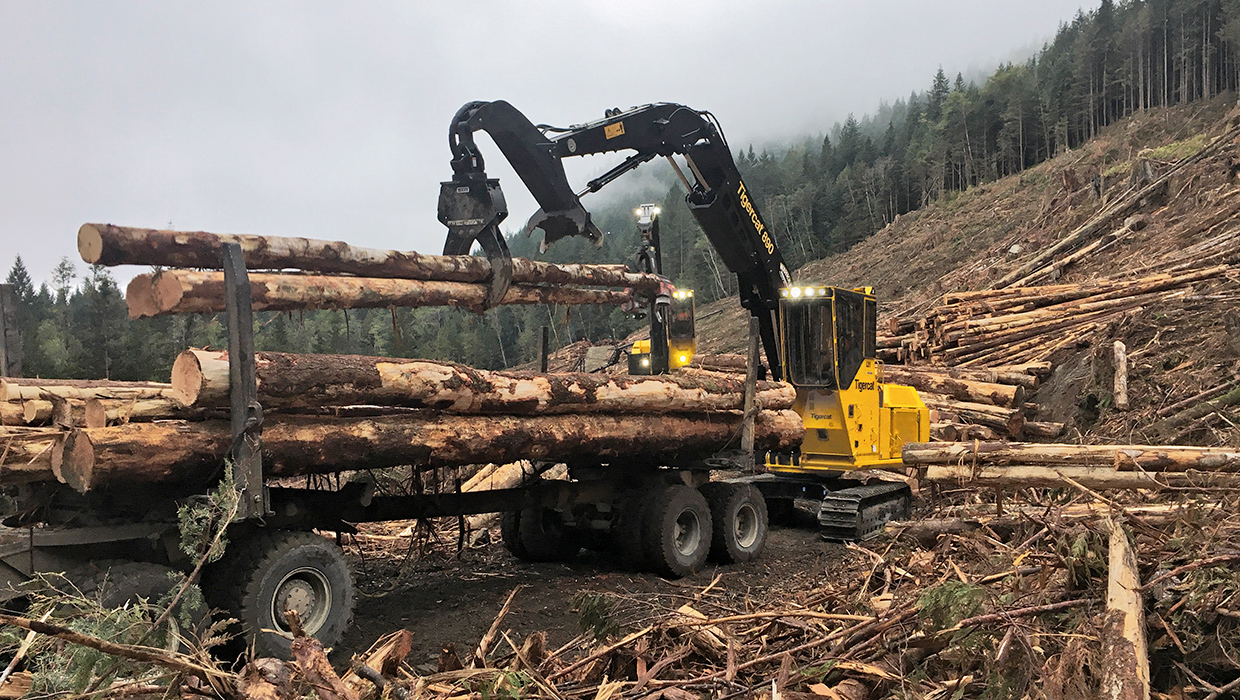

Tigercat 890 loggers shovel logging and processing on British Columbia's beautiful Vancouver Island.
