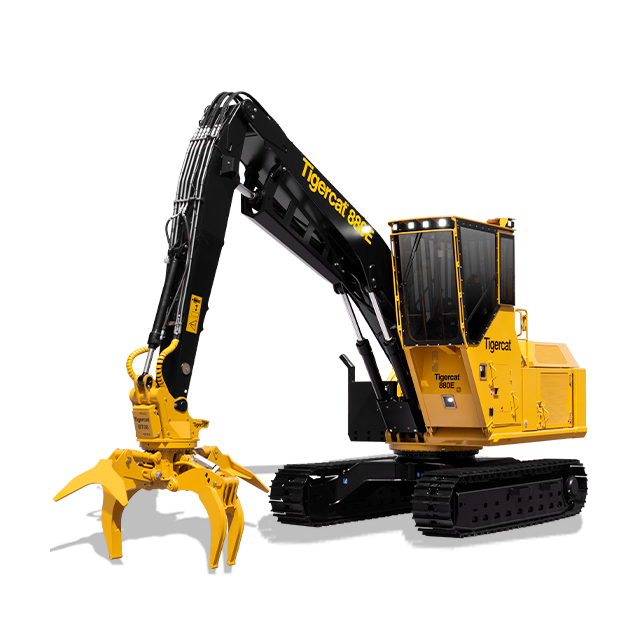

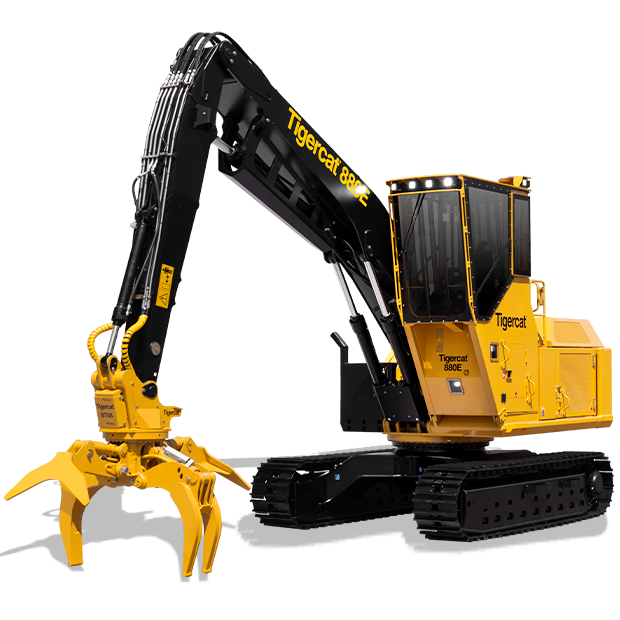

880E Logger

The Tigercat 880E logger is a multi-purpose, no compromise carrier designed for loading, shovel logging and processing.

Find a Dealer

Overview

The 880E is purpose-built to eliminate the design compromises found in excavator conversions. The upper frame assembly and undercarriage are designed for full forest duty.

One machine. Three jobs.

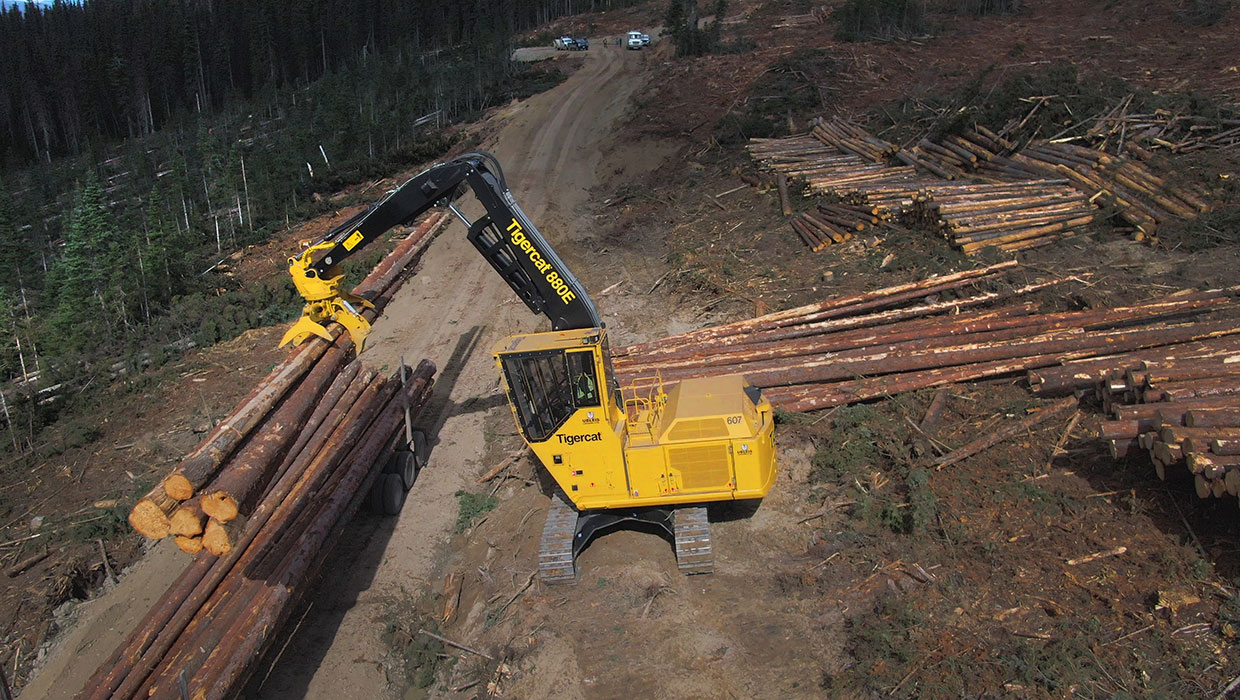

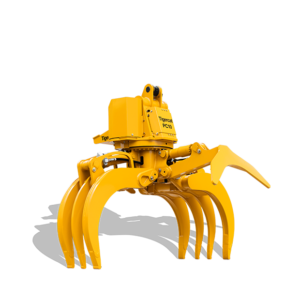

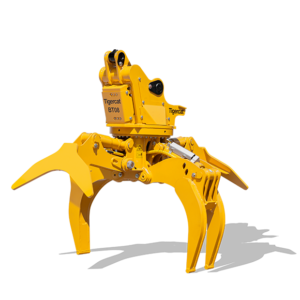

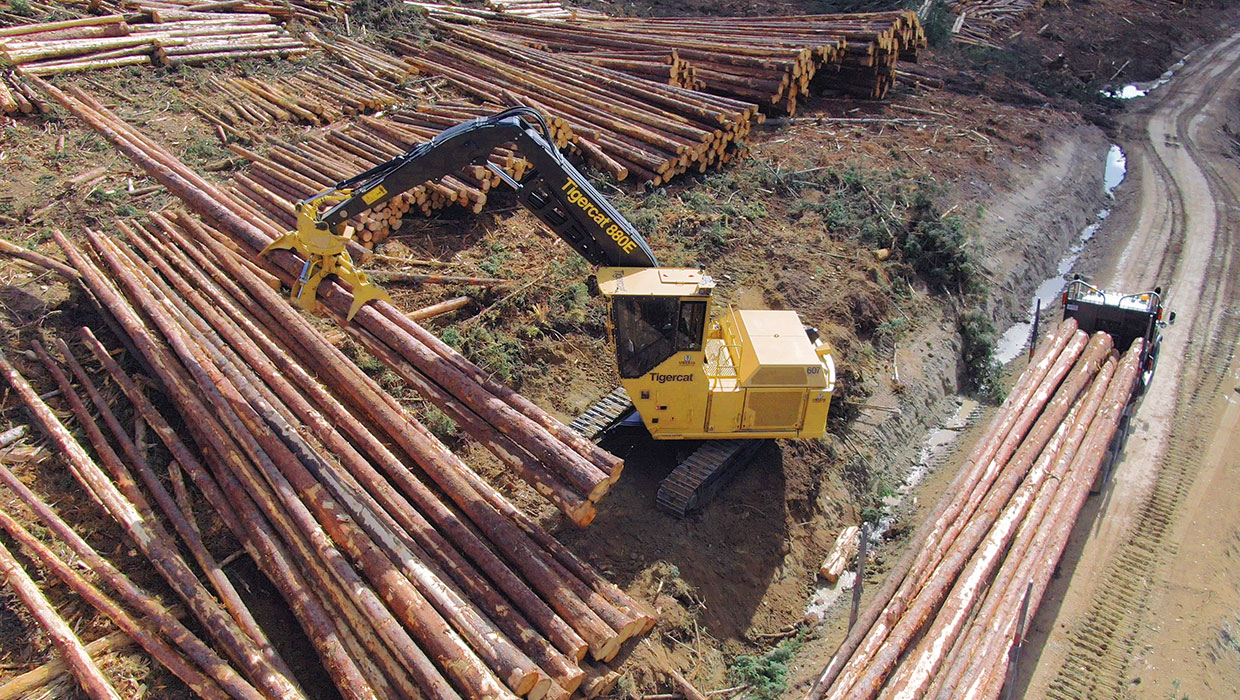

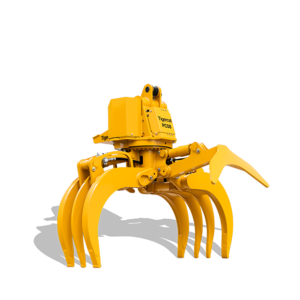

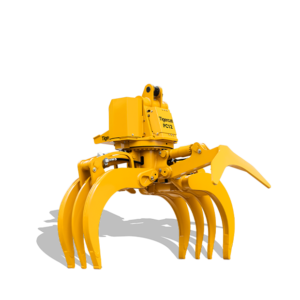

The 880E can be configured as a loader with various power clam and butt-n-top grapple options. The boom geometry and cab positioning provide unmatched right-hand side visibility. Equipped with a live heel boom system, the 880E is a highly capable shovel logger with excellent stability, tractive effort and swing torque. The 880E can also be configured as high capacity processor capable of running large harvesting heads in demanding duty cycles.

Some of the many advantages of the 880E over excavator conversions include higher cooling capacity, a better operating environment, stronger undercarriage components and extremely efficient hydraulic circuits. The result is higher production, uptime and fuel efficiency for lower operating cost per tonne.

Tigercat power. Tigercat support.

The 880E loader has two engine options. Tier 4f conforms to the latest emissions standards in North America. The new Non-certified engine configuration brings the benefits of Tigercat power and support to harvesting professionals in other parts of  the world.


Key Benefits

  • Tigercat FPT N67 engine – clean, powerful, efficient and fully supported by Tigercat
  • High horsepower engine significantly increases machine productivity and multi-function speed relative to excavator conversions without compromising fuel efficiency
  • Dedicated swing pump – reserves all main hydraulic pump flow for boom and attachment functions, increasing speed and productivity
  • Energy recovery swing system – closed loop drive feeds power back to the engine as swing decelerates, reducing heat and fuel consumption and recovering energy for other machine functions
  • Large diameter swing bearing with twin swing drives for high torque and long life

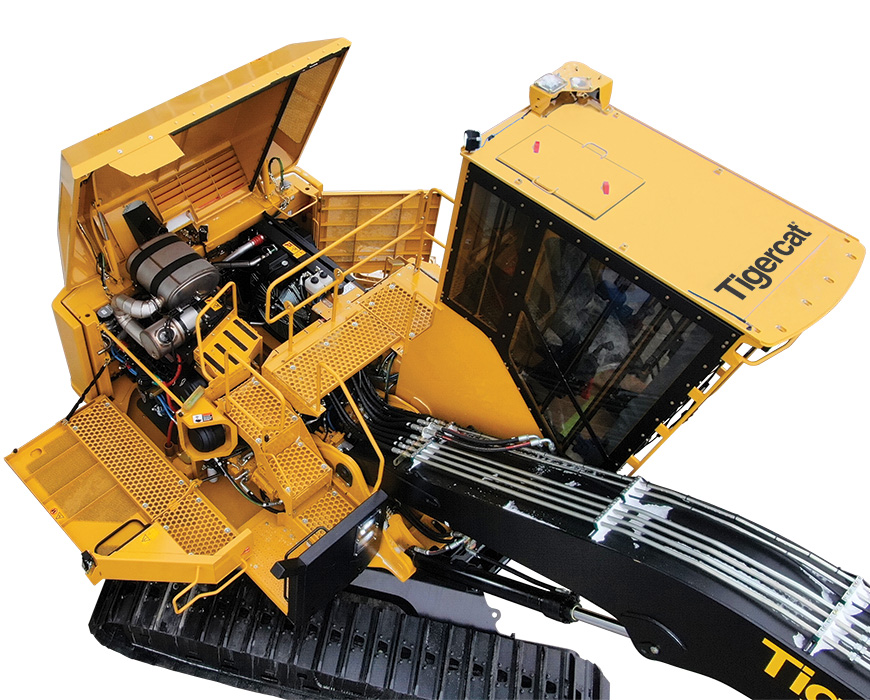

  • Power operated side door and clamshell-style roof enclosure for excellent access to major components and daily service points
  • Clamshell-style roof enclosure with swing-out doors on both sides for excellent access to major components and daily service points
  • Super-duty Tigercat-built FH400 forestry undercarriage
  • High illumination LED lighting – low glare, daylight working conditions for high nightshift productivity, reduced operator fatigue
  • High capacity cooling system – automatic variable speed for improved fuel efficiency; automatic reversing cycle to purge dust and debris
  • Full length front window and additional floor windows for clear sightline to the tracks

Videos

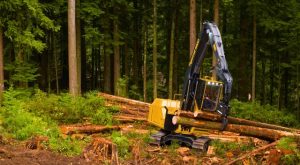

Tigercat 880D Logging Video
The Tigercat FPT powered 880D logger in a west coast shovel logging application. Steep terrain and big timber logging video. Download in HD
Colin Wroe, Whisker Harvesting: 880D in New Zealand
Colin Wroe of Whisker Harvesting in New Zealand discusses his experience with the company’s new 880D logger in a roadside processing application. Download in HD

Downloads

See below related files that you can download.

Show measurements as:
Metric
Imperial
WIDTH with steps3 630 mm
HEIGHT transport3 430 mm
GROUND CLEARANCE710 mm
WEIGHT less attachment42 640 kg
TAIL SWING RADIUS3 500 mm
ENGINE Tier 4fTigercat FPT N67 Tier 4f
212 kW (285 hp) @ 2200 rpm (rated)
230 kW (308 hp) @ 2000 rpm (peak)
ENGINE Tier 2Tigercat FPT N67 Tier 2
205 kW (275 hp) @ 2100 rpm (rated)
230 kW (308 hp) @ 2000 rpm (peak)
AIR FILTRATIONPrecleaner, 2-stage engine air cleaner
COOLINGSide-by-side aluminum radiator, oil cooler,
charge air cooler and A/C condenser
OptionalRemovable intake debris screen
FANHydraulic driven automatic variable speed, reversible
FUEL CAPACITY1 000 L
FUEL CAPACITY Tier 21 300 L
DEF CAPACITY80 L
LOW RANGE2,3 km/h
HIGH RANGE4,5 km/h
PUMP, MAINPiston, load sensing
PUMP, SWINGPiston, closed loop, energy recovery
PUMP, ATTACHMENTPiston, load sensing
PUMP, COOLING FANGear
FILTRATION(5) Spin-on, 7 micron full flow
(1) water absorbing
CYLINDERS, HOIST(2) 150 mm (5.9 in) bore
CYLINDER, STICK170 mm (6.7 in) bore
CYLINDER, TILT110 mm (4.3 in) bore
CYLINDER, LIVE HEEL130 mm (5.2 in) bore
HORSEPOWER CONTROLElectronic speed sensing
RESERVOIR225 L
TRACK FRAMESF7-163 heavy duty forestry
Integral track guides, ramp angles
TRACK CHAINFH400 215 mm (8.5 in) pitch
FINAL DRIVE(2) Axial piston motors
Infinitely variable speed
TRACTIVE EFFORT334 kN
GEARBOXTriple reduction planetary with brake
FRONT IDLERHydraulic track adjuster
Spring shock absorber
SLIDES, UPPERReplaceable, bolt-on
ROLLERS, LOWER(9) FH400 single/double flange, excavator
TRACK SHOE710 mm (28 in) double grouser, tall lug
TRACKFriction disc
Automatic spring applied, hydraulic release
SWINGFriction disc
Manual spring applied, hydraulic release
SWING DRIVE6,4 rpm variable speed
360° continuous rotation
Double reduction, twin swing drive planetary
gearboxes
Twin piston swing motors
SWING BEARING1 575 mm (62 in) ball circle diameter
ENCLOSUREHydraulically operated roof and side engine
enclosure with manual backup
Large air intake for cooling system
Vandal protection
Smooth exterior
MAXIMUM RADIUS11 355 mm
BARE PIN LIFT full reach7 620 kg
MAXIMUM RADIUS11 660 mm
BARE PIN LIFT full reach6 990 kg
MAXIMUM RADIUS13 056 mm
BATTERY(2) 12 v
ALTERNATOR110 amp, 24 v
SYSTEM VOLTAGE24 v
LIGHTING(12) Hight output LED
(5) LED service, engine enclosure
CABInsulated and pressurized
A/C, heater and defroster
Full length polycarbonate windshield
Polycarbonate side, rear, door and floor windows
AM/FM digital stereo with CD player
(2) Power points
SEATFull suspension air ride, fully adjustable
Armrest mounted Tigercat joysticks
OPERATOR CONTROLSHydraulic proportional boom/travel/swing
Electronic for horsepower/fan control
Electric switch for swing brake/speed
Electronic control system with colour LCD display
screen interface for machine monitoring and function adjustment
STANDARDFuel suction strainer
Alarm for track movement
Load ticket chute
OPTIONALCold weather kit
High view cab mounted camera system
Heavy duty stick cylinder guard
Jaw/tilt control swap
Butt-n-top tilt float
Long reach butt-n-top stick boom
Slasher saw hydraulics
RemoteLog™ telematics system
