BG13 Bunching Grapple

A large capacity bunching grapple suited to high production shovel logging.

SPECS

BENEFITS

DEALER

Grapples

Grapples

Highlights

CAPACITY

WEIGHT

MAXIMUM OPENING

1,21 m²
13 ft²

1 230 kg
2,700 lb

3 300 mm
130 in

CAPACITY

1,21 m²
13 ft²

WEIGHT

1 230 kg
2,700 lb

MAXIMUM OPENING

3 300 mm
130 in

Overview

The BG13 is a simple, durable, high capacity grapple specialized for steep slope harvesting applications. Matched to a Tigercat LSX870D or LS855E shovel logger, the BG13 provides an end-to-end Tigercat solution for high production shovel logging.

Product Specifications

Metric

Imperial

Dimensions

WIDTH	635 mm
WIDTH	25 in
HEIGHT	1 785 mm
HEIGHT	70 in
DEPTH jaws open	3 555 mm
DEPTH jaws open	140 in
WEIGHT	1 230 kg
WEIGHT	2,700 lb
MAXIMUM OPENING	3 300 mm
MAXIMUM OPENING	130 in
AREA tip-to-tip	1,21 m²
AREA tip-to-tip	13 ft²

Hydraulic System

CYLINDERS, JAW

(2) 114 mm (4.5 in) bore

Swing Drive

DRIVE MOTOR	Gerotor
CROSSOVER RELIEF	120 bar (1,750 psi)
MAXIMUM SWING TORQUE	15 068 Nm (133 360 lbf in)

Recommended Carriers

RECOMMENDED CARRIERS

LS855E, LSX870D

BROCHURE

Key Benefits

Wide tip-to-tip opening allows the operator to more quickly gather scattered bunches

Well protected boom hoses. Routed over the boom and under the connecting pin

Durable, well-proven rotate motor and manifold

Available with plate or box tongs

Wide tip-to-tip opening allows the operator to more quickly gather scattered bunches

Durable, well-proven rotate motor and manifold

Well protected boom hoses. Routed over the boom and under the connecting pin

Available with plate or box tongs

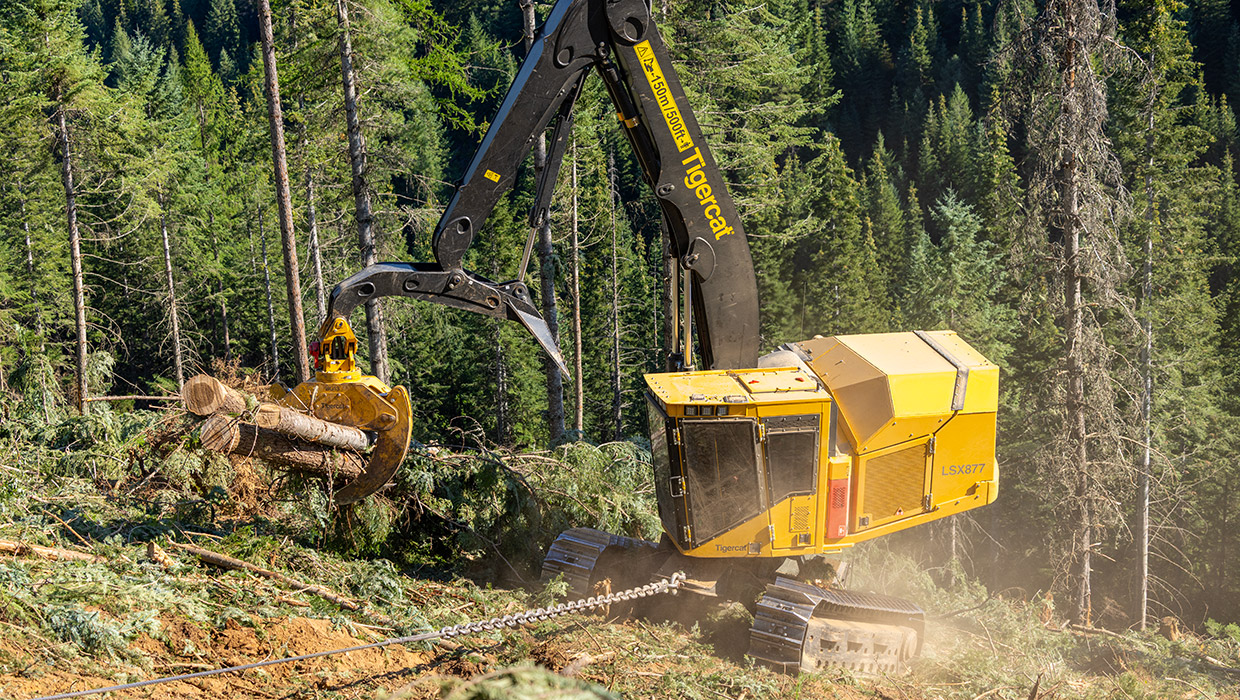

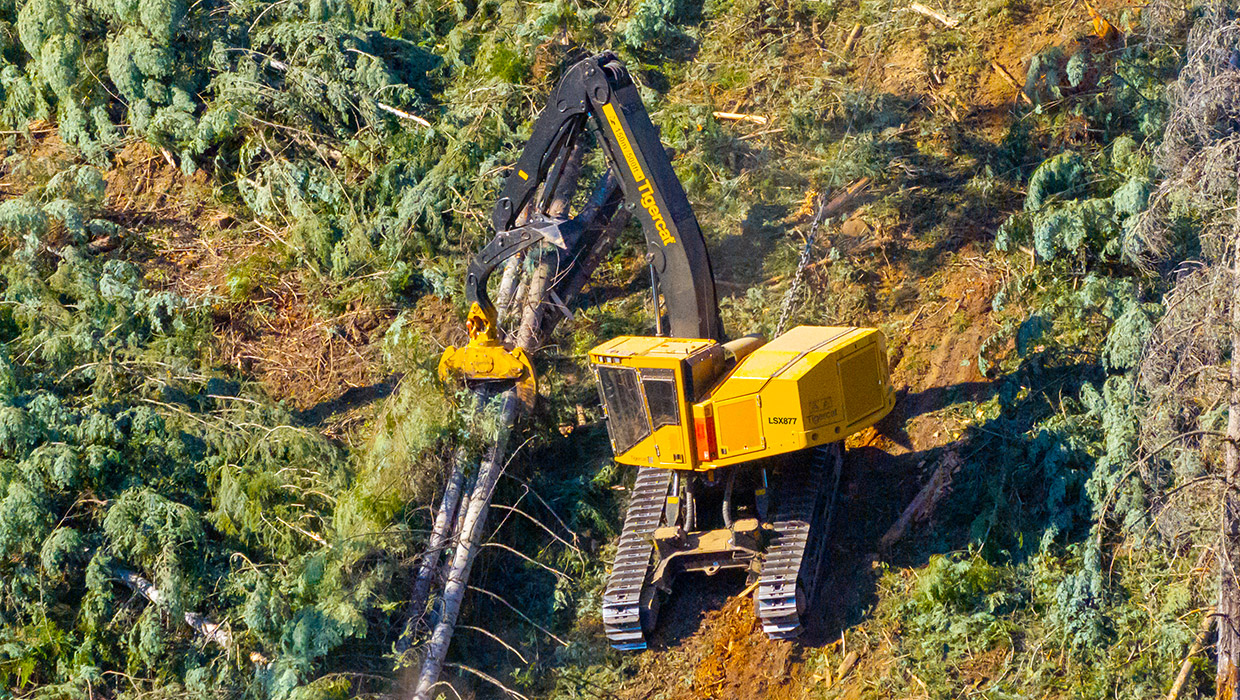

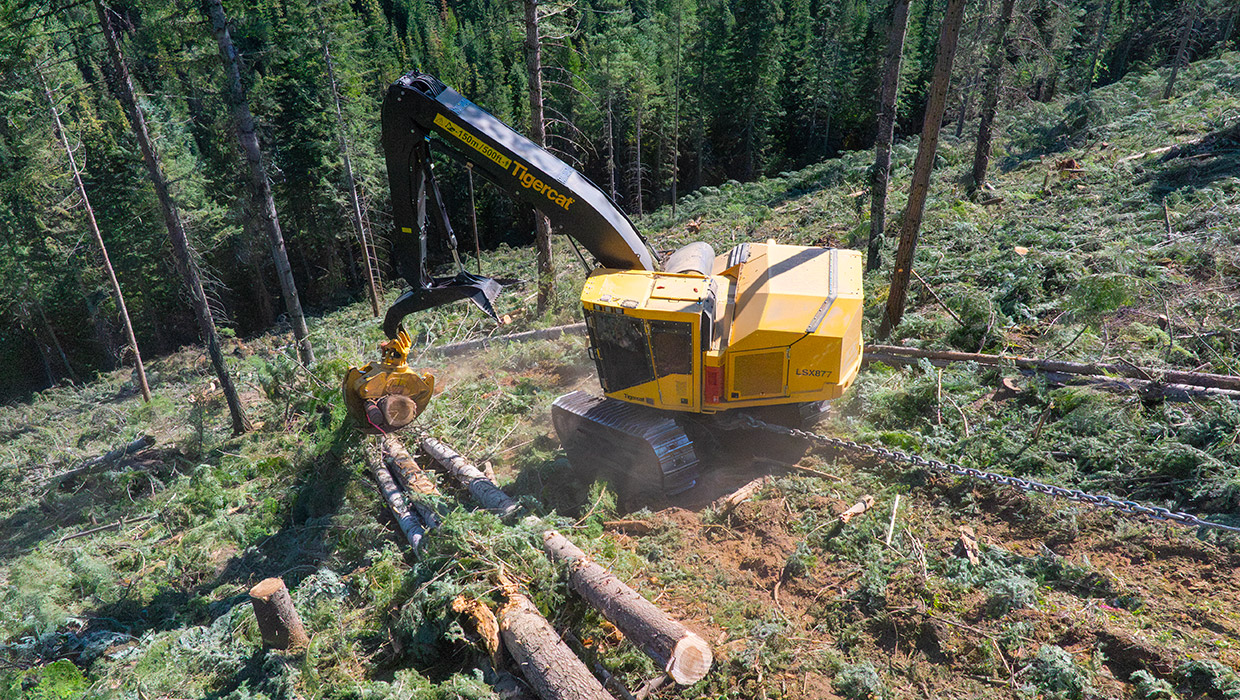

Image of a LSX870D shovel logger working in the field

In the Field

Related Products

LS855E Shovel Logger

LSX870D Shovel Logger
