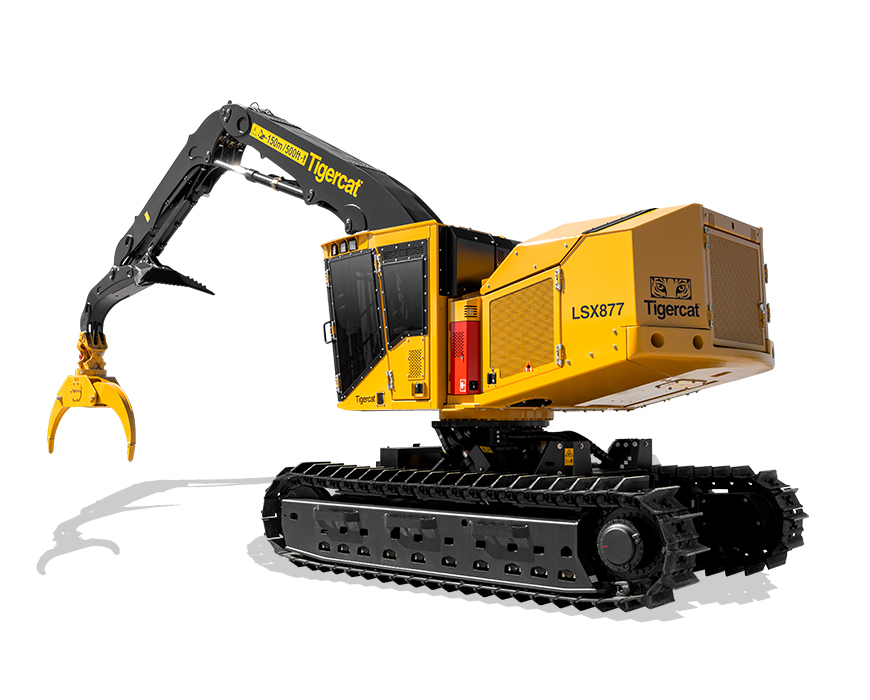

Sloping tail for winch assist chain clearance and steeper leveling angles.
Closed loop track drive system for climbing performance and efficiency.

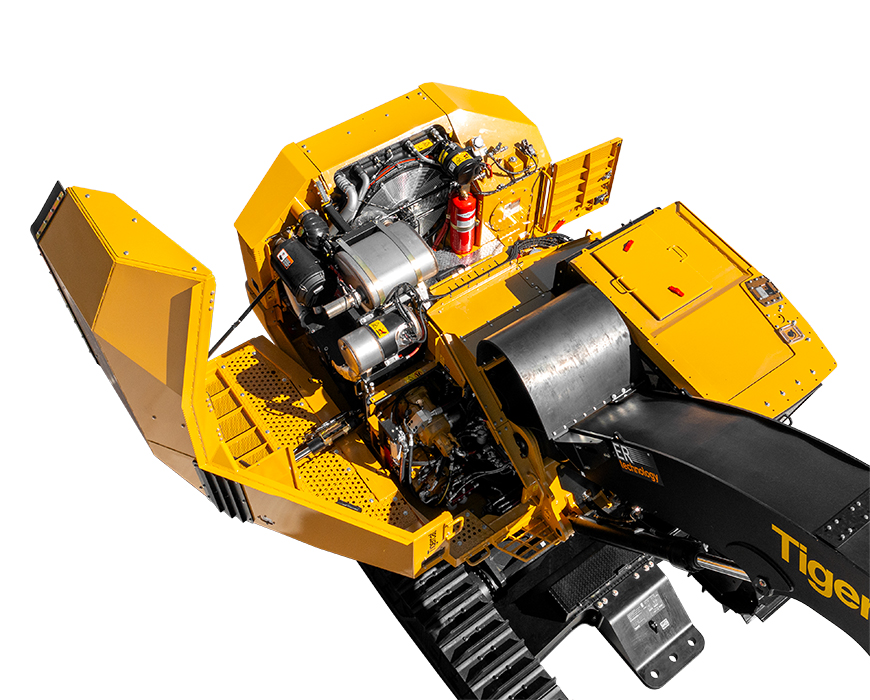

The side opening engine roof completely exposes the top and both sides of the engine, and most hydraulic components. When open, the enclosure roof serves as a spacious side service platform to work comfortably and safely.

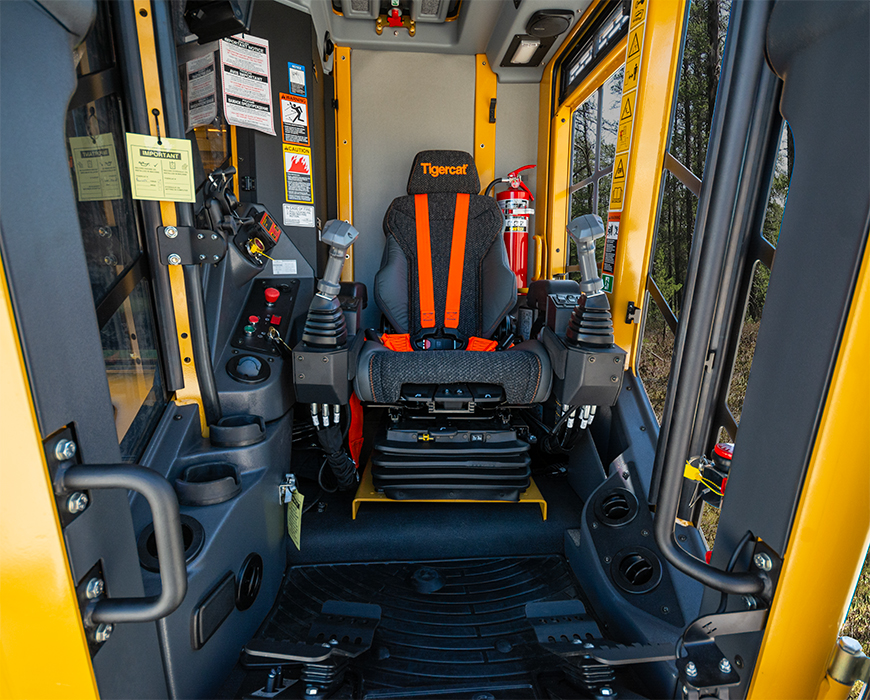

Fully adjustable air ride seat with ergonomic armrest mounted controls.
Excellent visibility with full-length front window as well as skyVIEW and rearVIEW camera systems to reduce fatigue, and promote safe and productive operation.
Optimally positioned controls and large, colour touchscreen display for machine control system interface.
Quiet interior environment with Bluetooth® audio and hands-free calling.
| LENGTH less boom | 5 280 mm |
| WIDTH with steps | 3 430 mm |
| HEIGHT | 3 710 mm |
| GROUND CLEARANCE | 710 mm |
| WEIGHT less attachment | 39 780 kg |
| TAIL SWING RADIUS | 3 075 mm |
| ENGINE Tier 4f | Tigercat FPT C87 Tier 4f 261 kW (350 hp) @ 1,950 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side-by-side radiator, oil cooler, charge air cooler, A/C condenser Removable intake debris screen |
| FAN | Hydraulically driven, automatic variable speed, reversible |
| FUEL CAPACITY | 850 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 1,8 km/h |
| HIGH RANGE | 4,2 km/h |
| PUMP, MAIN | Piston |
| PUMP, SWING | Piston, closed loop, energy recovery |
| PUMP, FAN | Piston |
| PUMP, TRACK | (2) Piston, closed loop |
| PUMP, CHARGE/PILOT | Gear |
| FILTRATION, MAIN HYDRAULICS | (2) In-tank, 10 micron full flow |
| FILTRATION, CASE | (1) In-tank strainer (1) spin-on |
| FILTRATION, CHARGE/PILOT | (2) Spin-on, 6 micron full flow |
| CYLINDER, HOIST | (2) 130 mm (5.1 in) bore |
| CYLINDERS, STICK/ER | (2) 120 mm (4.7 in) bore |
| CYLINDER, LIVE HEEL | 120 mm (4.7 in) bore |
| CYLINDERS, LEVELING | (2) 180 mm (7 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed control |
| RESERVOIR | 295 L |
| TRACK FRAMES | R7-163L super-duty forestry leveling Integral track guides/ramp angles |
| TRACK CHAIN | FH400 215 mm (8.5 in) pitch |
| FINAL DRIVE | (2) Axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 387 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (10) FH400 excavator type |
| SLIDES, UPPER | Bolt-on |
| TRACK SHOE | 610 mm (24 in) single grouser |
| Optional | 710 mm (28 in) single grouser |
| LEVELING | 26° forward; 7° rear; +/-22° side |
ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.
