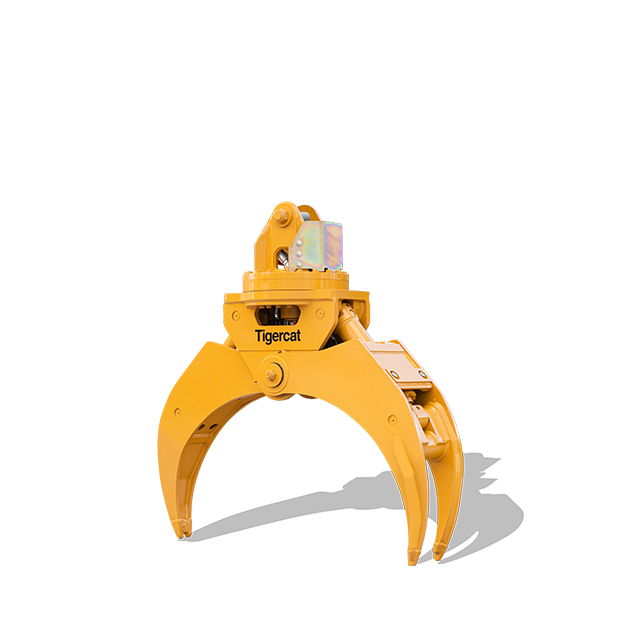

LG5057 Grapple

A simple and reliable tree-length grapple with a tapered tong profile for precise picking.

SPECS

BENEFITS

DEALER

Grapples

Grapples

Highlights

Capacity

Weight

Maximum Opening

0,34 m²
3.63 ft²

890 kg
1,965 lb

1 435 mm
57 in

Capacity

0,34 m²
3.63 ft²

Weight

890 kg
1,965 lb

Maximum Opening

1 435 mm
57 in

Overview

The LG5057 loader grapple is field proven. Durable design with well protected cylinders and large diameter pins. Well suited to heavy lifting and high duty cycle pull-through delimbing applications.

Product Specifications

Metric

Imperial

Dimensions

WIDTH	520 mm
WIDTH	20.5 in
HEIGHT	1 625 mm
HEIGHT	64 in
DEPTH jaws open	1 675 mm
DEPTH jaws open	66 in
WEIGHT	890 kg
WEIGHT	1,965 lb
LOAD CAPACITY	0,337 m²
LOAD CAPACITY	3.63 ft²
MAXIMUM OPENING	1 435 mm
MAXIMUM OPENING	56.5 in

Hydraulic System

CYLINDERS, JAW

100 mm (4 in) bore with locks

Swing Drive

DRIVE MOTOR	Gerotor
CROSSOVER RELIEF	120 bar (1,750 psi)
MAXIMUM SWING TORQUE	2 010 Nm (17,790 lbf in)

Recommended Carriers

RECOMMENDED CARRIERS

234, 250, 865, 2160

Other Equipment

OPTIONAL

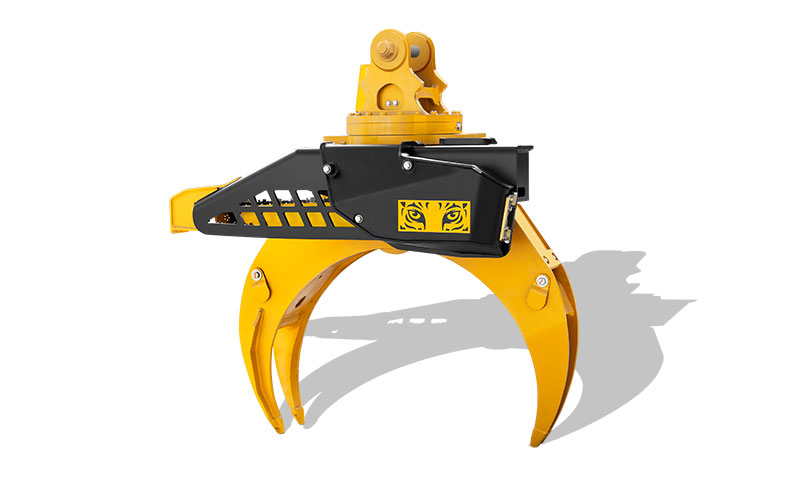

Tigercat grapple saw

+ ALL

Tigercat Brochure

Key Benefits

Tapered tongs. Easy picking from the log pile

Rounded tong profile. Optimized to allow the logs to easily roll into the grapple

Cylinder guards protect the rods from truck stakes and other hazards

Durable, field-proven rotator assembly

Tapered tongs. Easy picking from the log pile

Cylinder guards protect the rods from truck stakes and other hazards

Rounded tong profile. Optimized to allow the logs to easily roll into the grapple

Durable, field-proven rotator assembly

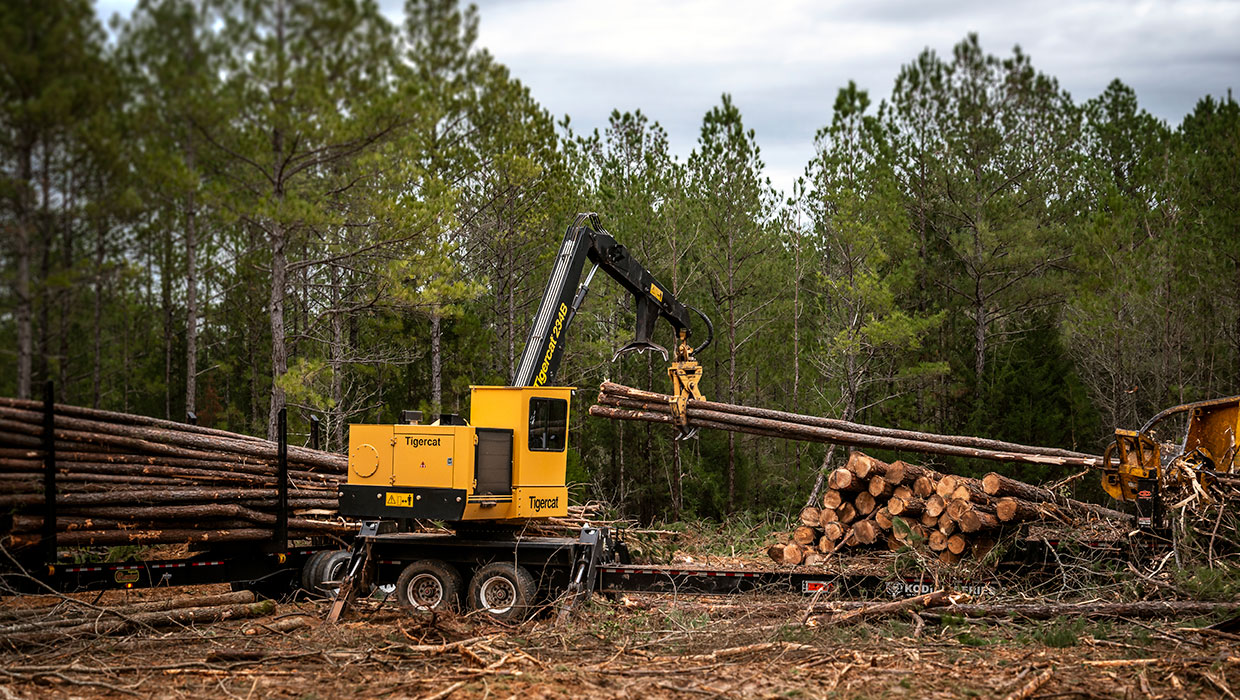

Image of a Tigercat 234B knuckleboom loader working in the field

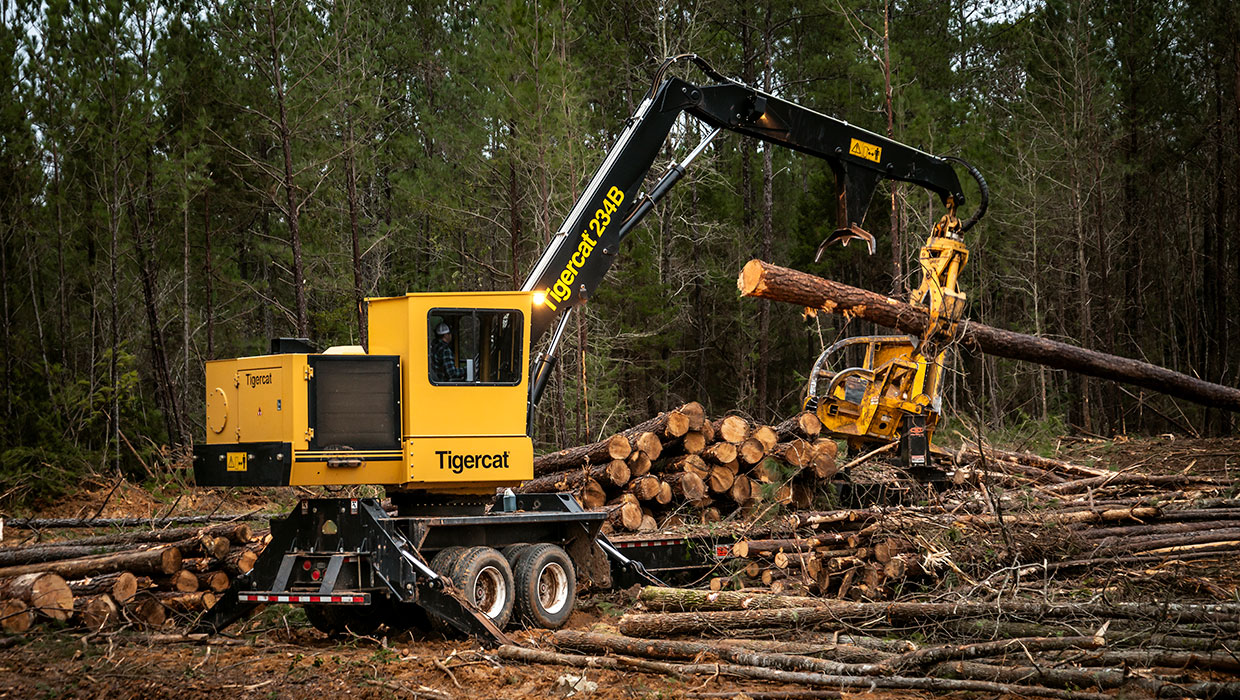

Image of a Tigercat 234B knuckleboom loader working in the field

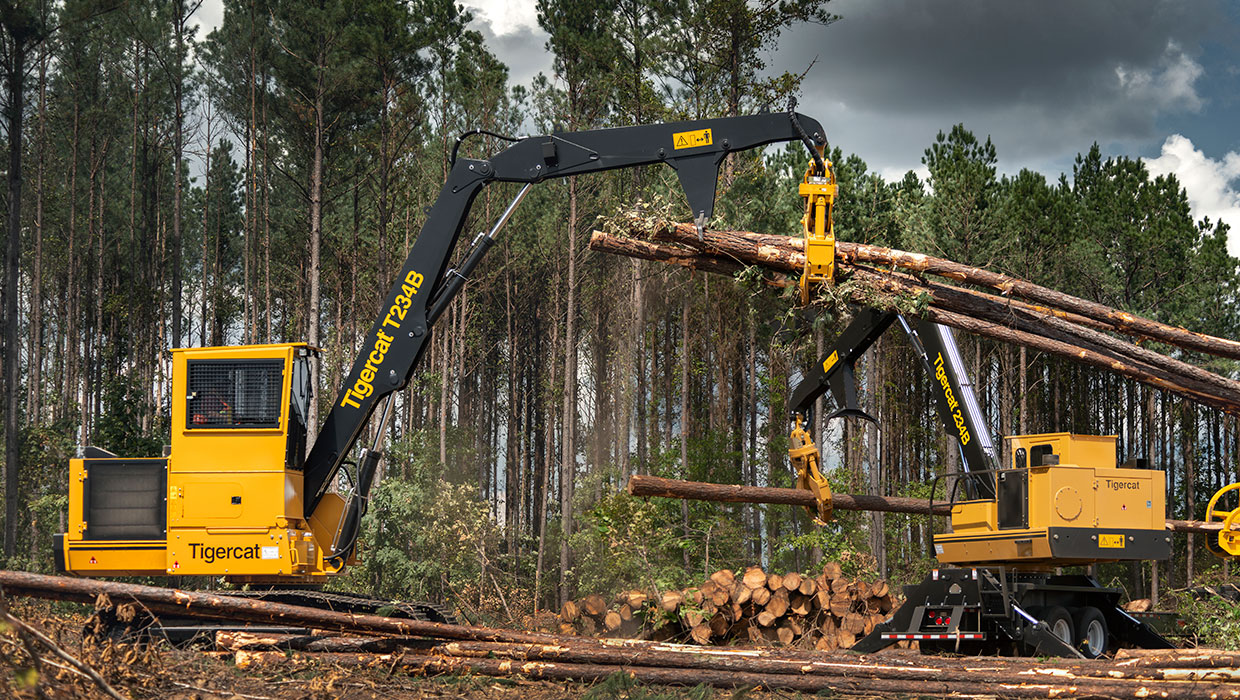

Image of a Tigercat T234B loader working in the field

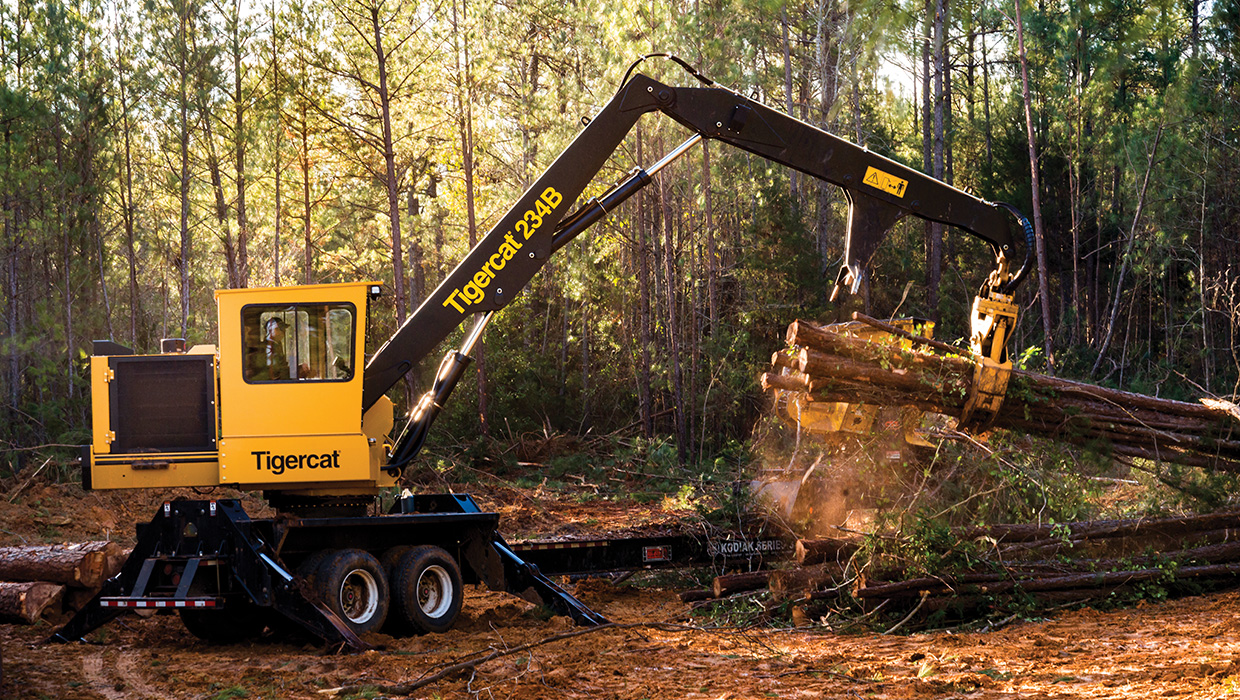

Image of a Tigercat 234B knuckleboom loader working in the field

In the Field

Related Products

Tigercat T234C knuckleboom loader

Tigercat T250E loader

2160 Loader Forwarder
