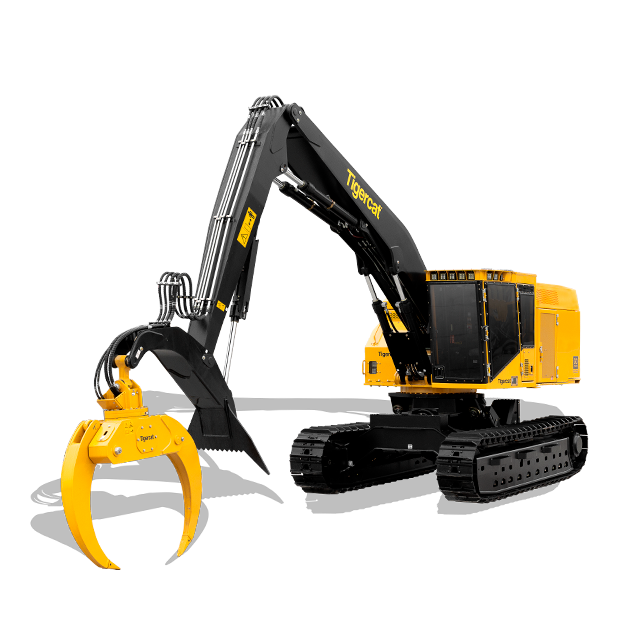

LSX870D Shovel Logger

A high power shovel logger with a closed loop track drive system.

SPECS

BENEFITS

DEALER

LSX870D Shovel Logger

A high power shovel logger with a closed loop track drive system.

SPECS

BENEFITS

DEALER

Shovel Loggers

Shovel Loggers

Highlights

Power

Tractive Effort

Weight

245 kW
330 hp

343 kN
77,100 lbf

36 680 kg
80,870 lb

Power

245 kW
330 hp

Tractive Effort

343 kN
77,100 lbf

Weight

36 680 kg
80,870 lb

Overview

The LSX870D shovel logger is a nimble and powerful carrier designed for conveying timber over steep terrain. Equipped with Tigercat's closed loop track drive system, machine travel is quick, responsive and efficient. The LSX870D can be equipped with a large capacity bunching grapple or a shovel clam grapple.

Product Specifications

Metric

Imperial

Dimensions

LENGTH less boom	5 335 mm
LENGTH less boom	210 in
WIDTH with steps	3 440 mm
WIDTH with steps	135 in
HEIGHT	3 740 mm
HEIGHT	147 in
GROUND CLEARANCE	680 mm
GROUND CLEARANCE	27 in
WEIGHT less attachment	36 680 kg
WEIGHT less attachment	80,870 lb
TAIL SWING RADIUS	3 275 mm
TAIL SWING RADIUS	129 in

Power

ENGINE Tier 4f	Tigercat FPT C87 Tier 4f 245 kW (330 hp) @ 1,950 rpm (rated)
AIR FILTRATION	Precleaner, 2-stage engine air cleaner
COOLING	Aluminum side-by-side radiator, oil cooler, charge air cooler, A/C condenser Removable intake debris screen
FAN	Hydraulic driven automatic variable speed, reversible
FUEL CAPACITY	1 085 L
FUEL CAPACITY	287 US gal
DEF CAPACITY	135 L
DEF CAPACITY	35 US gal

Top Speed

LOW RANGE	1,8 km/h
LOW RANGE	1.1 mph
HIGH RANGE	4,2 km/h
HIGH RANGE	2.6 mph

Hydraulic System

PUMP, MAIN	Piston
PUMP, FAN	Piston
PUMP, TRACK	(2) Piston, closed loop
PUMP, ATTACHMENT	Piston
PUMP, CHARGE/PILOT	Gear
PUMP, CASE	Gear
FILTRATION, MAIN HYDRAULICS	(5) Spin-on, 7 micron full flow (1) Water absorbing
FILTRATION, CASE	(1) Spin-on, 150 micron strainer (1) Spin-on, 6 micron full flow
FILTRATION, CHARGE/PILOT	(2) Spin-on, 6 micron full flow
CYLINDER, HOIST	(2) 120 mm (4.7 in) bore
CYLINDERS, STICK/ER	(2) 120 mm (4.7 in) bore
CYLINDER, LIVE HEEL	(1) 110 mm (4.3 in) bore
CYLINDERS, LEVELING	(2) 180 mm (7 in) bore
HORSEPOWER CONTROL	Electric speed sensing All-speed antistall
RESERVOIR	300 L
RESERVOIR	80 US gal

Undercarriage

TRACK FRAMES	R7-163L super-duty forestry, integral track guides, ramp angles
TRACK CHAIN	FH400 215 mm (8.5 in) pitch
FINAL DRIVE	(2) Axial piston motors Infinitely variable speed
TRACTIVE EFFORT	343 kN
TRACTIVE EFFORT	77,100 lbf
GEARBOX	Triple reduction planetary with brake
FRONT IDLER	Hydraulic track adjuster Spring shock absorber
ROLLERS, LOWER	(10) FH400 single/double flange excavator
SLIDES, UPPER	Replaceable, bolt-on
TRACK SHOE	610 mm (24 in) single grouser
Optional	710 mm (28 in) single grouser
LEVELING	20˚ forward, 7˚ rear; +/-15˚ side

+ ALL

Brakes

TRACK	Friction disc Automatic spring applied, hydraulic release
SWING	Friction disc Manual spring applied, hydraulic release

Rotating Upper

SWING DRIVE	7.5 rpm variable speed 360˚ continuous rotation Double reduction, twin swing drive planetary gearboxes Twin piston swing motors
SWING BEARING	1 190 mm (47 in) ball circle diameter
ENCLOSURE	Perforated plate on doors for ventilation Hydraulically operated engine enclosure, manual backup Rear air intake for cooling system and engine Vandal protection Smooth exterior

ER Boom System shovel clam

MAXIMUM REACH	9 780 mm
MAXIMUM REACH	385 in
BARE PIN LIFT full reach	4 095 kg
BARE PIN LIFT full reach	9,030 lb

ER Boom System shovel logger with live heel

MAXIMUM REACH	10 870 mm
MAXIMUM REACH	428 in
MINIMUM REACH	3 775 mm
MINIMUM REACH	149 in
BARE PIN LIFT full reach	3 460 kg
BARE PIN LIFT full reach	7,628 lb

Electrical

BATTERY	(2) 12 v
ALTERNATOR	110 amp, 24 v
SYSTEM VOLTAGE	24 v
LIGHTING	(15) LED (4) LED service lights, engine enclosure
Optional	(11) High output LED, (4) LED (4) LED service lights, engine enclosure

Operator's Station

CAB	Insulated, pressurized and isolation mounted A/C, heater, defroster skyVIEW and rearVIEW camera system Full length polycarbonate windshield/entry door Polycarbonate right and left side windows One-piece polycarbonate side door window with steel guarded upper sliding section for ventilation AM/FM digital stereo and auxiliary input port Bluetooth® audio and hands-free calling (2) Power points Hot engine shutdown control and emergency engine stop switch
SEAT	Heavy duty air ride suspension Heated and cooled Fully adjustable seat height and fore/aft, seatback recline and lumbar support, seat pan fore/aft and tilt, head rest height Optimal height adjustment indicator Adjustable armrests Armrest mounted Tigercat joysticks and control pods
OPERATOR CONTROLS	Hydraulic proportional for boom/travel/swing with electronic track speed control limiter Electronic for grapple arms/rotate Electric switch for swing brake Electronic control system with colour LCD touchscreen for machine monitoring and function adjustment

Other Equipment

STANDARD	LogOn™ local wifi machine monitoring system Alarm for track movement Auto leveling
OPTIONAL	RemoteLog® telematics system Toolbox, bolt-on Cold weather kit

BROCHURE

ER Technology

ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.

LEARN MORE

Onsite Access with LogOn

Onsite access to production and service information. Using a mobile device and a secure WiFi hotspot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.

LEARN MORE

RemoteLog Telematics

Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.

LEARN MORE

Image of a laptop with the RemoteLog home screen displayed

Key Benefits

Comfortable cab interior with clear sightlines. Ergonomic positioning of controls and display screens

Closed loop drive system. Quick response, high efficiency, excellent performance on steep slopes

ER boom technology® improves fuel efficiency, reduces operator fatigue and increases productivity

Extreme duty leveling undercarriage for excellent stability on steep slopes

Auto leveling. The machine automatically levels the upper frame at the touch of a button

Power operated side door and retracting enclosure. Large work platform, easy access to components and daily service points

Comfortable cab interior with clear sightlines. Ergonomic positioning of controls and display screens

Extreme duty leveling undercarriage for excellent stability on steep slopes

Closed loop drive system. Quick response, high efficiency, excellent performance on steep slopes

Auto leveling. The machine automatically levels the upper frame at the touch of a button

ER boom technology® improves fuel efficiency, reduces operator fatigue and increases productivity

Power operated side door and retracting enclosure. Large work platform, easy access to components and daily service points

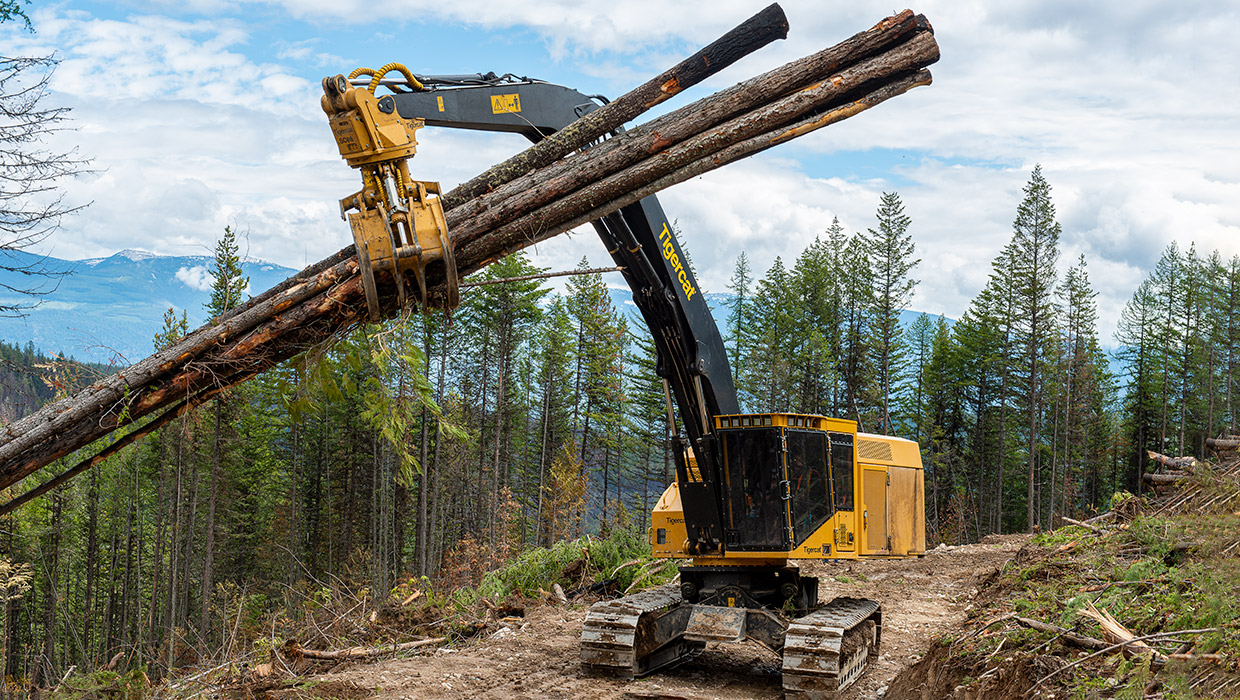

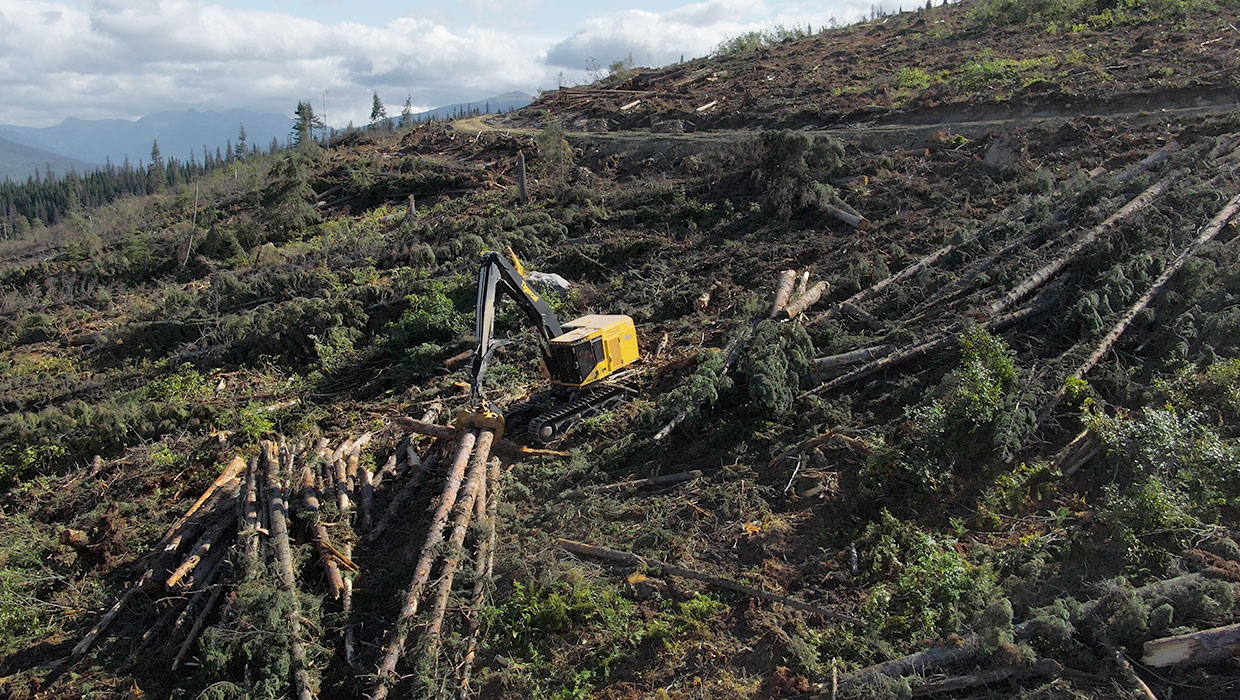

LSX870D working in the field

LSX870D working in the field

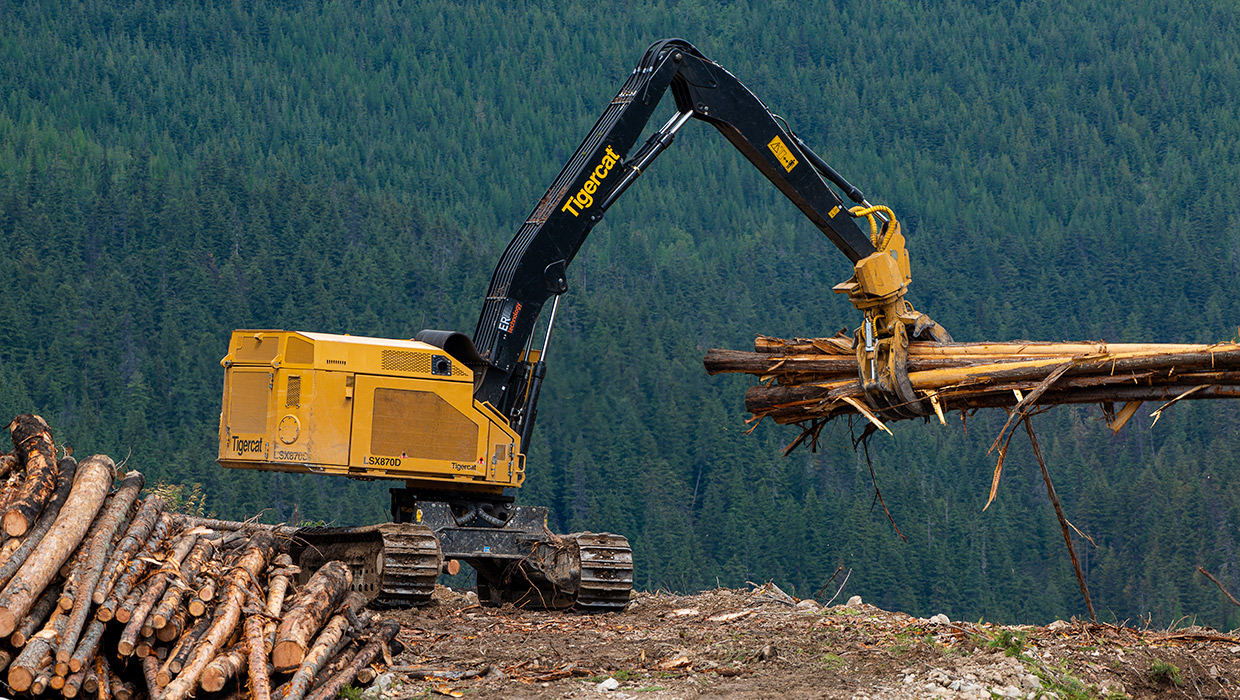

Image of a LSX870D shovel logger working in the field

Image of a LSX870D shovel logger working in the field

In the Field

Resources

5195 Directional Felling Saw Brochure

28 March 2021

Download the brochure. Discover how the 5195 can work or you in large timber and steep slopes.

5195 spec sheet preview thumbnail

Related Products

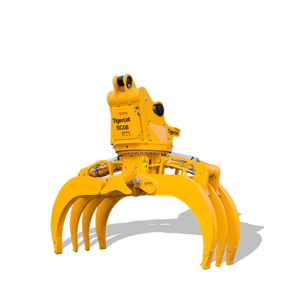

SC08 Shovel Clam Grapple
