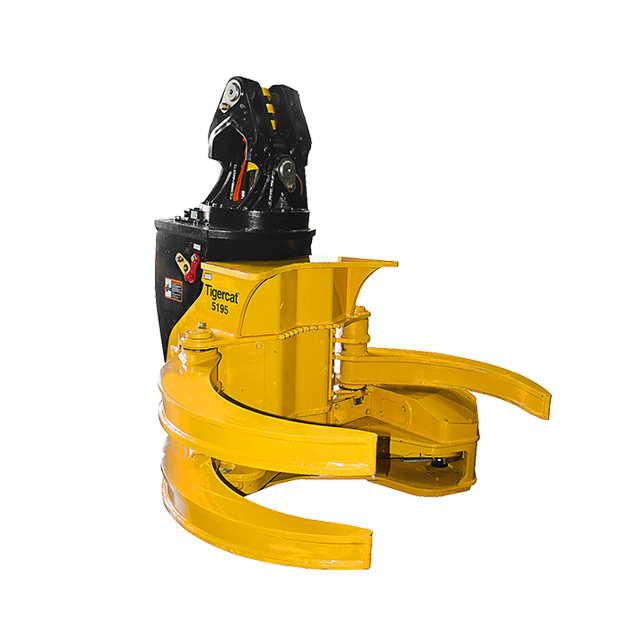

Tigercat 5195 Directional Felling Saw - big timber, steep terrain

Overview

The 5195 directional felling saw is versatile for felling, shovel logging, bunching, stacking and sorting. The 5195 is best suited oversize timber and steep terrain.

Equipped on an LS855D shovel logger, the 5195 can work alone felling and shovel logging. Alternatively it can fell and pre-bunch in conjunction with a skidder or yarding system.

Key Benefits

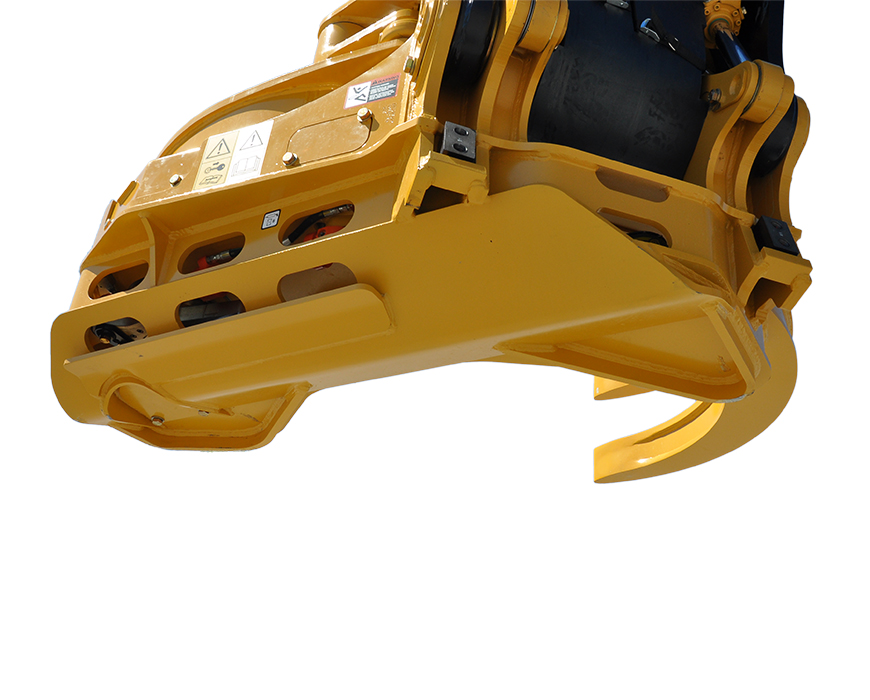

Heavy duty reinforced chassis and arms

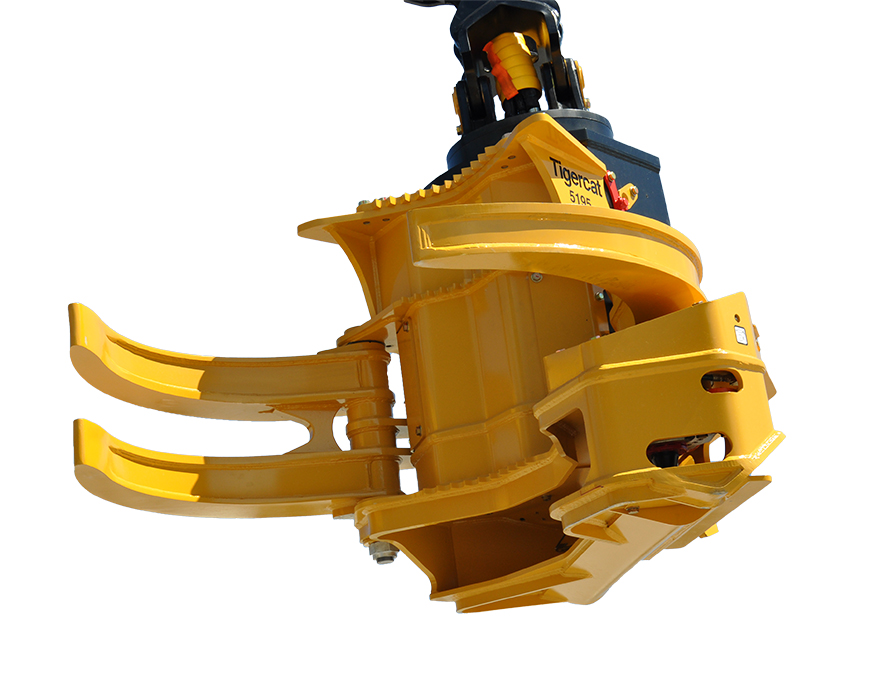

Dual cylinder arm design for maximum control and superior grip for larger trees or bunches
Durable and simple Tigercat saw unit
Continuous rotation, high capacity rotator for superior positioning control when felling and shoveling
Custom in-cab head control for Tigercat carriers; settings can be optimized to suit the operator and application
Easily serviced with quick bar and chain changes

Videos

LS855D with 5195 directional felling saw

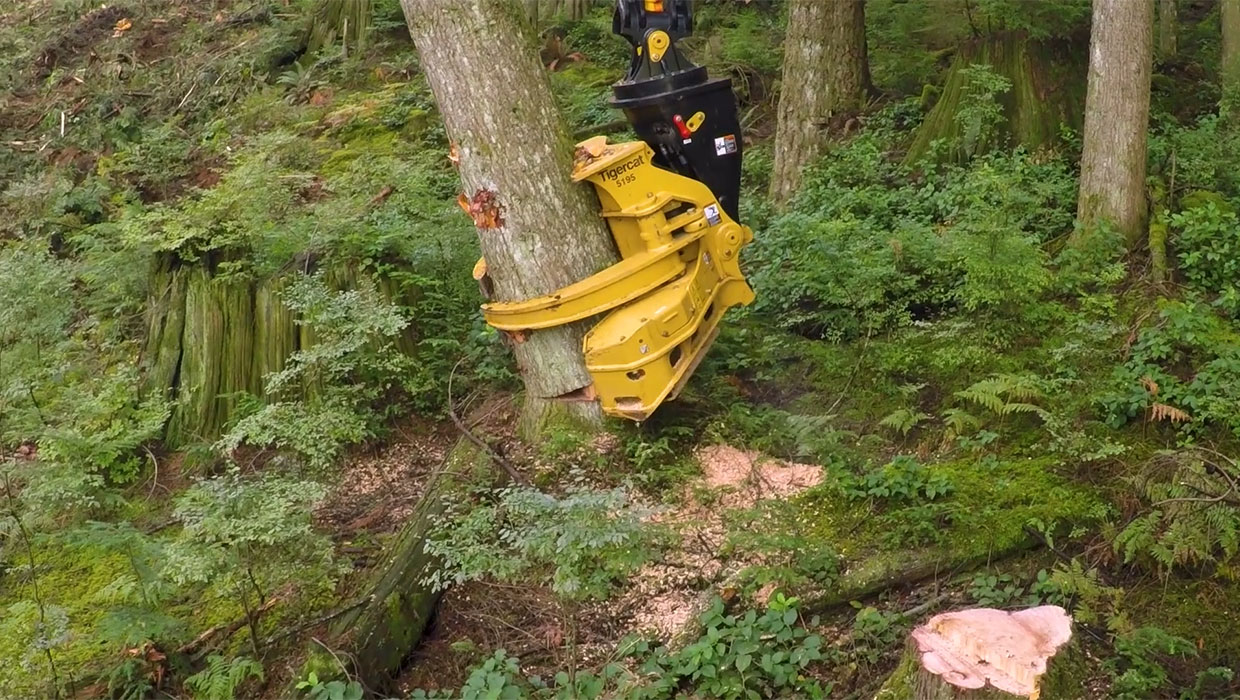

The Tigercat LS855D shovel logger configured with the feller-director boom system and the 5195 directional felling saw. The machine is felling and pre-bunching oversize timber in a Canadian west coast steep slope application - tough terrain with rocks, benches, drop-offs and massive old growth stumps. Download in HD

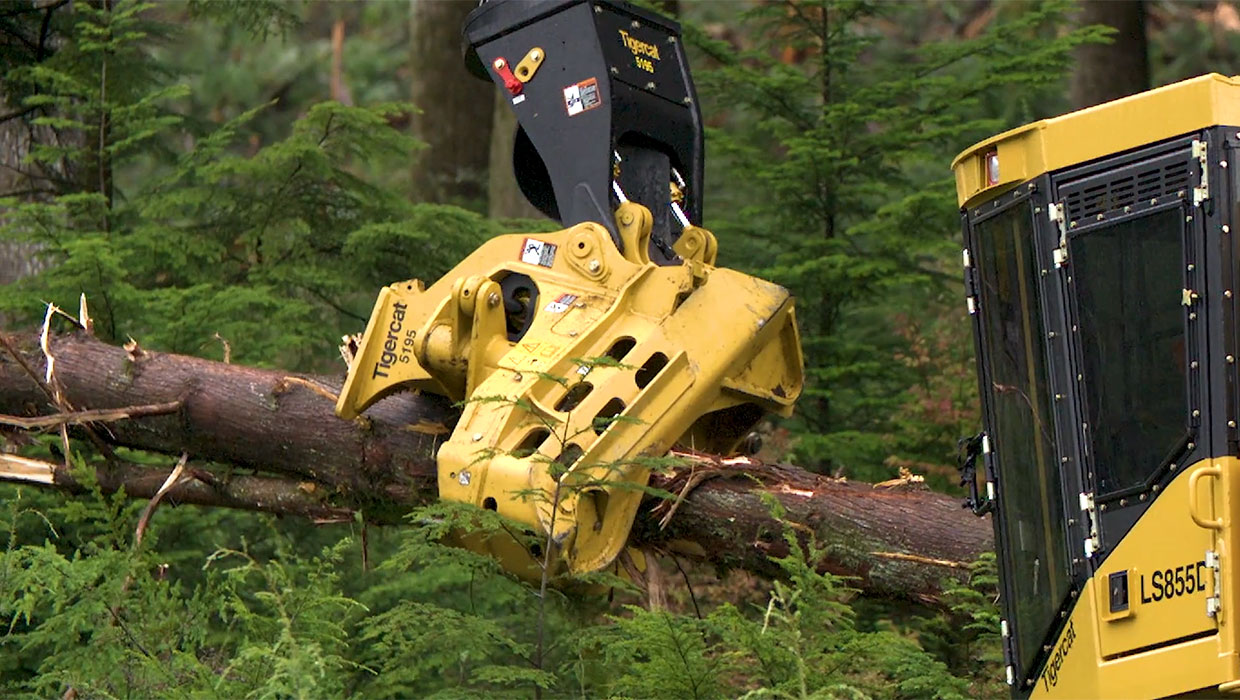

LS855C with 5195 directional felling saw in Virginia

LS855C shovel logger equipped with the Tigercat 5195 directional felling saw. The machine is felling and bunching large hardwood in Virginia. Download in HD Download for mobile

Downloads

See below related files that you can download.

- 5195 directional felling saw brochure
- 5195 directional felling saw brochure – Limited Accessibility (3.28 Mb)
- 5195 directional felling saw brochure ()

News & Articles

BTB 39: SUNCHIP GROUP
Published on: Wednesday 1st April 2015
Passion, pride, and diversity is the key.
Read more about BTB 39: SUNCHIP GROUP
BTB 36: Tigercat 5195 Performs
Published on: Saturday 1st March 2014
Building on the successful introduction of the 5185 fixed bar saw, Tigercat has developed and released the 5195 directional felling head.
Read more about BTB 36: Tigercat 5195 Performs

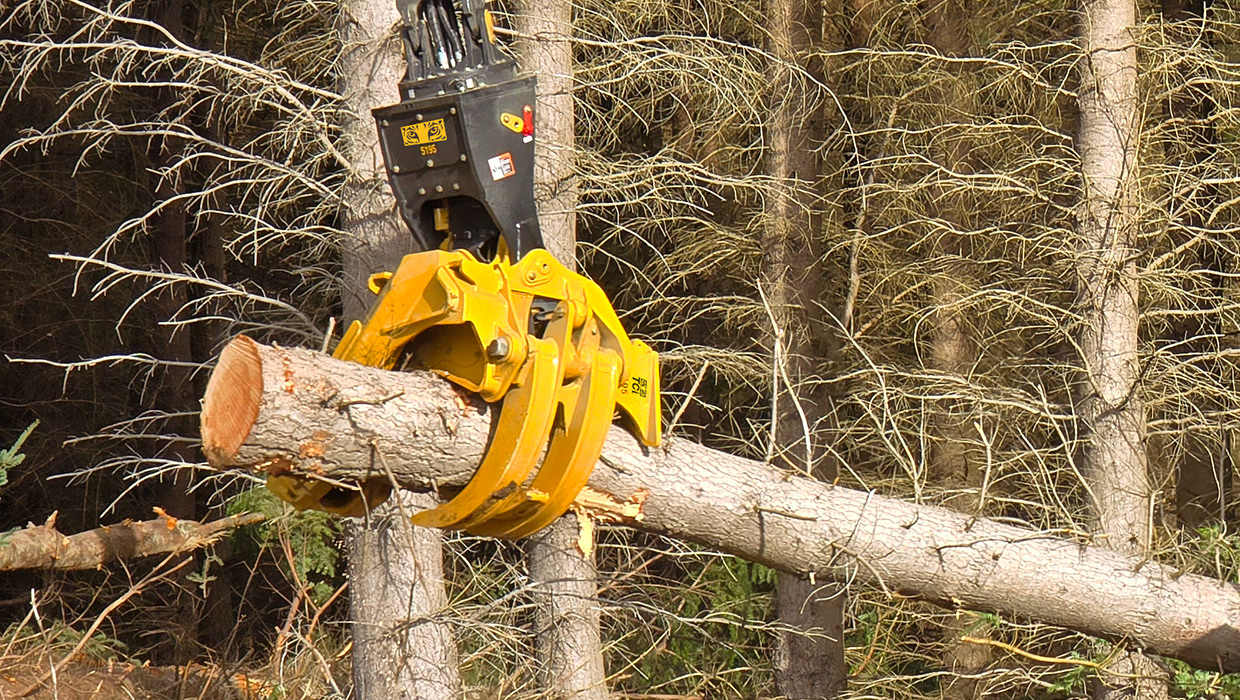

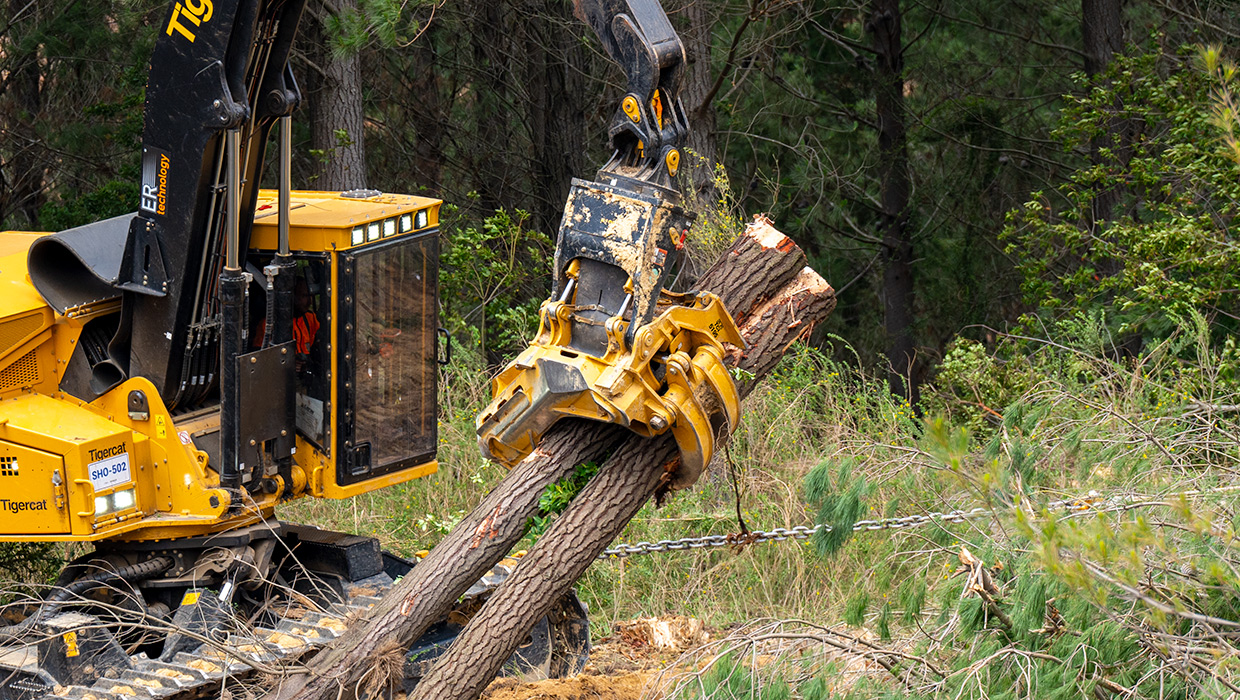

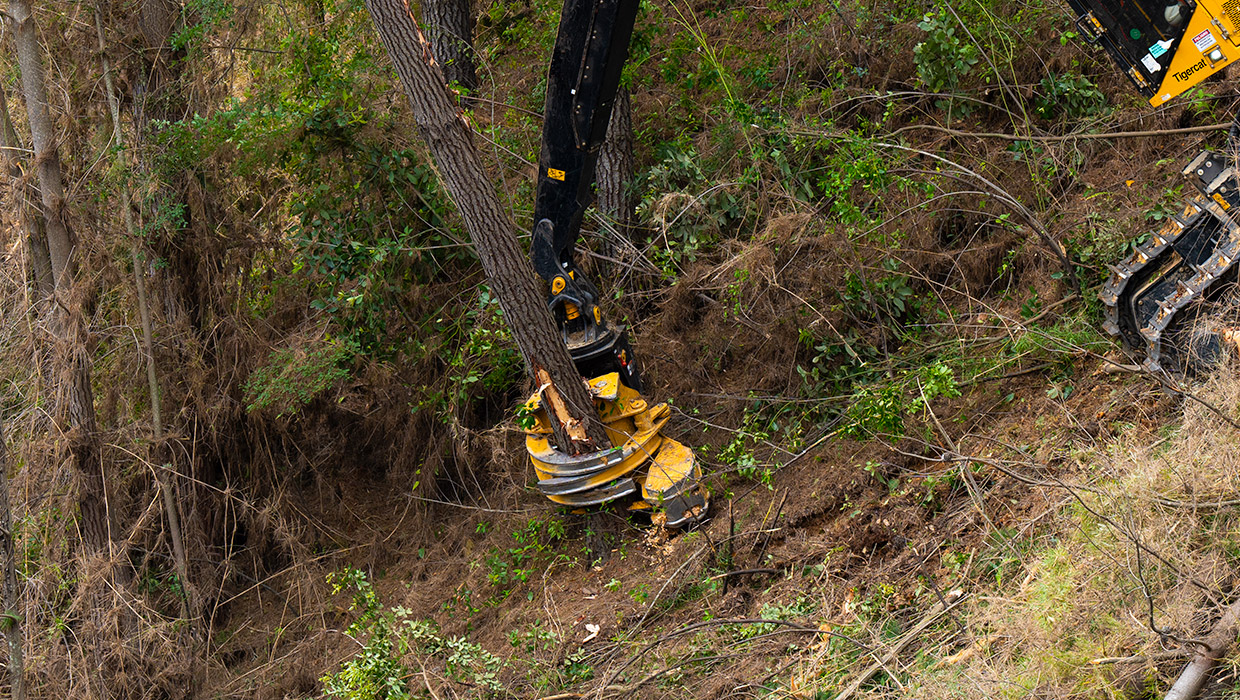

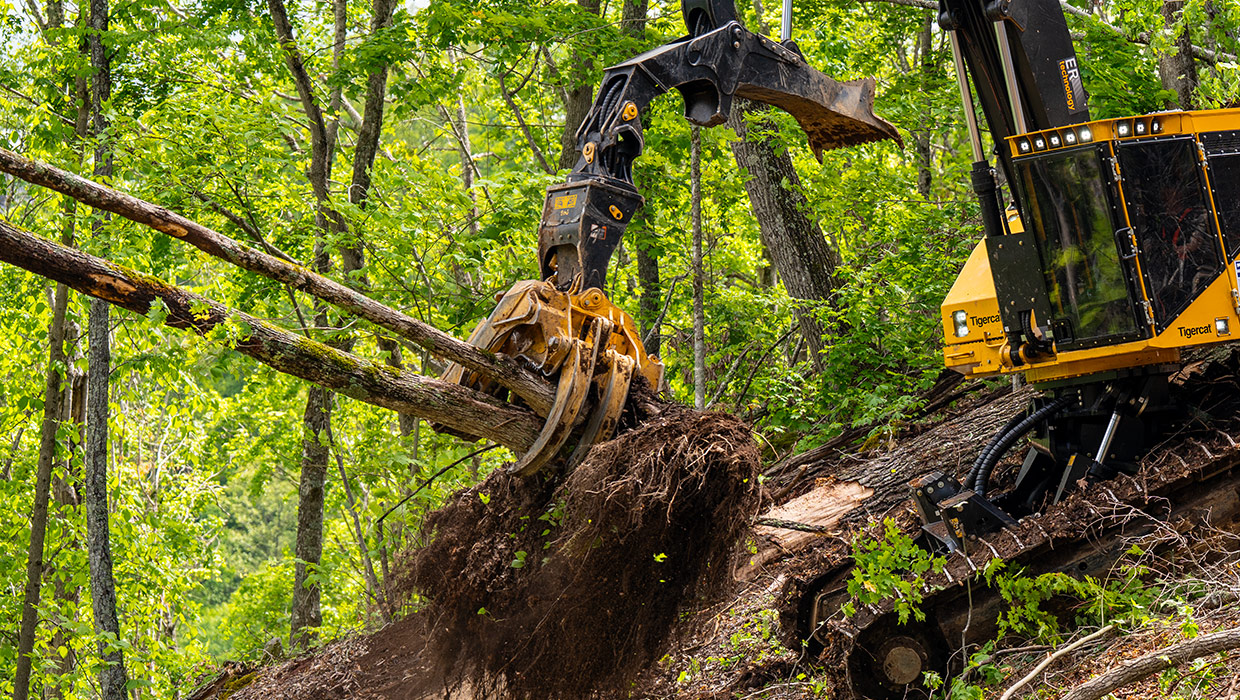

Photos

SPECIFICATIONS

Show measurements as:

Metric

Imperial

Dimensions

WIDTH arms open (metric)	2 020 mm
WIDTH arms open (imperial)	79.5 in
HEIGHT to boom pin (metric)	2 045 mm
HEIGHT to boom pin (imperial)	80.5 in
DEPTH arms open (metric)	1 945 mm
DEPTH arms open (imperial)	76.5 in
WEIGHT (metric)	2 610 kg
WEIGHT (imperial)	5,740 lb

Grapple Arms

MAXIMUM OPENING (metric)	1 380 mm
MAXIMUM OPENING (imperial)	54 in
MINIMUM CLOSED DIAMETER (metric)	110 mm
MINIMUM CLOSED DIAMETER (imperial)	4.3 in
GRAPPLE CAPACITY (metric)	0,56 m²
GRAPPLE CAPACITY (imperial)	6.0 ft²

Hydraulic Cylinders

GRAPPLE ARMS	(2) 95 mm (3.75 in) bore, cushioned
TILT	(2) 70 mm (2.75 in) bore

Rotator

ROTATE BEARING

High capacity, 360° continuous rotation External pinion drive Hydraulic braking control

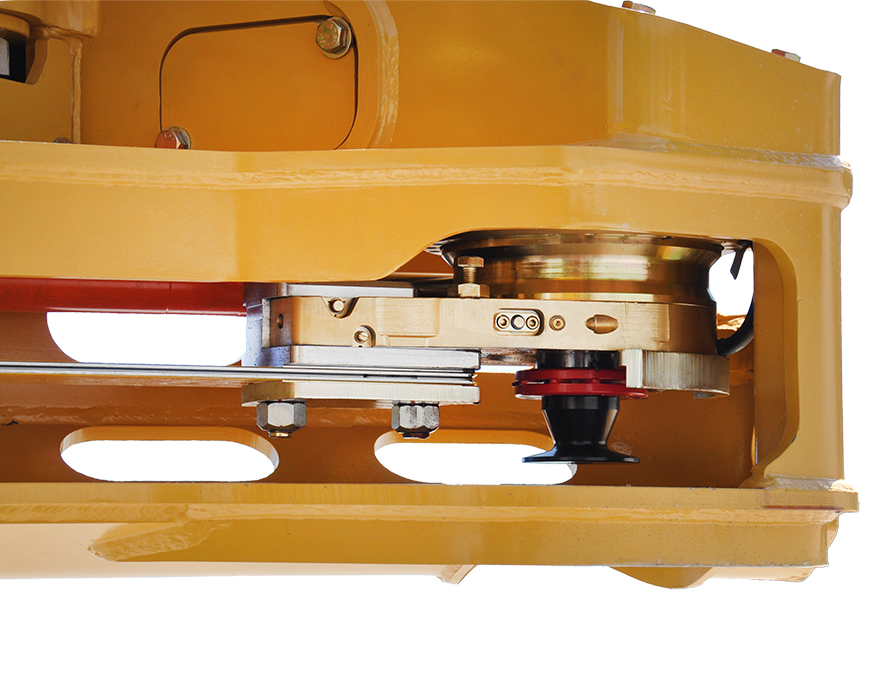

Cutting

CHAIN OIL CAPACITY	23 L (6 US gal) filtered
BAR standard, MAXIMUM CUT (metric)	950 mm
BAR standard, MAXIMUM CUT (imperial)	37.5 in
BAR (metric)	1 140 mm
BAR (imperial)	45 in
SAW MOTOR	Piston, high pressure, 60 cc
CHAIN	19 mm (0.75 in) pitch, 11H
CHAIN TENSION	Manual chain tension
CHAIN TENSION, Optional	Auto chain tension
