220E Loader

Overview

Simple, compact and productive, the 220E is an excellent solution for contractors requiring a truck-mounted loader for shortwood and smaller tree-length pulpwood or biomass loading applications.

The 220E doesn’t skimp on durability. It is constructed with high quality, impact resistant weldments. The durable upper assembly rotates on the same large diameter swing bearing as the rest of the loader and feller buncher line. The rigid Tigercat fabricated subframe makes for a stable base.

The strength-to-weight optimized boom is specially designed for fast and effective shortwood loading.

Key Benefits

Tigercat FPT N45 Tier 4 and N67 Tier 2 engine options depending on jurisdiction
Quick and responsive; specially designed for high cycle shortwood loading
Simple open centre hydraulic system
Heavy duty strength-to-weight optimized boom system
High capacity swing system; large diameter bearing common to all Tigercat loaders and feller bunchers
Rigid, fabricated subframe is generously sized for excellent stability; the 220E can be truck or trailer mounted
Durable Tigercat cylinders; no aluminum components
High capacity cooling system
Unmatched service access – hydraulic valves are top accessible underneath the deck plate cover

Downloads

See below related files that you can download.

- 220E loader brochure
- 220E loader brochure – Limited accessibility (1.65 Mb)
- 220E loader brochure (quick download) – Limited accessibility (384.66 Kb)

News & Articles

BTB 43: PG BISON EIGHT YEARS LATER
Published on: Sunday 31st July 2016
BTB revisits PG Bison eight years after purchasing four Tigercat harvesting systems for a new operation in a remote part of South Africa.
Read more about BTB 43: PG BISON EIGHT YEARS LATER

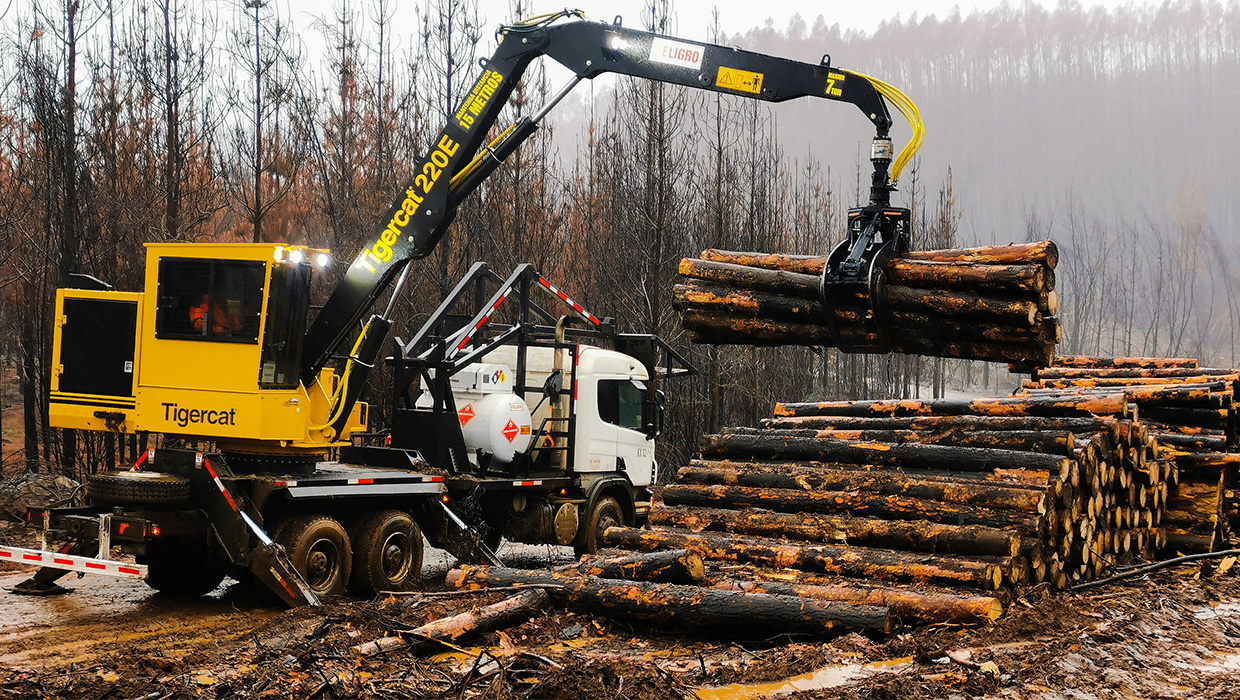

Photos

SPECIFICATIONS

Show measurements as:

Metric

Imperial

Dimensions

LENGTH less boom and steps	4 740 mm
LENGTH less boom and steps	176 in
WIDTH transport	2 565 mm
WIDTH transport	101 in
HEIGHT transport	3 555 mm
HEIGHT transport	140 in
WEIGHT less attachment	11 795 kg
WEIGHT less attachment	26,000 lb

Power

ENGINE Tier 4f	Tigercat FPT N45 Tier 4f 125 kW (168 hp) @ 2100 rpm (rated) 129 kW (173 hp) @ 1900 rpm (peak) Automatic idle down
ENGINE Tier 2	Tigercat FPT N67 Tier 2 125 kW (168 hp) @ 2100 rpm (rated) 129 kW (173 hp) @ 1900 rpm (peak)
COOLING	Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser
FAN	Fixed pitch, high flow
Optional	Flexxaire® variable pitch, reversing
FUEL CAPACITY	378 L
FUEL CAPACITY	100 US gal
DEF CAPACITY Tier 4f	30 L
DEF CAPACITY Tier 4f	8 US gal

Hydraulic System

PUMP, MAIN	Gear, triple section
FILTRATION	(3) Spin-on, 7 micron full-flow
CYLINDER, HOIST	178 mm (7 in) diameter
CYLINDER, STICK	140 mm (5.5 in) diameter
CYLINDERS, STABILIZERS	(4) 165 mm (6.5 in) diameter, bolt-on bi-directional lock valves
RESERVOIR	190 L
RESERVOIR	50 US gal

Subframe

LENGTH less step	3 660 mm
LENGTH less step	144 in
SUPPORT BASE	3 350 mm x 4 545 mm
SUPPORT BASE	132 in x 179 in
STABILIZER PADS	510 mm x 710 mm
STABILIZER PADS	20 in x 28 in
END FRAMES	Fabricated from steel plate

Subframe, Offset

LENGTH less step	3 890 mm
LENGTH less step	153 in
SUPPORT BASE	3 580 mm x 4 550 mm
SUPPORT BASE	141 in x 179 in
STABILIZER PADS	510 mm x 710 mm
STABILIZER PADS	20 in x 28 in
END FRAMES	Fabricated from steel plate
TRUCK MOUNT OFFSET	330 mm
TRUCK MOUNT OFFSET	13 in

Boom System

MAXIMUM REACH	8 430 mm
MAXIMUM REACH	27 ft 8 in
LIFT CAPACITY	10 890 kg at 3,2 m 4 265 kg at 7,6 m
LIFT CAPACITY	24,000 lb at 10.5 ft 9,400 lb at 25 ft

Electrical

BATTERY	(2) 950 CCA, 12 v
ALTERNATOR	75 amp, 24 v
SYSTEM VOLTAGE	24 v
LIGHTING	Halogen, (2) boom mounted, (3) cab mounted, (1) engine house (1) service, engine house
LIGHTING, Optional	LED lighting package

Operator's Station

CAB

Insulated, pressurized and isolation mounted
Forward sloping, tinted polycarbonate windshield with intermittent wiper
Sliding tinted side windows
Polycarbonate skylight
Window blinds for windshield and skylight
A/C, heater, defroster and pressurizer
3-speed fan; Dome light
Cell phone holder; (2) 12 v power points; CB radio
AM/FM digital stereo with CD player and auxiliary input port
Bluetooth® audio and hands-free calling
Electronic control system with colour LCD display screen for machine monitoring and function adjustment

SEAT

Heavy duty suspension, fully adjustable, heated and cooled

Operator Controls

BOOM	Hydraulic joystick
SWING	Foot operated pilot valve
STABILIZERS	Electric switches

Other Equipment

STANDARD	LogOn™ local wifi machine monitoring system
OPTIONAL	RemoteLog® telematics system Various grapple options 9,14 m (30 ft) boom LED lighting package 110 amp alternator Delimber/barsaw slasher hydraulics Swing brake Hydraulic tank vacuum system RemoteLog™ telematics system
