The horizontally pivoting, trailing-arm design provides excellent tree contact for accurate length measuring. Hydraulic cylinder actuation provides immediate response and consistent, accurate contact. The large diameter measuring wheel minimizes length measuring errors. The measuring wheel retracts for reduced wear and damage.
Various wheel styles are available to suit different applications.

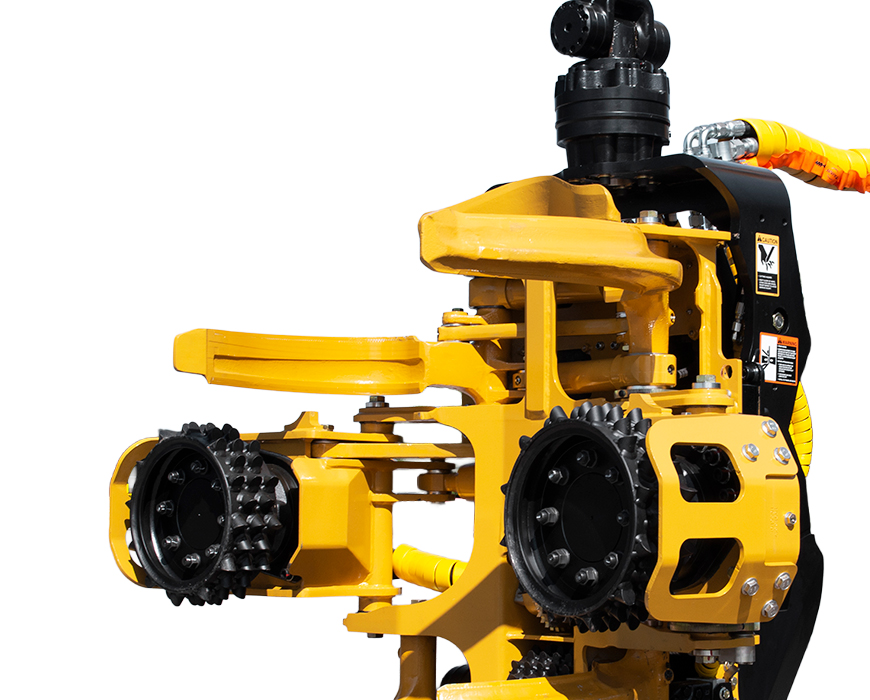

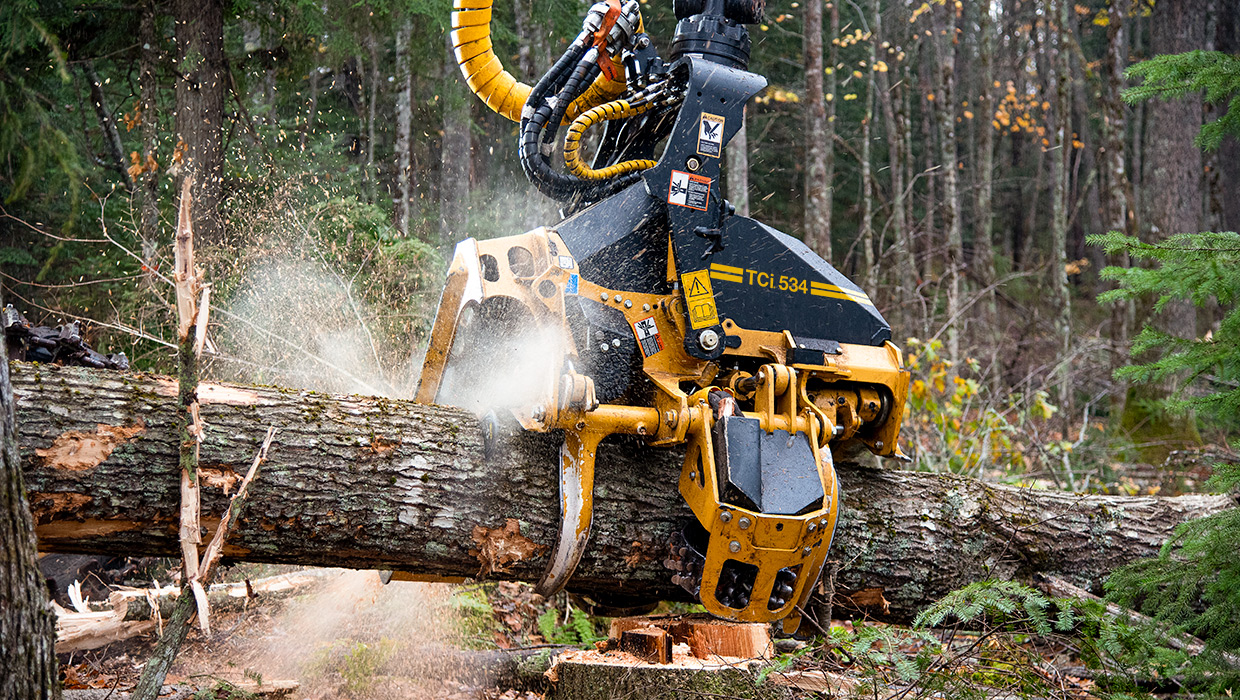

Cast steel knife arms for superior strength, impact resistance and extended service life. Knife arms are mounted using large taper lock-style pins with sealed bushings.
Both harvester and processor profiles are available. Processing knife arms are specially designed for high performance when picking trees from the unprocessed pile.

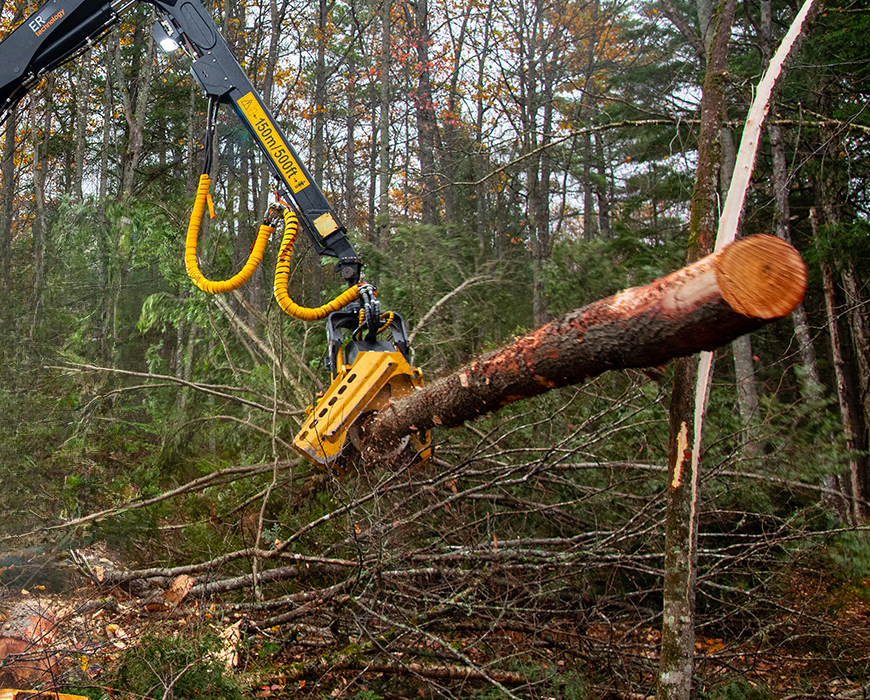

The 534 has a locked three-wheel drive system. Triangulated wheel arms maintain positive tree contact and control. The arms support the weight of the stem, allowing for lower knife pressures and less friction. The result is less wear and faster feeding speed.
| WIDTH maximum | 1 645 mm |
| WIDTH minimum | 1 446 mm |
| HEIGHT less rotator and link | 1 545 mm |
| BASE WEIGHT less rotator and link | 1 450 kg |
| OPERATING WEIGHT | 1 550 kg |
| OPERATING PRESSURE recommended | 300 bar (4,500 psi) |
| REQUIRED FLOW maximum | 300 L/min (82 US gpm) |
| REQUIRED FLOW minimum | 270 L/min (71 US gpm) |
| CHAIN OIL CAPACITY | 16 L (4.2 US gal) |
| MAIN SAW UNIT standard | Hultdins Supercut™ 100S with auto-tension, proportional lubrication, saw limiting |
| CHAIN | 10 mm pitch |
| BAR standard | 820 mm |
| MAXIMUM CUT | 715 mm |
| BAR Optional | 900 mm |
| MAXIMUM CUT | 785 mm |
| MAIN SAW UNIT optional | Hultdins Supercut™ 150 with auto-tension, proportional lubrication, saw limiting Convertible chain pitch |
| CHAIN | 19 mm pitch |
| Optional | 10 mm pitch |
| BAR standard | 820 mm |
| MAXIMUM CUT | 715 mm |
| BAR optional | 900 mm |
| MAXIMUM CUT | 785 mm |
| TOP SAW | (Optional) Hultdins Supercut™ 100S with auto-tension, proportional lubrication, saw limiting |
| CHAIN standard | 10 mm pitch |
| BAR standard | 670 mm |
| MAXIMUM CUT | 560 mm |
| DRIVE SYSTEM | Triangulated wheel arms Locked 3WD |
| ARM DRIVE MOTORS | (2) 620 cc |
| Optional | (2) 750 cc (2) 520 cc |
| PEAK FEEDING SPEED | 5 m/s |
| With optional motors | 4,2 m/s 6 m/s |
| FRAME DRIVE MOTORS | (2) 400 cc |
| Optional | (2) 500 cc (2) 315 cc |
| FEED WHEELS | 10.5 mm (0.41 in) V-Tec |
| Optional | 20 mm (0.8 in) thumbnail Eucalyptus debarking 20 mm (0.8 in) alpine 11 mm (0.43 in) skeleton 30mm (1.2 in) thumbnail |
| FEED WHEEL maximum opening | 780 mm |
| KNIVES | (4) Delimbing (2) Fixed |
| FRONT KNIVES TIP OPENING | 750 mm |
| FRONT KNIVES minimum diameter | 45 mm |
