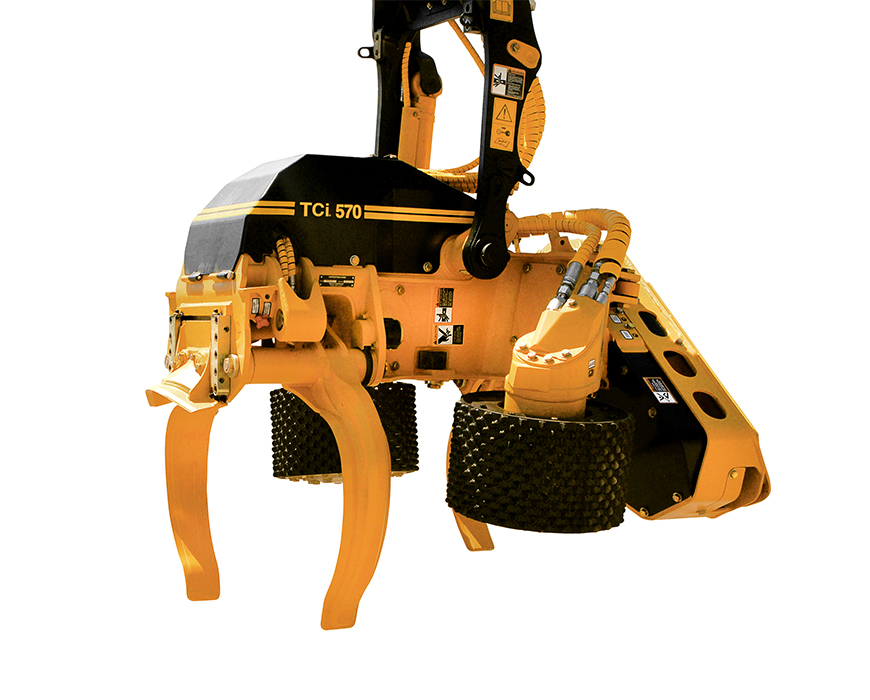

570 Harvesting Head

Product Specifications

Metric

Imperial

Dimensions

WIDTH maximum	1 980 mm
WIDTH maximum	78 in
WIDTH minimum	1 560 mm
WIDTH minimum	61 in
HEIGHT less rotator and link	1 910 mm
HEIGHT less rotator and link	75 in
Fixed wrist option	2 130 mm
Fixed wrist option	84 in
BASE WEIGHT less rotator and link	2 240 kg
BASE WEIGHT less rotator and link	4,940 lb
	2 400 kg
Fixed wrist option	5,285 lb
OPERATING WEIGHT	2 510 kg
OPERATING WEIGHT	5,530 lb
Fixed wrist option	3 195 kg
Fixed wrist option	7,040 lb

Hydraulic System

OPERATING PRESSURE recommended	310 bar (4,500 psi)
REQUIRED FLOW maximum	370 L/min (98 US gpm)
REQUIRED FLOW minimum	325 L/min (85 US gpm)

Cutting

CHAIN OIL CAPACITY	15 L (4 US gal)
MAIN SAW UNIT standard	Hultdins SupercutTM 100 with auto-tension, proportional lubrication, saw limiting
CHAIN	10 mm pitch
CHAIN	0.404 in pitch
BAR standard	825 mm
BAR standard	32.5 in
MAXIMUM CUT	700 mm
MAXIMUM CUT	27.5 in
BAR Optional	750 mm
BAR Optional	29.5 in
MAXIMUM CUT	590 mm
MAXIMUM CUT	23.3 in
MAIN SAW UNIT optional	Tigercat 750 with auto-tension, proportional lubrication, saw limiting (Standard main saw unit for Fixed Wrist option)
CHAIN	19 mm pitch
CHAIN	0.75 in pitch
BAR standard	915 mm
BAR standard	36 in
MAXIMUM CUT	730 mm
MAXIMUM CUT	29 in
TOP SAW	Tigercat 475 with auto-tension, proportional lubrication, saw limiting (Top saw is optional for conventional 570 configuration. Top saw is standard for Fixed Wrist option)
CHAIN standard	10 mm pitch
CHAIN standard	0.404 in pitch
BAR standard	600 mm
BAR standard	23.6 in
MAXIMUM CUT	470 mm
MAXIMUM CUT	18.5 in
CHAIN optional	19 mm pitch
CHAIN optional	0.75 in pitch
BAR optional	610 mm
BAR optional	24 in
MAXIMUM CUT	480 mm
MAXIMUM CUT	19 in

Feeding

DRIVE SYSTEM	Independent, canted drive arms, 2WD
ARM DRIVE MOTORS	(2) 800 cc
Optional	(2) 700 cc (2) 900 cc (2) 1000 cc
Fixed wrist option	(2) 1000 cc
PEAK FEEDING SPEED	6,4 m/s
PEAK FEEDING SPEED	21 ft/s
Fixed wrist option	5,5 m/s
Fixed wrist option	18 ft/s
With optional motors	7,0 m/s 5,8 m/s 5,5 m/s
With optional motors	23 ft/s 19 ft/s 18 ft/s
FEED WHEELS	20 mm (0.8 in) thumbnail
Optional	24 mm (0.9 in) thumbnail 24 mm (0.9 in) thumbnail, wide-track 20 mm (0.8 in) alpine Eucalyptus debarking, serrated/single edge Eucalyptus debarking, single edge Eucalyptus debarking, double edge
FEED WHEEL maximum opening	725 mm
FEED WHEEL maximum opening	28.5 in
FEED WHEEL minimum closing	40 mm
FEED WHEEL minimum closing	1.6 in

Delimbing and Debarking

KNIVES	(3) Independent delimbing arms (2) Fixed; Optional (1) Fixed, (1) Floating Replaceable blades
FRONT KNIVES TIP OPENING	695 mm
FRONT KNIVES TIP OPENING	27 in
FRONT KNIVES minimum diameter	45 mm
FRONT KNIVES minimum diameter	1.8 in
BACK KNIFE TIP OPENING	800 mm
BACK KNIFE TIP OPENING	31.5 in

Measuring and Control System

SYSTEM LEVEL	Tigercat D5 Prio
Optional	Tigercat D5 Prio PC Tigercat D5 Optimization

Recommended Carriers

RECOMMENDED CARRIERS

Tigercat 1185, H250, 850, H822/LH822, H845/LH845, H855/LH855

Front knife timing, hydraulic
Harvester front knives
Tigercat 310 rotator and link
Tigercat 360 rotator and link or yoke
Processing knives
Hydraulic front knife timing
Find end sensor
Wireless keyboard
Electronic calipers
GeoInfo GPS
OperationMonitor
‘L-style’ and ‘Straight stick style’ control handles
Various measuring wheels
Start-up parts and tool kit
Colour marking

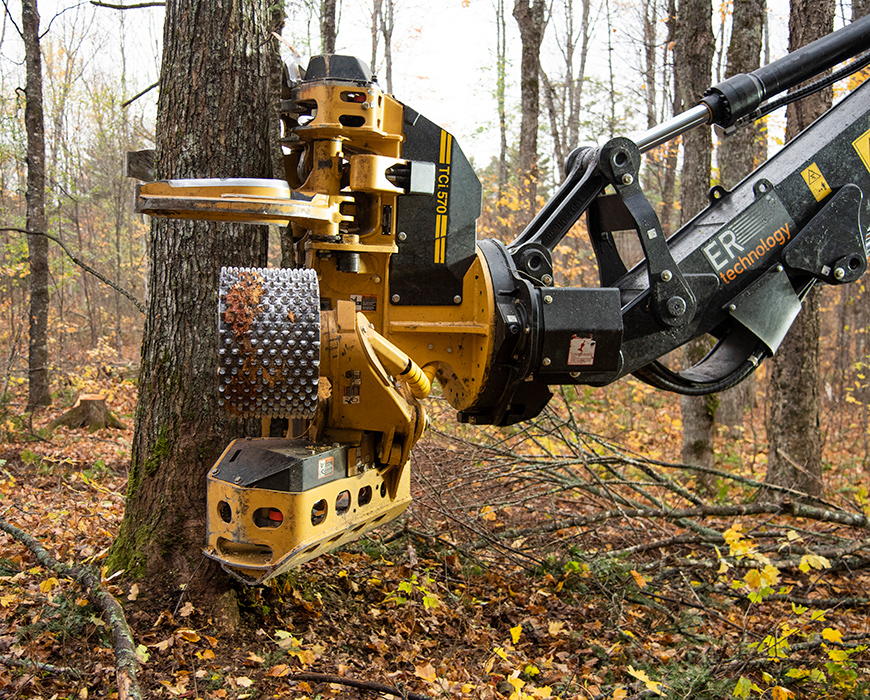

Fixed wrist, 340° rotation
