630H Skidder

Product Specifications

Metric

Imperial

Dimensions

LENGTH	7 670 mm
LENGTH	302 in
WHEELBASE	4 320 mm
WHEELBASE	170 in
WIDTH	3 330 mm
WIDTH	131 in
WIDTH narrow offset	3 020 mm
WIDTH narrow offset	119 in
HEIGHT	3 150 mm
HEIGHT	124 in
GROUND CLEARANCE	635 mm
GROUND CLEARANCE	25 in
WEIGHT	20 275 kg
WEIGHT	44,700 lb

Power

ENGINE Tier 4f	Tigercat FPT N67 Tier 4f 203 kW (272 hp) @ 2,200 rpm (rated)
ENGINE Tier 2	Tigercat FPT N67 Tier 2 206 kW (277 hp) @ 2,100 rpm (rated)
ENGINE Non-certified	Tigercat FPT N67 Non-certified 203 kW (272 hp) @ 2,200 rpm (rated)
AIR FILTRATION	Precleaner and 2-stage engine air cleaner
TOP SPEED	23 km/h
TOP SPEED	14 mph
COOLING	Side-by-side aluminum radiator, oil cooler, transmission cooler, charge air cooler and A/C condenser
FAN	Flexxaire® variable pitch, reversing
FUEL CAPACITY	305 L
FUEL CAPACITY	81 US gal
Optional	430 L
Optional	110 US gal
DEF CAPACITY	46 L
DEF CAPACITY	12 US gal

Power Train

TRANSMISSION	Single-speed mechanical Variable speed hydrostatic (2) Variable displacement motors
Optional	EHS® (efficient high speed) drive Single-speed mechanical Variable speed hydrostatic (2) Variable displacement motors
AXLE front	Tigercat OB17, outboard planetary, barrel differential +/-15° oscillation
AXLE rear	Tigercat OB17, outboard planetary, barrel differential Fixed
DIFFERENTIAL LOCKS	Independent front and rear

Hydraulic System

PUMP, DRIVE	Piston
PUMP, MAIN 1	Piston for all machine functions
PUMP, MAIN 2	Gear for cooling
FILTRATION	(4) Spin-on, 7 micron full flow
CYLINDERS, ARCH	(4) 115 mm (4.5 in) bore (dual function)
CYLINDERS, STEER	(2) 83 mm (3.25 in) bore
CYLINDERS, BLADE	(2) 83 mm (3.25 in) bore
RESERVOIR	126 L
RESERVOIR	32 US gal

Brakes

DYNAMIC BRAKING	Hydrostatic
SECONDARY BRAKES	Enclosed, oil cooled
PARK BRAKE	Caliper Spring applied, hydraulic release

Tires

STANDARD	30.5Lx32,26
OPTIONAL	35.5x32,24 73x44-32,16

Arch

STANDARD	Single function, continuous rotate
OPTIONAL	Dual function, continuous rotate

Grapple

STANDARD	Tigercat 1,58 m² (17 ft²) 2-cylinder, plate or box tong
MAXIMUM OPENING	3 630 mm
MAXIMUM OPENING	143 in
OPTIONAL	Tigercat 1,76 m² (19 ft²) 2-cylinder, plate or box tong Tigercat 1,95 m² (21 ft2) 2-cylinder, plate or box tong
MAXIMUM OPENING	3 685 mm, 3 810 mm
MAXIMUM OPENING	145 in, 150 in

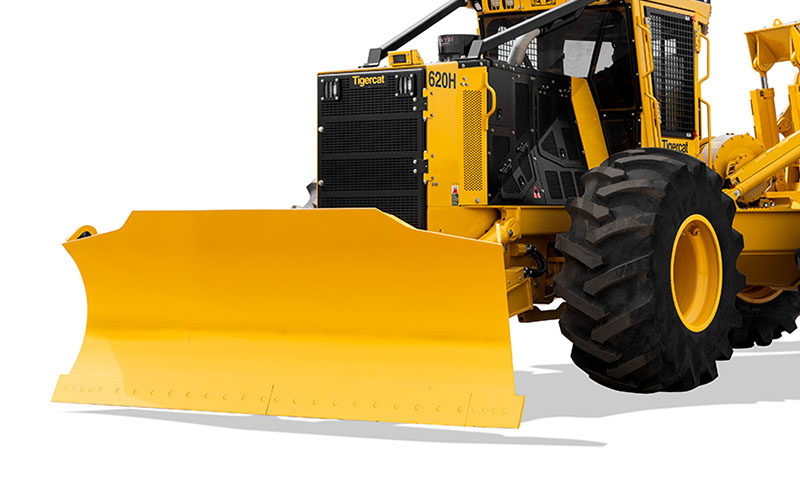

Blade

WIDTH	2 285 mm
WIDTH	90 in
With optional blade extensions	2 920 mm
With optional blade extensions	115 in

Electrical

BATTERY	(2) 12 v
ALTERNATOR	80 amp, 24 v
SYSTEM VOLTAGE	24 v
LIGHTING	(17) LED
Optional	High output LED lighting package (27) LED

Operator's Station

CAB	Insulated, pressurized and isolation mounted A/C, heater, defroster (2) Doors with slide side windows and hinged screens AM/FM digital stereo with auxiliary input port, Bluetooth® audio and hands-free calling Tire pressure monitoring system (TPMS) Ventilated cup holder Phone holder/charger (2) 12 v power points Camera system, forward/rearVIEW
SEAT	Extreme duty Turnaround® 220° rotation Spring applied/hydraulic release rotate locking system Air ride, heated and cooled Fully adjustable height, seatback recline, lumbar support and armrests Access to all functions and full drive control from any position
OPERATOR CONTROLS	Electronic joystick for hydraulic and drive functions Electronic foot pedal, front and rear with forward/reverse selector switch for drive functions Hydraulic controlled axle brakes Electronic control system with 180 mm (7 in) LCD colour touchscreen for machine monitoring and function adjustment

Other Equipment

STANDARD	LogOn™ local wifi machine monitoring system Alarm for reverse drive Fire extinguisher Pressurized water system
OPTIONAL	RemoteLog® telematics system Hydraulic winch Cold weather kit CB radio SiriusXM® radio ready Slope indicators Windshield wiper Window blinds Fire suppression system Vacuum pump Fenders

With Turnaround, the operator drives blade-forward or grapple-forward with full control of all functions. The full speed range and maximum tractive effort are available in both directions. Used to its full potential, Turnaround expands the capabilities of the skidder. Imagine what Turnaround can do for you.

LEARN MORE

Resources

H-Series Skidders Walk-around

07 August 2020

Skidder product manager, Jeremy Piercy takes us through the H-series skidders. Get an insider's perspective on the improvements and the logic behind the design decisions.

H-Series Seat and Controls

23 November 2020

Skidder product manager, Jeremy Piercy covers the H-series joystick controls and the new 220° Turnaround® seat system. The increased rotation envelope, along with full machine controls that rotate with the seat, offer improved ergonomics and expanded possibilities for H-series skidder operators.

30.5Lx32 (narrow)	Overall width: 3 020 mm Turn radius: 6 450 mm
30.5Lx32 (narrow)	Overall width: 119 in Turn radius: 254 in
30.5Lx32 (wide)	Overall width: 3 330 mm Turn radius: 6 600 mm
30.5Lx32 (wide)	Overall width: 131 in Turn radius: 260 in
35.5Lx32 (narrow)	Overall width: 3 280 mm Turn radius: 6 500 mm
35.5Lx32 (narrow)	Overall width: 129 in Turn radius: 256 in
35.5Lx32 (wide)	Overall width: 3 580 mm Turn radius: 6 650 mm
35.5Lx32 (wide)	Overall width: 141 in Turn radius: 262 in
73x44-32 (narrow)	Overall width: 3 610 mm Turn radius: 6 580 mm
73x44-32 (narrow)	Overall width: 142 in Turn radius: 259 in
73x44-32 (wide)	Overall width: 3 940 mm Turn radius: 6 760 mm
73x44-32 (wide)	Overall width: 155 in Turn radius: 266 in
