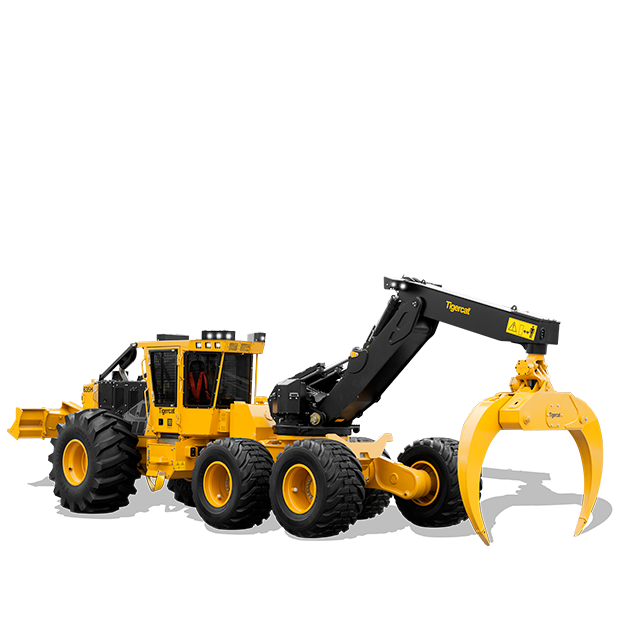

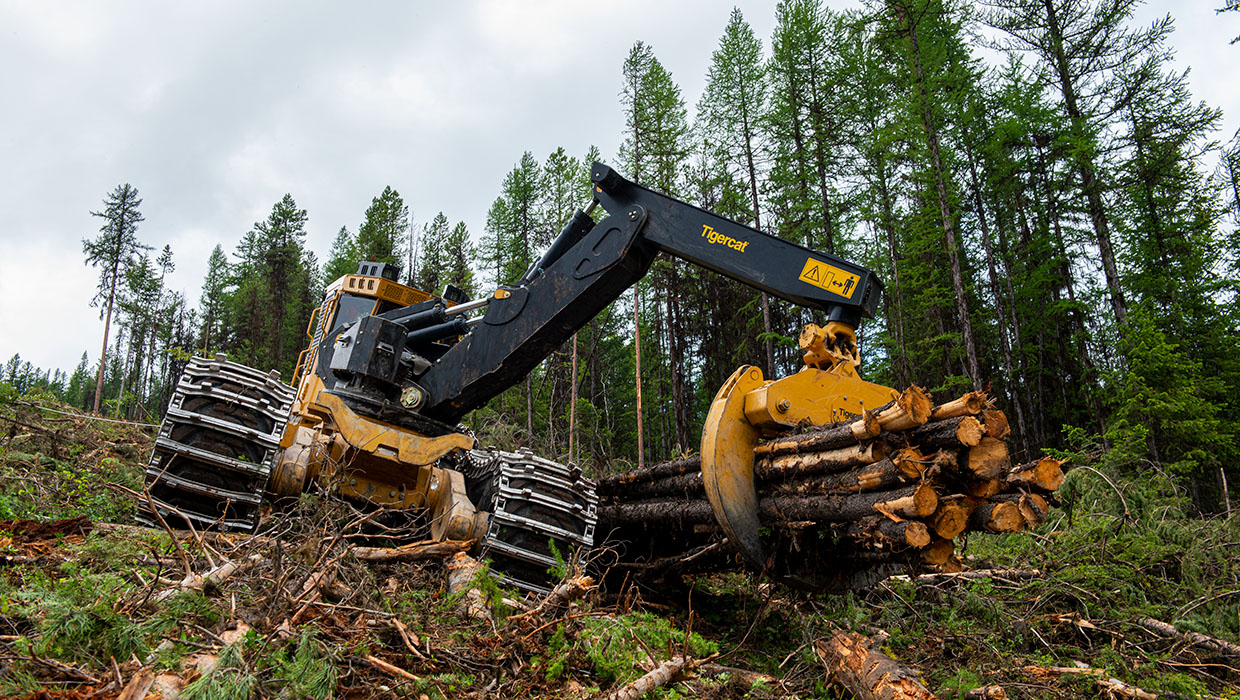

With a 210-degree rotation, the swing boom increases the working envelope of the skidder which means the operator spends less time manoeuvring the machine.
Tethering device set-ups are reduced due to the wider working range.

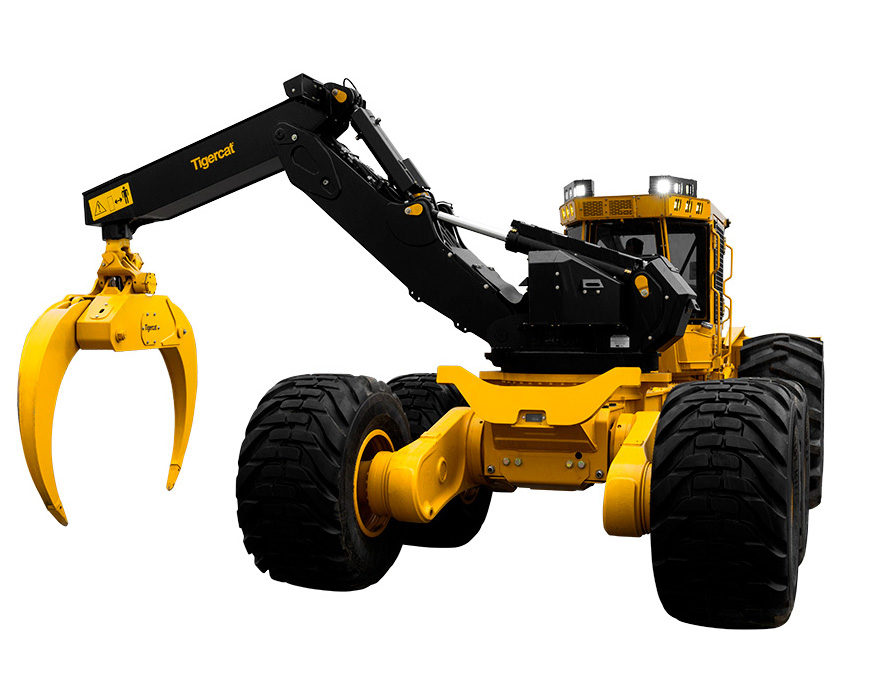

Dual rotate motors and a large swing bearing make gathering and moving bunches effortless on steep slopes.
Lock and release the 220 degree rotating seat in any position with the touch of a button. Full machine controls are always at your fingertips.
Small details like a climate-controlled cup holder and a place to hang your hat make long days feel shorter.
The 4-point harness makes extreme terrain feel a little tamer.
The durable interior finish is easy to clean.

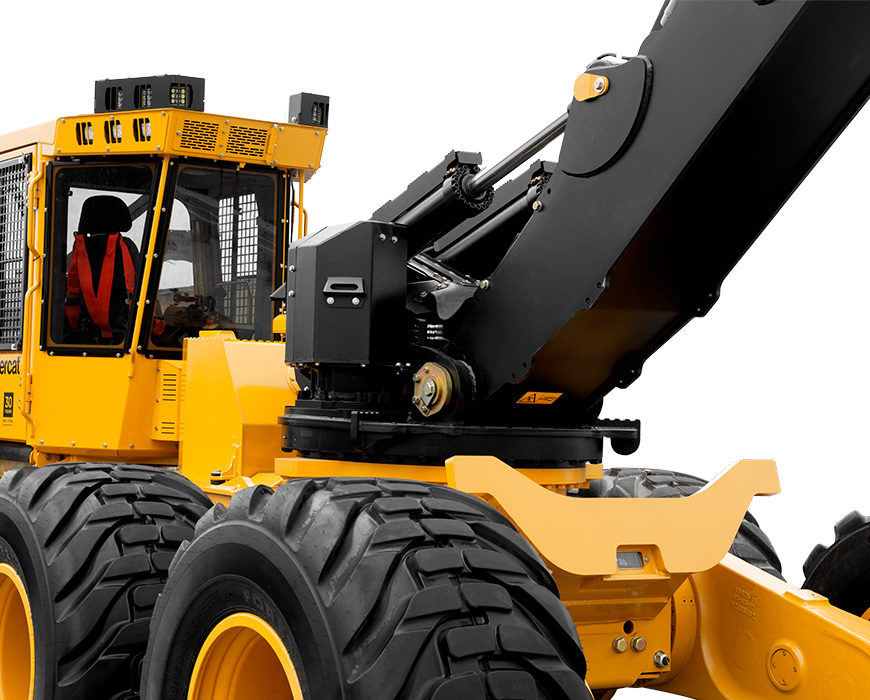

The 635H swing boom system uses field-proven heavy duty components common to Tigercat track machines.
| LENGTH | 9 525 mm |
| WHEELBASE | 5 230 mm |
| WIDTH | 3 580 mm |
| HEIGHT | 3 505 mm |
| GROUND CLEARANCE | 710 mm |
| WEIGHT | 29 260 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 212 kW (285 hp) @ 2,200 rpm (rated) |
| ENGINE Tier 2 | Tigercat FPT N67 Tier 2 220 kW (295 hp) @ 2,100 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| TOP SPEED | 10 km/h |
| COOLING | Side-by-side aluminum radiator, oil cooler, transmission cooler, charge air cooler and A/C condenser |
| FAN | Flexxaire® variable pitch, reversing |
| FUEL CAPACITY | 520 L |
| Optional | 650 L (Tier 2) |
| DEF CAPACITY | 46 L |
| TRANSMISSION | Single-speed mechanical Variable speed hydrostatic (2) Variable displacement motors |
| AXLE front | Tigercat OB17, outboard planetary, barrel differential, +/- 15° oscillation |
| AXLE rear | Tigercat WOB17 wide-spread bogie, outboard planetary, barrel differential |
| Optional | Tigercat HOB17 high-clearance bogie, outboard planetary, barrel differential |
| DIFFERENTIAL LOCKS | Independent front and rear |
| PUMP, DRIVE | Piston |
| PUMP, MAIN | Piston for all machine functions |
| PUMP, MAIN 2 | Gear for cooling |
| FILTRATION | (4) Spin-on, 7 micron full flow |
| CYLINDERS, ARCH | (2) 140 mm (5.5 in) bore (main boom) (1) 165 mm (6.5 in) bore (stick boom) |
| CYLINDERS, STEER | (2) 95 mm (3.75 in) bore |
| CYLINDERS, BLADE | (2) 95 mm (3.75 in) bore |
| RESERVOIR | 126 L |
| DYNAMIC BRAKING | Hydrostatic |
| SECONDARY BRAKES | Enclosed, oil cooled |
| PARK BRAKE | Enclosed, oil cooled Spring applied, hydraulic release |
| SWING | Friction disc Automatic spring applied, hydraulic release |
With Turnaround, the operator drives blade-forward or grapple-forward with full control of all functions. The full speed range and maximum tractive effort are available in both directions. Used to its full potential, Turnaround expands the capabilities of the skidder. Imagine what Turnaround can do for you.
LEARN MORE
Onsite access to production and service information. Using a mobile device and a secure WiFi hotspot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.
LEARN MORE
Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.
LEARN MORE
BTB visited Lumby, British Columbia to speak with long-time logging equipment operator Reg Dyck of Mercer Forestry Services to get his thoughts on the 635H swing boom skidder.
LEARN MORE

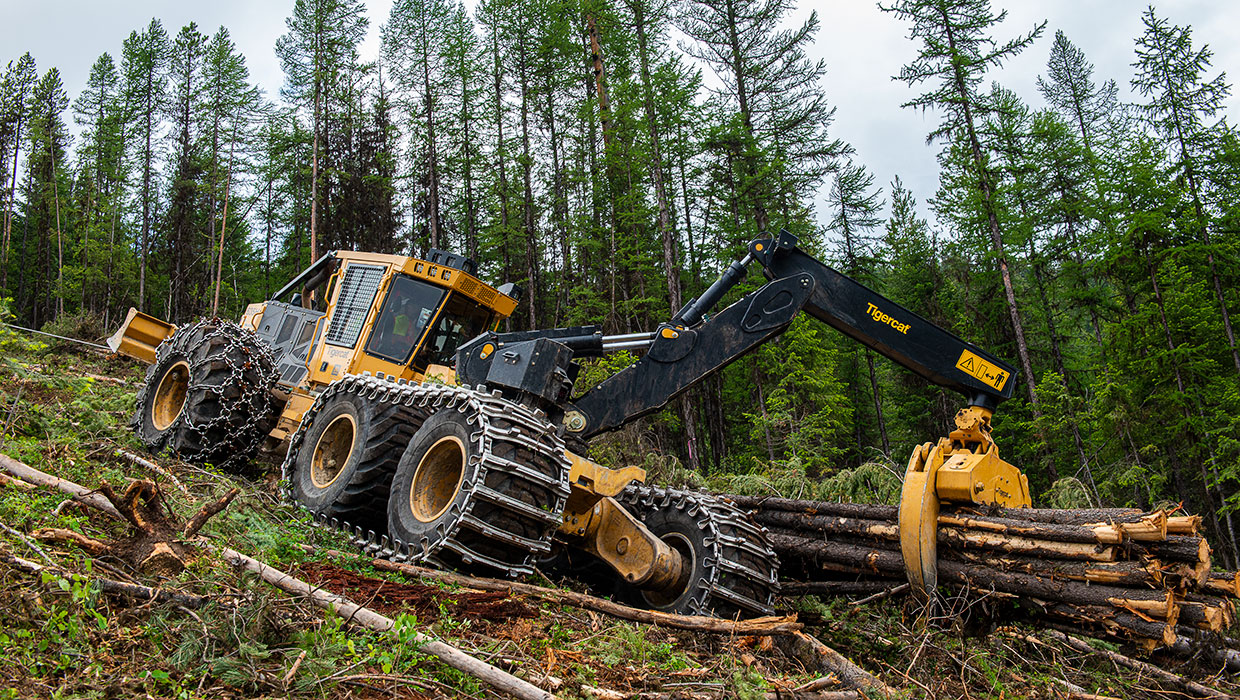

Traction aids can improve machine performance in adverse terrain. The trick is to understand all variables and choose a configuration that provides the performance benefits without sacrificing tire lifespan, or risking damage to the machine drivetrain system.
