M726G Mulcher

Overview

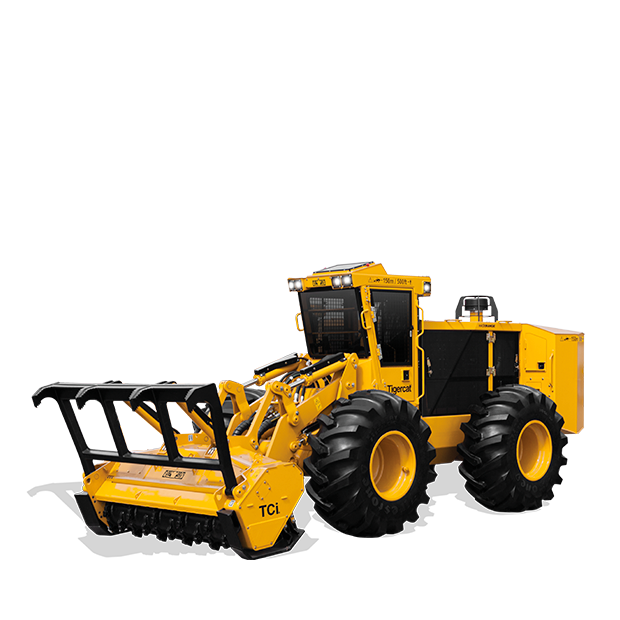

Tigercat has extensive knowledge and expertise in the design and manufacture of equipment that withstands the most severe off road applications. The M726G mulcher achieves the highest machine availability rates for excellent productivity in a variety of high duty cycle land clearing, right-of-way and site preparation applications.

An optional multi-function hydraulic system and quick attach boom adapter allows the machine to be quickly and easily switched from a mulcher to a feller buncher for increased versatility and the ability to fell large or merchantable timber in forestry applications.

Tigercat power. Tigercat support.

The M726G mulcher is Tigercat FPT Tier 2 or Tier 4f powered. Tier 4f conforms to the latest emissions standards in North America and Europe. With the Tier 2 engine configuration, Tigercat brings the benefits of Tigercat power and support to land clearing professionals around the world.

Best of all, Tigercat FPT engines are fully supported by Tigercat and the Tigercat dealer network.

Key Benefits

Large attachment pump. High flow to the mulching head
Optional multi-function mulcher/feller buncher hydraulic system and quick attach boom adapter for increased versatility
Boom float system. The mulching head automatically follows terrain contours
High-lift boom geometry. Improved performance on sloped terrain
High capacity cross-flow cooling. Automatic variable speed for improved fuel efficiency, automatic reversing cycle
Compartmentalized layout separates the cooling system, engine, and hydraulic components
Long-life centre section constructed with thick steel plate, large diameter pins and tapered roller bearings
Clear access to engine, hydraulic components, filters and other service points for painless maintenance routines

Downloads

See below related files that you can download.

- M726G mulcher brochure
- M726G mulcher brochure – Limited Accessibility (1.40 Mb)
- 4061 mulching head brochure
- 4061 mulching head brochure – Limited Accessibility (1.81 Mb)

News & Articles

Something from Nothing

Monday 21st November 2016

Teak round log export specialist, Proteak, ventures into eucalyptus in Mexico in a big and bold way.

Read more about Something from Nothing

Photos

SPECIFICATIONS

Show measurements as:

Metric

Imperial

Dimensions

LENGTH less attachment	6 530 mm
LENGTH less attachment	257 in
WHEELBASE	3 050 mm
WHEELBASE	120 in
WIDTH	2 970 mm
WIDTH	117 in)
HEIGHT	3 480 mm
HEIGHT	137 in
GROUND CLEARANCE	635 mm
GROUND CLEARANCE	25 in
WEIGHT less attachment	14 880 kg
WEIGHT less attachment	32,800 lb

Power

ENGINE Tier 4f	Tigercat FPT C87 Tier 4f 275 kW (370 hp) @ 1,800 rpm (rated)
	1 509 Nm (1,113 lbf-ft) @ 1,500 rpm
ENGINE Tier 2	Tigercat FPT C87 Tier 2 275 kW (370 hp) @ 1,800 rpm
PEAK TORQUE	1 550 Nm (1,143 lbf-ft) @ 1,500 rpm
ENGINE Non-certified	Tigercat FPT C87 Non-certified 275 kW (370 hp) @ 1,800 rpm
AIR FILTRATION	Precleaner and 2-stage engine air cleaner
COOLING	Cross-flow Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser
FAN	Hydraulically driven Automatic variable speed with automatic reversing cycle
FUEL CAPACITY	570 L
FUEL CAPACITY	150 US gal
DEF CAPACITY	80 L
DEF CAPACITY	21 US gal

Power Train

TRANSMISSION	Tigercat wideRANGE® drive Variable speed hydrostatic (2) Piston motors, infinitely variable
Optional	2-Speed mechanical shift Variable speed hydrostatic Piston motor, infinitely variable
AXLES	Tigercat IB15, inboard planetary, barrel differential Front fixed Rear oscillating +/-15˚
DIFFERENTIAL LOCKS	Independent front and rear
TOP SPEED	14,5 km/h
TOP SPEED	9 mph
With optional transmission	9 km/h (low range) 24 km/h (high range)
With optional transmission	5.5 mph (low range) 15 mph (high range)

Hydraulic System

PUMP, DRIVE	Piston
PUMP, BOOM	Gear
PUMP, STEERING	Gear
PUMP, FAN	Gear
PUMP, ATTACHMENT	Piston
FILTRATION	(4) Spin-on, 7 micron full flow (1) Water absorbing
CYLINDERS, STEER	(2) 75 mm (3 in) bore
CYLINDERS, BOOM	(4) 115 mm (4.5 in) bore lift and tilt
RESERVOIR	186 L
RESERVOIR	49 US gal

Brakes

DYNAMIC BRAKING	Hydrostatic
SECONDARY BRAKES	Enclosed, oil cooled
PARK BRAKE	Driveline mounted wet disc Spring applied, hydraulic release

Tires

STANDARD	30.5Lx32,26
OPTIONAL	28Lx26,20 67x34-25,22 73x44-32,20

Electrical

BATTERY	(2) 12 v
ALTERNATOR	110 amp, 24 v
SYSTEM VOLTAGE	24 v

Operator's Station

CAB	Insulated, pressurized and isolation mounted (2) doors with sliding tempered glass windows and hinged steel mesh screens Removable steel and polycarbonate skylight A/C, heater, defroster and pressurizer Forward sloping polycarbonate windshield AM/FM digital stereo with CD player Bluetooth® audio and hands-free calling 12 v power point 24 v lighter LED lighting
SEAT	Air ride suspension, fully adjustable, heated and cooled
OPERATOR CONTROLS	Hydraulic pilot Joystick for boom and steering (2) foot pedals for forward/reverse travel

Other Equipment

STANDARD	LogOn™ local wifi machine monitoring system Pressurized water system Back-up alarm Fuel gauge Hydraulic oil hand fill pump Fire extinguisher Fire detection system Drive speed limiter control Rear camera Boom float system Air compressor with 24,5 L (6.5 US gal) tank
OPTIONAL	RemoteLog® telematics system High output LED lighting package CB radio Fire suppression system Multi-function mulcher/feller buncher hydraulic system with quick attach boom adapter Cold weather kit Recovery winch
