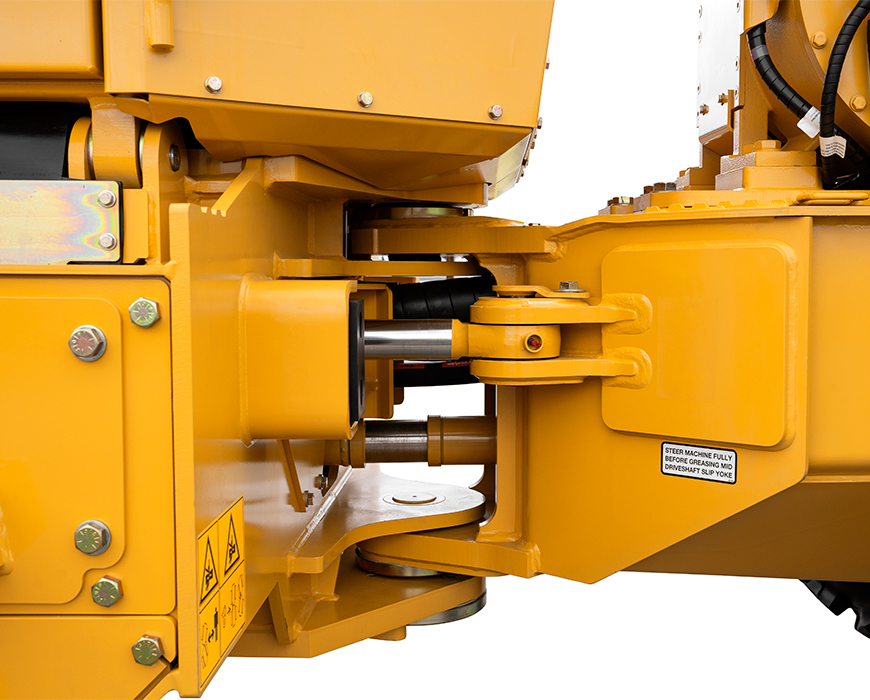

Tigercat's legendary centre section design uses a preloaded tapered roller bearing system along with thick steel plate and large diameter pins. The result is a low maintenance steering joint that lasts the life of the machine.

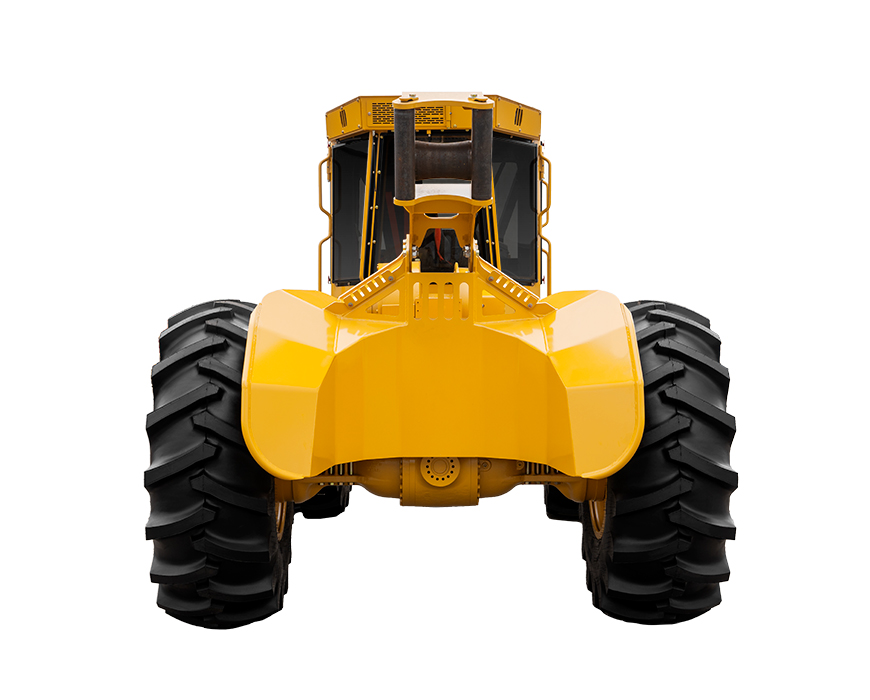

The 610H uses oversize axles for long life, reliability and high uptime. Tigercat axles are built in-house to match the high performance characteristics of Tigercat skidders. The rear axle is well protected by the winch shield.

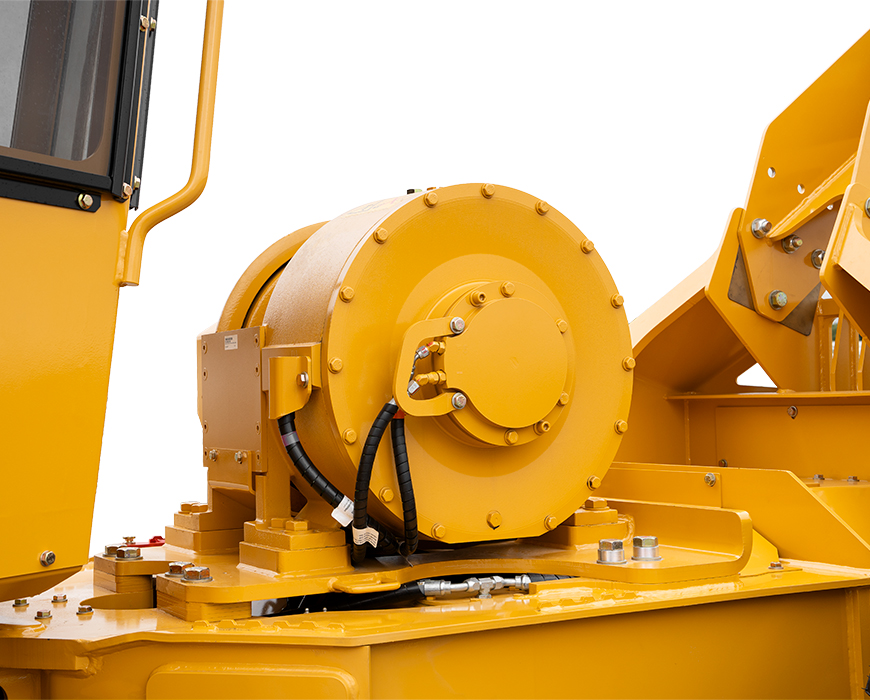

Hydrostatic winch with variable piston motor offers higher line speeds for lighter loads, while maintaining peak (bare drum) line pull for heavy loads. A wet-disk dynamic clutch allows the operator to drop a load and drive away or reel in a load while driving. A mechanical jaw clutch allows for low free spool resistance.
| LENGTH | 7 750 mm |
| WHEELBASE | 4 060 mm |
| WIDTH | 2 950 mm |
| HEIGHT | 3 150 mm |
| GROUND CLEARANCE | 555 mm |
| WEIGHT | 16 330 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 151 kW (202 hp) @ 2,200 rpm (rated) |
| AIR FILTRATION | 2-stage engine air cleaner with heavy duty rain cap inlet |
| TOP SPEED | 19 km/h |
| COOLING | Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Fixed pitch, blower |
| Optional | Flexxaire® variable pitch, reversing |
| FUEL CAPACITY | 305 L |
| DEF CAPACITY | 43 L |
| TRANSMISSION | Single-speed mechanical Variable speed hydrostatic (2) variable displacement motors |
| AXLE front | Tigercat OB17, outboard planetary, barrel differential +/-15° oscillation |
| AXLE rear | Tigercat OB17, outboard planetary, barrel differential Fixed |
| DIFFERENTIAL LOCKS | Independent front and rear |
| PUMP, DRIVE | Piston |
| PUMP, MAIN 1 | Piston for all machine functions |
| PUMP, MAIN 2 | Gear for cooling |
| FILTRATION | (4) Spin-on, 7 micron full-flow |
| CYLINDERS, STEER | (2) 95 mm (3.75 in) bore |
| CYLINDERS, BLADE | (2) 95 mm (3.75 in) bore |
| RESERVOIR | 121 L |
| DYNAMIC BRAKING | Hydrostatic |
| SECONDARY BRAKES | Enclosed, oil cooled |
| PARK BRAKE | Spring applied, hydraulic release |
