| LENGTH less attachment | 6 060 mm |
| WHEELBASE | 3 030 |
| WIDTH | 3 120 mm |
| HEIGHT | 3 545 mm |
| GROUND CLEARANCE | 685 mm |

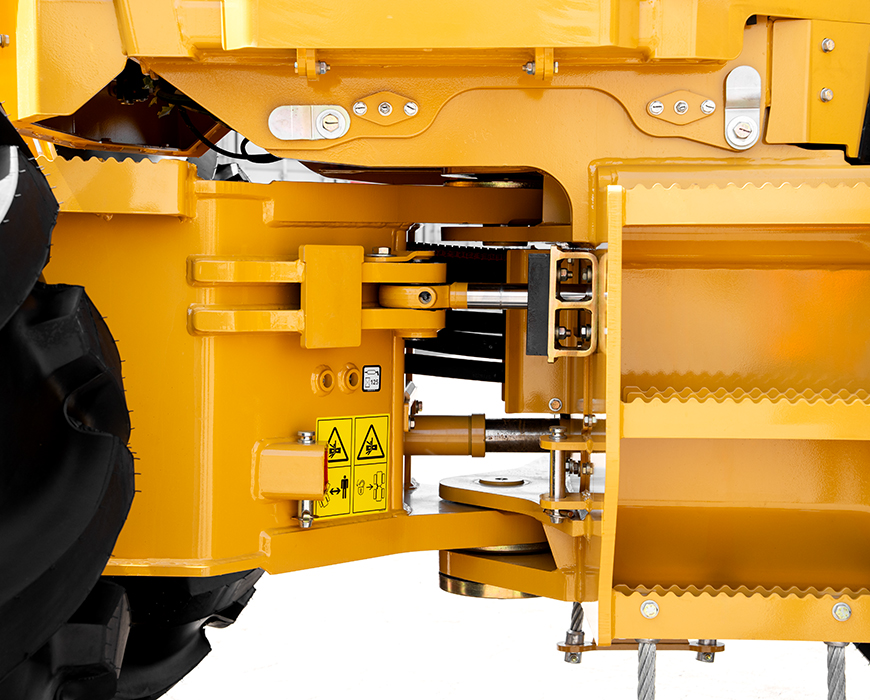

| FRAME ARTICULATION | +/- 45˚ |
| WEIGHT less attachment | 14 665 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 184 kW (246 hp) @ 2,200 rpm (rated) 189 kW (254 hp) @ 2,000 rpm (peak) |
| ENGINE Non-certified | Tigercat FPT N67 Non-certified 186 kW (250 hp) @ 2,100 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Cross-flow Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Hydraulically driven Automatic variable speed with automatic reversing cycle |
| FUEL CAPACITY | 340 L |
| DEF CAPACITY | 46 L |
| TRANSMISSION | Tigercat wideRANGE® drive Variable speed hydrostatic (2) Piston motors, infinitely variable |
| AXLES | Tigercat IB15, inboard planetary, barrel differential Front fixed Rear oscillating +/-15˚ |
| DIFFERENTIAL LOCKS | Independent front and rear |
| WIDERANGE | 16 km/h |
| PUMP, DRIVE | Piston |
| PUMP, BOOM | Piston |
| Optional | Gear |
| PUMP, STEERING | Piston |
| Optional | Gear |
| PUMP, SAW | Piston |
| PUMP, FAN | Gear |
| FILTRATION | (1) In-tank, 10 micron full flow (1) Spin-on, 7 micron full flow |
| CYLINDERS, STEER | (2) 75 mm (3 in) bore |
| CYLINDERS, BOOM | (4) 115 mm (4.5 in) bore lift and tilt |
| RESERVOIR | 136 L |
