The H-series operator's cabin is designed to provide the best sightlines, and class-leading comfort and convenience. Increased interior volume, adds legroom and additional storage. The front windshield and rear quarter windows are much larger, and a dual camera rearVIEW system further augments rear visibility. A large skylight is located on the sloping roof plate to easily shed debris.

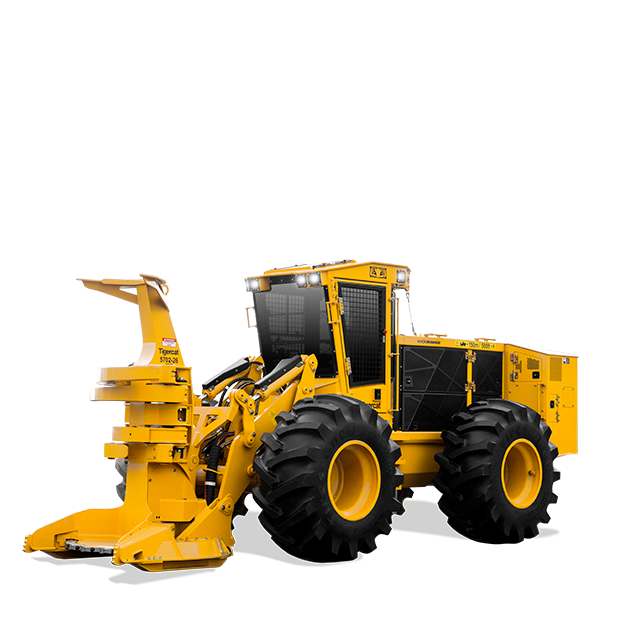

The structural integrity of Tigercat feller bunchers is well known, leading to long lifecycles and high resale values.
The centre joint is constructed with thick steel plate and tapered roller bearings and designed to last the life of the machine.
Tigercat axles are matched to the high performance and demanding duty cycles of Tigercat drive-to-tree fellerbunchers. Advanced machining and strict quality control processes provide axle components you can count on for low operating costs and long life.
| LENGTH | 6 195 mm |
| WHEELBASE | 3 160 mm |
| WIDTH | 3 120 mm |
| HEIGHT | 3 545 mm |
| GROUND CLEARANCE | 685 mm |
| FRAME ARTICULATION | +/- 45˚ |
| WEIGHT less attachment | 14 765 kg |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 212 kW (285 hp) @ 2,200 rpm (rated) 230 kW (308 hp) @ 2,000 rpm (peak) |
| ENGINE Non-certified | Tigercat FPT N67 Non-certified 212 kW (285 hp) @ 2,200 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Cross-flow Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser |
| FAN | Hydraulically driven Automatic variable speed with automatic reversing cycle |
| FUEL CAPACITY | 340 L |
| DEF CAPACITY | 46 L |
| TRANSMISSION | Tigercat wideRANGE® drive Variable speed hydrostatic (2) Piston motors, infinitely variable |
| AXLES | Tigercat IB15, inboard planetary, barrel differential Front fixed Rear oscillating +/-15˚ |
| DIFFERENTIAL LOCKS | Independent front and rear |
| WIDERANGE | 16 km/h |
| PUMP, DRIVE | Piston |
| PUMP, BOOM | Piston |
| Optional | Gear |
| PUMP, STEERING | Piston |
| Optional | Gear |
| PUMP, SAW | Piston |
| PUMP, FAN | Gear |
| FILTRATION | (1) In-tank, 10 micron full flow (1) Spin-on, 7 micron full flow |
| CYLINDERS, STEER | (2) 75 mm (3 in) bore |
| CYLINDERS, BOOM | (4) 115 mm (4.5 in) bore lift and tilt |
| RESERVOIR | 136 L |
