Optimally positioned controls and large, colour touchscreen display for machine control system interface.
Quiet interior environment with Bluetooth® audio and hands-free calling.
Clear sightlines along with the skyVIEW and rearVIEW camera systems reduce fatigue and promote safety and productivity.
| LENGTH less boom | 5 555 mm |
| WIDTH with steps | 3 390 mm |
| HEIGHT | 3 390 mm |
| GROUND CLEARANCE | 710 mm |
| WEIGHT less attachment | 33 565 kg |
| TAIL SWING RADIUS | 3 276 mm |
| ENGINE Tier 4f | Tigercat FPT C87 Tier 4f 245 kW (330 hp) @ 1,900 rpm |
| AIR FILTRATION | Precleaner, 2-stage engine air cleaner |

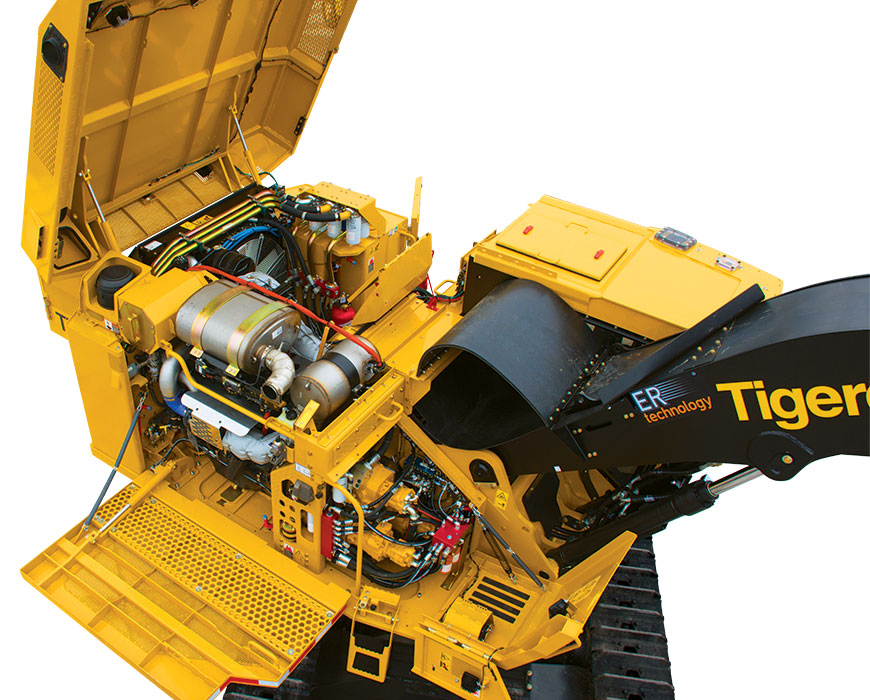

| COOLING | Aluminum side-by-side radiator, oil cooler, charge air cooler, A/C condensor Removable intake debris screen |
| FAN | Hydraulically driven Automatic variable speed and reversing cycle |
| FUEL CAPACITY | 1 085 L (287 US gal) |
| DEF CAPACITY | 135 L |
| LOW RANGE | 2,3 km/h |
| HIGH RANGE | 4,8 km/h |
| PUMP, MAIN | Piston |
| PUMP, SAW | Piston |
| PUMP, FAN | Piston |
| PUMP, TRACK | (2) Piston, closed loop |
| PUMP, CLAMP/ACCUM. | Piston |
| PUMP, CHARGE/PILOT | Gear |
| PUMP, CASE | Gear |
| FILTRATION, MAIN HYDRAULICS | (5) Spin-on, 7 micron full flow (1) water absorbing |
| FILTRATION, CASE | (1) Spin-on, 6 micron full flow |
| FILTRATION, CHARGE/PILOT | (2) Spin-on, 6 micron full flow |
| CYLINDERS, HOIST | (2) 120 mm (4.7 in) bore |
| CYLINDERS, STICK/ER | (2) 110 mm (4.3 in) bore |
| CYLINDER, TILT | 130 mm (5.1 in) bore |
| HORSEPOWER CONTROL | Electric speed sensing All-speed antistall |
| RESERVOIR | 300 L |
| TRACK FRAMES | R7-150 Super-duty forestry, integral track guides, ramp angles |
| TRACK CHAIN | FH400 215 mm (8.5 in) pitch |
| FINAL DRIVE | (2) Axial piston motors, Infinitely variable speed |
| GEARBOX | Triple reduction planetary with brake |
| FRONT IDLER | Hydraulic track adjuster; Spring shock absorber |
| ROLLERS, LOWER | (9) FH400 single/double flange excavator |
| SLIDES, UPPER | Replaceable, bolt-on |
| TRACK SHOE | 610 mm (24 in) single grouser |
| Optional | 710 mm (28 in) single grouser |
ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.
LEARN MORE
Onsite access to telematics. Using a secure WiFi hot spot, users can easily access detailed machine data and diagnostic tools at the worksite with LogOn.
LEARN MORE
Off site access to telematics. Be connected to your forestry operation from almost anywhere – all you need is RemoteLog, and a device with internet connectivity.
LEARN MORE

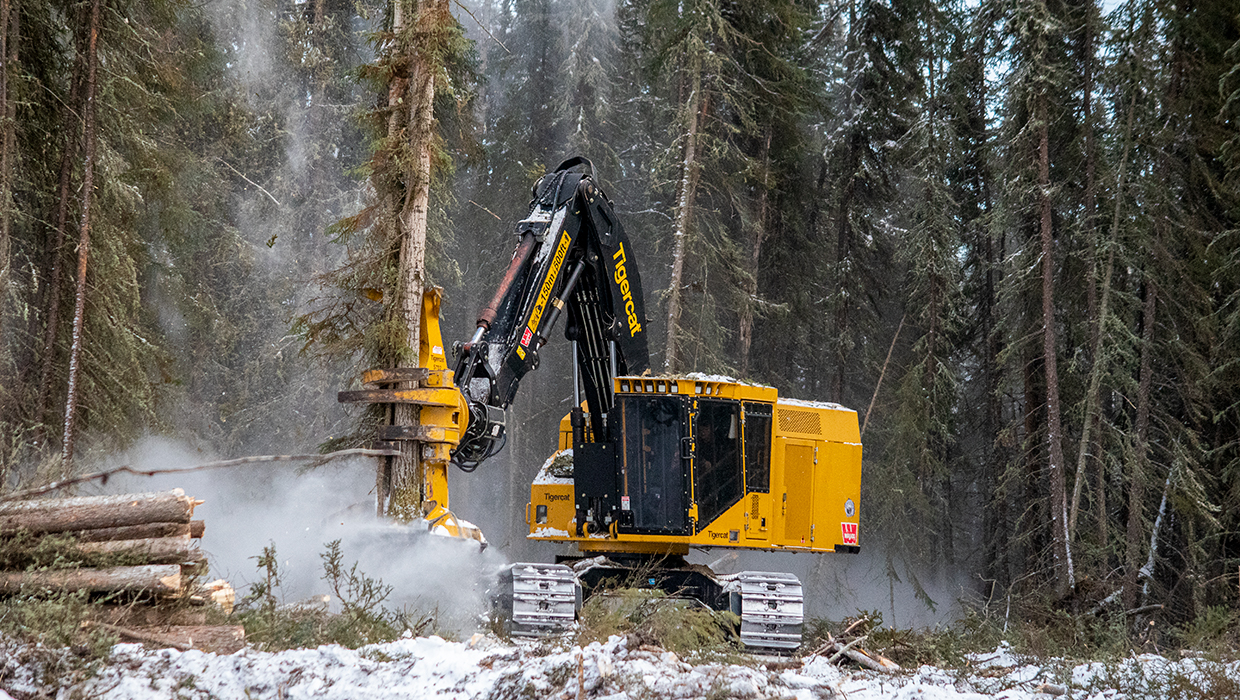

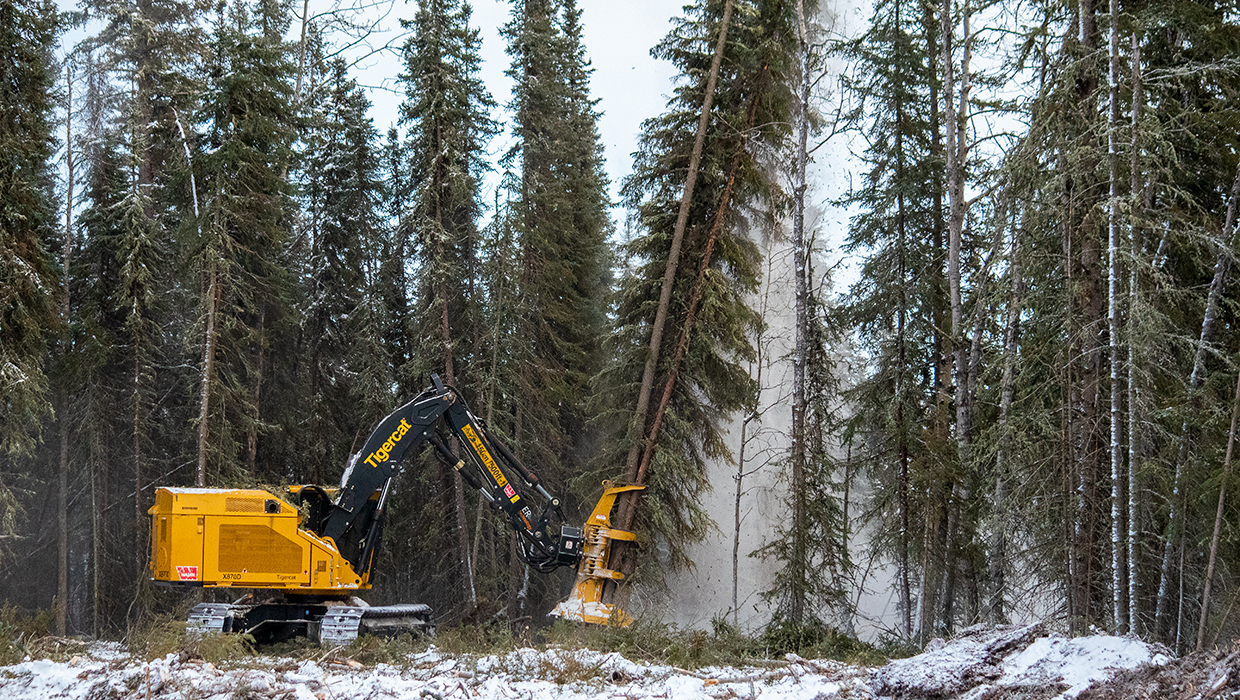

Alaska’s remote and rugged landscape makes logging a challenge. Limited road connections, harrowing terrain and extreme weather are just some of the contributing factors. Nevertheless, forestry in Alaska holds much potential.
