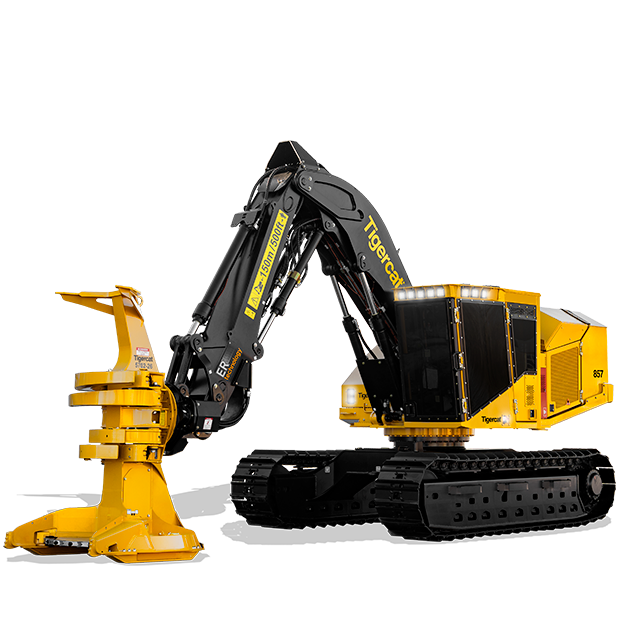

The ER boom system provides tighter tuck, increased envelope and more below grade capability. Through-tip routing offers better protection of the hoses leading to the felling head. Three-mode ER provides the operator with a wide range of boom control options.
The side opening engine roof completely exposes the top and both sides of the engine, and most hydraulic components. When open, the enclosure roof serves as a spacious side service platform to work comfortably and safely.
Several F8 and FH400 series undercarriage options to customize the machine to a range of types, timber size and other application conditions.

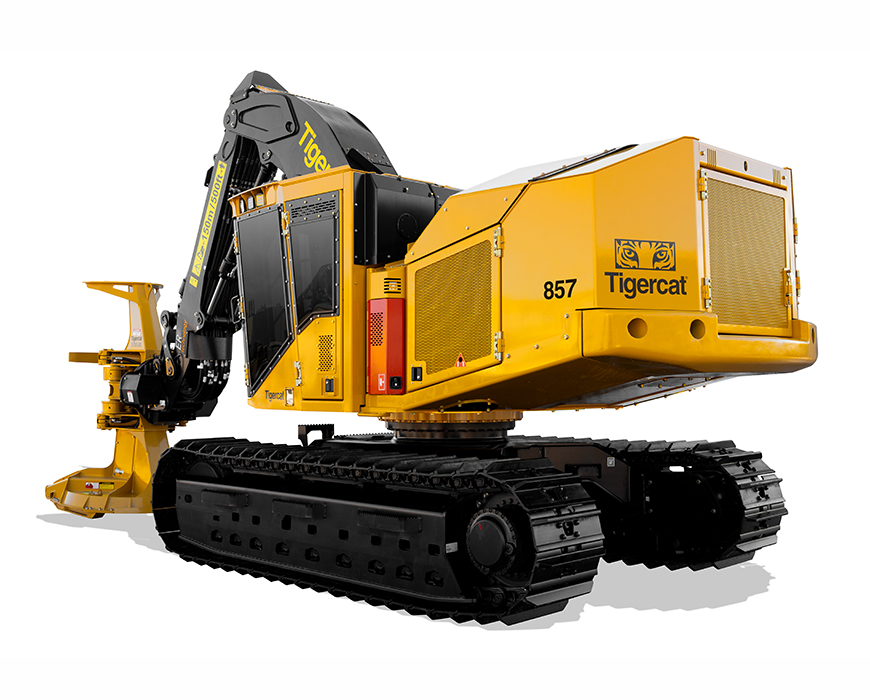

Unique sloping tail for additional swing clearance without compromising on component access.
| LENGTH less boom | 5 590 mm |
| WIDTH with steps | 3 390 mm |
| HEIGHT | 3 390 mm |
| GROUND CLEARANCE | 710 mm |
| WEIGHT less attachment | 31 600 kg |
| TAIL SWING RADIUS | 3 150 mm |
| ENGINE Tier 4f | Tigercat FPT N67 Tier 4f 212 kW (284 hp) @ 2,200 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side-by-side radiator, oil cooler, charge air cooler, A/C condenser Removable intake debris screen |
| FAN | Hydraulically driven, automatic variable speed, reversible |
| FUEL CAPACITY | 850 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 1,8 km/h |
| HIGH RANGE | 4 km/h |
| PUMP, MAIN | Piston |
| PUMP, SAW | Piston |
| PUMP, FAN | Gear |
| PUMP, CLAMP/ACCUM. | Piston |
| PUMP, CHARGE/PILOT | Gear |
| FILTRATION, MAIN HYDRAULICS | (2) In-tank, 10 micron full flow |
| CYLINDER, HOIST | (2) 120 mm (4.7 in) bore |
| CYLINDERS, STICK/ER | (2) 110 mm (4.3 in) bore |
| CYLINDER, TILT | 130 mm (5.1 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed antistall |
| RESERVOIR | 295 L |
| TRACK FRAMES | R6-152-5 heavy-duty forestry, integral track guides, ramp angles |
| TRACK CHAIN | F8 203 mm (8 in) pitch sealed and greased |
| FINAL DRIVE | (2) Axial piston motors, infinitely variable speed |
| TRACTIVE EFFORT | 308 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, UPPER | (2) D6D excavator type |
| ROLLERS, LOWER | (9) D6 single/double flange tractor type |
| SLIDES, UPPER | Optional, bolt-on |
| TRACK SHOE | 610 mm (24 in) single grouser |
| Optional | 610 mm (24 in) double grouser 710 mm (28 in) single grouser 710 mm (28 in) double grouser 710 mm (28 in) single grouser tri-track 760 mm (30 in) double grouser tri-track 910 mm (36 in) triple grouser tri-track |
ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.
