Equipped with a larger blade and housing for increased cutting capacity.

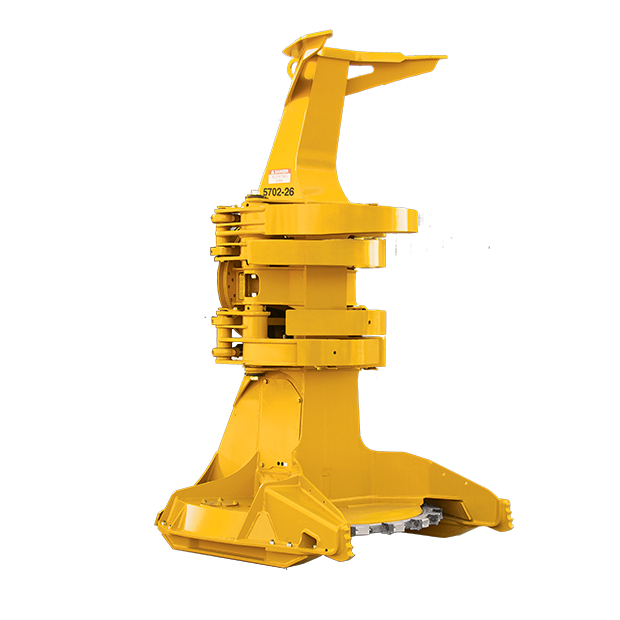

5702-26 Felling Saw

5702-26 Felling Saw

Equipped with a larger blade and housing for increased cutting capacity. SPECS DEALER BENEFITS Felling Heads SPECS BENEFITS DEALER

Highlights

weight icon
weight icon




Weight
Maximum Cut
Area
2 950 kg
6,500 lb
660 mm
26 in
0,6 m²
6.4 ft²
Weight
Maximum Cut
Area
2 950 kg
6,500 lb
660 mm
26 in
0,6 m²
6.4 ft²

Overview

Well matched to the Tigercat X870D series feller bunchers, the 5702-26 is well suited to large timber felling applications. The wider saw blade housing reduces the requirement for double cuts, improving overall feller buncher productivity.

Product Specifications

Metric
Imperial

Dimensions

WIDTH 1 840 mm
HEIGHT less skis 2 910 mm
DEPTH 1 940 mm
BASE WEIGHT 2 950 kg
FRONT OPENING 1 380 mm
SINGLE CUT CAPACITY 660 mm
ACCUMULATING AREA 0,43 m²
Including blade 0,6 m²
ACCUMULATING CAPACITY (8-11) trees 15 cm (6 in) diameter

Hydraulic Cylinders

ACCUMULATING/CLAMP ARMS (2) 95 mm (3.75 in) bore
340° WRIST 3-motor drive, high torque

Cutting Blade

DISC series 74 1 625 mm (64 in) diameter
1-piece
KERF 64 mm
TEETH (20) Rotatable
Carbide or hardened steel
MOTOR 170 cc
BLADE SPEED 1,025 rpm
SAW DRIVE Direct drive
Piston motor
Tigercat Brochure

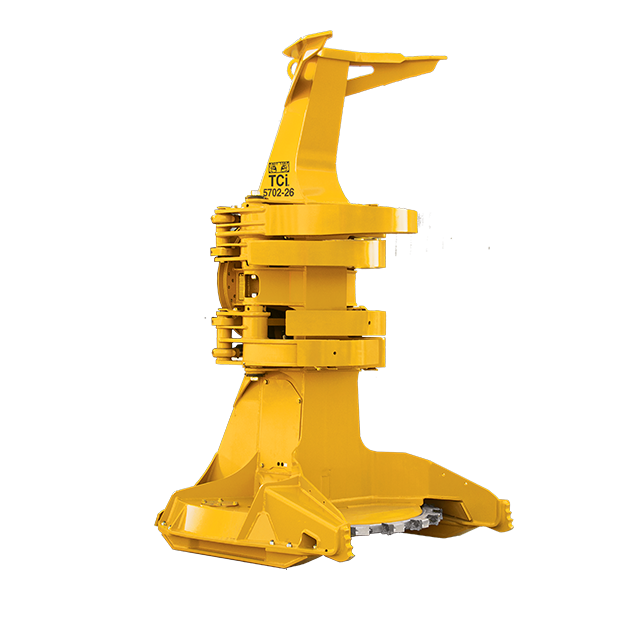

TCi Brochure

Key Benefits

Optimally positioned accumulator and grab arms. Excellent control of large trees
Built to last. Cushioned cylinders and heavy duty saw drive system
Optimal chip deflection. Quick blade recovery, chips are discharged downward
Convenient lubrication points for quick maintenance routines
Wide throat opening to accommodate flared butts
Standard or high rotation wrist options
Optimally positioned accumulator and grab arms. Excellent control of large trees
Optimal chip deflection. Quick blade recovery, chips are discharged downward
Wide throat opening to accommodate flared butts
Built to last. Cushioned cylinders and heavy duty saw drive system
Convenient lubrication points for quick maintenance routines
Standard or high rotation wrist options

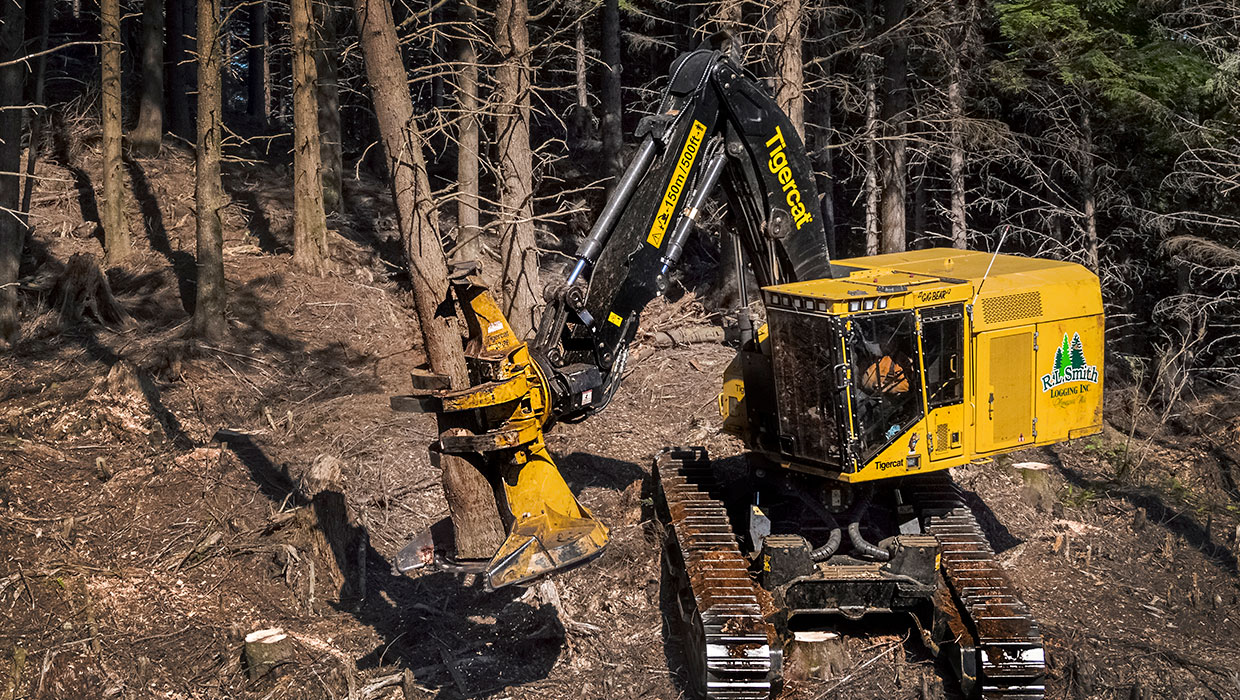

Image of a Tigercat 5702 felling saw working in the field Image of a Tigercat 5702 felling saw working in the field

In the Field
